Trapezoidal Steel Decking Single Double Wave Roll Forming Machine Floor Deck Steel Forming Machinery

General Industry Tech Hebei Developing Co., Ltd.
  • After-sales Service：Technical Service for Whole Life
  • Warranty：2 Year
  • Tile Type：Steel Deck
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized

Base Info

  • Model NO.：ZTRFM
  • Usage：Floor
  • Name：Floor Decking Tile Roll Forming Machine Steel Deck
  • Thickness：0.8-1.5mm
  • Raw Material：Galvanized Steel, G550
  • Basic Frame：500h
  • Shaft Material：No. 45 Steel
  • Shaft Diameter：90mm
  • Main Motor Power：15kw
  • Voltage：380V 50Hz 3phase
  • Blade Material：Gcr12MOV
  • Roller Material：Gcr15 and 45# Steel
  • Machine Test：Yes
  • Factory：Yes
  • Cutting Type：Hydraulic Cutting
  • Speed：15-20m,Min
  • Use：Floor Deck
  • Transport Package：Nude Package
  • Specification：11.6*1.5*1.2m
  • Trademark：ZTRFM
  • Origin：China
  • HS Code：8455221000
  • Production Capacity：500 Set,Year

Description

Main motor power7.5kw+7.5kwRoller materialGCr15 & 45# steel Roller shaft material45# steel with quenched treatmentWork speed15-20 m/minDimesion11600*1500*1200mmStructureMiddle plate welded frame structureMain frame500 H steel weldedDrive modeChains driveControl systemPLC control systemHydraulic station5.5 kw with cooling fan Cutting typeHydraulic cuttingCutter materialGCr12 chromed and quenched for good hardness and using
Working flow
Trapezoidal Steel Decking Single Double Wave Roll Forming Machine Floor Deck Steel Forming Machinery

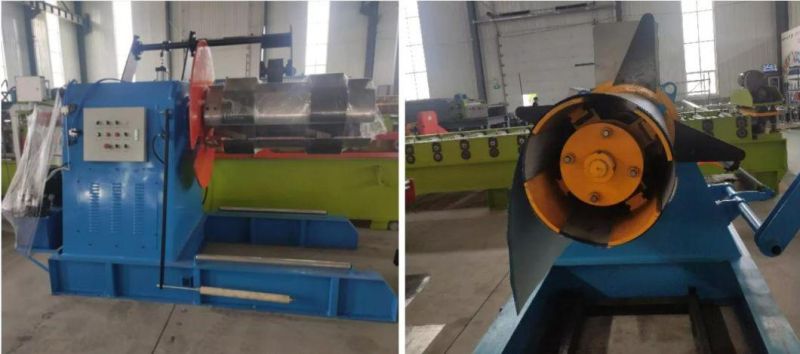

1.Hydraulic Decoiler usage: to support the coil and make the uncoiling capacity: 5 tonsinner diameter: 450-550mmcoil width: 1250mmTrapezoidal Steel Decking Single Double Wave Roll Forming Machine Floor Deck Steel Forming Machinery

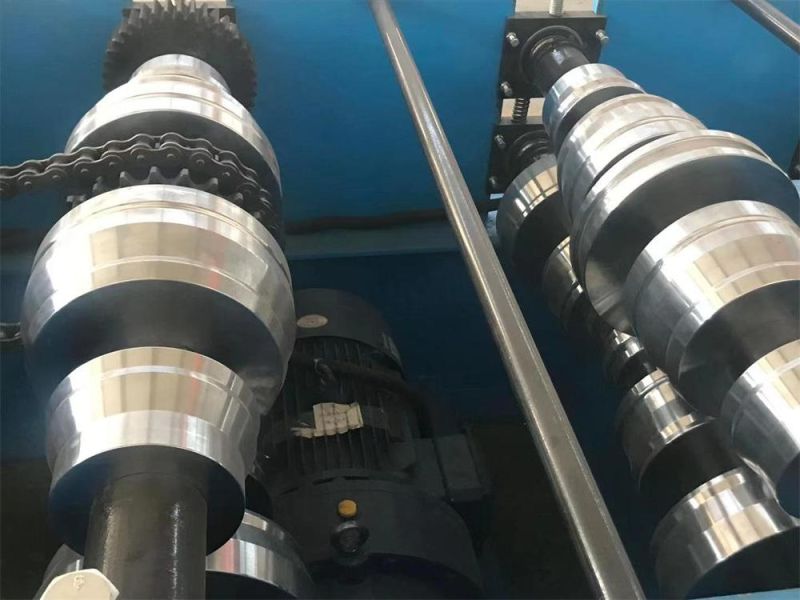

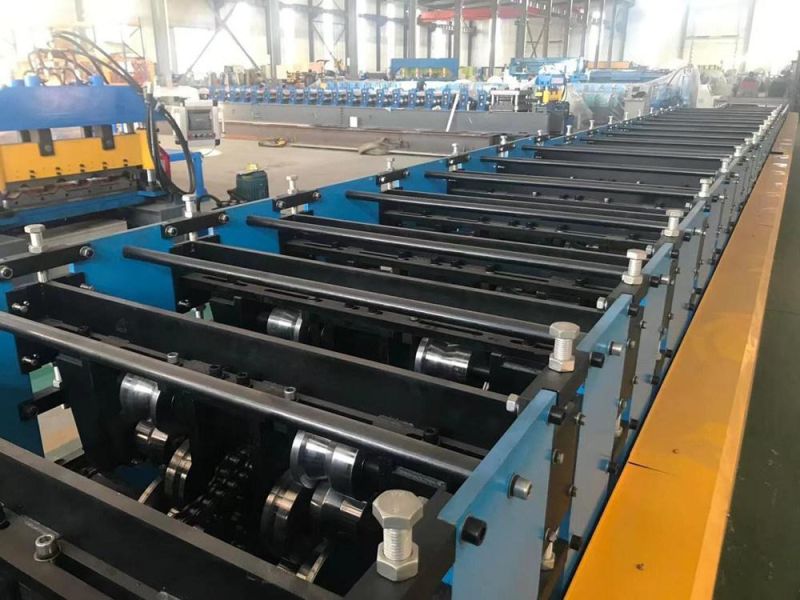

2.Main roll forming machineFeeding device: With two hand wheels to adjust the feeding of the material,with bearing inside of the feeding rollers. Machine frame: 500H steel welded Machine structure: middle plate Roller station: 32 stationsRoller material: 45# steel withquenched treatment and hard chroming Shaft diameter: 80mm,solid Shaft material: 45# steel with tempering treatment Motor power:7.5kw +7.5kwSpeed: 15-20m/min Transmission: By chains Voltage: 380V,50HZ,3Phase
Trapezoidal Steel Decking Single Double Wave Roll Forming Machine Floor Deck Steel Forming Machinery
Trapezoidal Steel Decking Single Double Wave Roll Forming Machine Floor Deck Steel Forming Machinery
Trapezoidal Steel Decking Single Double Wave Roll Forming Machine Floor Deck Steel Forming Machinery
32 rolling station, in order to ship by 40ft container, make the machine in two parts
Trapezoidal Steel Decking Single Double Wave Roll Forming Machine Floor Deck Steel Forming Machinery

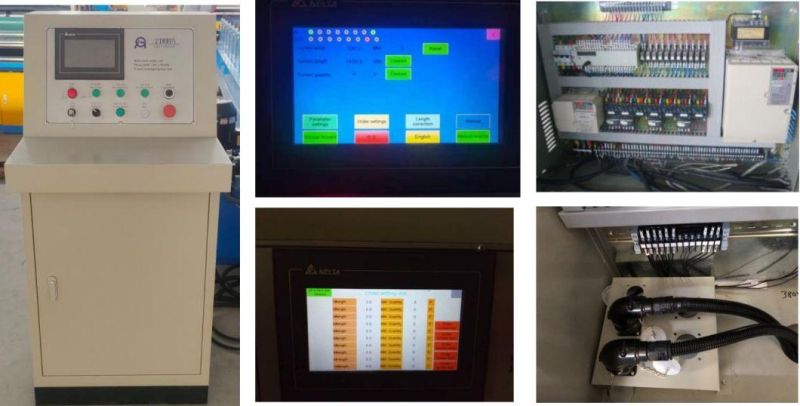

3.PLC control stationPLC brand: Delta from Taiwan Frequency converter brand: Delta from Taiwan Encode: Omron Function: Automatic control the length,quantity and batch
Trapezoidal Steel Decking Single Double Wave Roll Forming Machine Floor Deck Steel Forming Machinery
4.Hydraulic cutting systemBlade material: Cr12 Mov,with quenched treatment Motor power: 5.5 kw Cutting tolerance: +/-1 mm Cooling system: with cooling fan Cutting type: Hydraulic cutting Feature: Low noise and high performance

5.Products receiving tableType: Manual (Auto stacker is also available) Length: 3m, 6m, 9m
