Hot Sale High Precision Fully Automatic Fittings Welding Machine for Hose / Pipe / Tube
Comflex Industrial Co., Ltd.- After-sales Service：Provided
- Warranty：1 Year
- Pipe Material：Stainless Steel
- Condition：New
- Customized：Customized
- Theory：TIG Welding
Base Info
- Model NO.：Comflex
- Application：Industry
- Type：Pipe Production Line
- Machine Name：Pipe,Hose End Welding Fixture
- Displacement Angle：0~360 Degree
- Material：SUS304, 321, 316L
- Center Diameter of Positioner：140mm
- Welding Torch Displacement Angle：0~90 Degree
- Machine Dimension：1300mm*2000mm*1650mm
- Max.Loading Weight：240kg
- Machine Weight：800kg
- Welding Layers：Automatic Layering
- Applicable Welding Wire Diameter：1.0mm
- Pipe Thickness：Above 1mm
- Controller：Color Touch Screen Controller
- Storage Content：30 Sets Welding Technologies
- Lead Time：45 Days After Receiving The Deposit
- Machine Package：Polywood Box and Standard Pallet
- Transport Package：Standard Seaworthy Package
- Specification：ISO9001
- Trademark：Comflex
- Origin：Wuxi, Jiangsu, China
- HS Code：8515390000
- Production Capacity：500 Sets Per Year
Description

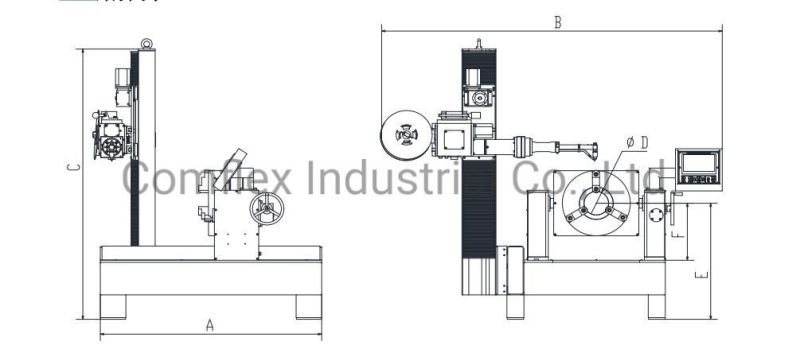

Specification:

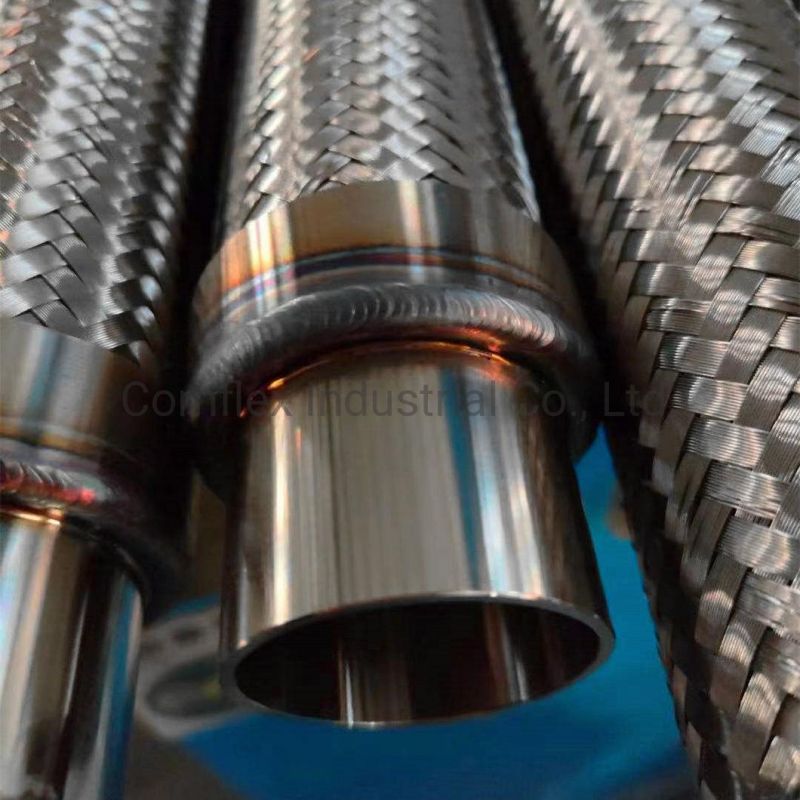

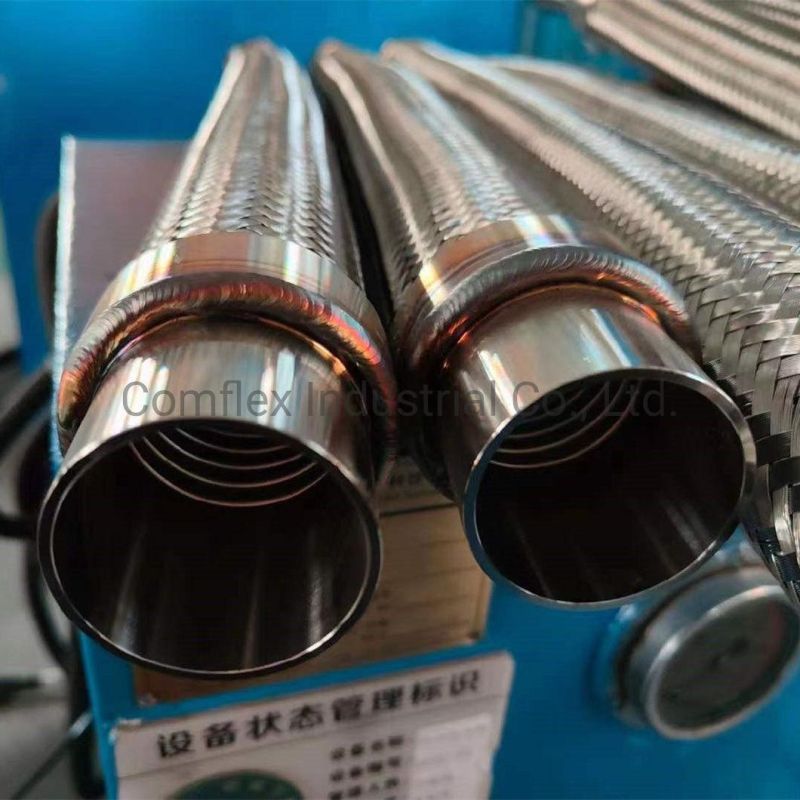

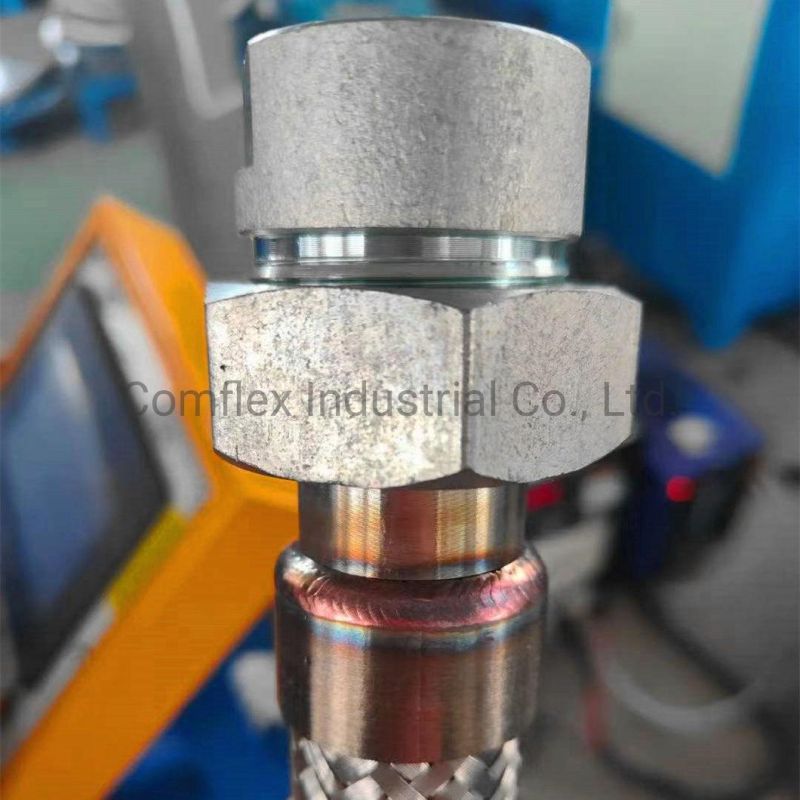

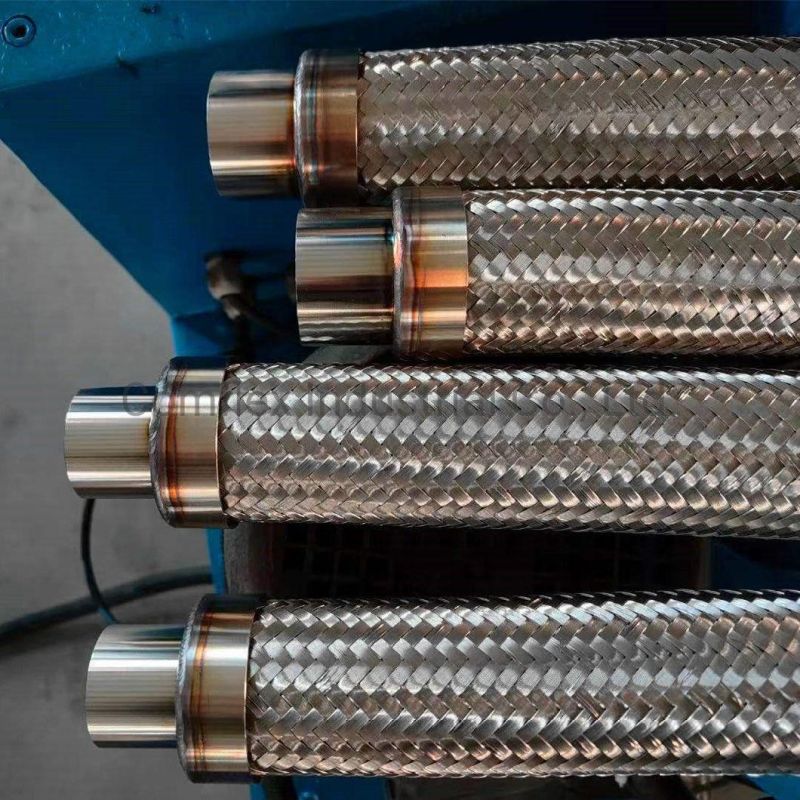

Details Images

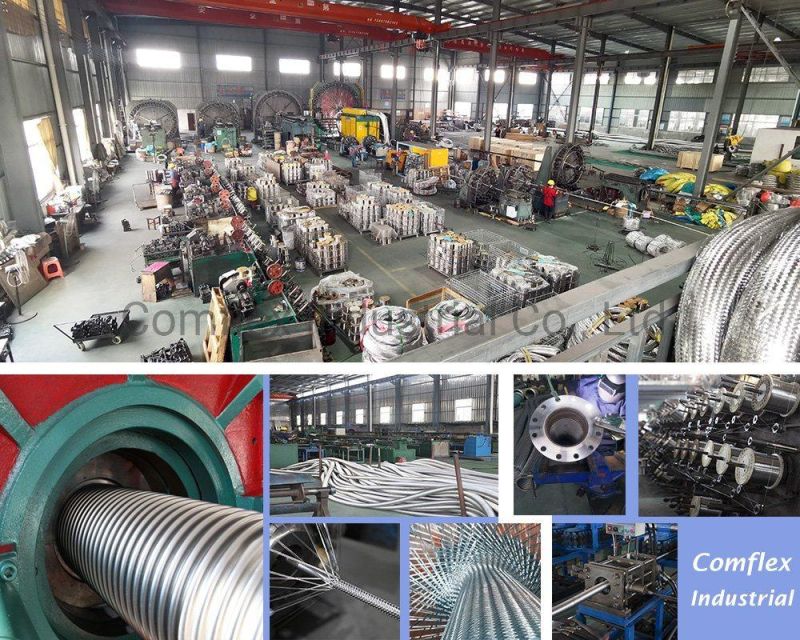

Our Company
Comflex Industrial Co., Ltd. is professional manufacturer of all types of metal flexible metal hose and hose making machinery, such as corrugated metal hose, square lock and interlock hose/ conduit and machiens with more than 35 years of experience. The hoses are widely used in many industries: gas hose, water hose and wire & cable protection circuit, ect. Our products have been exported to many countries, such as Indonesia, Vietnam, UK, Australia, Canada, USA, Russia, Mexico, Poland, Japan etc...
Our Clients:
FAQ
Q: Why choose us for hose fitting/flange welding machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience
Q: What size can you make?
A: All the sizes from DN20 up to DN400 can be made on different machines
Q: How many different types of machine can you make?
A: Hydraulic metal hose forming machine
a:DN16-65mm b:DN25-DN100mm c:DN32-150mm d:DN50-300mm e:DN80-400mm
B: Mechanical hose making machine
DN8-50mm
C: PU/ Elastomer Metal Hose Making Machine
a:DN12-100 b: DN50-150 c:DN12-65
We need to know the following information to quote you correct machinery:
1. Size range you want to weld
2.The application of the hose you need, for instance, natural gas hose, water hose, air-conditional hose, etc..
3.Wall thickness
Details ImagesOur Company
Comflex Industrial Co., Ltd. is professional manufacturer of all types of metal flexible metal hose and hose making machinery, such as corrugated metal hose, square lock and interlock hose/ conduit and machiens with more than 35 years of experience. The hoses are widely used in many industries: gas hose, water hose and wire & cable protection circuit, ect. Our products have been exported to many countries, such as Indonesia, Vietnam, UK, Australia, Canada, USA, Russia, Mexico, Poland, Japan etc...
Our Clients:FAQ
Q: Why choose us for hose fitting/flange welding machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience
Q: What size can you make?
A: All the sizes from DN20 up to DN400 can be made on different machines
Q: How many different types of machine can you make?
A: Hydraulic metal hose forming machine
a:DN16-65mm b:DN25-DN100mm c:DN32-150mm d:DN50-300mm e:DN80-400mm
B: Mechanical hose making machine
DN8-50mm
C: PU/ Elastomer Metal Hose Making Machine
a:DN12-100 b: DN50-150 c:DN12-65
We need to know the following information to quote you correct machinery:
1. Size range you want to weld
2.The application of the hose you need, for instance, natural gas hose, water hose, air-conditional hose, etc..
3.Wall thickness
