High Speed Light Steel Keel Making Machinery Ceiling Stud and Track Roll Forming Machine for Villa

General Industry Tech Hebei Developing Co., Ltd.
  • After-sales Service：Video Techenical Support
  • Warranty：1 Year
  • Tile Type：Light Gauge Keel Steel
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized

Base Info

  • Model NO.：GEIT
  • Usage：Roof
  • Transmission Method：Chains
  • Name：Villa Use C U Channel Frame Steel Making Machinery
  • Raw Material：Galvanized Steel
  • Thickness：0.3-0.8mm
  • Shaft Material：45# Steel
  • Shaft Diameter：60mm
  • Roller Material：45# Steel
  • Roller Stations：14 Rows
  • Blade Material：Gcr12 Queched
  • Cutting Type：Hydraulice Cutting
  • Cutting Tolerance：+,-1mm
  • Use：Villa Use Light Gauge Steel
  • Feeding Width：300mm
  • Basic Frame：350h Steel
  • Transmission Type：Chains
  • Structure：Arch Structure
  • Transport Package：Standard Packing
  • Specification：5800*800*1200mm
  • Trademark：ZTRFM
  • Origin：Botou, Hebei, China
  • HS Code：8474801
  • Production Capacity：300 Sets,Year

Description

Main motor power5.5kwHydraulic motor power4kwHydraulic Pressure10-12MPaVoltage380V/50HZ/3PhaseControl SystemPLC (Delta brand)Feeding MaterialGalvanized steelFeeding Thickness0.3-0.8mmSpeed30-50m/minRoller station14 rowsShaft diameter60mmShaft material45# steelRoller material45# steelCutter materialCr12 quenchedDimension5200*800*1200mmWeightabout 4500 kg
Description in detail

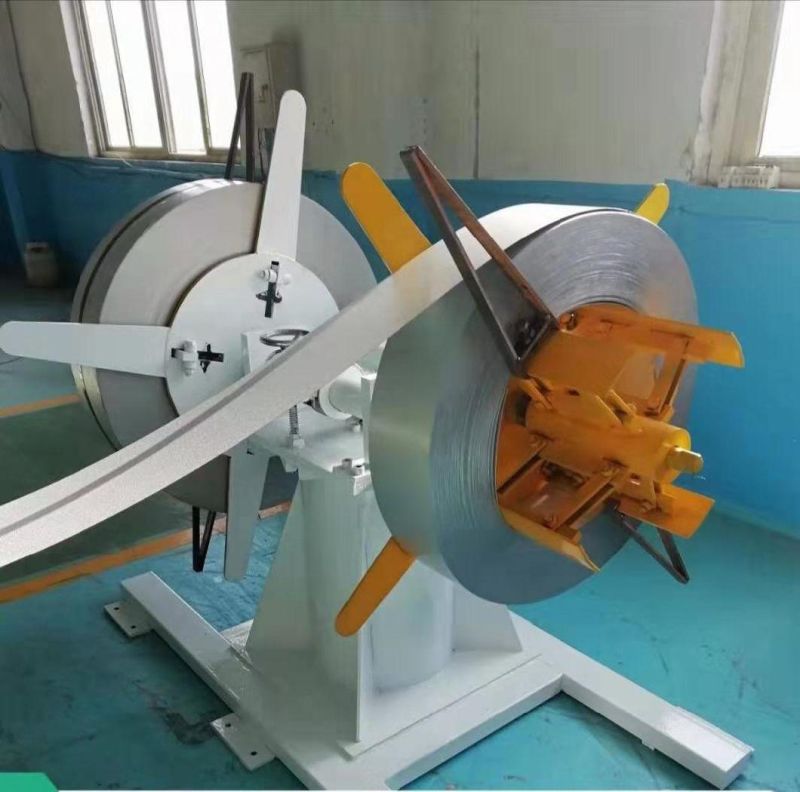

equip with 3T manual decoiler

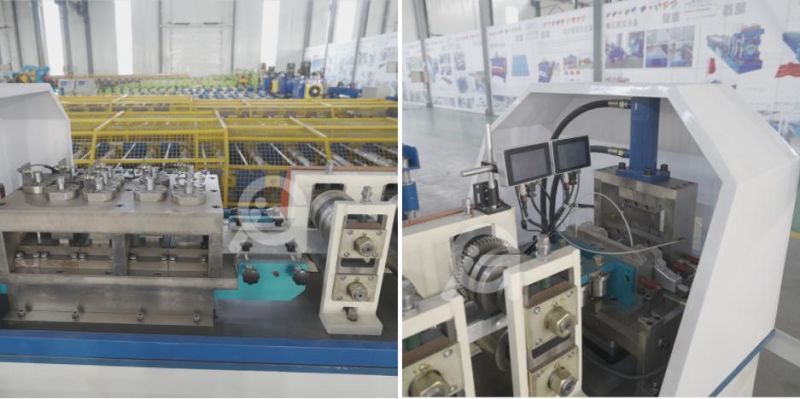

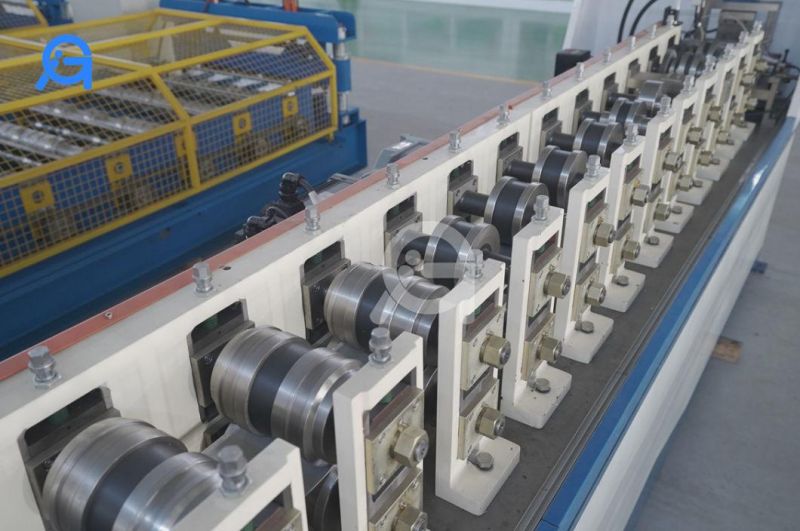

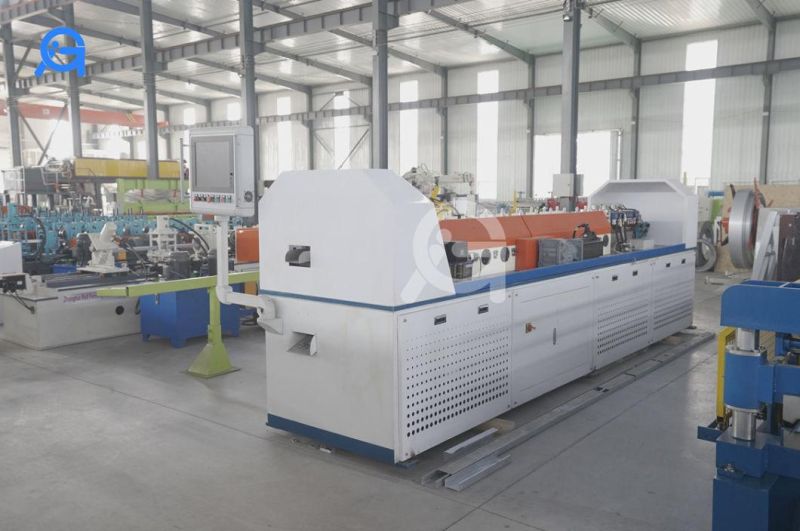

High Speed Light Steel Keel Making Machinery Ceiling Stud and Track Roll Forming Machine for VillaMain roll forming machine
Roller station: 14 stations
Roller material: 45# steel withquenched treatment and hard chroming
Shaft diameter: 60mm,solid
Shaft material: 45# steel with tempering treatment
Motor power:5.5 kw
Speed: 30m/min
Transmission: By chains
Voltage: 380V,50HZ,3Phase

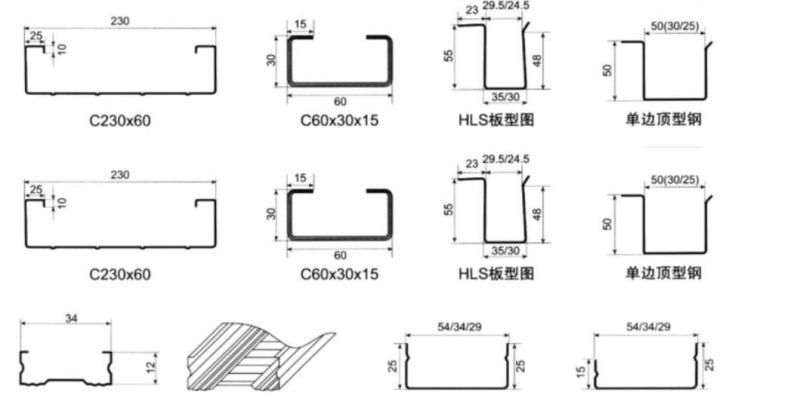

High Speed Light Steel Keel Making Machinery Ceiling Stud and Track Roll Forming Machine for VillaHigh Speed Light Steel Keel Making Machinery Ceiling Stud and Track Roll Forming Machine for VillaHigh Speed Light Steel Keel Making Machinery Ceiling Stud and Track Roll Forming Machine for VillaRegular profiles drawing

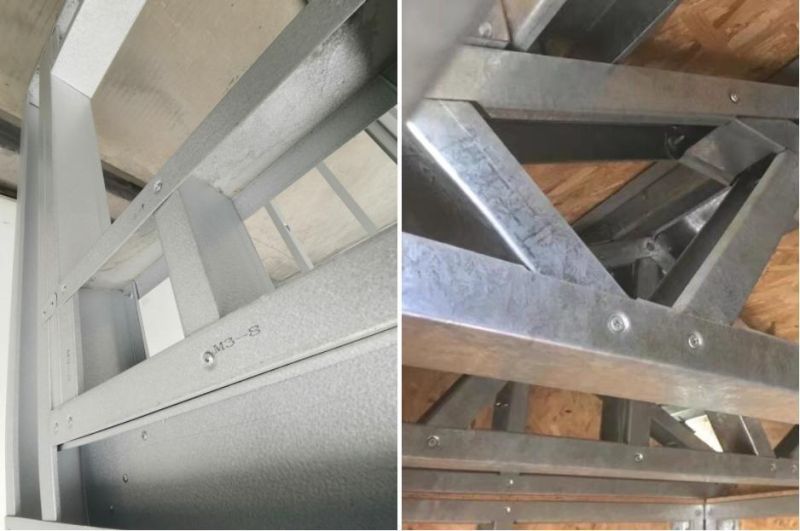

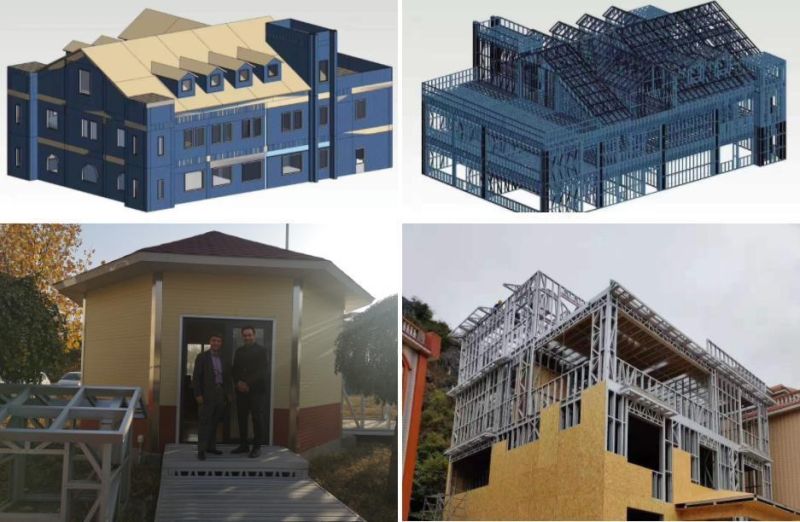

High Speed Light Steel Keel Making Machinery Ceiling Stud and Track Roll Forming Machine for VillaAppliction

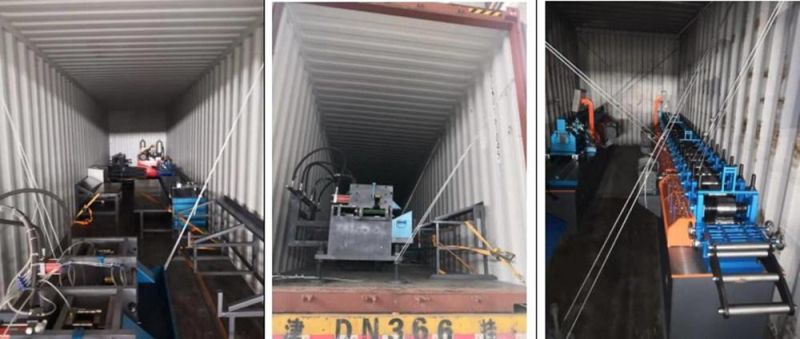

High Speed Light Steel Keel Making Machinery Ceiling Stud and Track Roll Forming Machine for VillaHigh Speed Light Steel Keel Making Machinery Ceiling Stud and Track Roll Forming Machine for VillaPacking
High Speed Light Steel Keel Making Machinery Ceiling Stud and Track Roll Forming Machine for Villa
High Speed Light Steel Keel Making Machinery Ceiling Stud and Track Roll Forming Machine for VillaHigh Speed Light Steel Keel Making Machinery Ceiling Stud and Track Roll Forming Machine for VillaFAQ:
Q1. Can you manufacture the roll forming machine according to my profile drawing or picture of finished product ?
A: Yes. Our rich experienced technical team can draft the accurate profile drawing, provide the most suitable technical solution for your required roll forming machine.
Q2. How can we be assured that you will deliver us quality machine with spare parts ?
A: 1. Customers can come to our factory, or send the technical people to our factory for checking the quality.
2. We can send the technicians to the buyer's factory for the installation of the machine.
Q3. What's your payment terms and delivery time?
A: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable. After we get down payment, we will arrange production. About 45 workdays for delivery.
Q4. Do you have after-sales support?
A: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q5. Do you sell only standard machines?
A: No, most of our machines are customized according to customers specifications, also adopt top brand components.
Q6. What will you do if the machine is broken?
A: We provide 1 year free warranty and free technical support for the whole life of any machine. If the broken parts can't
repair,we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the roll forming machine.
Q7. Can you be responsible for transport?
A: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q8. How to visit your company?
A:1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2)Fly to Tianjin airport, By high speed train From Tianjin to Cangzhou Xi (0.5 hour).
3) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
