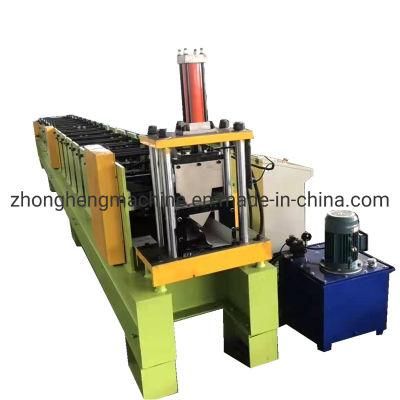

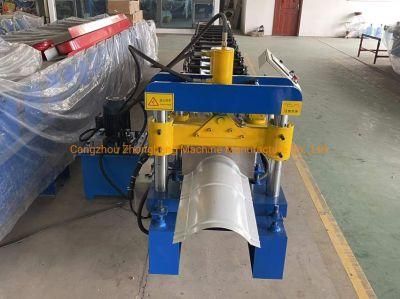

Galvanized Metal Roof Ridge C-a-P Roll Forming Machine Watershed Roofing Sheet Making Machine Tile Making Machinery

Cangzhou Zhongheng Machine Manufacture Co., Ltd.
  • After-sales Service：Whole Life Aftersale Service
  • Warranty：Whole Life Aftersale Service
  • Tile Type：Colored Steel
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized

Base Info

  • Model NO.：zh
  • Usage：Roof
  • Transmission Method：Electric
  • Dimension(L*W*H)：7800mm*1.55mm*1.3mm
  • Weight：3500kg
  • Thickness of Material：0.3mm-0.8mm
  • Roller Material：45# Forged Steel with Hard Chrom
  • Cutting Material：Cr12
  • Main Motor：4kw
  • Pump Motor for Cutter：3kw
  • Structure：300h Beam
  • Forming Stations：14
  • Shaft Material：70mm
  • Speed：10 Meters , Min
  • Transport Package：Water Proof Plastic Film Cover
  • Specification：335
  • Trademark：ZHONGHENG
  • Origin：China
  • HS Code：8455221000
  • Production Capacity：50 Sets,Months

Description

Suitable materialPPGI  GI  ALCoil Width914/925/1000/1200/1220/1250mm as customThickness0.3-0.8mm as customPower380V 50Hz 3Phase  as customMain motor5.5KW SiemensHydraulic motor4KW SiemensSpeed15-30m/minForming stations12-18 rows Roller materialCr12 steel with vacuum heat treatment HRC57°-60°Shaft material45# steel quenched and temperedShaft diameter75mmChain1.2 inchScreem HMI Delta , Touch ScreenPLC Delta , SiemensProcessing precisionWithin 1mmSize 7.6m×1.5m×1.2mWeight4.5T

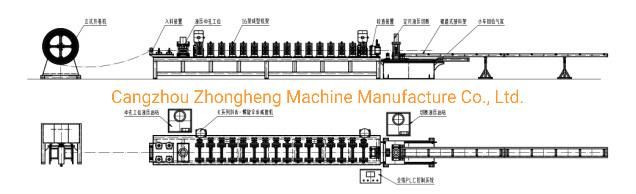

Flow chart
Galvanized Metal Roof Ridge C-a-P Roll Forming Machine Watershed Roofing Sheet Making Machine Tile Making Machinery

Components of line
1) Manual De-coiler ------------------------------------------------------ 1 set
2) Guiding Device---------------------------------------------------------1 set
3) Roll Forming System--------------------------------------------------- 1set
4) Cutting Device---------------------------------------------------------- 1set
5) Hydraulic System------------------------------------------------------- 1 set
6) PLC Control System----------------------------------------------------1 set
7) Run out table ----------------------------------------------------------- 1 set

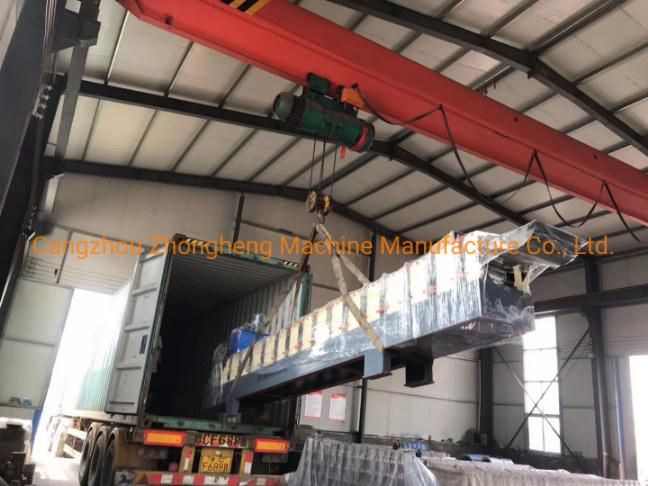

Package and shipment
One set of ridge cap machine can put in one 40' container
