PVC Marble Board Extrusion Machine (SJSZ80X156)

Qingdao Suke Machinery Co., Ltd.
  • Warranty：12monthes
  • Automatic Grade：Automatic
  • Power Source：Electric
  • Screw Design：Double-Screw
  • Certification：CE, ISO
  • Condition：New

Base Info

  • Model NO.：SJSZ80x156
  • Customized：Customized
  • Raw Materal：PVC Board
  • Extruder Type：Conical Twin Screw Extruder
  • Inverter：ABB or FUJI
  • Contactor：Siemens
  • Temperature Controller：Omron
  • Control：Automatic
  • Voltage：380V
  • Motor：AC Motor
  • Machine Color：as Request
  • Transport Package：in PE Film
  • Specification：CE, SGS, ISO
  • Trademark：SUKE
  • Origin：Qingdao, China
  • HS Code：84775900
  • Production Capacity：50sets,Year

Description

I. Machine Introduction Certificate: CE, ISO9001:2008, SGS,
Brand Name: SUKE
PVC marble board extrusion machine is  composed of special twin-screw extruder, T-die head and downstream equipments. This machine has the features of high output, stable extrusion, high foaming, smooth and wearable surface etc. And also our company will supply the customer raw material formulation and whole processing technology.

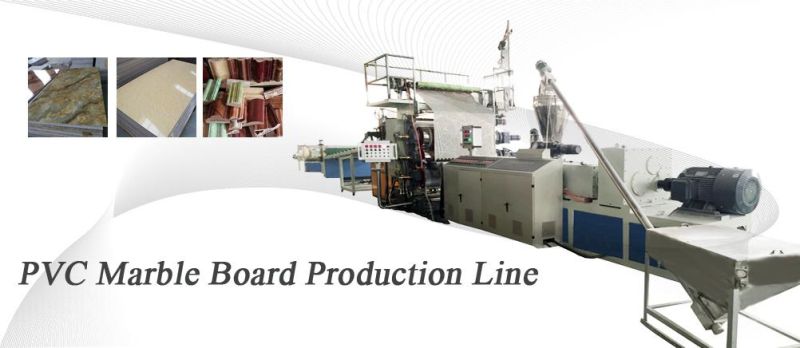

PVC Marble Board Extrusion Machine (SJSZ80X156)II. Production Process Flow Raw materials--- Mixing --- Feeding --- Extruding ---Molding --- Calibrating --- Haul-off --- Cutting--- Stacking--- Printing or Hot stamping(optional) --- Package.
 III. Machine FeaturesThis line has the features of compact structure, high performance. After special design, screw and barrel has the features of uniform plasticization, stable extrusion capacity, high output, long service time. Barrel adopts cast aluminum heating ring, fan cooling and precision temperature control system.Calander can adjust the sheet shape and keep product in good situation by precision design. Cutting machine has meter counting device, and cut the board in right with no error.
 IV. Equipment List:PVC Marble Board Extrusion Machine (SJSZ80X156)
PVC Marble Board Extrusion Machine (SJSZ80X156)


1.    Double Screw Extruder (screw feeder)                1 unit
2.    Mould(T-Die)                                                       1 set
3.    Three Roller Calander                                         1 unit
4.    Cooling Frame and edge Cutting Devices            1 unit
5.    Haul-off Machine                                                 1 unit
6.    Cutting Machine                                                  1 unit
7.    Stacker                                                                1 unit
Optional Auxiliary Machine;
1.    Crusher                                                                1 unit
2.    Mixer                                                                    1 unit
3.    Pulverizer                                                             1 unit
4.    Air Compressor                                                     1 unit
 V. Trade Terms 1.    Payment Term: 30% for prepayment by T/T, 70% for balanced payment by T/T, or L/C can be acceptable
2.    Delivery Time: 40 days after receipt of prepayment.
3.    Packing Method:  Packing film or wooden case, 1*20 GP, 1* 40 GP.
4.    Guaranteed Time:  12 months
 VI. Machine Test and After Service 1.    When machine finished, we will invite client come to our factory to check the machine and do the machine test. If machine is ok, then client pay for the balance. And inspect machine load the container.
2.    When machine arrives client's factory, if client needs, we will send 1-2 engineer to client's factory do the machine installation and running test, and also train the local worker how to operate and maintain the machine. It is chargeable.
 Contact Information:
   PVC Marble Board Extrusion Machine (SJSZ80X156)ModelSJSZ80/156Screw diameter                                      mmφ80-156Motor Power                                            kw55Heating power                                        kw36Screw rotation speed                            r/min1-32Output per day                                         t8Board Specification                                mm1220x2440Total Power                                              kw150
Welcome contact with us, if there is any need.
