• Model NO.：Customized
• Raw Material：Galvanized Sheet
• Roller Material：45#Steel Chrome Plated
• Control System：PLC(Imported Brand)
• Color：Client′s Request
• Thickness：0.3-0.8mm
• Transport Package：Nude
• Specification：CE SGS ISO
• Trademark：DIXIN
• Origin：Botou, Hebei, China
• HS Code：84552210
• Production Capacity：500 Sets,Month

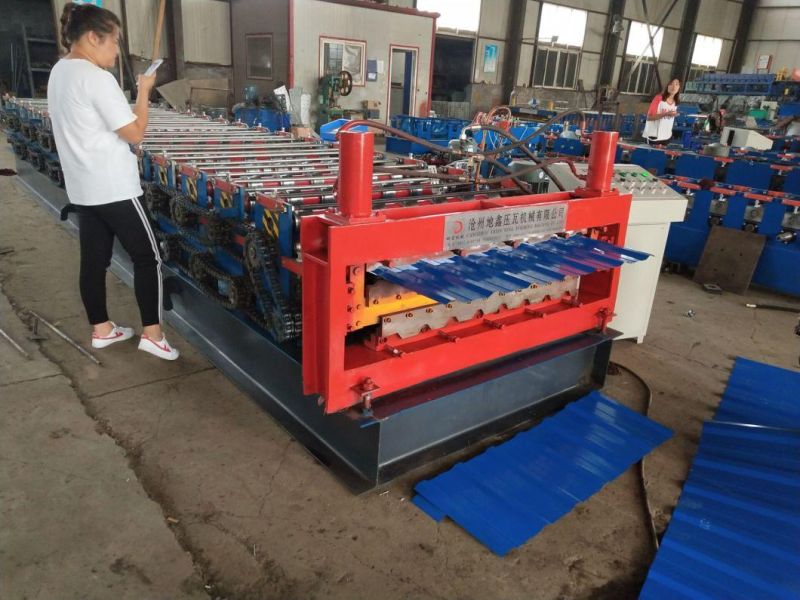

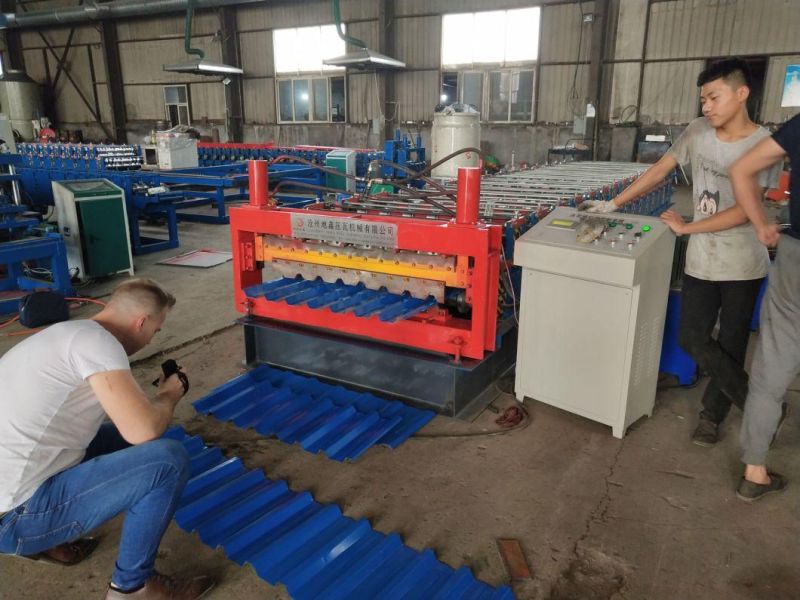

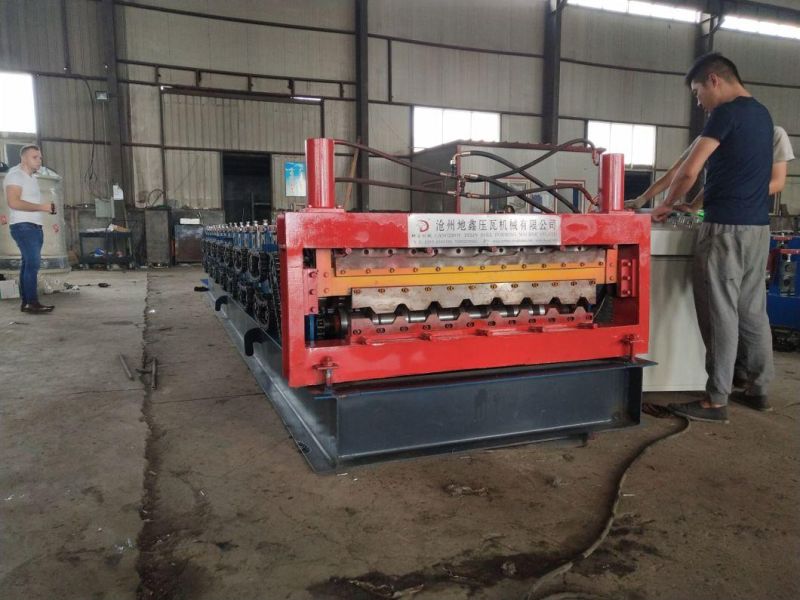

Roller station

18Steps

Under Frame

400H-beam, Welded structure

Shaft diameter(Solid)

70mm-0.01~-0.03(with key-way)

Shaft material(Hard)

High grade 45# steel,heated and quenched,cylindrical grinding,

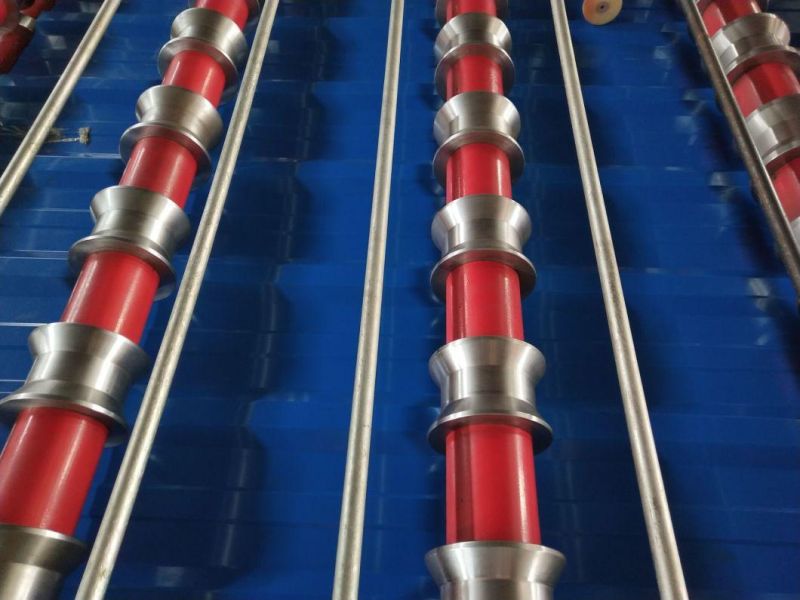

Roller material(Hard)

Cr12,heated and

Quenched,polishing

   Bearing Type

Standard

Transmission Gear

Heat treatment

Motor Power

5.5KW(Lichao,Shanghai)

Forming Speed

0-20m/min(Non-Stop)

Main Structure

Welded Structural Steel

Hydraulic Cutting

Tracking Length To Cut

 Pump power

5.5 KW

Hydraulic pressure

20 Mpa

Voltage Standard

       380V/3Phases/50Hz

Cutting die

Cr12Mov, Quenched processed

Working flow








 A. Foreign commissioning

We will arrange our professional engineers to help you install and debug the machine well.   Buyer should pay$100 for each engineer every day and                                                                             responsible for transportation (including round-trip ticket), insurance, and suitable accommodation.

B.Warranty period

1.The warranty will be maintenance, maintain in the guarantee period of 18months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts to charge freely, which is in the conditions of correct operation.

C. Training

During installation and adjustment of the equipment, our engineers are able to provide the training that

buyer's personnel request to operate and maintain the equipment.

Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.

D. Services

Lifetime services to every customer.

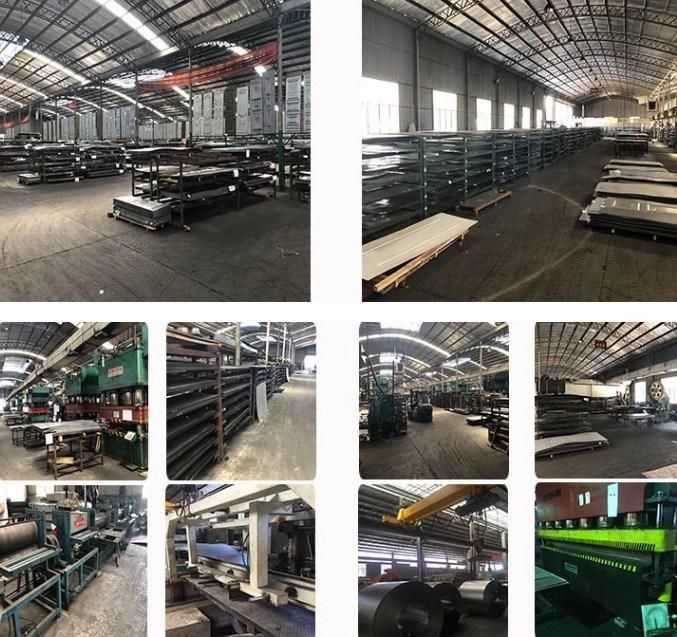

Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel  purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.
Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.  We can satisfy the different needs of different markets.

1.Packaging Details:Nude,with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.

2.Port:TIANJIN XINGANG PortLead .

3.Time: Shipped in 35 days after payment.

Usually the welding pipe cold roll forming machine can be packed into one 20' feet container or 40' feet container. We have good relationship with the shipping agent. Either you can find the shipping line at your side or we can help you.

Q1. What are the main key points for selecting right machines?

A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.

Good quality is for long-term business cooperation.

Q2. Can you provide OEM service for roll forming machine?

A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.

Q3. What's your standard trade terms ?

A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.

Q4. How about the quality control?

A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.

Q5. How about the after-sale service?

A5: We provide 12 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.

Q6. If I am in Beijing,or Shanghai ,how to visit your company?

A6: 1)Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

2)Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.
