• Model NO.：Customized
• Raw Material：Galvanized Sheet
• Roller Material：45#Steel Chrome Plated
• Control System：PLC(Imported Brand)
• Color：Client′s Request
• Thickness：0.3-0.8mm
• Transport Package：Nude
• Specification：CE SGS ISO
• Trademark：DIXIN
• Origin：Botou, Hebei, China
• HS Code：84552210
• Production Capacity：500 Sets,Month

Roller station

18Steps

Under Frame

400H-beam, Welded structure

Shaft diameter(Solid)

70mm-0.01~-0.03(with key-way)

Shaft material(Hard)

High grade 45# steel,heated and quenched,cylindrical grinding,

Roller material(Hard)

Cr12,heated and

Quenched,polishing

   Bearing Type

Standard

Transmission Gear

Heat treatment

Motor Power

5.5KW(Lichao,Shanghai)

Forming Speed

0-20m/min(Non-Stop)

Main Structure

Welded Structural Steel

Hydraulic Cutting

Tracking Length To Cut

 Pump power

5.5 KW

Hydraulic pressure

20 Mpa

Voltage Standard

       380V/3Phases/50Hz

Cutting die

Cr12Mov, Quenched processed

Working flow

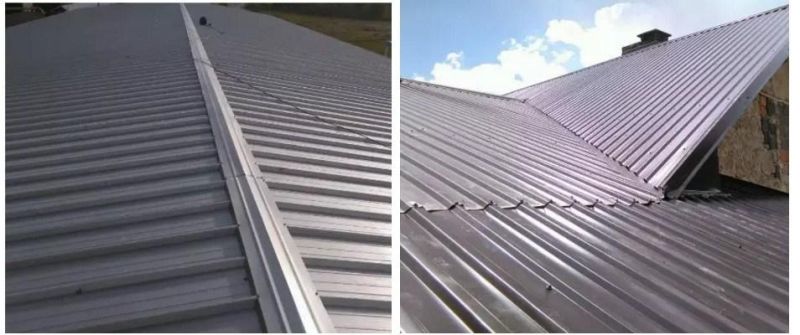

This product is widely used in many kinds of industrial factory, civilian buildings, and wall board for attached part product. It has advantage of pretty appearance, durable using and so on.

Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel  purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.

Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers' trust, our machines have been sent to  Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.  We can satisfy the different needs of different markets.

 1. Technology:We have centers and innovative designing teams for different kinds of production lines.
2. After Sale Service:Warranty period 1 year , after this period , we are willing to give help

if customer needs accessory . The real cooperation will not end at the delivery .

we believe that satisfied after sale service means a lot.
3. Inspected by the Sellers:After completing the manufacturing and assembling of the equipments,

we will test the machines and commissioning in the workshop.
4. Inspected by the Buyers:After confirmation of a sound work of the line,

we will invite our customer to send their representatives to inspect the production lines in our factories.

Q1. What are the main key points for selecting right machines?

A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.

Good quality is for long-term business cooperation.

Q2. Can you provide OEM service for roll forming machine?

A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.

Q3. What's your standard trade terms ?

A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.

Q4. How about the quality control?

A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.

Q5. How about the after-sale service?

A5: We provide 12 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.

Q6. If I am in Beijing,or Shanghai ,how to visit your company?

A6: 1)Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

2)Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.
