• Model NO.：steel forming machine
• Certification：CE, ISO
• Condition：New
• Customized：Customized
• Usage：Roof, Wall
• Transmission Method：Hydraulic Pressure
• Name：Steel Forming Machine
• Main Frame：300 H Steel
• Thickness of Middle Plate：16mm
• Roller Material：45# Steel with Chrome Surface
• Shaft Material：45# Steel
• Control System：PLC
• Color：Customized
• Speed：10-15m,Min
• Cutter Material：Cr12
• Product：Steel Forming Machine
• Transport Package：Main Body Nude in Container
• Specification：6500*1500*1300mm
• Trademark：DIXIN
• Origin：Botou, Hebei, China
• HS Code：84552210
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. steel forming machine Certification CE, ISO Condition New Customized Customized Usage Roof, Wall Transmission Method Hydraulic Pressure Name Steel Forming Machine Main Frame 300 H Steel Thickness of Middle Plate 16mm Roller Material 45# Steel with Chrome Surface Shaft Material 45# Steel Control System PLC Color Customized Speed 10-15m/Min Cutter Material Cr12 Product Steel Forming Machine Transport Package Main Body Nude in Container Specification 6500*1500*1300mm Trademark DIXIN Origin Botou, Hebei, China HS Code 84552210 Production Capacity 30 Sets/Month

Product Description

Africa hot sales Ibr sheet Forming Machine

The advantage of IBR sheet includes beautiful, classical appearance and grace taste.

It can be widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating

1.Equipment detailed parameters:

1.Processing material	aluzinc/galvanized steel/colored steel coil
2.Material thickness	0.3-0.8mm
3.Feeding width:	1000/1200/1250mm
4.Effective width	as drawing
5.Main motor power	4kw
6.hydraulic pump power	4kw
7. Shaft diameter	75mm
8.Forming steps	13steps
9.Main frame	300H Steel frame
10. Side plate thickness	16mm
11.Roller material	45# forged steel, with hard chrome plating
12.Control systerm	PLC control system with touch screen
13.Cutting blade material	Cr12
14.Working speed	About 10-12m/min
15. Transmission way	1 inch chain drive
16. Machine size (mm)	About 6800*1500*1400mm
17. Machine weight	About 2.5ton
18.Power supply	380v,3phase,50hz or accodring to customer request

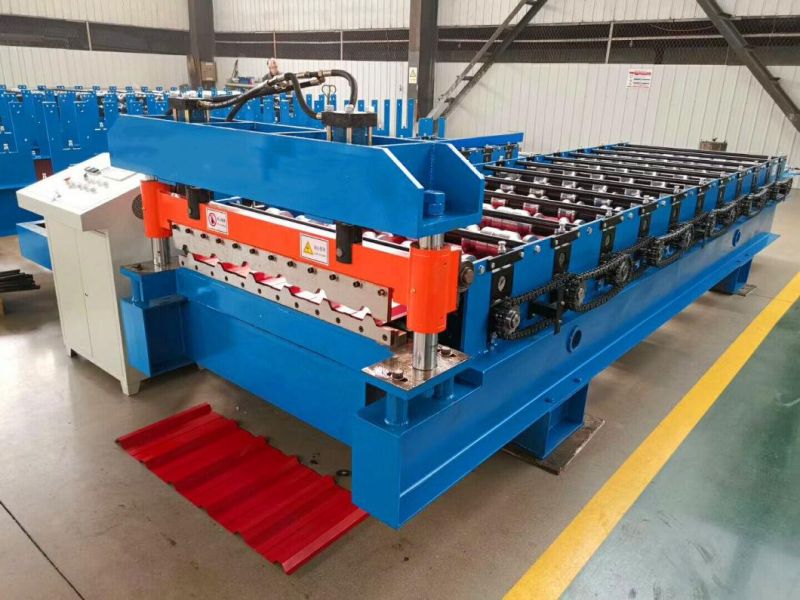

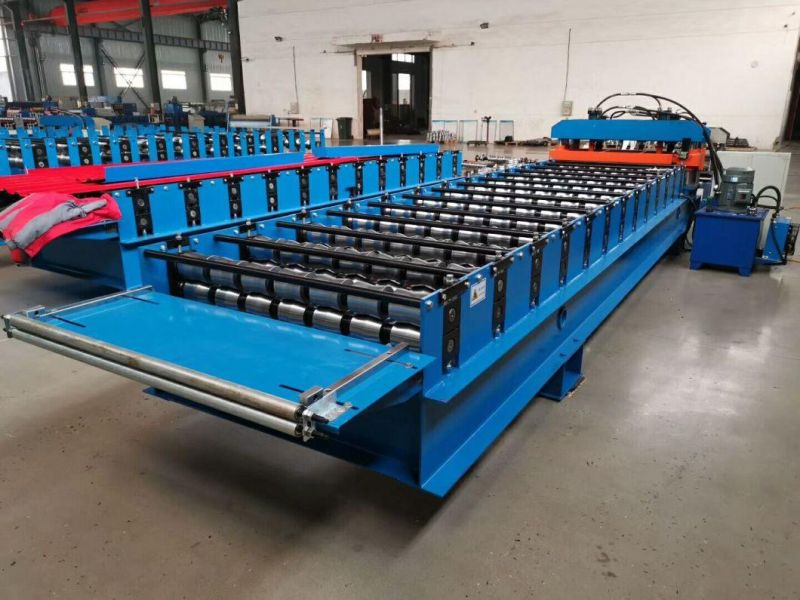

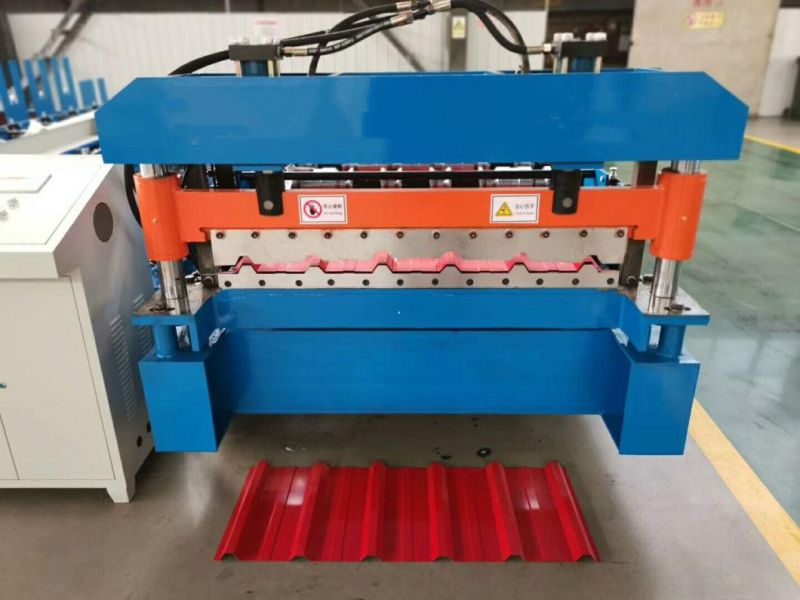

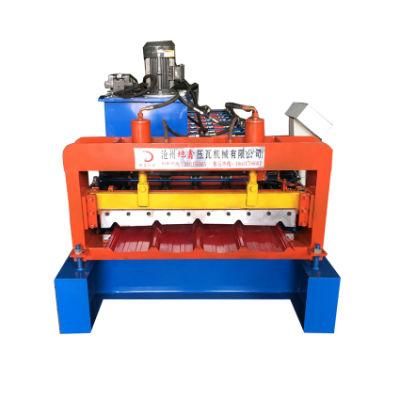

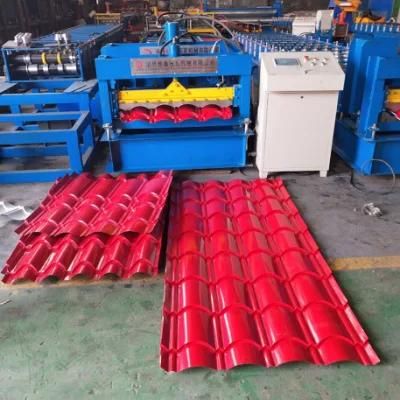

2.Some machine pictures for your reference.





3.Packing and shipping details

a. Need one 20 or 40 ft container, according to your final drawing.

b. The main body of machine is fixed to container by 8mm diameter steel wire, rollers and shaft is

    covered with anti-rust oil.

c. Spare parts in carton box.

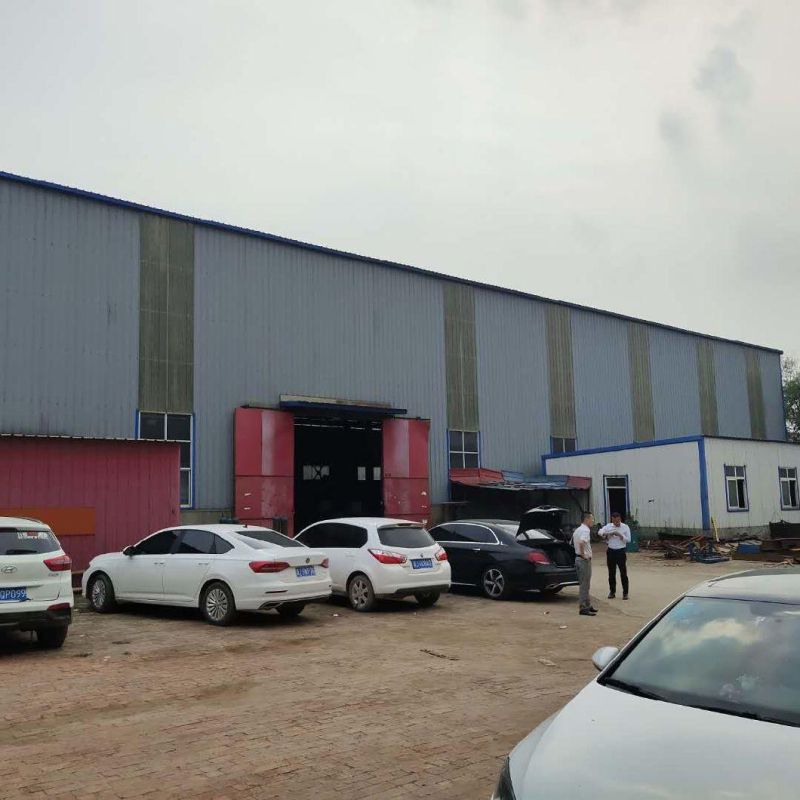

4.About our company

Our products have been sold to worldwide, including North/South America, Asia, Africa, Australia and Europe... We know well about the requirement from different regions' customers. We have outstanding export team to listen to your request; the designed team will show you the best proposal according to your request, and we also have experts, skilled workers offer precision work. Satisfactory solutions were provided to customers and established a long-term strategic partnership.

Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.


5.Some FAQ

1. what is your guarantee period?

Guaranteed against malfunctions due to manufacturing defects for 12 months from the date of loading.



2. Do you provide training for my workers?

The machine has been installed and tested well before shipping. It is easy to operate.

Normally speaking, our customer follows the instruction book and can operate the machine well.?

You can also come to our factory to check the machine and learn how to operate before shipping. It only needs 2 hours and you can operate well.



3. I do not know about the machine and do not know how to install it. Can you install the machine in my factory?

If you need us to send engineers to your factory, you will pay for the travel expense such as visa, round tickets, hotel, food Salary of 80 USD per day per person (from departure from our factory, until we are back to our factory). You also need to take care of his safety.



4. What is included in the machine?

The process for work: decoiler→feeding→roll forming→measuring length→cutting to length→product to stand

The whole line includes a manual decoiler, roll forming machine and product stand. when you get the machine in your factory, you just need to do following 3 things, and then you can start working.

a. Put the machine on the flat level ground.

b. Inject gear oil and hydraulic oil.

c. Connect 3 phase electric wire.
