• Model NO.：Double layer roll forming machine
• Condition：New
• Control Type：PLC
• Automatic Grade：Automatic
• Drive：Hydraulic

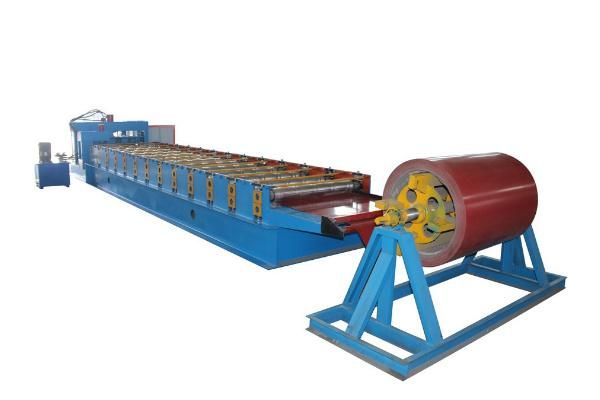

• Name：Double Layer Roll Forming Machine
• Method：Chain Drive
• Type：Two Decking
• Main Body：350 H Steel
• Roller Material：45# Steel
• Roller Shaft：45# Steel Chrome Plating
• Cutting Blade：Cr-12
• Speed：10-15 Meters,Min
• Product Name：Double Layer Roll Forming Machine
• Transport Package：Main Body Nude in Container
• Specification：6500*1500*1300mm
• Trademark：DX
• Origin：Botou, Hebei, China
• HS Code：84552210
• Production Capacity：30 Sets,Month

1) Main Motor Power: 4KW2)Hydraulic Station Power: 4KW3) Hydraulic Oil Pump: CB-E3104)Sprocket: P-25.45)Roller Station: 156)Yield Strength: 32MPa7)Diameter of Principal Axis: 75mm8)Material of Roller: 45#steel hard chrome plating9)Processing Speed: 8m/min10)Thickness: 0.3-1mm11)Installation Dimension (L*W*H): 7.5m*1.5m*1.2m12)Total Weight: 3.8T13)Coil Width: 1000/1200mm14)Cover Width: 840/1040mm15)Equipment Parts:  forming machine, hydraulic cutter, hydraulic station, electric controlling system and counter.Our Services
1. we can produce the special machine,send your drawing to us,we can design for you.
2. if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
3. we provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.
The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US100.
4. engineers available to service machinery overseas.
5. if you come to visit our factory,we can book the room for you, car pick up to send.decoiler
1set
Feeding
1set
Main roll forming machine
1set
Hydraulic cutting system
1set
Controlling system
1set
Run out table
1set


If you want to know more information of Double layer roll forming machine for Tobago, please contact to me now!
