• Model NO.：glazed tile forming machine
• Certification：CE, ISO, CE ISO
• Condition：New
• Customized：Customized
• Usage：Roof, Wall, Floor, Glazed Tile Forming Machine
• Transmission Method：Hydraulic Pressure
• Color：Green
• Control System：PLC
• Rolller：High Grade 45# Steel
• Froming Steps：13
• Hydraulic Pump Station：4kw
• Motor Power：5.5kw
• Chain：1inch
• Cutter：Cr12
• Middle Plate：14mm
• Shaft：75mm
• Transport Package：Nude, Covered with Plastic Film
• Specification：CE, SGS
• Trademark：DIXIN
• Origin：Botou, Hebei, China
• HS Code：845522
• Production Capacity：30 Sets,Month

No.Main parameter for1Suitable to processGalvanized/Aluminum/Color steel sheet2Width of plate1000mm3Thickness of plate0.3-0.8mm4RollersHigh grade 45# steel, with hard chrome plating5Forming steps166Sprocket chain1.5 inch7Pump station power4kw8Shaft75mm, high grade 45# steel, heat treatment9Hydraulic oil pumpCB-E31010WeightAbout 5.0 tons11Productivity5m/min12Cutting headCr12 mould steel with quenched treatment13Control systemTAIDA brand PLC control14Voltage380V 3Phase 60Hz15Motor power4kw16DimensionAbout 6.8m*1.5m*1.5m17Hydraulic pressure10-12mpa18Index error of length±1mm19The temperature range of working line-35-50°Above all the parameters can be changed exactly according to customer's requirements.
4. Advantage of DIXIN roll forming machineNo.DIXIN roll forming machine1High grade quality2Reasonable price3High efficiency4Low failure rate5Low energy consumption6Free after-sale service7Reliable working8Durable9Wide application10Beautiful appearance11Welcomed by all over the world customers12Professional foreign trade team13Mature technician team14Customize special type

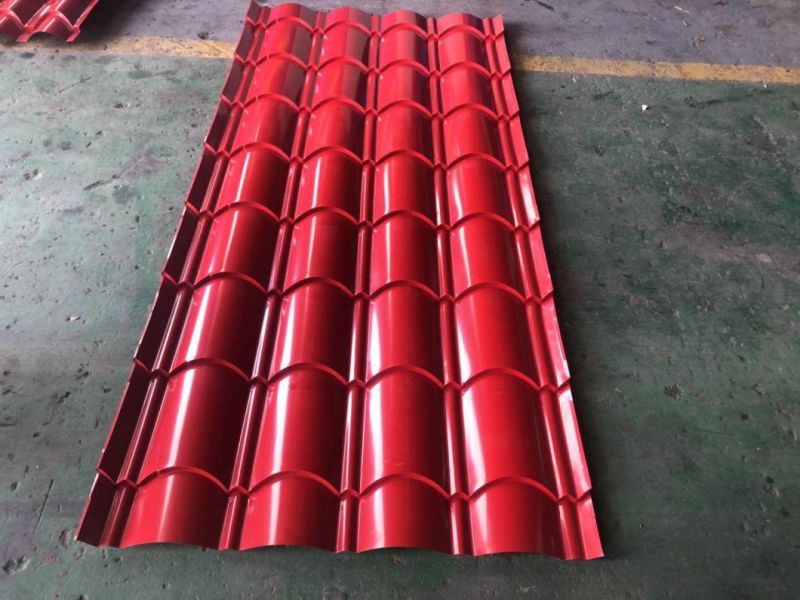

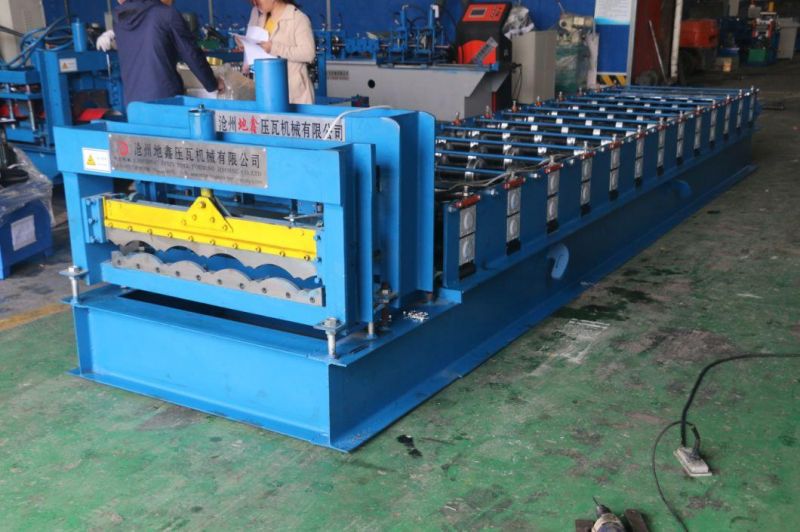

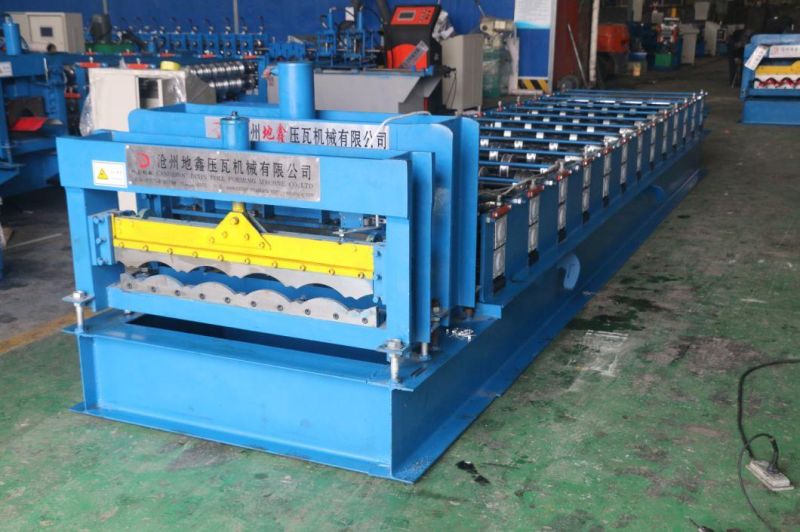

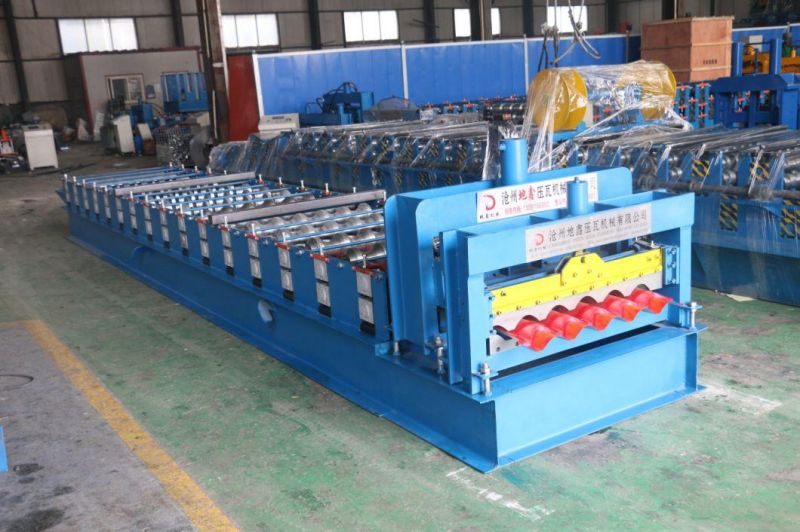

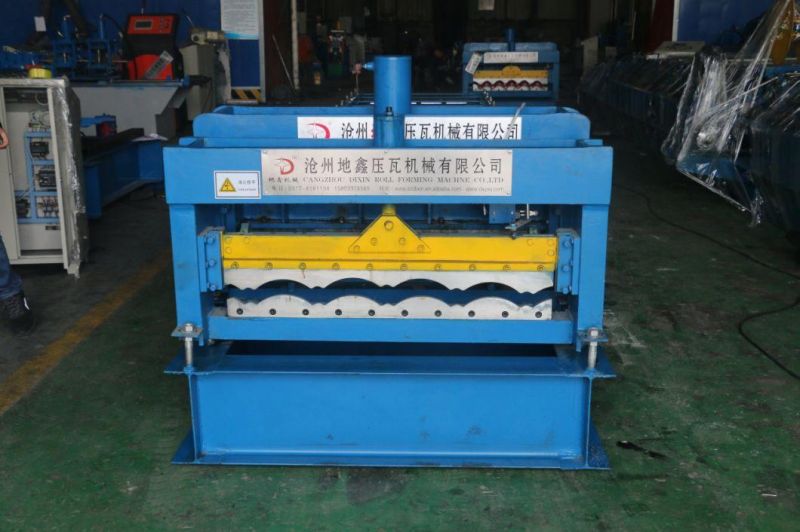

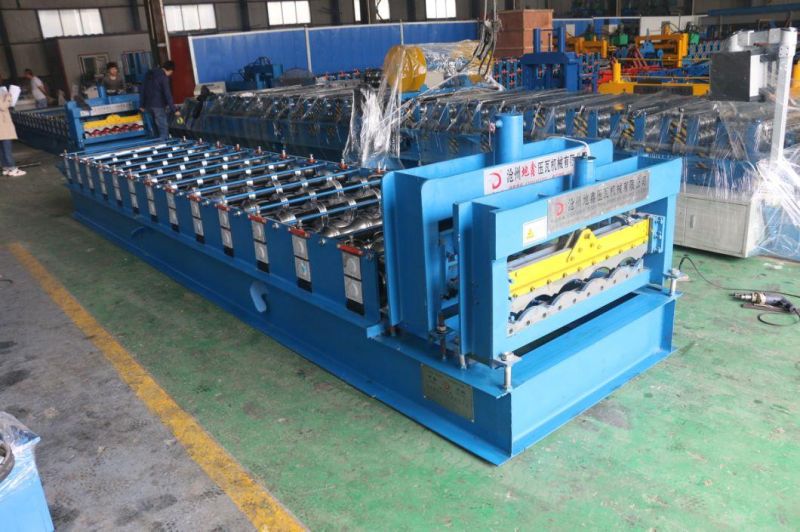

5.Some pictures of the machine


Why Choose Us?
1.We are the most professional in China,we do our best to benefit for you,our machines are best-quality;
2.From the photo seeing :All kinds of tile type machine we did for customers ;
3.We lengthen the plate beside the machine to make the machine strong during working;
4.When you visit and come to China ,we can teacher you how to use it ;
5.Appear any questions ,we will try our best help you deal with ;Meanwhile ,if any parts go broken and not artificial damage ,we will send you new onew with free .

FAQ
1. Q:Are you manufacturer?
A:Yes, we focus on cold roll forming machine manufacture over 12 years.

2. Q: if you can accept OEM? Design and manufacture according our photo.
A: Yes, we can accept OEM,we owned expert engineer team, professional design CAD drawings and use famous brand components according your demands.

3. Q:What's the warranty for your machine?
A: we provide 2years guarantee and provide lifetime technical support.

4. Q:How many workers is needed for the machine operation
A: One worker is enough, the machine use automatic PLC control system.

5. Do you have after sales support?
A: Yes,Our engineer can supply remote-video technical support and online support teach your worker.

6. Q.Can you be responsible for transport?
A.Yes,we owned expert export team, we can arrangement for you to your destination port or address.

7. Q:What service can you provide before order?
A:About the pre-sale service, We provide professional solutions according your demands,such as design,technical parameter,delivery flow etc. At the same time, we can supply invitation letter for your visit our factory and showing the machine operationfor you .

8. Q: What is the after- sale service?
A: we will supply lifetime technical support,quick-wear parts within 2years,Also can provide field maintenance and repair service.

9. Q:Any other service?
A: We can help you purchase raw material for machine,help you check ship date,update for you ship date etc
