• Model NO.：curved roof machine
• Certification：CE, ISO
• Condition：New
• Customized：Customized
• Usage：Roof, Wall
• Transmission Method：Machinery
• Type：Curved Roof Machine
• Power Source：Hydraulic Pressure
• Feature：Automation
• Advantage：Work Flexible
• Forging Forming Method：Mold Forging
• Name：Arch Forming Machine
• Processing Material：Aluzinc,Galvanized Steel,Colored Steel Coil
• Material Thickness：0.3-0.8mm
• Effective Width：840mm
• Transport Package：Water-Proof Packaging, Covered with Plastic Film
• Specification：DX 750 840
• Trademark：DX
• Origin：Botou Hebei China
• HS Code：845522
• Production Capacity：20 Set Per Month

Main Features

curve roof sheet roll forming machine

♥ Professional manufacturer we are specialized in all kinds of roll forming machine.

♥ Good experience of 20 years to make roll forming machine.

♥ Good experience for export more then 40 countries.

♥ Provide best price,good quality and fast delivery.

Machine Technique parameters

1.Processing material

aluzinc/galvanized steel/colored steel coil

2.Material thickness

0.25-0.8mm

3.Feeding width:

 IBR sheet as drawing

4.Effective width

 IBR sheet as drawing

5.Main motor power

4kw with servo motor

6.Pump station power

4kw

7. Shaft diameter

75mm

8.Forming steps

 Top 2 steps, down 4 steps, as machine pictures.

9.Main frame

300H steel frame

10. Side plate thickness

16mm

11.Roller material

45# forged steel, with hard chrome plating

12.Control systerm

(Taiwan brand)Delta PLC control system with touch screen

13.Cutting blade material

Cr12

14.Working speed

About 3-5m/min

15. Transmission way

1 inch chain drive

16. Machine size (mm)

About 2000*1500*1300mm

17. Machine weight

About1.5T

18.Power supply

380v,3phase,50hz or accodring to customer request

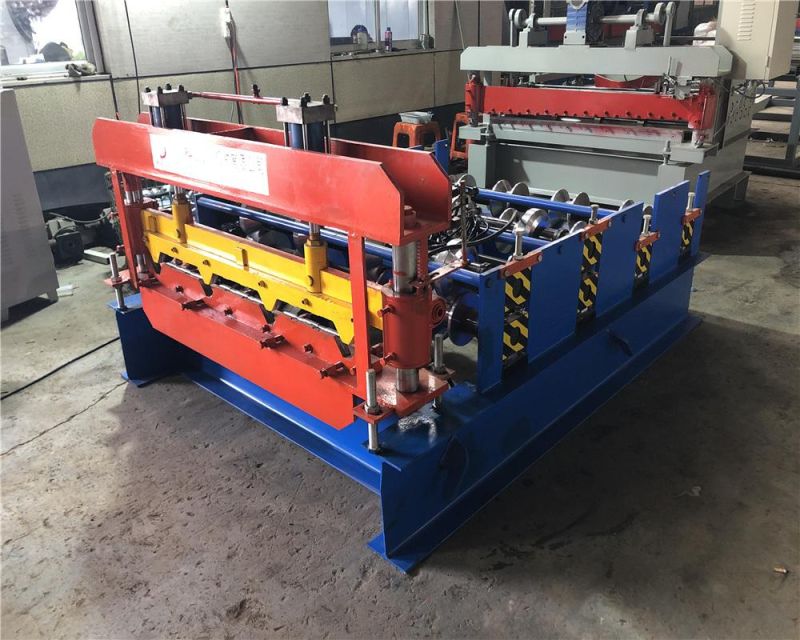

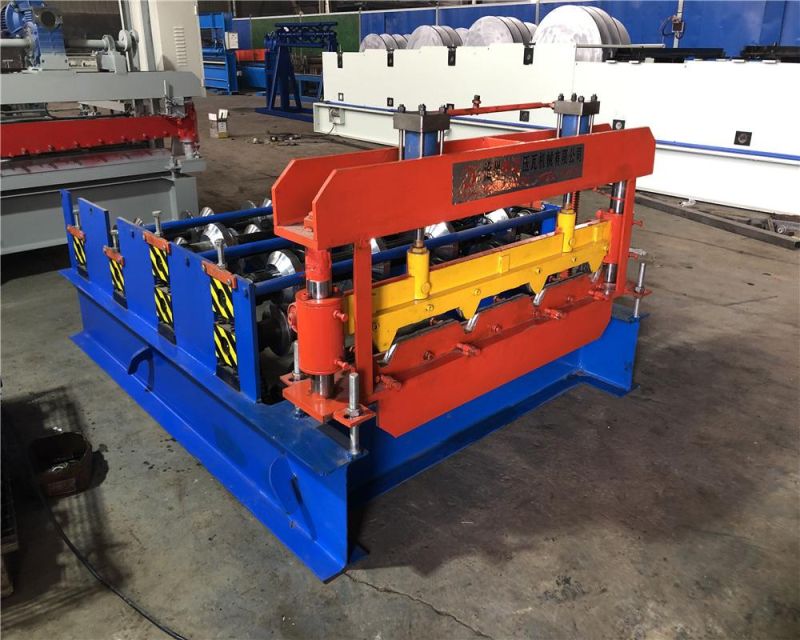

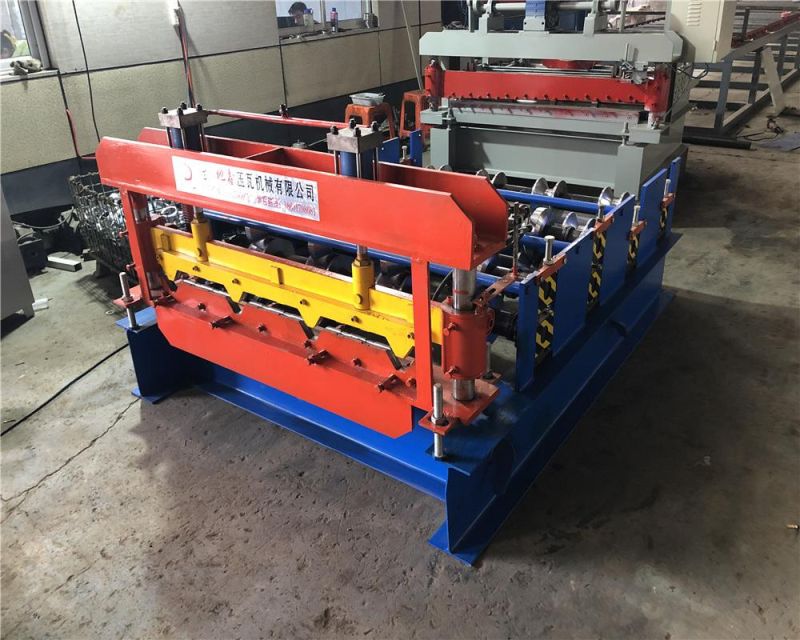

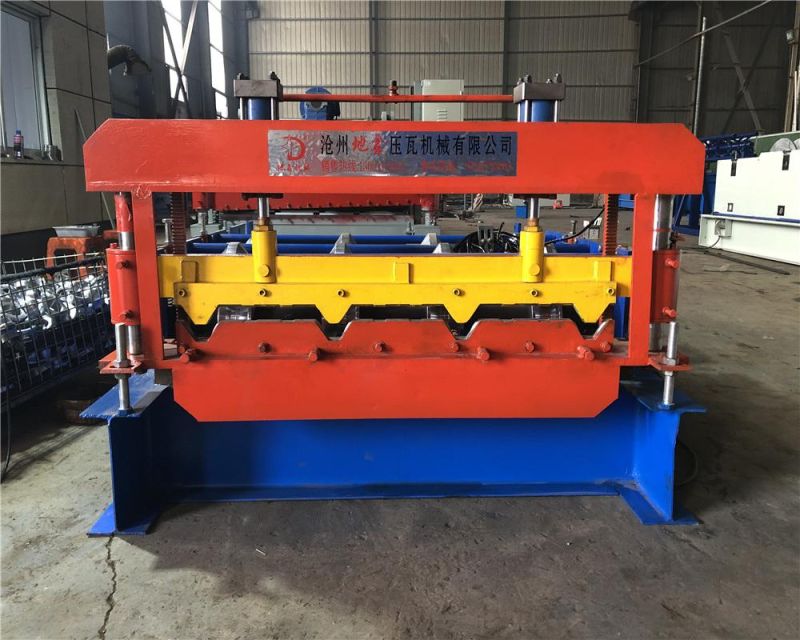

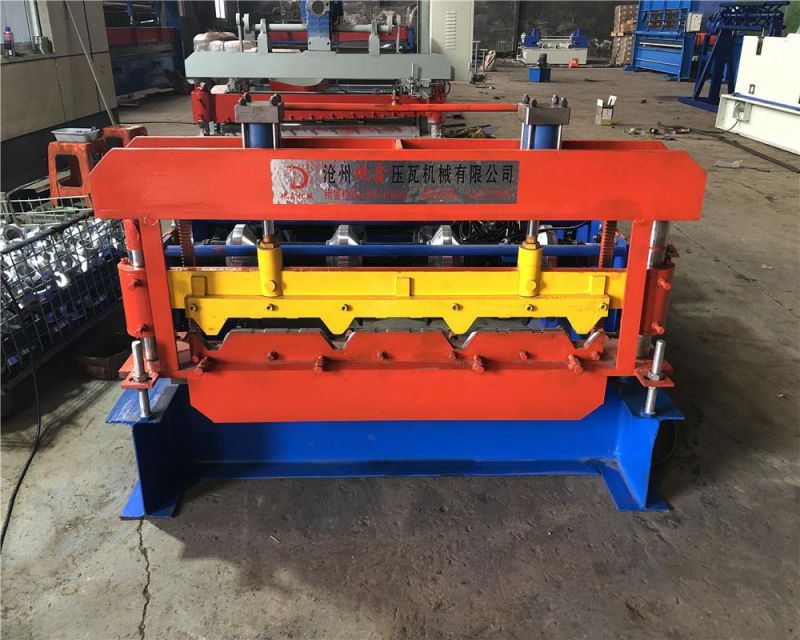

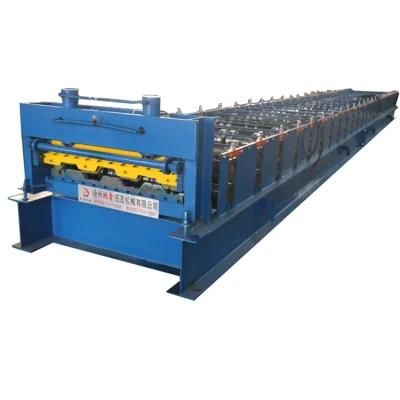

Some pictures of the machine

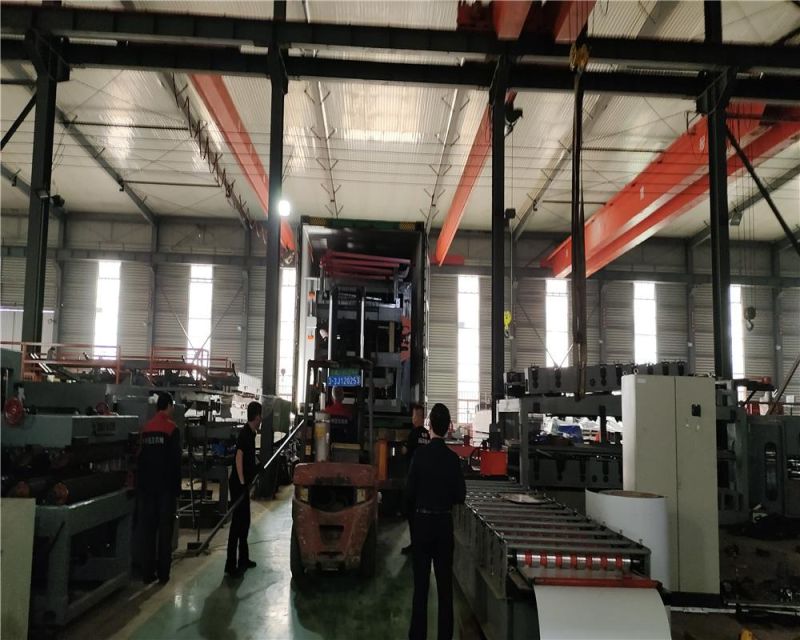

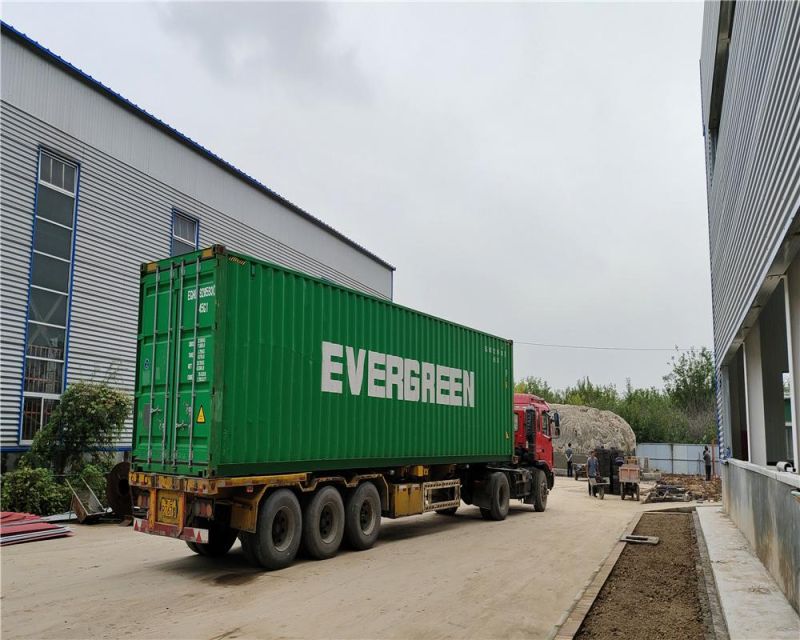

Packaging & Shipping

1 Main forming machine and un-coiler is naked.
2 Tighten to container with steel wirerope and welded machine with container by angel iron.
3 PLC system and motor can be packed in waterproof plastic coverage if needed and necessary.

Why Choose Us?
1.We are the most professional in China,we do our best to benefit for you,our machines are best-quality;
2.From the photo seeing :All kinds of tile type machine we did for customers ;
3.We lengthen the plate beside the machine to make the machine strong during working;
4.When you visit and come to China ,we can teacher you how to use it ;
5.Appear any questions ,we will try our best help you deal with ;Meanwhile ,if any parts go broken and not artificial damage ,we will send you new onew with free .
FAQ
1. Q:Are you manufacturer?
A:Yes, we focus on cold roll forming machine manufacture over 12 years.

2. Q: if you can accept OEM? Design and manufacture according our photo.
A: Yes, we can accept OEM,we owned expert engineer team, professional design CAD drawings and use famous brand components according your demands.

3. Q:What's the warranty for your machine?
A: we provide 2years guarantee and provide lifetime technical support.

4. Q:How many workers is needed for the machine operation
A: One worker is enough, the machine use automatic PLC control system.

5. Do you have after sales support?
A: Yes,Our engineer can supply remote-video technical support and online support teach your worker.

6. Q.Can you be responsible for transport?
A.Yes,we owned expert export team, we can arrangement for you to your destination port or address.

7. Q:What service can you provide before order?
A:About the pre-sale service, We provide professional solutions according your demands,such as design,technical parameter,delivery flow etc. At the same time, we can supply invitation letter for your visit our factory and showing the machine operationfor you .

8. Q: What is the after- sale service?
A: we will supply lifetime technical support,quick-wear parts within 2years,Also can provide field maintenance and repair service.

9. Q:Any other service?
A: We can help you purchase raw material for machine,help you check ship date,update for you ship date etc
