• Model NO.：950
• Color：Blue
• Machine Name：EPS Sandwich Panel Forming Machinery
• Roller Material：High Grade 45# Steel
• Control System：PLC Computer
• Hydraulic Pump Station：3kw
• Electric Motor：3kw
• Voltage：380V, 3phase, 50Hz
• Middle Plate：14mm
• Main Frame：300h Steel
• Forming Steps：11
• Transport Package：Covered with Plastic Film
• Specification：CE, SGS
• Trademark：DIXIN
• Origin：Botou, Hebei, China
• HS Code：845522
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. 950 Color Blue Machine Name EPS Sandwich Panel Forming Machinery Roller Material High Grade 45# Steel Control System PLC Computer Hydraulic Pump Station 3kw Electric Motor 3kw Voltage 380V, 3phase, 50Hz Middle Plate 14mm Main Frame 300h Steel Forming Steps 11 Transport Package Covered with Plastic Film Specification CE, SGS Trademark DIXIN Origin Botou, Hebei, China HS Code 845522 Production Capacity 30 Sets/Month

Product Description

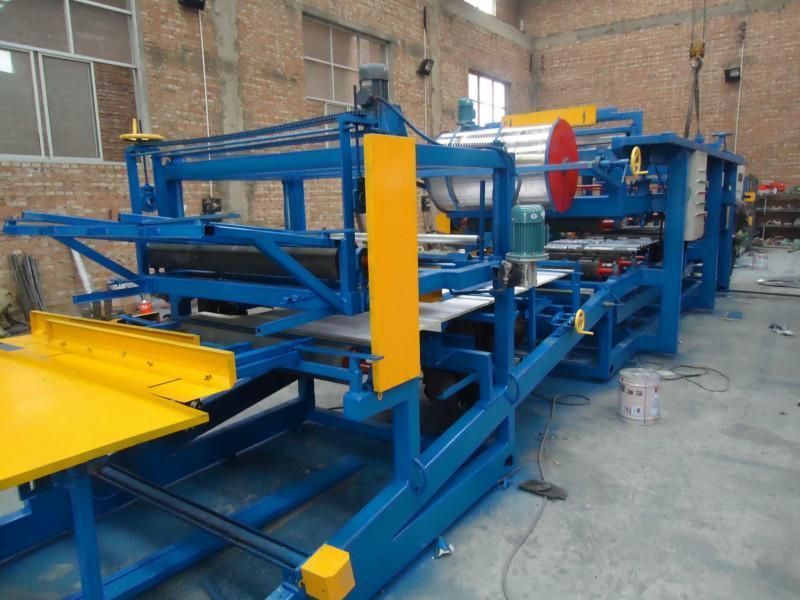

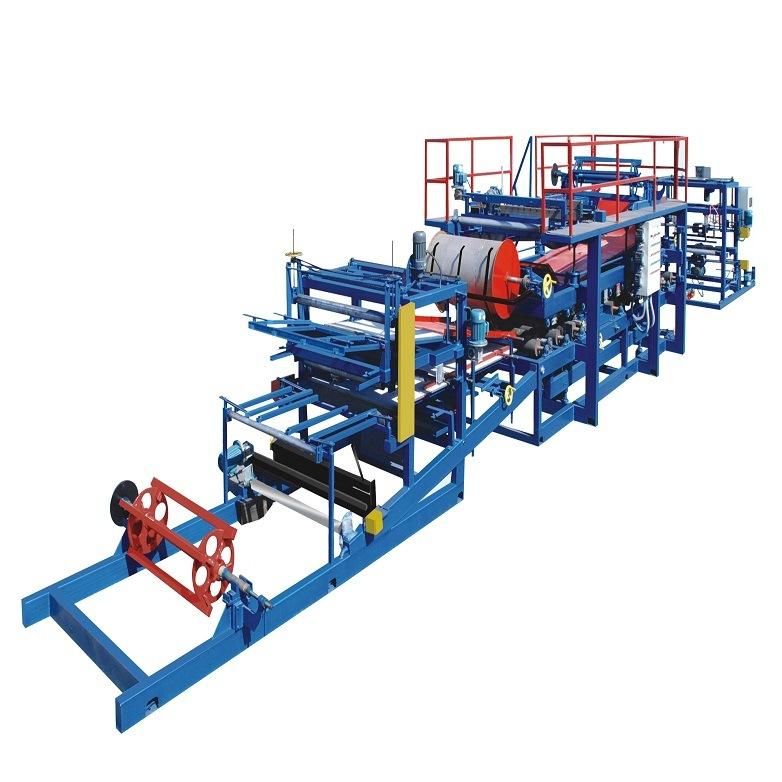

High Quality EPS Sandwich Panels Roll Forming Machine








Technical parameter

1	Suitable material	PPGI/Aluminium sheet/galvanized sheet/various sheet plates
3	Coil width	1000mm
4	Cover width	980mm
6	Diameter of Soild shaft	75mm, high grade 45# steel
7	Roller	Quenched and tempered treatment,  hard chrome coated 0.05-0.07mm
8	Core thickness	20-300mm
9	Weight	25 stations
10	Drive type	By chain(1.0 inch) link bearing model 6210
11	main motor	32kw with Cycloidal reducer
12	pump station	4kw
13	Forming speed	About 0-4.5m/min
14	Hydraulic cutting	Controlled by PLC( DELTA(TAIWAN)/Mitsubishi)
16	Material of razor blades	Cr 12, quenching 58-62ºC
17	Frequency converter	It has the advantage of slowing down before cutting, to ensure the  length accuracy(±1mm, far better than industrial standard ±3mm).

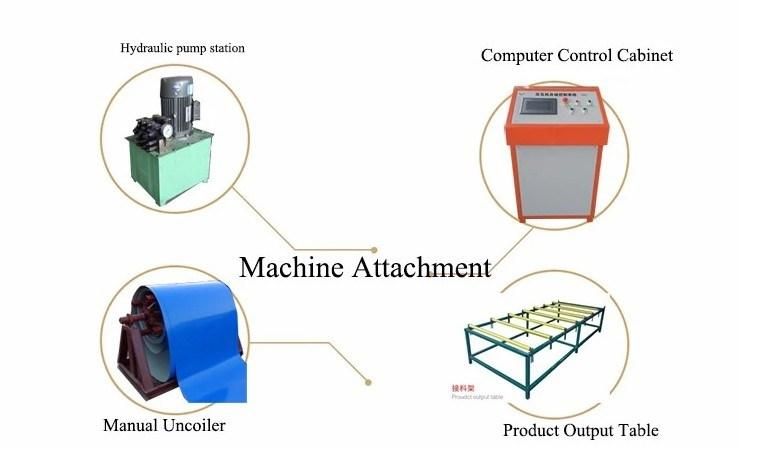

Roll forming machien components:Man-made decoiler---Color steel coil feeding & guiding device---Main forming machine---Computer Control system---Hydraulic pump station---Cutting head---Output table



  Application:Color steel sheet which are produced by our roll forming machine are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas. With advantages of long life time, stable performance and high efficiency, it is warmly welcomed by our customers.
About our company Cangzhou Dixin Roll Forming Machine Co.,Ltd,Our company is the professional and leading manufacture,can manufacture ,design,installation and debug various roll forming machines and metal processing sheet equipments ,which produce metal roof wall panel,glazed roof tile , CZ steel purlin,floor desking,roof ridge cap,sandwich panel ,roof rtruss,shutter panel,shutter slat,door frame, guardrail ,and metal sheet uncoiler ,bending ,slitting,cutting,flattening,punching,crimpingl. especially can design machine according to customer's request.
Our service:1.We have professional team to make different kinds of roll forming machines for our customers,
from designing, processing,assembling, debugging, delivery.
2.we can send our engineer to your site and do the training for your worker. you just only bear the cost for our engineer's air ticket,visa,accommodation,food and transpotaion in your country.
3.You can send your worker to our factory. we will teach them how to operate the machine without training charges.
4.Actually theres another cheap and easy way to choose. Every machine leave our factory with one book of operation manual. You can read through the manaul first ,and get familiar with the machine. Then we can get a video call,and teach you on-line  how to operate the machine.
5.Apart from above training course,we also provide 1 year warranty for all the easily broken part of the machine for free and whole-life technical service support.

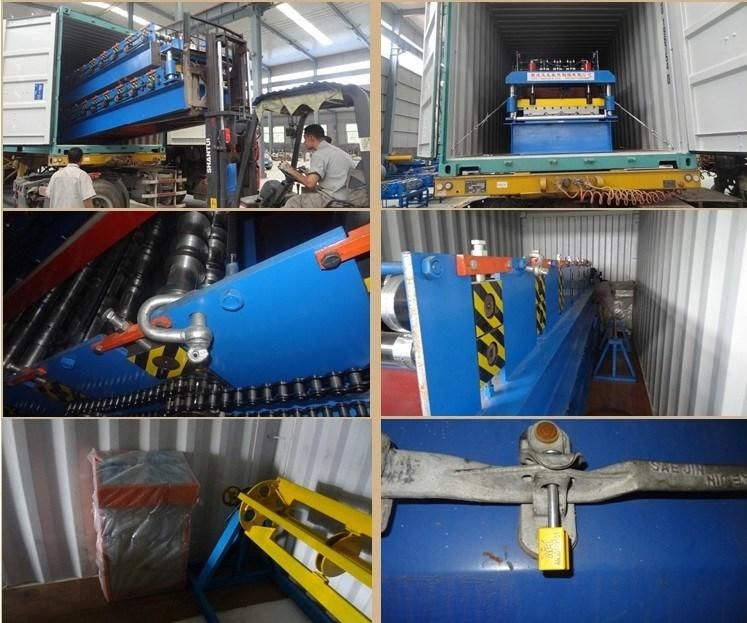

Packaging
1.Packaging Details:Nude,with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.
2.Port:TIANJIN XINGANG PortLead .
3.Time: Shipped in 35 days after payment.
Usually the welding pipe cold roll forming machine can be packed into one 20' feet container or 40' feet container. We have good relationship with the shipping agent. Either you can find the shipping line at your side or we can help you.


  FAQ:1. What's your payment terms?T/T, 30% T/T in advance and balance 70% after testing confirm well before shipping.2. The delivery time?We deliver the machine within 30 days after receiving the deposit.3. What services do you provide?We provide our customers with 1 year warranty and technical support in the whole life time of the machine.      If you need our roll forming machine, pls don't hesitate to contact me. We can design according to your requirements. Looking forward to cooperate with you sincerely!


If u have any interest,please contact me any time
