• Model NO.：QT3-15
• Power：16.9kw
• Raw Material：Cement, Sand,Stone
• Product：Blocks, Pavers, Interlock Blocks
• Machine Type：Concrete Block Making Machine
• Transport Package：Container
• Specification：ISO9001 CE
• Trademark：hengda
• Origin：China
• HS Code：8474809090
• Production Capacity：300sets,Year

Model
QT3-15
Production capacity (pieces/h)
720 pieces (390*190*190mm)
Production capacity (pieces/h)
2400 pieces (240*115*90mm)
Production capacity (pieces/h)
4800 pieces (240*115*53mm)
Vibration frequency
3800-4500(r/min)
weight
4500kg
power
18.1kw
Shaping time
15-20S
Exciting force
68KN
PVC pallet size(mm)
700*550*15mm
Vibration type
Table and mould
Items
Size(LxWxH)
Pcs./mould
Pcs./hour
Pcs./8hours
One year(300days) production
Blocks
390x190x190mm
3
720
5760
1728000
Porous Bricks
240x115x90mm
10
2400
19200
5760000
Solid Bricks
240x115x53mm
20
4800
38400
11520000
Holland Bricks
200x100x60mm
10
2400
19200
5760000

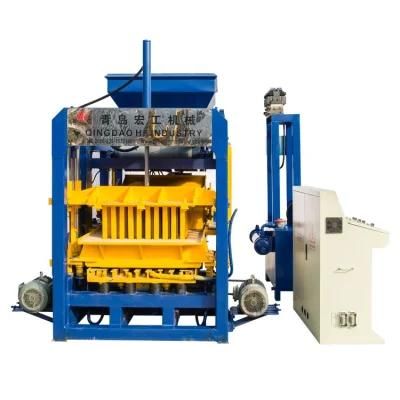

Detail picture for QT3-15 block making machine


Customers in HENGDA


Certification


Our Services
Before-sale services:
(1)Guide customers to choose the best appliable machine type; provide the advanced, energy-saving and practical technological process,
(2) We are responsible for the process chart and design.
Sale services:
(1)Products must be inspected strictly before selling;
(2)In accordance with the agreements stipulated in the contract,
(3)We will organize delivery.
After-sale services:
(1)Our company will send professional engineers to guide with device installation, debugging and training operators until customers are fully satisfied. Moreover, we will design and manufacture products, according to the special requirements of customers.
(2)The quality guarantee period for machines is one year except the wearing parts.


Our Advantages
Our concrete block making machine , with harmonic cooperation between mechanical, electrical and hydraulic machines functions, guarantee a reliable and high output production of concrete products
Use LG PLC control system and LG Touch Screen,
   A. LG PLC, with great adaptability, guarantees the stability and reliability of the machine.
    B. Visualization touch screen, with easy operation;
   2. Use Frequency Conversional Control Technology, which controls the block making:
    A. Frequency Conversion Control: guarantees the precise and parallel movement between tamper head and mould,    protects the products from transfiguration; increases the production rate by improving the vibrating efficiency;
    B. Controls the instantaneous start and stop of the motors, to protect the motor from over-heating caused by constant working;
    C. Power saving: 30%;
3. Use doubles high-dynamic Proportional/Directional Valves to automatically adjust the oil flow and pressure
    A. Buffer the hydraulic cylinder, to protect the cylinder from damage caused by inertia;
    B. Guarantee production stability;
4. 360° Multi-Shaft Rotating and Compulsory Feeding:
    A. Speedy and rotating feeding, with uniform mixing, to make sure that the density and intensity of the products are guaranteed
    B. This uniform feeding is applicable for different kinds of raw materials and moulds;
5. Use heat treatment on moulds and main parts of the machines:
    A. Heavy duty machine structure and wear resistant moulds;
    B. The hardness reaches up to HRC 52-58;
    C. Greatly improves the using lifetime of the machine by 50%.

My contact information
Name: Maggie
Mobile: 0086-18921625078

      We are professional clay brick making machine,  concrete block making machine  and block pallet manufacturer, if you are interested, please come here.
