M7mi Cheap and Small Professional Mobile Clay Hydraform Brick Making Machine in Kenya
Linyi Chuangyun Import & Export Co., Ltd.- Certification:CE, ISO
- Customized:Customized
- Automatic Grade:Automatic
- Type:Hydroforming
- Power Source:Diesel Engine
- Brick Raw Material:Soil, Cement, Clay, Sand
Base Info
- Model NO.:M7MI
- Hydraulic Press:21MPa
- Machine Type:Interlock Block Making Machine
- Diesel Engine:12HP
- Shaping Cycle:15s
- Brand Name:Cyun Brick Machine
- Motor Power:8.5kw
- Capacity:240PCS,Hour, 1920PCS,8 Hours
- Machine Size:3200*1100*1500mm
- Weight:1100kgs
- Material Hopper:Storage Material for Mold
- Pan Mixer:Mix Rawing Material
- Road Tyres:Movement From One Site to Other
- Tow Hitch:Connect with Truck or Car
- Transport Package:Plywood Box with Iron Angle
- Specification:double brick machine
- Origin:China
- HS Code:8474802000
- Production Capacity:20sets , Month
Description
Basic Info.
Model NO. M7MI Hydraulic Press 21MPa Machine Type Interlock Block Making Machine Diesel Engine 12HP Shaping Cycle 15s Brand Name Cyun Brick Machine Motor Power 8.5kw Capacity 240PCS/Hour, 1920PCS/8 Hours Machine Size 3200*1100*1500mm Weight 1100kgs Material Hopper Storage Material for Mold Pan Mixer Mix Rawing Material Road Tyres Movement From One Site to Other Tow Hitch Connect with Truck or Car Transport Package Plywood Box with Iron Angle Specification double brick machine Origin China HS Code 8474802000 Production Capacity 20sets / MonthProduct Description
M7MI cheap and small professional mobile clay hydraform brick making machine in KenyaMachine description:
The M7MI is mobile and can be towed to different sites producing blocks when and where required. This machine is ideal for remote areas or building sites where electricity is not available.


Main technical parameters
NO. | Name of Parts | Function |
1 | Capacity | 240pcs/hour, 1920pcs/8 hours |
2 | Power | Diesel power/(electric power) |
3 | Hydraulic Press | 21 Mpa |
4 | Cycle | 15 Second |
5 | Machine Size | 3200*1100*1500mm |
6 | Mold | For 230*220*115mm Hydraform Block |
7 | Weight | 1100 Kgs |
8 | Material Hopper | Storage Material for Mold |
9 | Diesel Engine | 6.75KW (Best Brand in China) |
10 | Pan Mixer | Mix Rawing Material |
11 | Road Tyres | Movement from one site to other |
12 | Tow Hitch | Connect with truck or Car |
13 | Operation Handle | Operate block machine |

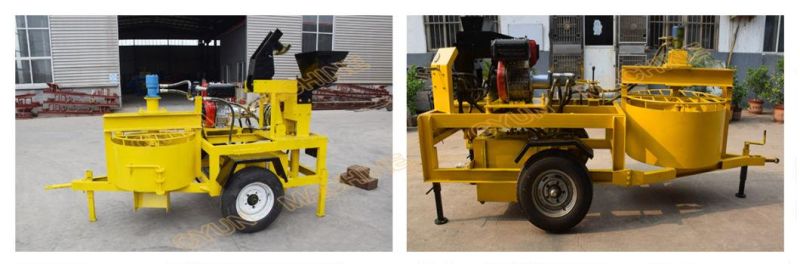

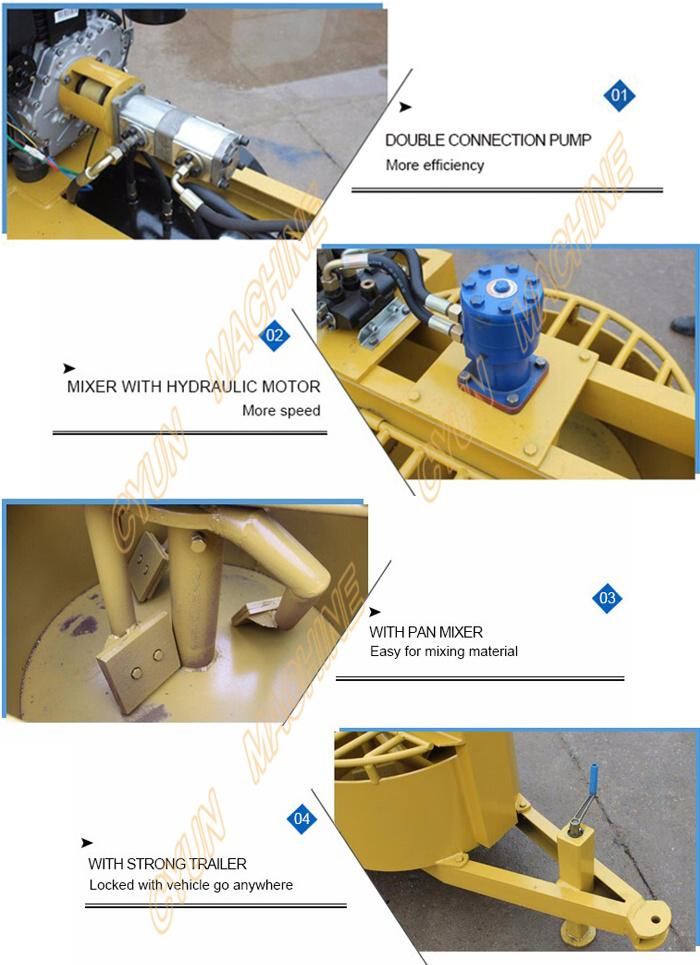

Machine details

Production Capacity

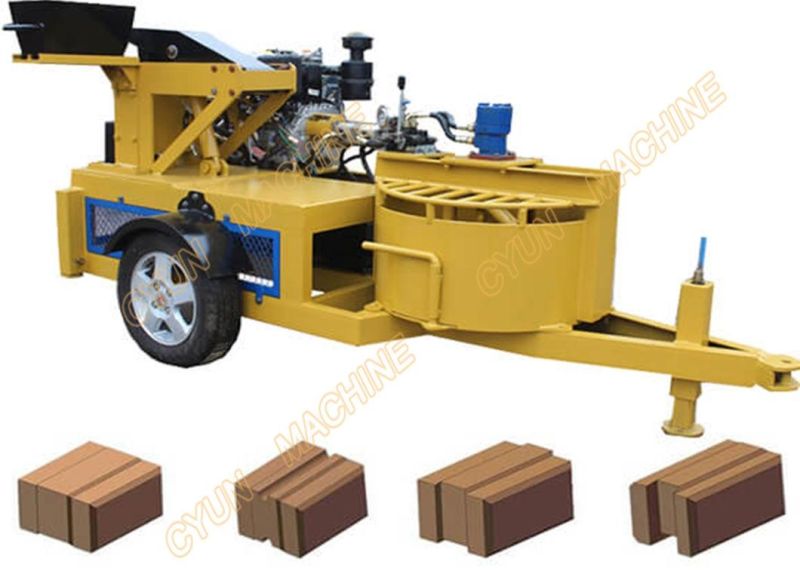

Block Sample and Showing

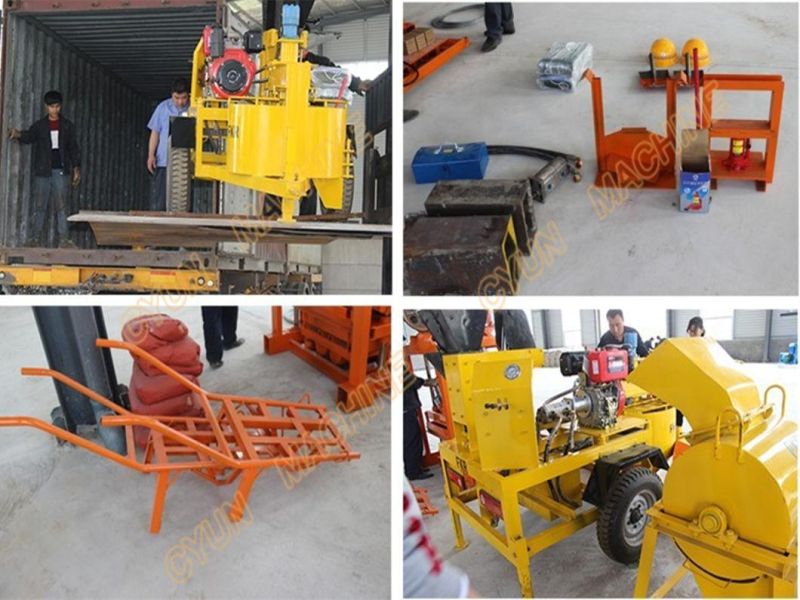

Machine loading and delivery


About us

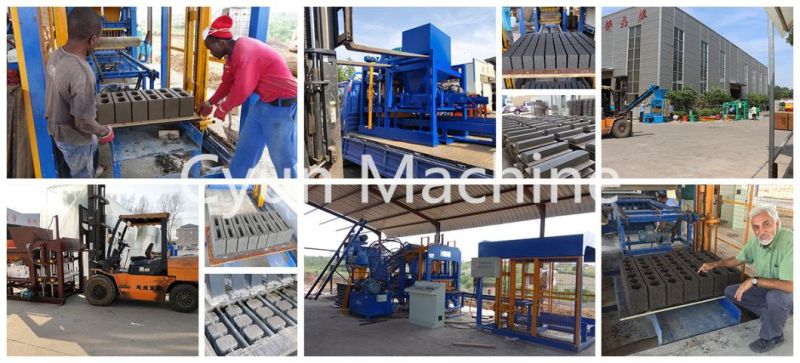

Our Company
Chuangyun Machinery is a professional manufacturer with 20 years history in concrete block machine and clay interlocking brick machine. Chuangyun Machinery factory is located in Linyi city, Shandong Province, China.
Chuangyun Machinery has been export to more than 100 countries, and are popular brick machine in Africa, South America, Asia because of the quality and good service.
Chuangyun Machinery will keep moving in improving quality of machine, perfecting after-sale service and developing new machines to meet various needs of customers.
Chuangyun Machinery will support customers with more and more success !

Our Service
Pre-Sale
- Introduce the company's basic information, product catalog and basic machine production process.
- Welcome to visit our company and products any time.If you need , we can make invitation letters for you.
- 24 hours online service.
After-Sale
- Set up, fix, and operate if buyer need.
- Provide machine-operated videos and pictures
- Send the accessories you need at any time.
- Guarantee Period: One year after installation finished at buyer's factory.
- Within one year, if the customer encounters unsolvable problems, The engineers will selectively fly to customers for local help
FAQ:
Q1: How can i trust your machine's quality?
A: Our products have been checked and got certification ISO9001, and we have exported to many countries and regions in the world, with good reputation and quality of customer feedback. In addition, every machine is carefully tested before shipment to ensure that the machine is operating perfectly when it comes to your hand.
Q2: What about payment terms?
A: 30% Deposit before production,70% before delivery when machine is ready for shipments.
Q3: How to Cure Blocks?
A: Fresh Blocks are stacked and covered with black plastic to avoid moisture loss. The blocks are then watered daily to create a greenhouse effect, allowing the cement to harden and the blocks to strengthen. Cure your blocks for a minimum of 7 days and allow the blocks to dry to another 7 days before building. This will ensure strong good quality blocks.
Q4:How long is the delivery time?
A:20-30 days after receipt of deposit and molds confirmation from Buyer.
