• Model NO.：M7MI
• Hydraulic Press：21MPa
• Machine Type：Interlock Block Making Machine
• Diesel Engine：12HP
• Shaping Cycle：15s
• Brand Name：Cyun Brick Machine
• Motor Power：8.5kw
• Capacity：240PCS,Hour, 1920PCS,8 Hours
• Machine Size：3200*1100*1500mm
• Weight：1100kgs
• Material Hopper：Storage Material for Mold
• Pan Mixer：Mix Rawing Material
• Road Tyres：Movement From One Site to Other
• Tow Hitch：Connect with Truck or Car
• Transport Package：Plywood Box with Iron Angle
• Specification：double brick machine
• Origin：China
• HS Code：8474802000
• Production Capacity：20sets , Month

Basic Info.

Model NO. M7MI Hydraulic Press 21MPa Machine Type Interlock Block Making Machine Diesel Engine 12HP Shaping Cycle 15s Brand Name Cyun Brick Machine Motor Power 8.5kw Capacity 240PCS/Hour, 1920PCS/8 Hours Machine Size 3200*1100*1500mm Weight 1100kgs Material Hopper Storage Material for Mold Pan Mixer Mix Rawing Material Road Tyres Movement From One Site to Other Tow Hitch Connect with Truck or Car Transport Package Plywood Box with Iron Angle Specification double brick machine Origin China HS Code 8474802000 Production Capacity 20sets / Month

Product Description

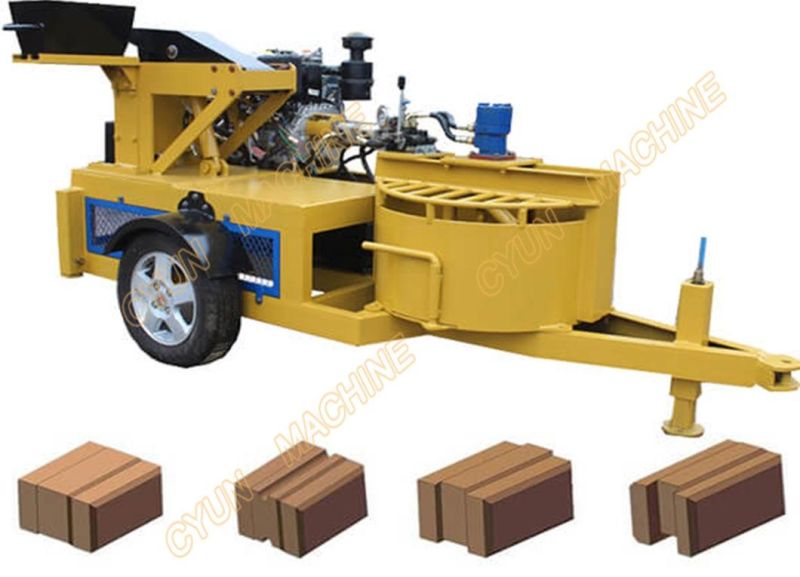

M7MI China small mobile clay interlock brick and hydraform brick block machine

Machine description:

The M7MI is mobile and can be towed to different sites producing blocks when and where required. This machine is ideal for remote areas or building sites where electricity is not available.




Main technical parameters


NO.	Name of Parts	Function
1	Capacity	240pcs/hour, 1920pcs/8 hours
2	Power	Diesel power/(electric power)
3	Hydraulic Press	21 Mpa
4	Cycle	15 Second
5	Machine Size	3200*1100*1500mm
6	Mold	For 230*220*115mm Hydraform Block
7	Weight	1100 Kgs
8	Material Hopper	Storage Material for Mold
9	Diesel Engine	6.75KW (Best Brand in China)
10	Pan Mixer	Mix Rawing Material
11	Road Tyres	Movement from one site to other
12	Tow Hitch	Connect with truck or Car
13	Operation Handle	Operate block machine

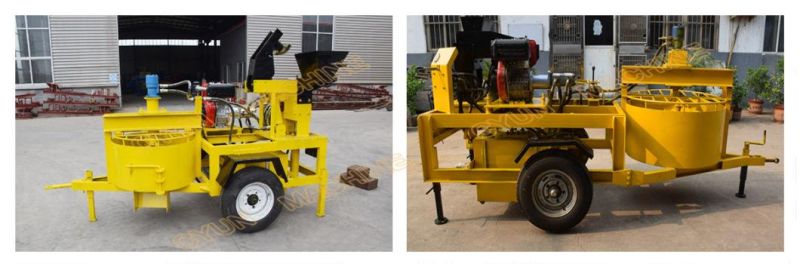

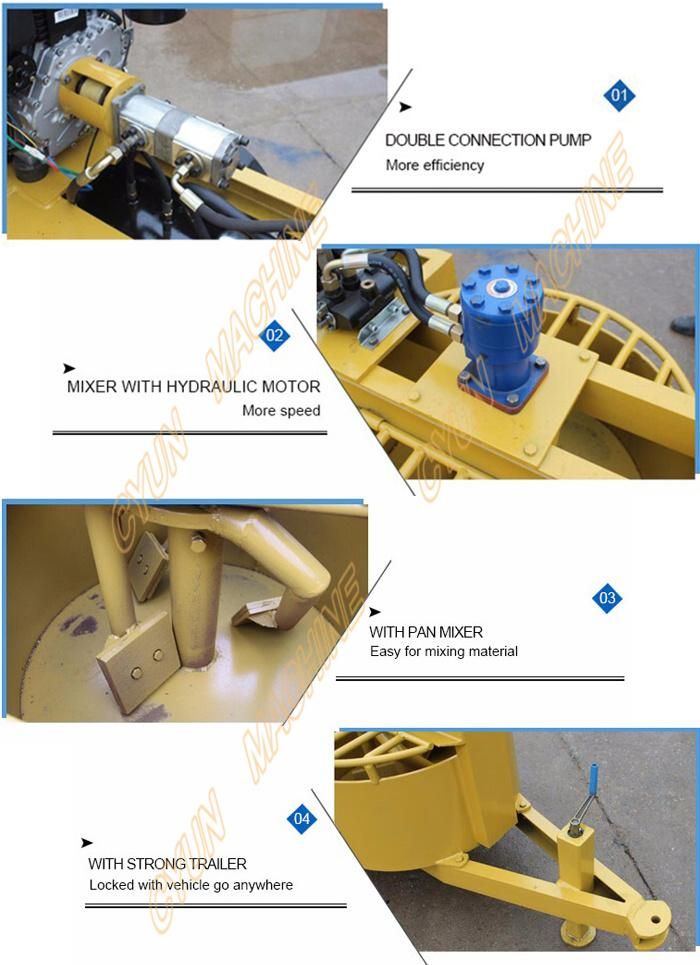

Machine details

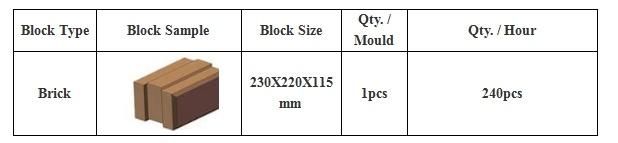

Production Capacity

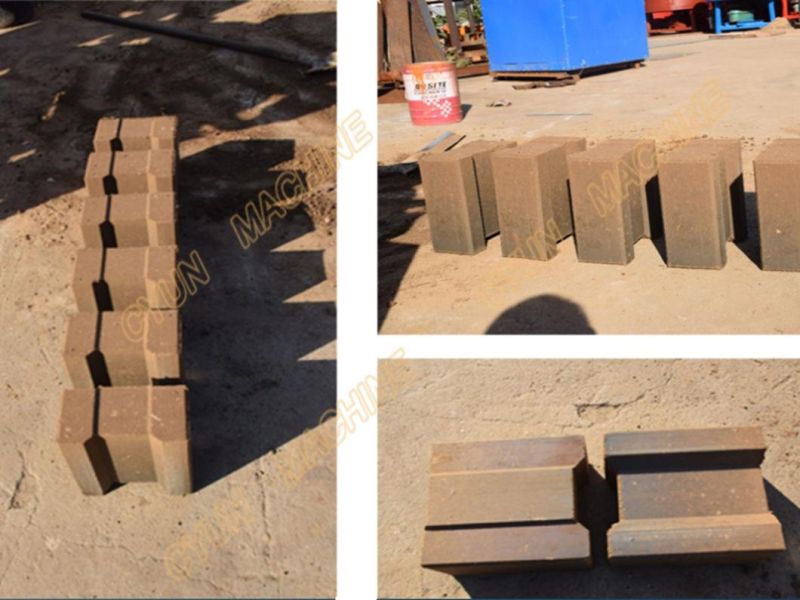

Block Sample and Showing

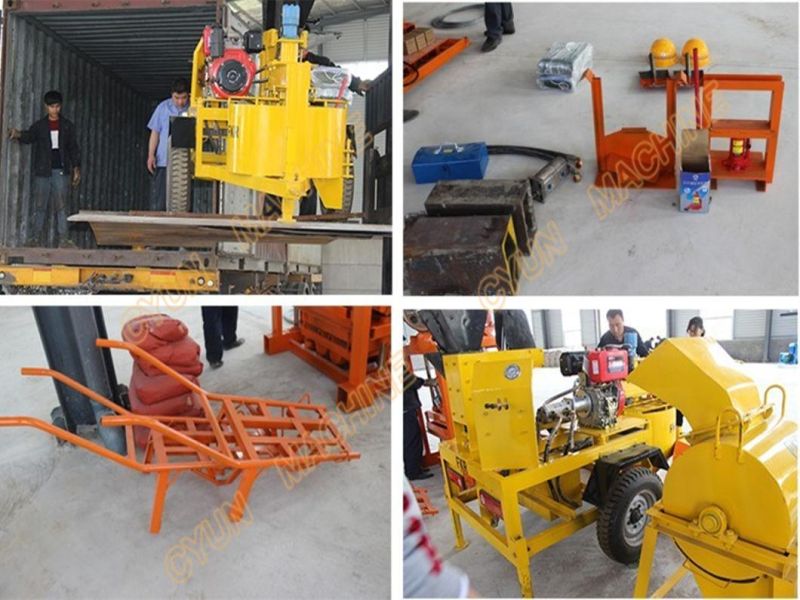

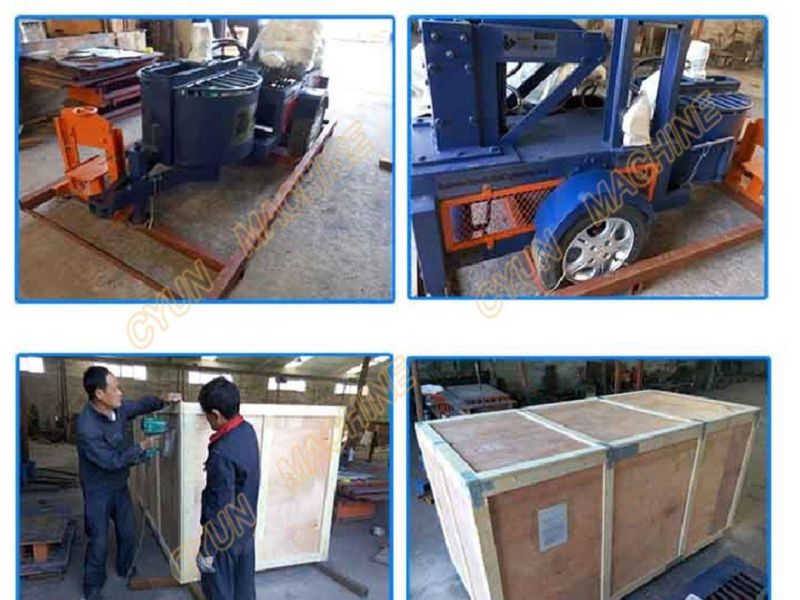

Machine loading and delivery



About us

Our Company

Chuangyun Machinery is a professional manufacturer with 20 years history in concrete block machine and clay interlocking brick machine. Chuangyun Machinery factory is located in Linyi city, Shandong Province, China.

Chuangyun Machinery has been export to more than 100 countries, and are popular brick machine in Africa, South America, Asia because of the quality and good service.

Chuangyun Machinery will keep moving in improving quality of machine, perfecting after-sale service and developing new machines to meet various needs of customers.

Chuangyun Machinery will support customers with more and more success !

Our Service
Pre-Sale

1. Introduce the company's basic information, product catalog and basic machine production process.
2. Welcome to visit our company and products any time.If you need , we can make invitation letters for you.
3. 24 hours online service.

After-Sale

1. Set up, fix, and operate if buyer need.
2. Provide machine-operated videos and pictures
3. Send the accessories you need at any time.

Guarantee

1. Guarantee Period: One year after installation finished at buyer's factory.
2. Within one year, if the customer encounters unsolvable problems, The engineers will selectively fly to customers for local help

FAQ:
Q1: How can i trust your machine's quality?
A: Our products have been checked and got certification ISO9001, and we have exported to many countries and regions in the world, with good reputation and quality of customer feedback. In addition, every machine is carefully tested before shipment to ensure that the machine is operating perfectly when it comes to your hand.


Q2: What about payment terms?
A: 30% Deposit before production,70% before delivery when machine is ready for shipments.


Q3: How to Cure Blocks?
A: Fresh Blocks are stacked and covered with black plastic to avoid moisture loss. The blocks are then watered daily to create a greenhouse effect, allowing the cement to harden and the blocks to strengthen. Cure your blocks for a minimum of 7 days and allow the blocks to dry to another 7 days before building. This will ensure strong good quality blocks.



Q4:How long is the delivery time?
A:20-30 days after receipt of deposit and molds confirmation from Buyer.
