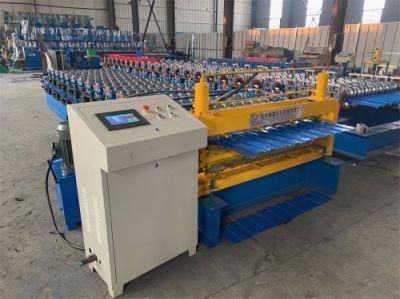

Double Layer Roof Tile Cold Roll Forming Machine
Cangzhou Dixin Roll Forming Machine Co., Ltd.- Tile Type:Colored Steel
- Certification:Ce, SGS
- Condition:New
- Customized:Customized
- Usage:Roof, Wall, Floor, Double Layer Roll Forming Machine
- Transmission Method:Machinery
Base Info
- Model NO.:double layer rollforming machine
- Color:Blue
- Chain:1 Inch
- Forming Steps:16
- Roller:High Grade 45# Steel
- Shaft:75mm
- Material:Galvanized,Aluminum,Color Steel Sheet
- Thickness:0.3-0.8mm
- Middle Plate:14mm
- Hydraulic System:PLC Computer
- Electric Motor:4kw
- Transport Package:Nude, Covered with Plastic Film
- Specification:CE, SGS
- Trademark:DIXIN
- Origin:Botou, Hebei, China
- HS Code:84552210
- Production Capacity:30 Sets,Month
Description
Configurations
Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,
Electro-Motor,Hydraulic Cutting Device(2) ,Hydraulic Station ,PLC Control, Supporter Table.
Control System
PLC Delta Inverter
Power Supply
3-Phase,380V,50Hz
Main Frame
350 H-Beam
Main Power
5.5kw
Pump Power
3kw
Forming Speed
10 m/min
Roll Station
Upper Level 11 Stands
Down Level 11 Stands
Roller Diameter
72mm
Hydraulic Pressure
10-12 MPa
Forming Size
840mm
850mm
Feeding Thickness
0.3-0.8mm
Feeding Width
1000mm
1000mm
Backboard Thickness
14mm
Chain Size
20mm
Cutter Standard
Cr12
Roller Standard
Cr12
Cr-Plating Size
0.05mm
Overall Size
7500×1500×1700mm
Total Weight
5T
Work flow
Manual uncoiler-- roll forming machine-- PLC control box-- hydraulic system- output table
Company Information
Xingtai Greatcity roll forming machine factory has built over 20 years,it is located in north of China,near from Tianjin port and Shiijiazhuang airport,we have good workers,strong selling team and exquisite technology ,welcome to our factory for happy and mutual-benefit business cooperation .
Packaging & Shipping
The main body of the machine will be naked packing into the container,covered with plastic film and reinforced by steel rope.The spare parts will be packed into the wooden box.
Our Services
> Warranty: 2 Years.
During the warranty period, it covers all spare parts of machines, if you find some spare parts were damaged,
those new spare parts will be supplied free by us, but normal wear and tear excepted. And the freight should be bore equally by both parties.
> We could provide technical guiding, production, installation, debugging and maintenance service to all customers. After the end of the warranty period, it's not free.
> We will provide the technical support for the whole life of the equipment.
Components
PLC Control System
Hydraulic pump station
Decoiler type:Manual Decoiler
Output table
