Double Layer Corrugated Color Steel Wall Roof Tile Roll Forming Machine

Cangzhou Nexus Machinery Co., Ltd.
  • Tile Type：Colored Steel
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized
  • Usage：Roof, Wall
  • Transmission Method：Electric

Base Info

  • Model NO.：NX1000
  • Product Name：Corrugated Color Steel Wall Roof Tile Machine
  • Raw Material：PPGI Sheet
  • Thickness Range：0.3-0.6mm
  • Machine Power：4kw+3kw
  • Forming Speed：10-12m,Min
  • Operation Type：Touch Screen
  • Operation Language：English and Chinese
  • Machine Weight：About 3 Tons
  • PLC Brand：Sanjing
  • Warranty：1 Year
  • Transport Package：Plastic Film & Steel Wire Fixed
  • Specification：5500mm*1500mm*1500mm(L*W*H)
  • Trademark：NEXUS MACHINERY
  • Origin：Cangzhou, China
  • HS Code：8455221000
  • Production Capacity：30 Sets , Months

Description

 Main ConfigurationsElectrical Motor PowerKW5.5Hydraulic pump StationKW4Control systemPLC BRANDDELTA OR MITSUBISHDouble Layer Corrugated Color Steel Wall Roof Tile Roll Forming Machine
Double Layer Corrugated Color Steel Wall Roof Tile Roll Forming Machine
Double Layer Corrugated Color Steel Wall Roof Tile Roll Forming Machine


3. Equipment list :

No.Product Name       QTY
15T Manual decoiler          1
2Double Layer Corrugated Color Steel Wall Roof Tile Roll Forming Machine
 (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system)		          1
3Passive Output table          2
Sum           4

4. Character of main structure:
  1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screw which make the machine flexible and stronger.
  2. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
  3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
  4. It is very easy to install the equipment and suitable for producing in the factory.
  5. Low noise with high efficiency.

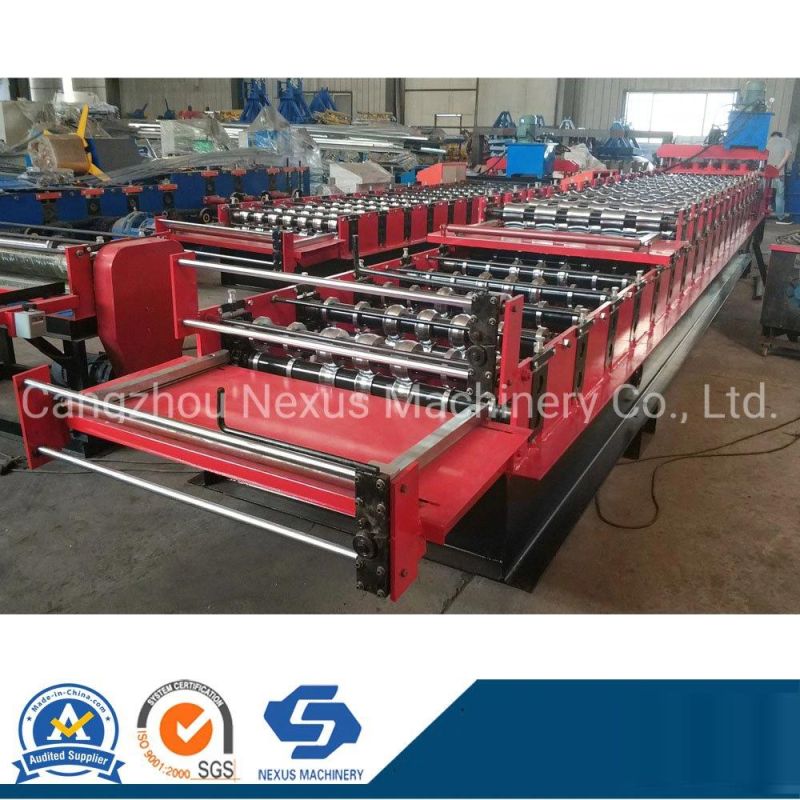

5. Photos of Double Layer Corrugated Color Steel Wall Roof Tile Roll Forming Machine for Reference:

Double Layer Corrugated Color Steel Wall Roof Tile Roll Forming Machine
Double Layer Corrugated Color Steel Wall Roof Tile Roll Forming Machine
Double Layer Corrugated Color Steel Wall Roof Tile Roll Forming Machine

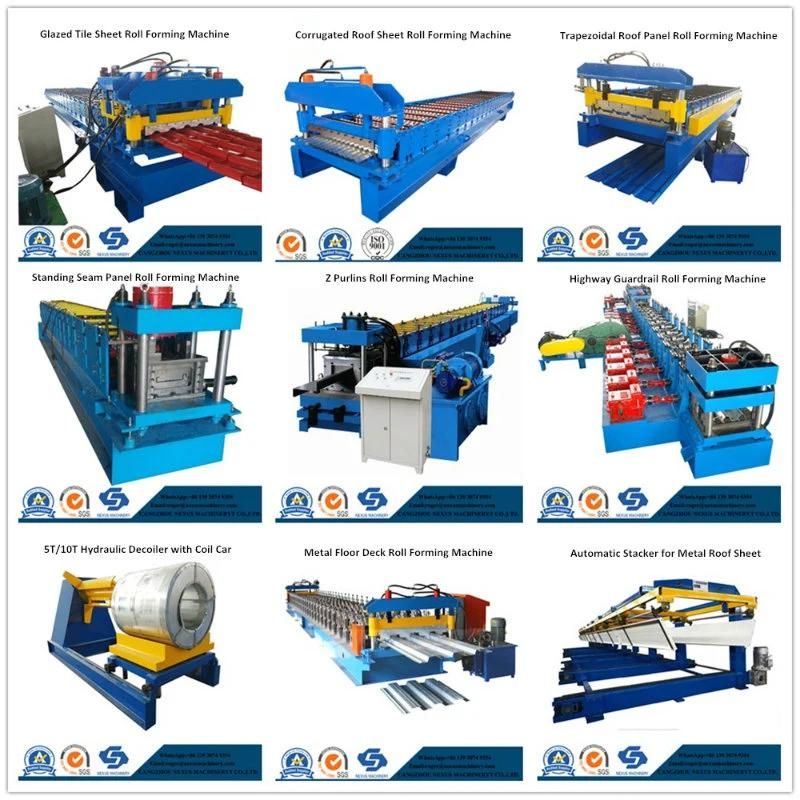

6.More Products for Choose:
Double Layer Corrugated Color Steel Wall Roof Tile Roll Forming Machine
Exhibitions Photos:
Double Layer Corrugated Color Steel Wall Roof Tile Roll Forming Machine

FAQ:
  1. Do you have after sales support?
    Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
  2. What can you do if the machine broken?
    Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts replace the broken parts, but you need pay the express cost by yourself.
  3. Can you be responsible for transport?
    Yes, please tell us the destination port or address. we have rich experience in transport.
  4. Do you provide customized?
    Sure, we can design the equipment according to the data of the structural section you provide. We are professional sheet metal forming machine designer and manufacturer in China.
