• Model NO.：NX1220
• Product Name：Glazed Metal Roof Tile Profile Steel Sheet Machine
• Raw Material：PPGI ,Gl, Aluminum Sheet
• Thickness Range：0.3-0.8mm
• Machine Power：5.5kw+3kw
• Roll Forming Station：18 Stations
• Machine Weight：About 5 Tons
• Drive Type：Chain Transmission
• Shearing Type：Hydraulic
• PLC Operation：Touching Screen
• Warranty：12 Months
• Transport Package：Plastic Film & Steel Wire Fixed
• Specification：6500mm*1500mm*1500mm(L*W*H)
• Trademark：NEXUS MACHINERY
• Origin：China
• HS Code：8455221000
• Production Capacity：30 Sets , Months

  Processing material

Color steel coil, Galvanized coil, Aluminized zinc coil or  as your customized

  Processing thickness (mm)  0.3-1.0mm or as your customized  Material of rollers

  High grade 45# steel, Processed by CNC lathe,

 Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm

  Material of shafts  45# steel  Diameter of shafts  70mm or as your customized  Forming speed  3-4 m/min or as your customized  Under frame  350 H-beam  Sidewall  16mm  Connect bar  25mm, zinc plated  Forming steps  10-18 or as your customized  Control system  Delta PLC and Inverter  Suitable power  380V, 50 Hz, 3 phase or according to your need  Drive mode  Chain and sprocket, chain size 1 inch  Main motor  3-5.5kw  Hydraulic pump station  3-5.5kw  Cutting model  Hydraulic profile cutting  Weight of the machine  3.5 ton -6 ton

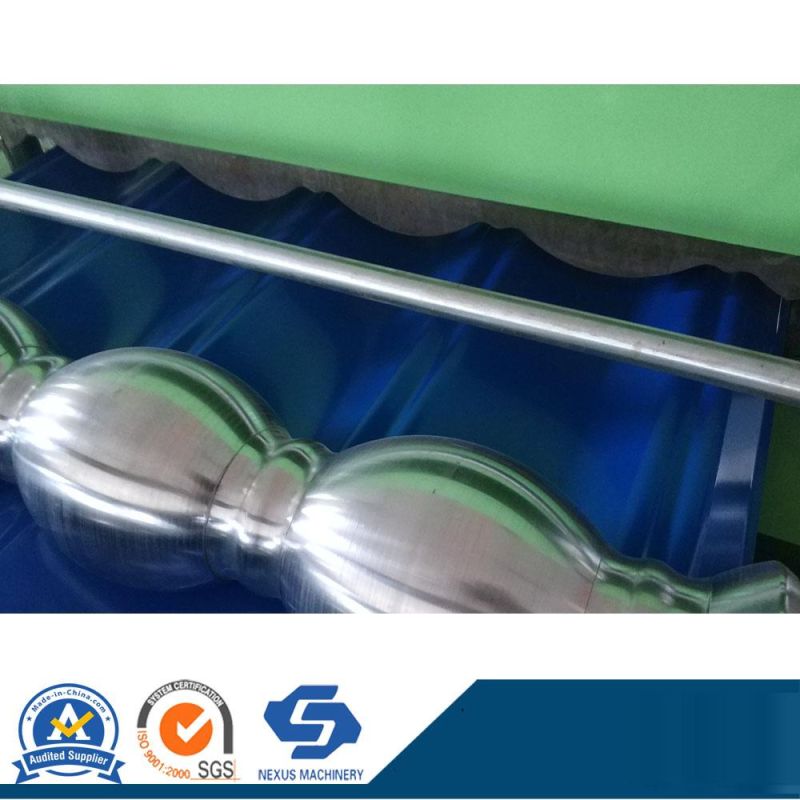

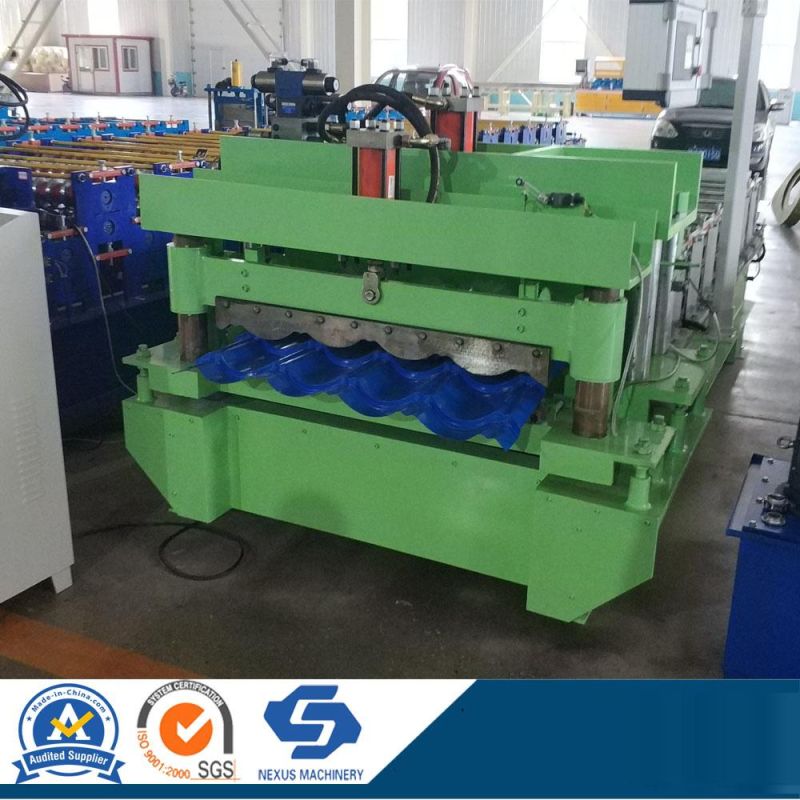

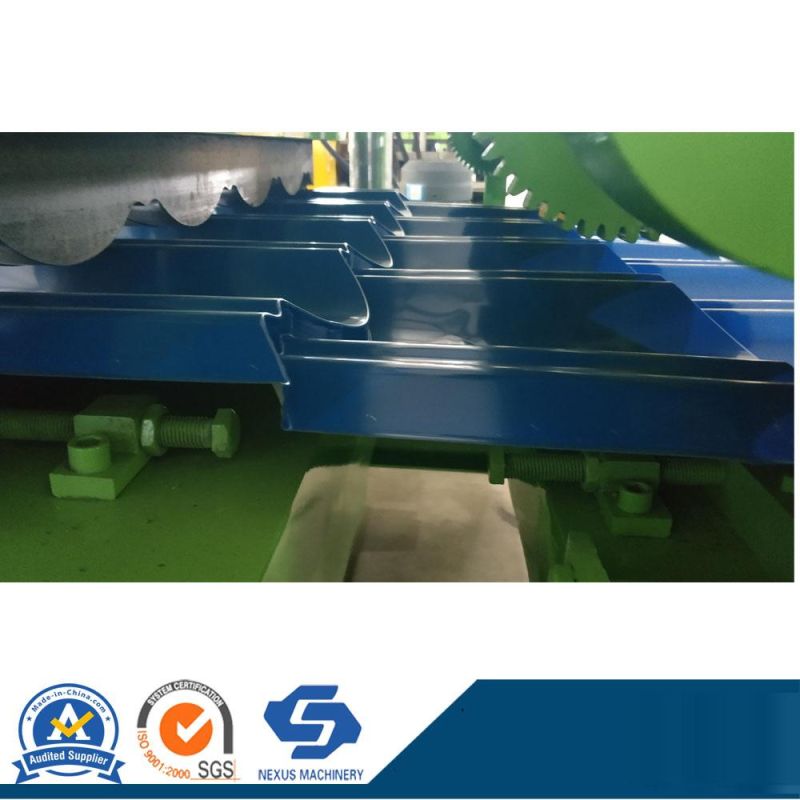

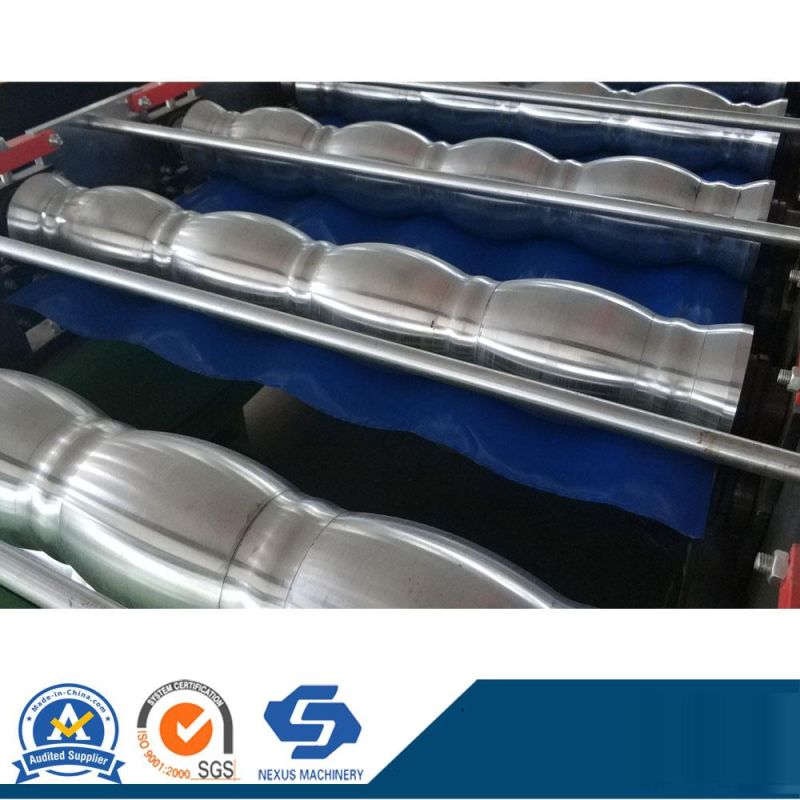

 Photos of  New Glazed Metal Roof Tile Profile Steel Sheet Rolling Forming Mmachine Price  for Reference:












More Hot-Sale Products for your Choice:

ABOUT US:
Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.


FAQ:
1. How long the machine could be made?- Normally speaking, stacker machine could
be made within 45 working days. If you need machines in a hurry, we can make it for you less than a month.
2. How to visit your company?
-a.Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
