Building Material Making Machinery

Made in China High Speed Color Steel Alvanized Glazed Roof Tile Corrugated Tile Roll Forming Machine

Cangzhou Longlize International Trade Co., Ltd.
  • After-sales Service:18 Months
  • Warranty:18 Months
  • Tile Type:Glazed
  • Certification:CE, ISO
  • Condition:New
  • Customized:Customized

Base Info

  • Model NO.:828
  • Usage:Roof
  • Transmission Method:Electric
  • Machine Color:Blue, Yellow, Red
  • Language:Chinese & English,as Customer′s Request
  • Operation:Touch Screen
  • Forming Thickness:0.3mm-0.8mm
  • Main Power:3kw,4kw,5.5kw ,7.5kwaccording to Machine
  • Forming Speed:1.5-2meters,Min(4.5-6meters,Min)
  • Transport Package:on The Sea
  • Specification:Dimension(L*W*H)(m): 6.5*1.5*1.3
  • Trademark:LLZ
  • Origin:China
  • HS Code:84552210
  • Production Capacity:500 Sets Per Year

Description

Basic Info.

Model NO. 828 Usage Roof Transmission Method Electric Machine Color Blue, Yellow, Red Language Chinese & English/as Customer′s Request Operation Touch Screen Forming Thickness 0.3mm-0.8mm Main Power 3kw/4kw/5.5kw /7.5kwaccording to Machine Forming Speed 1.5-2meters/Min(4.5-6meters/Min) Transport Package on The Sea Specification Dimension(L*W*H)(m): 6.5*1.5*1.3 Trademark LLZ Origin China HS Code 84552210 Production Capacity 500 Sets Per Year

Product Description

Made In China High Speed Color Steel alvanized Glazed Roof Tile Corrugated Tile Roll Forming Machine
Product Description
1 Coil Width914mm/1000mm/1200mm /1250mm or according to your request
2Forming thickness0.3mm-0.8mm
3Diameter of shaft70mm
4Material of shaft45#steel with tempering
5Middle plate16mm
6Main frame350H steel
7Main power3kw/4kw/5.5kw /7.5kwaccording to machine
8Voltage/Power3 Phase,380 Voltage,50Hz/as customer's request

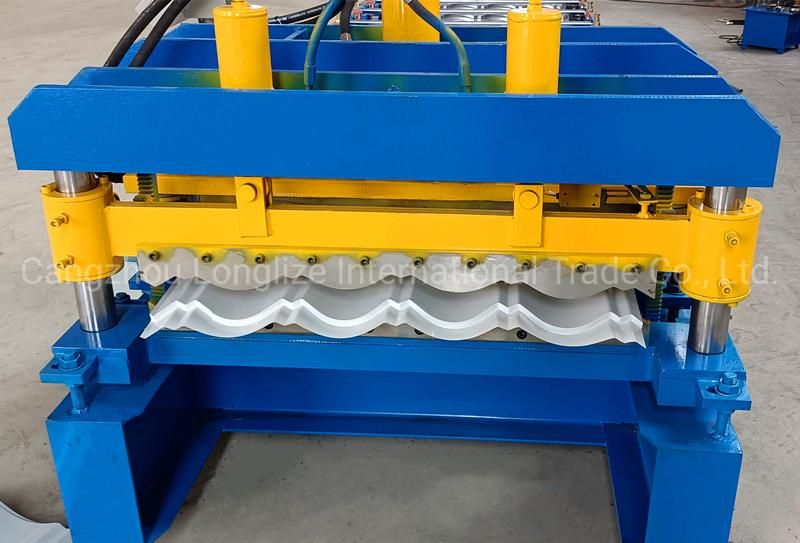

9Pressing & Cutting TypeHydraulic Stop TO Press & Cut
10Hydraulic Pump Power5.5KW
11Cutting Die MaterialCr12Mov
12Hydraulic Oil46# Abrade Oil
13Control method               PLC
14Brand of electrical partsDelta
15Length control                Encoder
16Forming speed 1.5-2meters/min(4.5-6meters/min)
17Operation                   Touch Screen
18Language                   Chinese & English/as customer's request
19Manual decoiler5 tons
20Dimensions(L*W*H)About 6.5*1.6*1.4M
21WeightAbout 4 tons
22Machine ColorBlue, yellow, red

Made in China High Speed Color Steel Alvanized Glazed Roof Tile Corrugated Tile Roll Forming Machine
Made in China High Speed Color Steel Alvanized Glazed Roof Tile Corrugated Tile Roll Forming Machine
Made in China High Speed Color Steel Alvanized Glazed Roof Tile Corrugated Tile Roll Forming Machine
Made in China High Speed Color Steel Alvanized Glazed Roof Tile Corrugated Tile Roll Forming Machine
Made in China High Speed Color Steel Alvanized Glazed Roof Tile Corrugated Tile Roll Forming Machine
Made in China High Speed Color Steel Alvanized Glazed Roof Tile Corrugated Tile Roll Forming Machine
Made in China High Speed Color Steel Alvanized Glazed Roof Tile Corrugated Tile Roll Forming Machine

Made in China High Speed Color Steel Alvanized Glazed Roof Tile Corrugated Tile Roll Forming Machine
Made in China High Speed Color Steel Alvanized Glazed Roof Tile Corrugated Tile Roll Forming Machine
Made in China High Speed Color Steel Alvanized Glazed Roof Tile Corrugated Tile Roll Forming Machine


Made In China High Speed Color Steel alvanized Glazed Roof Tile Corrugated Tile Roll Forming Machine--It adopts coiling steel sheet as the raw material, decoiling, continuous rolling and cold-forming, automatically cut to the size and specification which is required, and output the finished panels.
 Galvanized Floor Decking Roll Metal Forming Machine adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel structure.

Made In China High Speed Color Steel alvanized Glazed Roof Tile Corrugated Tile Roll Forming Machine Standard Packing:
1)Steel wire fix the machine into the container, in case any damage when shaking on the sea.
2)The main body of the roll forming machine will be naked packing into the container,covered with plastic film.
3)The received goods table put into carton box .
4)Manual decoiler naked package .
5)The spare parts will be packed into the carton box.#Roll Forming Machine#

Made In China High Speed Color Steel alvanized Glazed Roof Tile Corrugated Tile Roll Forming Machine Direction for use
1)Fill hydraulic oil in the pump.not too full,three quarters are ok.
2)Connect electric wires,use 5-10mm² support line and keep grounding.
3)Put all necessary parts on the right location.
4)Feed raw materil into the machine slowly,make it run smoothly then automatic.
5)Pay attention to final sheet collection,do not scretch it or hurts people.

Made In China High Speed Color Steel alvanized Glazed Roof Tile Corrugated Tile Roll Forming Machine Custom service requirements.
1)Final sheet embossing is avaliable.we can different embossing rollers on various pattern and drawings.
2)Feeding material width should be confirmed before machine design .the width are changeable,
3)Both three and two waves are suitable for the line.we can design the machine based on buyer's profile drawing.
4)Material thickness normal range are 0.6-1.5mm.if you have any special request on material thickness,we should discuss in advance .
5)Cutting are provided as you want
