Building Material Making Machinery

Double C and U Channel Light Steel Roll Forming Machine to Make Drywall Profiles

Cangzhou Nexus Machinery Co., Ltd.
  • Warranty:1 Year
  • Certification:CE, RoHS, GS, ISO9001, SGS
  • Customized:Customized
  • Condition:New
  • Control Type:Electric
  • Automatic Grade:Automatic

Base Info

  • Product Name:C and U Channel Light Steel Machine
  • Coil Material Thickness:0.3-0.8mm
  • Processing Material:Galvanized Steel
  • Roller Material:Cr12MOV
  • Diameter of Shaft:56mm
  • Forming Speed:15-25m,Min
  • Package:One Full Set of 20 Feet Container
  • Transport Package:Control Box and Easy Damaged Parts: Protective PA
  • Specification:60-27-28
  • Trademark:Nexus Machinery
  • Origin:Cangzhou
  • HS Code:8455221000
  • Production Capacity:10 Sets,Month

Description

Forming speed(m/min)

0-30m/min  max

Not include the time of cutting

3.

Forming stations

12 stations



5.

Material of rollers

CR12



6.

Thickness of structure

30mm



7

Forming shaft diameter(mm)

70



8

Drive

Gear box



9

Type of cutting

Hydraulic cutting



10.

Control system

 PLC xinjie



11.

Install dimension(depend on the final design)

4.8m×0.6m×1.2m

Without panel length

12.

Total weight (Approx)

2.3T

Depend on final design

13.

Screen

Text screen /touch screen



Components



NO

Name

Unit

Qty



1

Man-made decoiler

set

1

  • Max width 300mm
  • Inner diameter -460-510mm
  • Max loading capacity 1000kg
  • Manual operating type manual expansion to tighten the coil
  • Break down drive whole line stop while decoiler idle

2

Feeding Table

set

1



3.

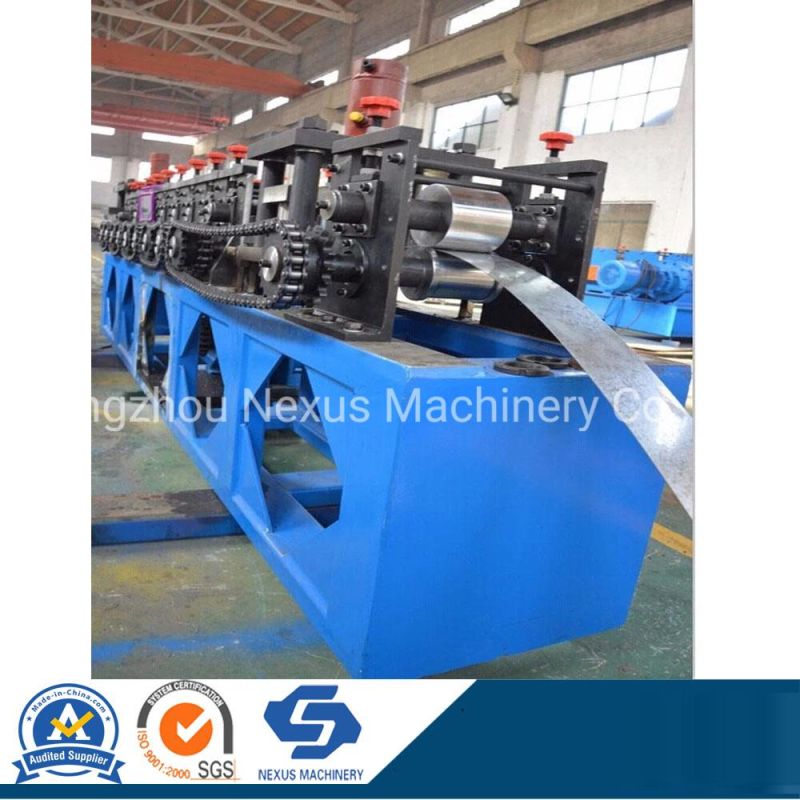

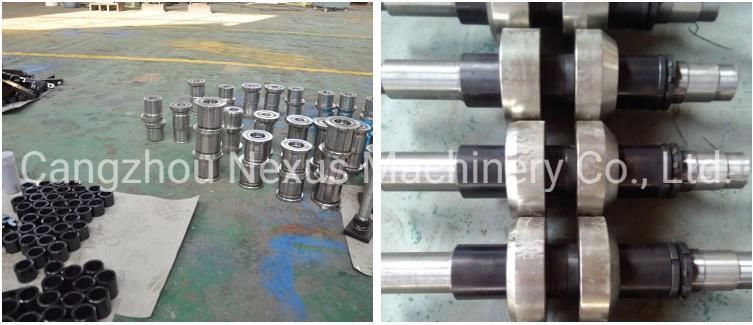

Forming Rollers

set

1

  • Forming Station 16 nos
  • Forming Rollers material Cr12
  • Forming Rollers hard treatment HRC 58-60
  • Shaft of roller Diameter 40mm
  • Shaft material 40Cr,heat treatment, refine grinded
  • Machine frame: steel welding
  • Main sidewall thickness 25mm
  • Machine driven by universal joints via gearbox
  • Roll forming motor 5.5kw with frequency inverter controller
  • Gearbox RV  worm gearbox

4.

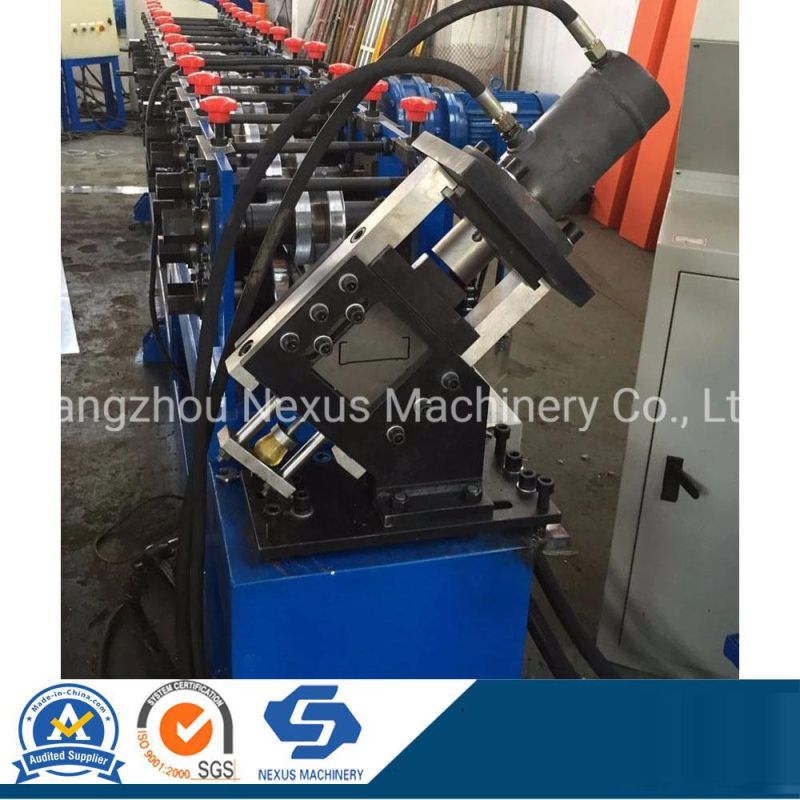

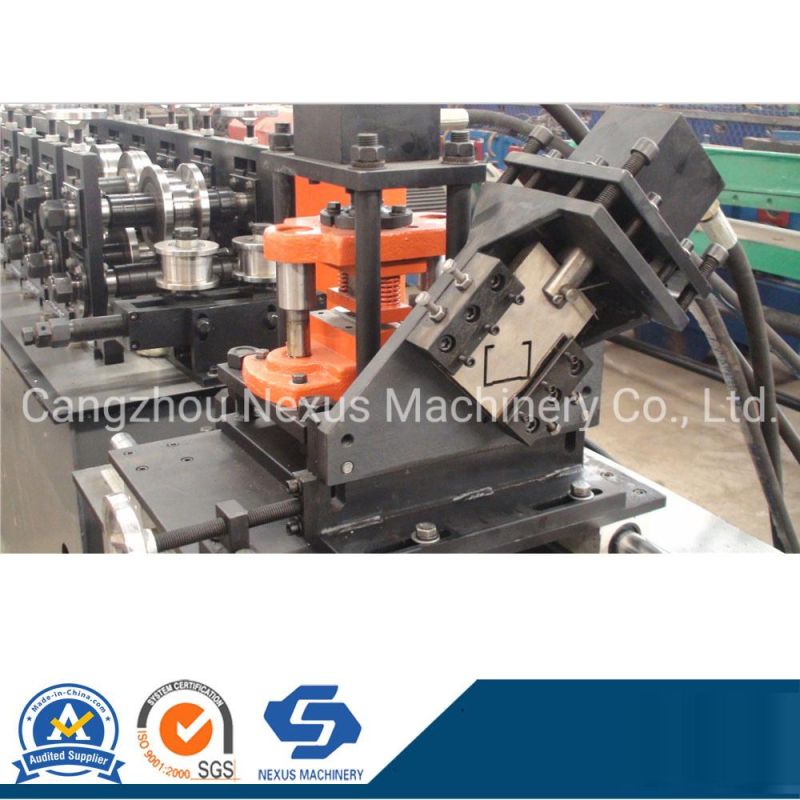

Hydraulic cutting

set

1

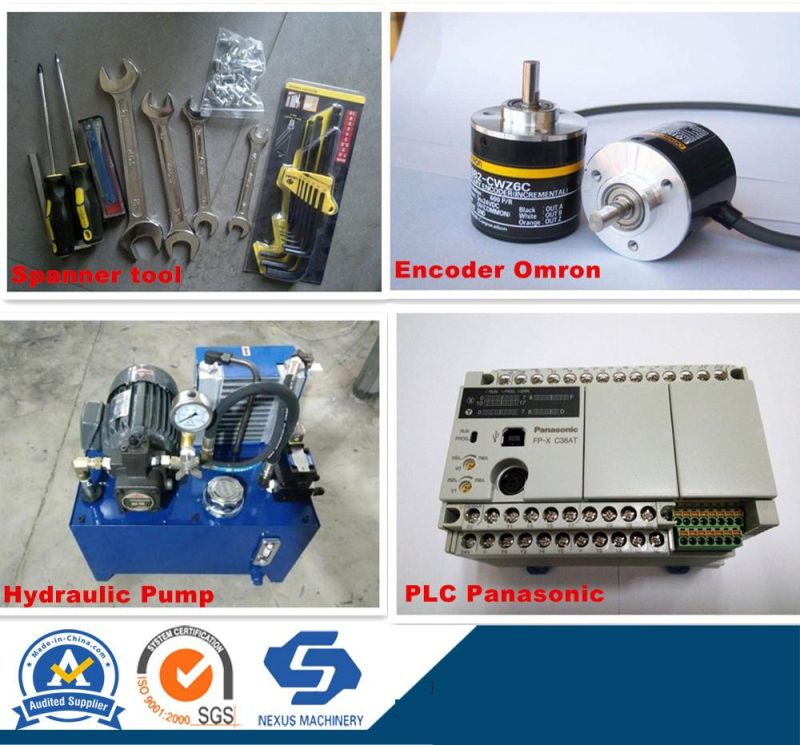

  • Hydraulic pump stand 1 set
  • Hydraulic Components taiwanese
  • Hydraulic System discharging protection with wind cooler
  • Edge cutting 2 sets both ends
  • Fire testing hole  2 sets both ends
  • Mould standard SKD-11 Steel Japanese
  • Mould frame&plate S45C
  • Mould pin SKH-9 steel Japanese
  • All mould treatment  By slow-feeding Nc wire cutting

5.

Profile Discharger

set

1

  • Driven  machinical Auto Head
  • Operation Full automatic along with forming machine

6.

Electric Control system

set

1

  • Frequency converter Silin ,Taiwanese
  • PLC Fatek ,Taiwanese
  • Touch screen weinview Taiwanese
  • Profile length cutting forming machine stops then cut
  • Operational controller: touch screen knob switch emg

Brake down and so on

(6)Power supplier  380V 50Hz 3phase






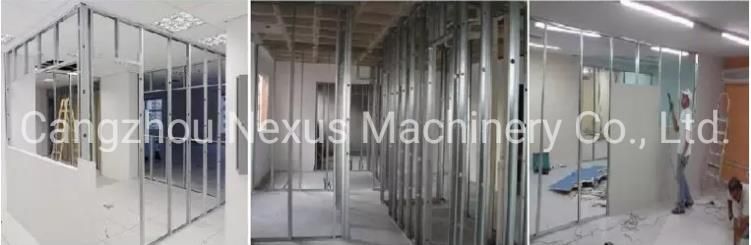

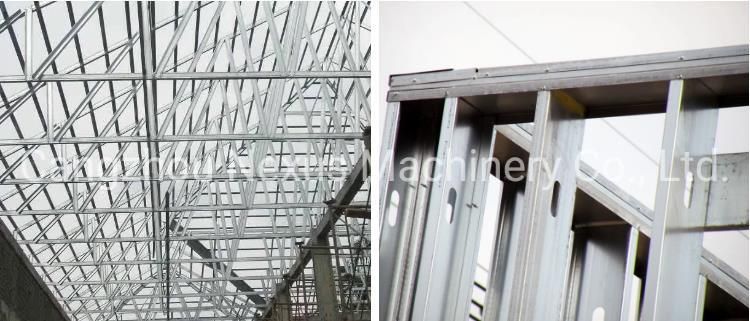

Double C and U Channel Light Steel Roll Forming Machine to Make Drywall Profiles
Double C and U Channel Light Steel Roll Forming Machine to Make Drywall Profiles
Double C and U Channel Light Steel Roll Forming Machine to Make Drywall Profiles
Double C and U Channel Light Steel Roll Forming Machine to Make Drywall Profiles
Double C and U Channel Light Steel Roll Forming Machine to Make Drywall Profiles
Double C and U Channel Light Steel Roll Forming Machine to Make Drywall Profiles

Double C and U Channel Light Steel Roll Forming Machine to Make Drywall Profiles
Double C and U Channel Light Steel Roll Forming Machine to Make Drywall Profiles

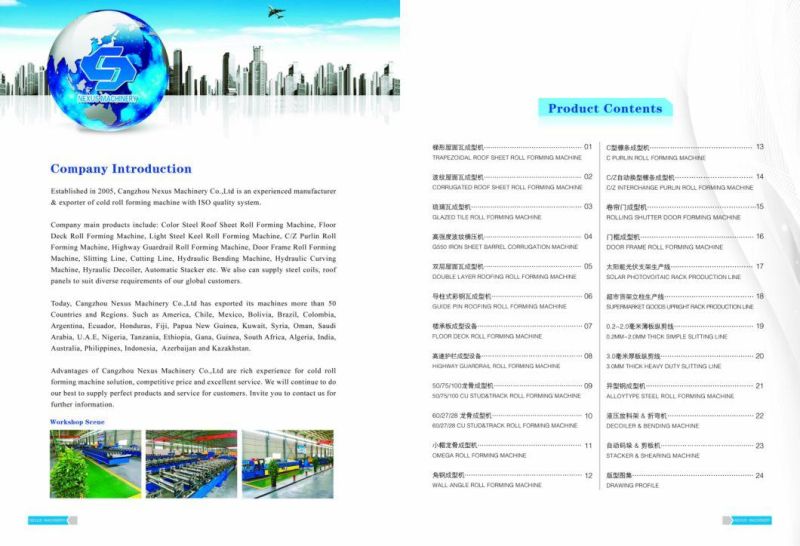

ABOUT US:


Double C and U Channel Light Steel Roll Forming Machine to Make Drywall Profiles

More Products for Your Choose:
Double C and U Channel Light Steel Roll Forming Machine to Make Drywall Profiles

FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made within 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
