Floor Decking Profile Making Machines Aluminum Roll Forming Machine for Sale
Cangzhou Nexus Machinery Co., Ltd.- After-sales Service：Provide Overseas Service
- Warranty：1 Year
- Tile Type：Galvanized Steel
- Certification：CE, ISO
- Condition：New
- Customized：Customized
Base Info
- Usage：Floor
- Transmission Method：Electric
- Product Name：Metal Galvanized Sheet Floor Decking Roll Forming
- Raw Material：Gi Steel, PPGI Steel
- Thickness Range：0.8-1.5mm
- Machine Power：22kw+5.5kw
- Work Speed：10-15m,Min
- Machine Weight：12 Tons
- Transport Package：Plastic Film & Steel Wire Fixed
- Specification：12500mm*1500mm*1500mm(L*W*H)
- Trademark：NEXUS MACHINERY
- Origin：Cangzhou, China
- HS Code：8455221000
- Production Capacity：30 Sets , Month
Description
Floor Decking Profile Making Machines Aluminum Roll Forming Machine For SaleMain motor power 11kw*2 Drive 1'' single chain Type: Wall board Main shaft dia ¢80mm material 45# forge steel and quenched Roller material 45# high grade forge steel ,chrome coated 0.05mm Roll station 26 groups Raw material 0.8-1.5mm Coil width 1219mm Working speed 10m--15m/min(Exclude cutting time) Length Tolerance ±1.5mm Weight of machine About 12 tons Size of machine About 12500×1800×1500mm L x W x H Color of machine Yellow and Blue Coder Omron, made in Japan Control PLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client) Computer operating panel touching screen Cutting Hydraulic cutting. Auto cutting when reach the set length Hydraulic power 5.5KW Blade material Cr12mov,quenched 58°-62° Working pressure 16mpa Cutting tolerance +/- 1.0mm
4. Equipment list :
5. Guarantee:
1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

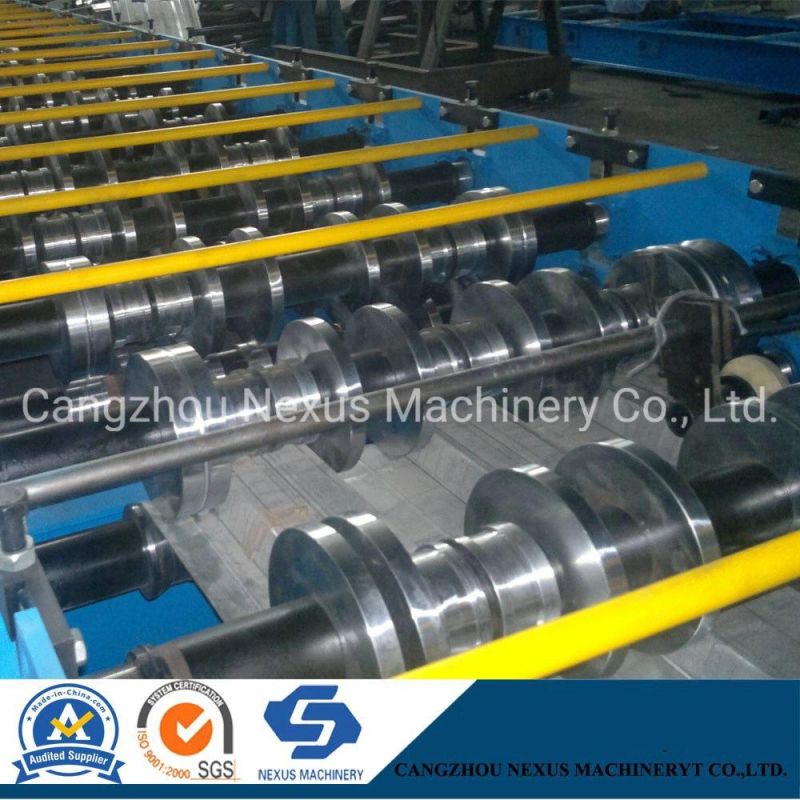

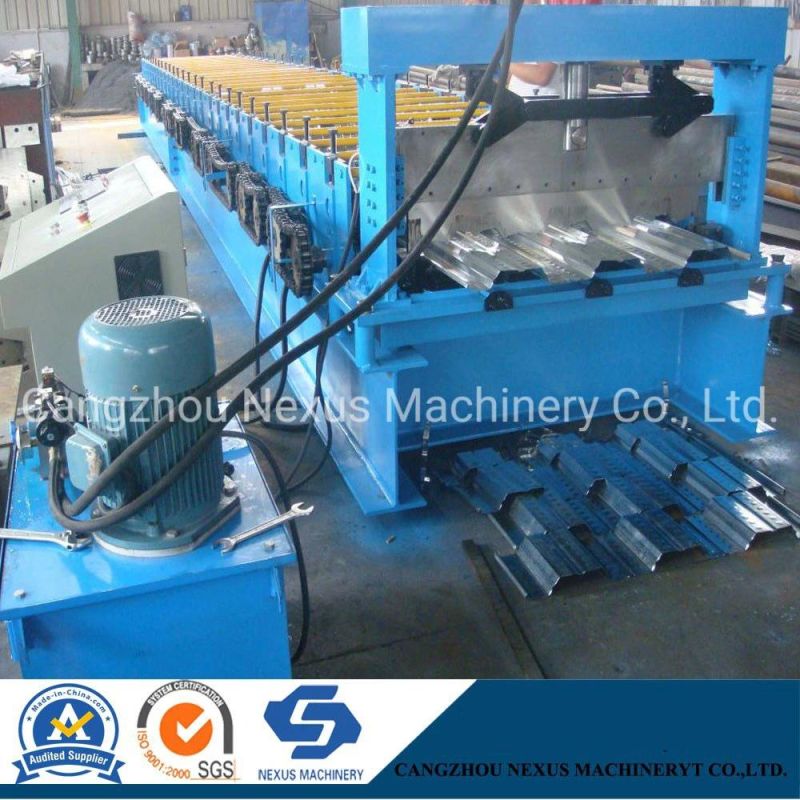

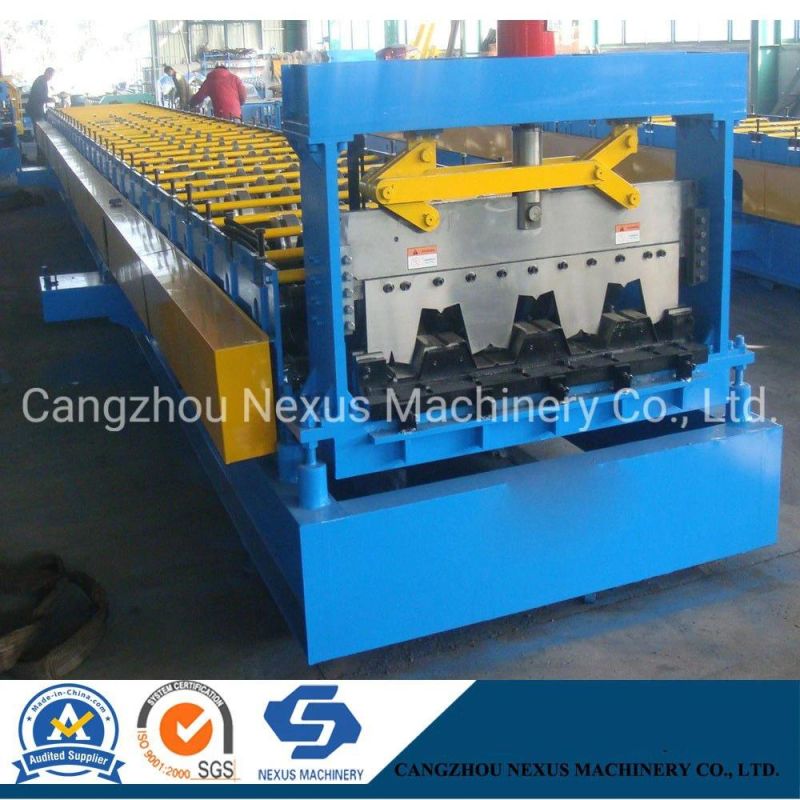

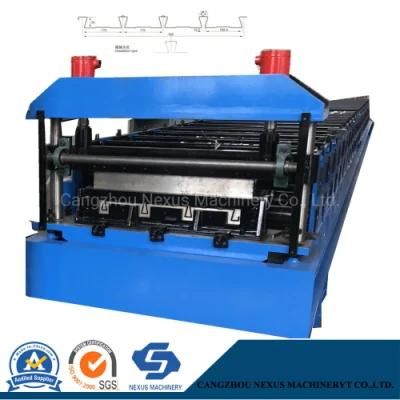

6. Photos of Floor Decking Profile Making Machines Aluminum Roll Forming Machine For Sale for Reference:
4. Equipment list :
| No. | Product Name | QTY |
| 1 | 5T Manual decoiler | 1 |
| 2 | Floor Decking Profile Making Machines Aluminum Roll Forming Machine For Sale (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system) | 1 |
| 3 | Passive Output table | 2 |
| Sum | 4 |
5. Guarantee:
1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
6. Photos of Floor Decking Profile Making Machines Aluminum Roll Forming Machine For Sale for Reference:
