• Product Name：Roll Sheet Tile Making Forming Roofing Machine
• Raw Material：PPGI Sheet
• Feeding Width：1000mm,1219mm
• Thickness Range：0.3-0.8mm
• Machine Power：5.5kw+3kw
• Forming Speed：10-15m,Min
• Roller Station：16-22 Groups
• Operation Type：Touching Screen PLC
• Machine Weight：About 5 Tons
• Warranty：12 Months
• Transport Package：Plastic Film & Steel Wire Fixed
• Specification：6500mm*1500mm*1500mm(L*W*H)
• Trademark：NEXUS MACHINERY
• Origin：Hebei, China
• HS Code：8455221000
• Production Capacity：30 Sets , Months

Basic Info.

Product Name Roll Sheet Tile Making Forming Roofing Machine Raw Material PPGI Sheet Feeding Width 1000mm/1219mm Thickness Range 0.3-0.8mm Machine Power 5.5kw+3kw Forming Speed 10-15m/Min Roller Station 16-22 Groups Operation Type Touching Screen PLC Machine Weight About 5 Tons Warranty 12 Months Transport Package Plastic Film & Steel Wire Fixed Specification 6500mm*1500mm*1500mm(L*W*H) Trademark NEXUS MACHINERY Origin Hebei, China HS Code 8455221000 Production Capacity 30 Sets / Months

Product Description

Corrugated Sheet Metal Roofing Roll Forming Machine

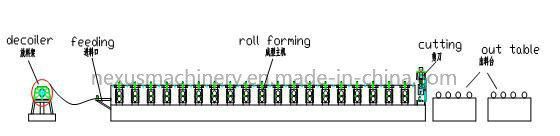

1. Processing flow diagram of Corrugated Sheet Metal Roofing Roll Forming Machine:

Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Output table

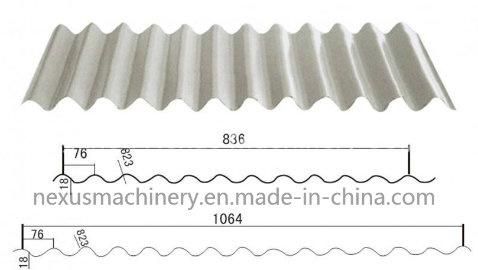

2. Profile Drawings for Reference:




3. Technical parameters for Corrugated Sheet Metal Roofing Roll Forming Machine :



1	Suitable to process	Color steel plate
2	Width of the plate	1000mm
3	Thickness of the plate	0.3-0.8mm
4	De-coiler	Manual one, can load 5 tons raw material
5	Rollers for forming	14 rows
6	Diameter of the roller	80mm
7	Rolling material	Carbon Steel 45#
8	Main motor power	4kw
9	Productivity	8-12m/min
10	Cutting method	Hydraulic mould cutting
11	Material of the cutting blade	Cr12
12	Hydraulic cutting power	3kw
13	Processing precision	Within 1.00mm
14	Control system	Delta PLC control
15	Side panel of machine	14mm
16	Main structure of the machine	300 H steel
17	Weight	About 4.6T
18	Dimensions	7.5*1.6*1.2m
19	Voltage	380V 50Hz 3phases(changeable as needs)
20	Certificate	CE/ISO

4. Equipment list :


No.	Product Name	QTY
1	5T Manual decoiler	1
2	Corrugated Sheet Metal Roofing Roll Forming Machine  (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system)	1
3	Passive Output table	2
Sum		4

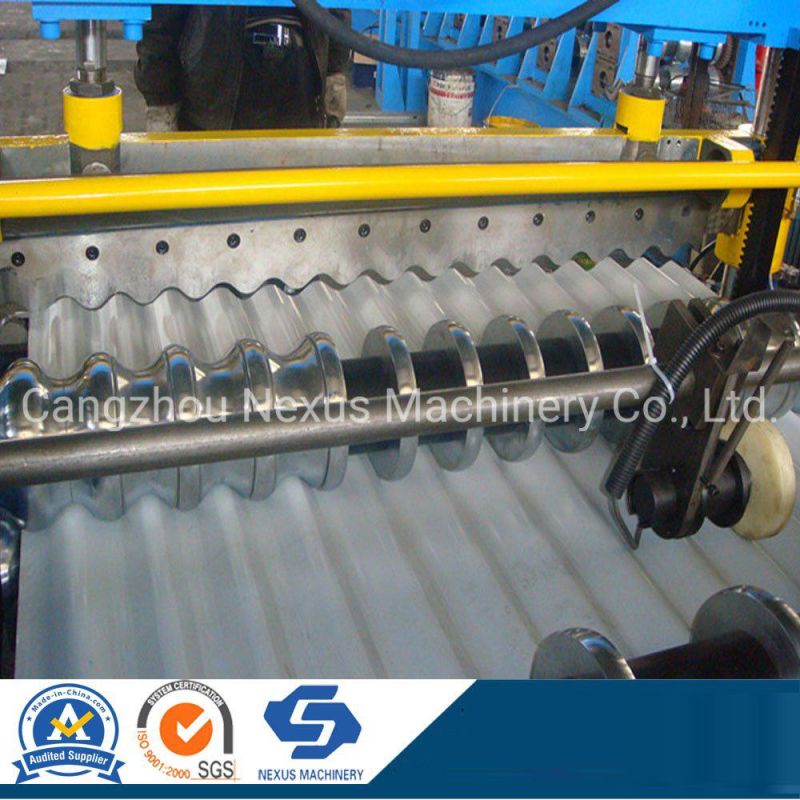

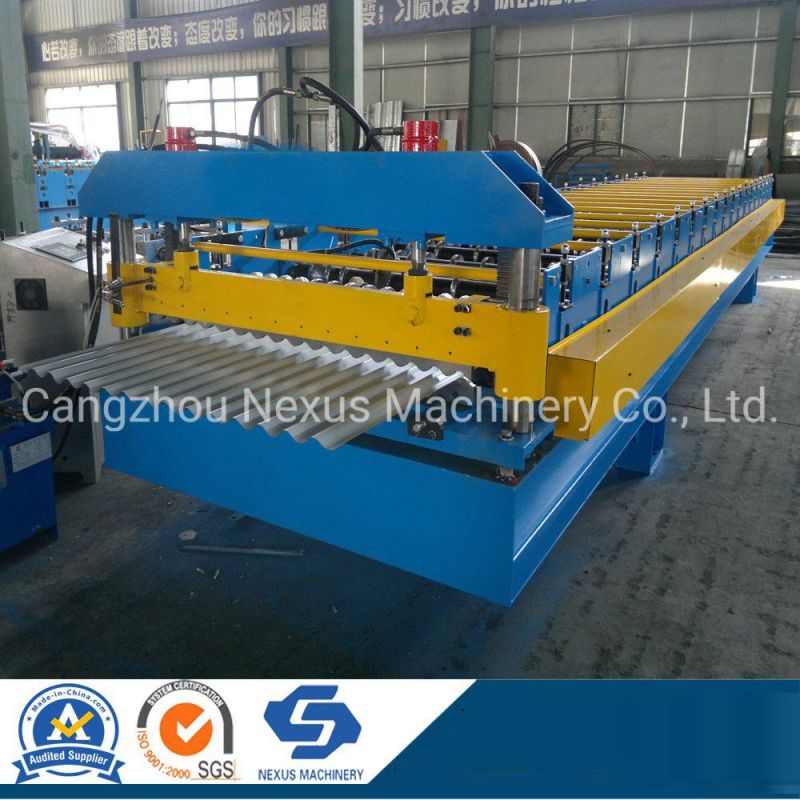

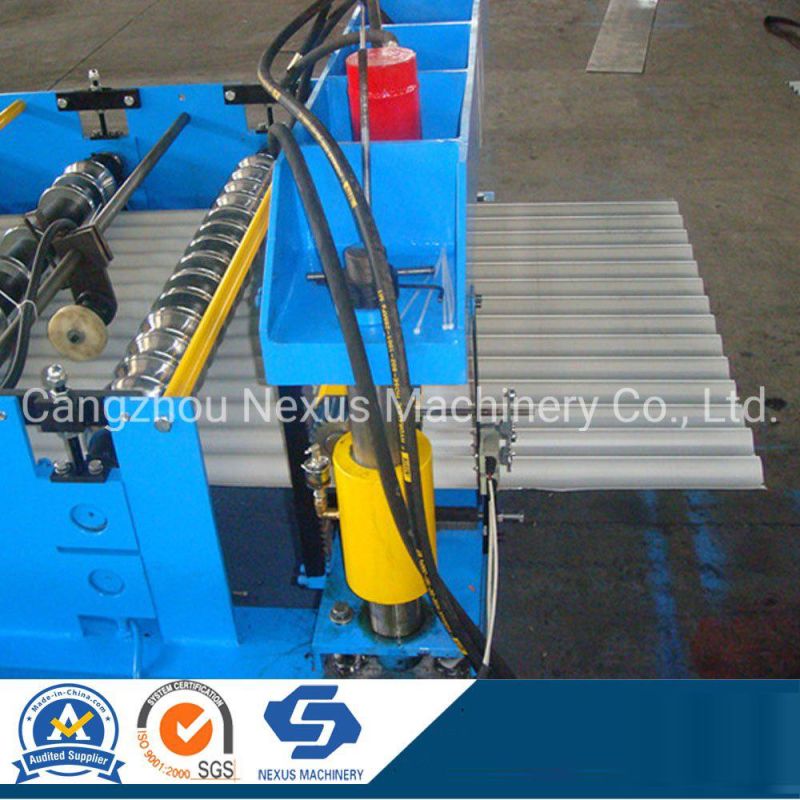

 Photos of Corrugated Sheet Metal Roofing Roll Forming Machine for Reference:







More Photos for your choose:

ABOUT US:

Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
