• Input Voltage：220V 50Hz
• Input Power：1.5kw
• Air Pressure：0.5~0.8MPa
• Air Consumption：30L,Min
• Rotating Speed：28000r,Min
• Max. Milling Length：30mm
• Max. Milling Depth：30mm
• Diameter of Milling Cutter：4mm;5mm
• Overall Dimension：1200*1200*1800mm
• Transport Package：Wooden Box
• Specification：1200*1200*1800mm
• Trademark：YueFeng
• Origin：China
• HS Code：8477800000
• Production Capacity：40 Window Per Day

Basic Info.

Input Voltage 220V 50Hz Input Power 1.5kw Air Pressure 0.5~0.8MPa Air Consumption 30L/Min Rotating Speed 28000r/Min Max. Milling Length 30mm Max. Milling Depth 30mm Diameter of Milling Cutter 4mm;5mm Overall Dimension 1200*1200*1800mm Transport Package Wooden Box Specification 1200*1200*1800mm Trademark YueFeng Origin China HS Code 8477800000 Production Capacity 40 Window Per Day

Product Description

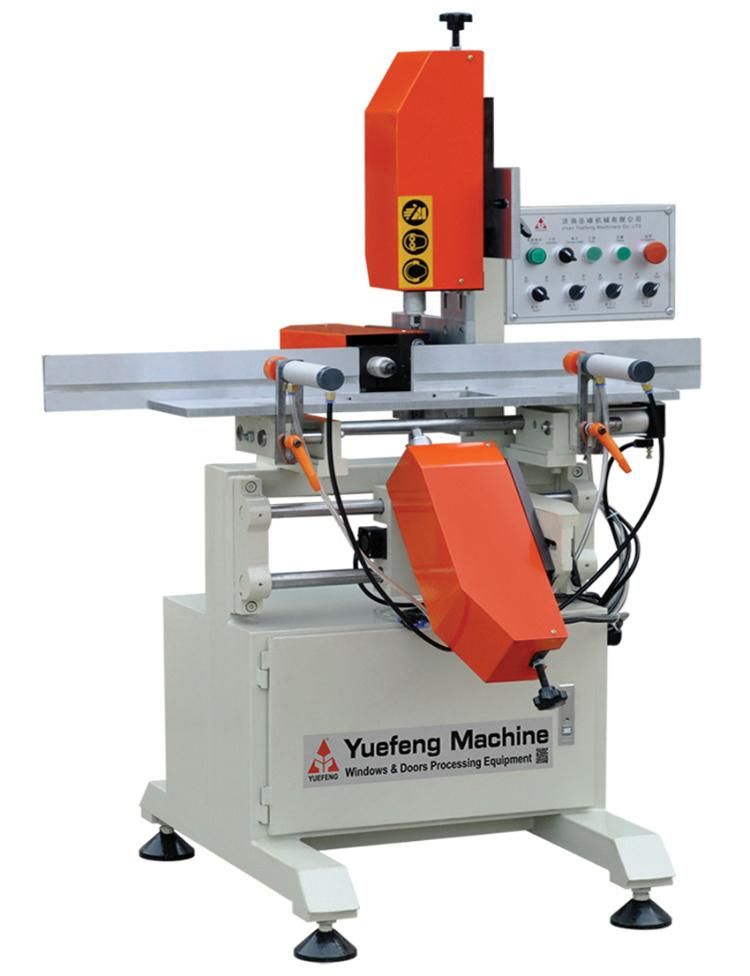

SCXA-60  Water Slot Router



 1.Milling all kinds of water slots and air pressure balance groove.
 2.Full design with high rigidity, processing beautiful water slot, high appearance quality.
 3.Automatic cutter changer, one time clamp to finish water slots processing.
 4.Special feeding system results no maintenance and high milling quality.
 5.Easily adjustment for the cutter location to meet different kinds of profiles.
 6.Adopt linear bearing motion to ensure the processing precision.
 7.This three-axis water slot router can achieve the function of four-axis water slot router.

Technical Parameter:

Model	SCXA-60
Input voltage	220V 50Hz
Input power	1.2 kw
Air pressure	0.5~0.8MPa
Air consumption	30L/min
Motor rotating speed	28000r/min
Max. milling length	100mm
Max. milling depth	30mm
Diameter of milling cutter	φ4mmφ5mm
Overall dimension	1200×1200×1800mm

FAQ

1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
