• Model NO.：NX80-300
• Product Name：Steel Channel Profile CZ Purlin Machine
• Coil Material Thickness：1--3mm
• Processing Material：Galvanized Steel
• Roller Material：Cr12MOV
• Roller Station：12-18 Stations
• Driven：Chain Transmission
• Forming Speed：10-15m,Min
• Punching Type：Hydraulic Punching
• Cutting Type：Hydraulic Post-Cutting
• Operation Type：Touching Screen
• Transport Package：Plastic Film
• Specification：80-300
• Trademark：Nexus Machinery
• Origin：Cangzhou
• HS Code：8455221000
• Production Capacity：10

Basic Info.

Model NO. NX80-300 Product Name Steel Channel Profile CZ Purlin Machine Coil Material Thickness 1--3mm Processing Material Galvanized Steel Roller Material Cr12MOV Roller Station 12-18 Stations Driven Chain Transmission Forming Speed 10-15m/Min Punching Type Hydraulic Punching Cutting Type Hydraulic Post-Cutting Operation Type Touching Screen Transport Package Plastic Film Specification 80-300 Trademark Nexus Machinery Origin Cangzhou HS Code 8455221000 Production Capacity 10

Product Description

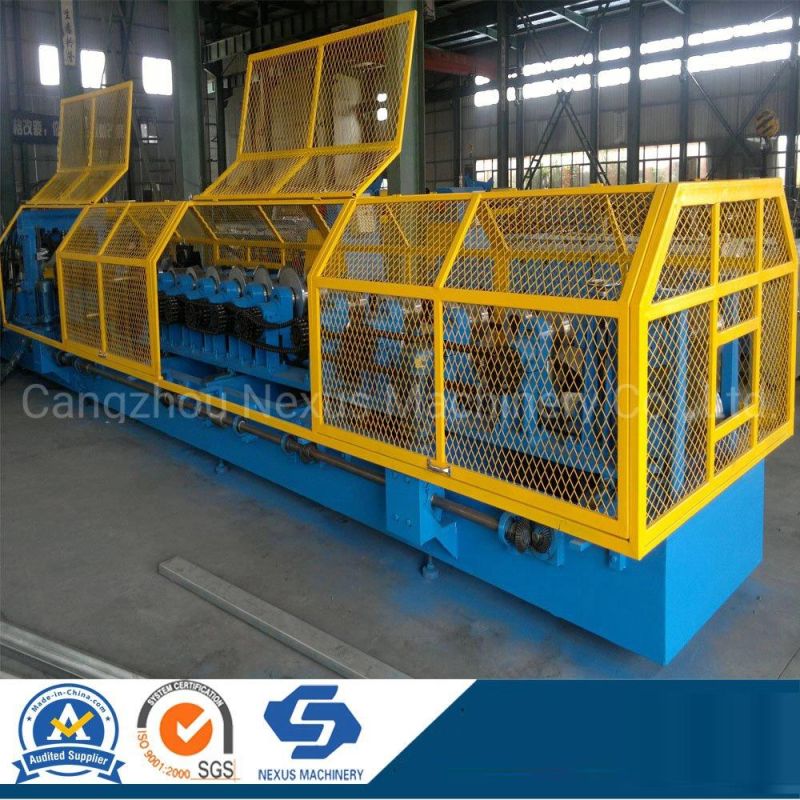

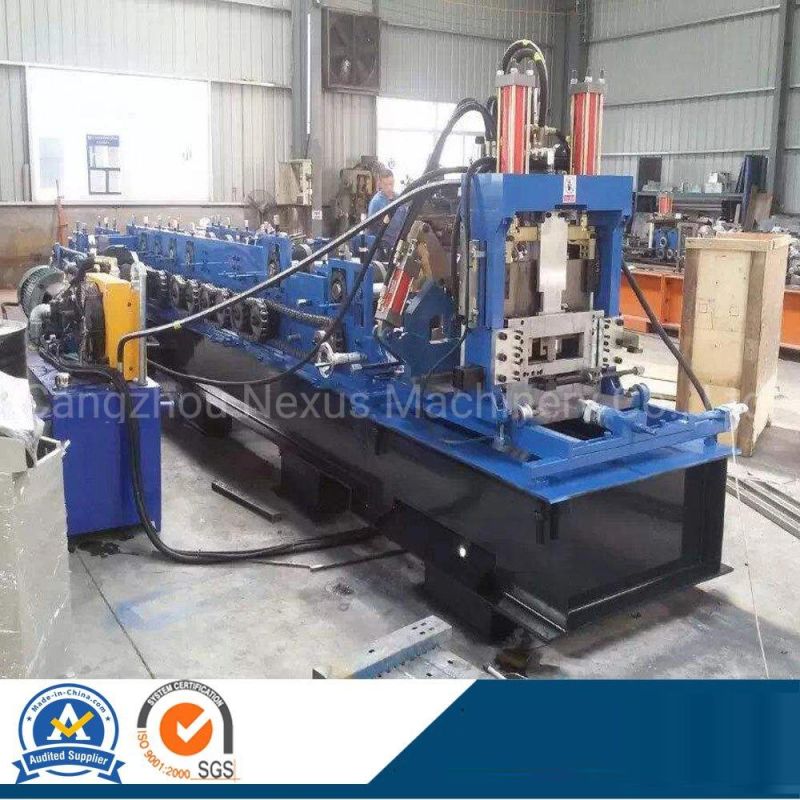

Quick Change Steel Channel Profile CZ Purlin Roll Forming Machine

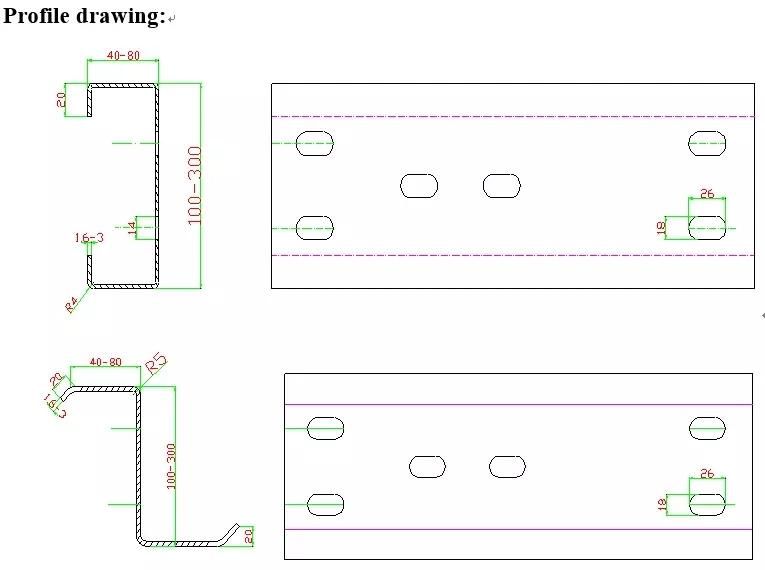

 Quick Change Steel Channel Profile CZ Purlin Roll Forming Machine can produce C, Z profiles. Produce from C to Z purlin by switch one side roller, only need about 15 minutes. This machine also can adjust roller horizontal distance to achieve C or Z purlins of the width with high precision automatic. And also save time and increase production.

Technical parameters :

No.	Item	Description
1	Coil width	According to the final profile
2	Rolling speed	0-15m/min
3	Rolling thickness	1.5-3.0mm
4	Control system	PLC (Panasonic) as list in the note
5	De-coiler	5 TON hydraulic de-coiler
6	Flatten roller	7 Rollers, upper us 3 rollers, down is 4 rollers
7	Flattene roller material	SAE1045 thermal treatment hardness 48-52 HRC.
8	Roller stations	About 16 stations and one correction adjust system
9	Roller material	Ccr15, chrome plated surface with hardness 58-62 degree ,CNC
10	Shaft diameter	45# forged steel, φ76mm
11	Main motor power	15kw, AC motor
12	Hydraulic station power	5.5kw
13	Hydraulic pressure	16-20Mpa

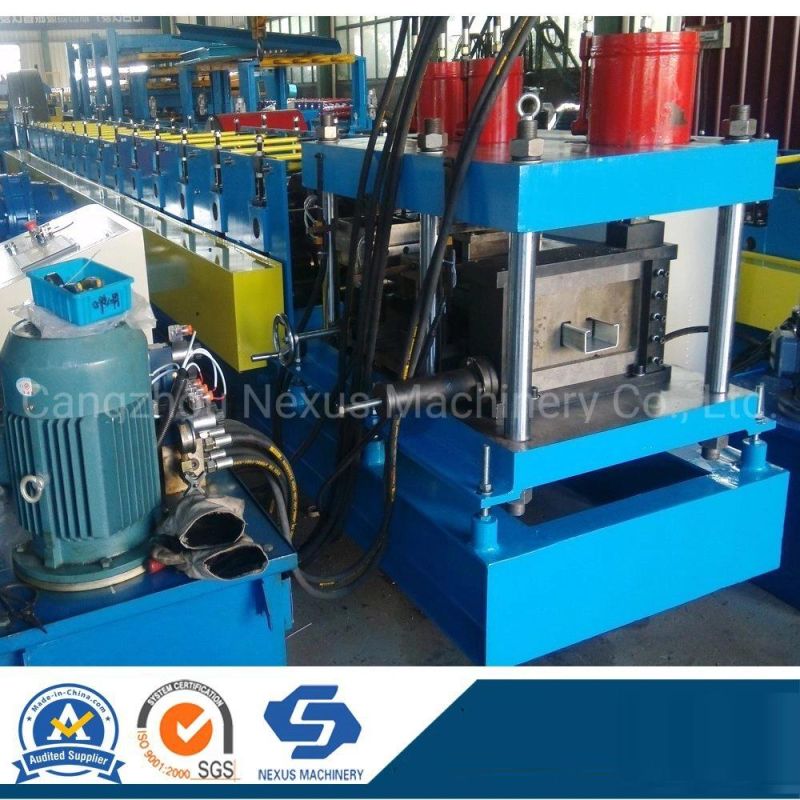

14	Punching and cutting mode	Machine adopts pre-punching and pre-cutting
15	Material of cutting	Cr12Mov
16	Tolerance	3m+-1.5mm
17	Electric source	380V, 50HZ,3 phase or according customer request
18	Way of driving	By gear box

ABOUT US:
CANGZHOU NEXUS MACHINERY CO., LTD Company is in producing sandwich panel line all kinds of roll forming machines, such as glazed tile roll forming machine, roof/wall panel roll forming machine, double layer roll forming machine, Full-Automatic C and Z Purlin Roll Forming Machine, floor deck roll forming machine, highway guardrail machine, dust shield machine, ridge cap machine, roll shutter door machine, uncoiling & leveling & slitting & recoiling line, all kinds of decoilers and stackers, and many other related equipments like shear, punch, slitter, leveler, crimping curving, bending and so on,different sizes roofing sheet,PPGI/GI ,Alu-Zinc steel coils ,Galvanized steel coils ,Galvanized steel sheet ,Galvalume steel coils/sheet ,cold/hot rolled sheet/cols , professional service and favorable price , satisfied with the quality ,welcome to every customers come to visit and buy ! ! !We will 24 hourse services for you ,please don't hesitate to contact us when you need.



FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made without 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
