• Model NO.：NX100
• Product Name：New Type Light Gauge Steel Stud Making Machine
• Coil Material Thickness：0.3-0.8mm
• Processing Material：Galvanized Steel
• Roller Material：Cr12MOV
• Forming Speed：About 8-25m,Min
• Main Motor Power：5.5kw
• Hydraulic Station Power：2.2kw
• Machines Size：About 3.8m*1.5m*1.4m
• Number of Work Stations：12stations
• Max. Roll Shaft of Diameter：76mm
• Transport Package：1.Control Box and Easy Damaged Parts:Protective PA
• Specification：50-150
• Trademark：Nexus Machinery
• Origin：Cangzhou
• HS Code：8455221000
• Production Capacity：10

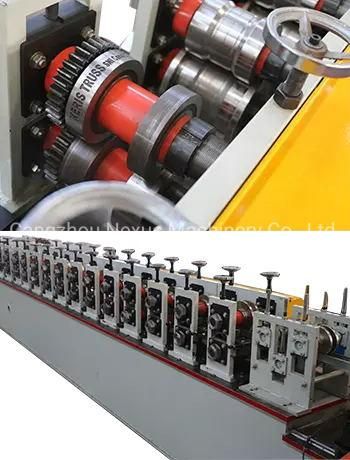

 Roll forming systemRoller station12 Steps+3Straighting rollersShaft Diameter50mm-0.01mm with Key-wayRoller MaterialCr12 with key-wayHeat TreatmentVacuum quenching upto hardness 58Fine MachiningCNC Lathe after vacuum quenchingMachine Structure 5mm under-frame and 20mm worktableMotor Power5.5KW with PM250(or K-type )ReducerTransmission MethodAll gear with high frequency quenchingMemorial Gateway25mm thickness A3 PlateGateway ProcessSquare side with fly edge machineProduction Speed30-40m/min

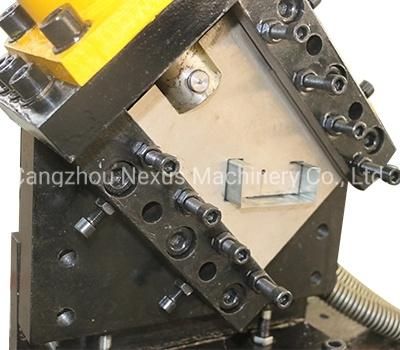

Hydraulic cutting system
 Cutting MethodFull-auto hydraulic servo-tracking cuttingHydraulic System5.5KW(if hot-weather with water-cooling)Speed AdjustmentFrequency Changer ControlCutter MaterialCr12MovCutter Processingelectric spark,polishing machine andwire-electrode cuttingafter heat-treatment

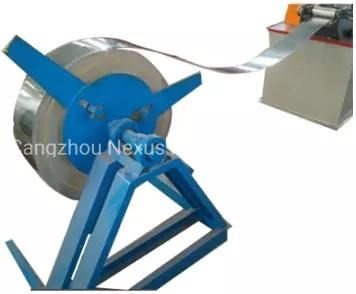

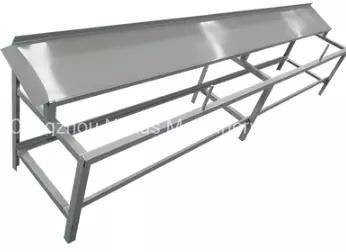

Decoiler Receiving TableUn-coiler TypeManual OperationTotal Length3000mmLoading CapacityMax 1500KGFrame StructureAngle Steel with Metal PlateInner Coil Diameter460-510mmFunctionLet the finished production freely

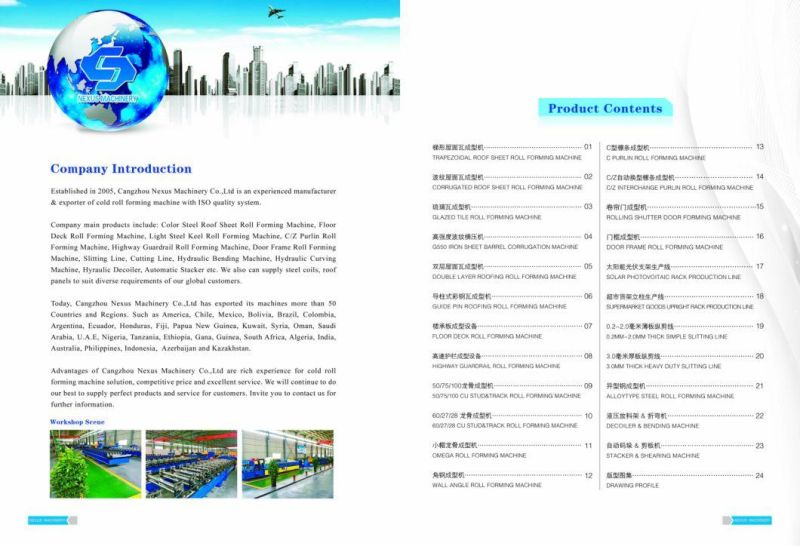

ABOUT US:






FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made without 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
