• Model NO.：NX1000
• Name：Floor Steel Metal Deck Machine
• Raw Material：Gi Steel, PPGI Steel
• Thickness Range：0.8-1.5mm
• Embossing Type：Roll Forming
• Machine Power：22kw+5.5kw
• Work Speed：10-15m,Min
• PLC Brand：Panasonic,Siemens,Delta
• Opertation Type：Touching Screen with Buttons
• Language：English and Chinese
• Machine Weight：12 Tons
• Warranty：1 Year
• Transport Package：Plastic Film & Steel Wire Fixed
• Specification：11500mm*1500mm*1500mm(L*W*H)
• Trademark：NEXUS MACHINERY
• Origin：Cangzhou, China
• HS Code：8455221000
• Production Capacity：30 Sets , Month

No

Item

Parameter

01

Material feeding width

925~1250mm

02

Material thickness

0.8~1.3mm

 03

Uncoiler

Manual Uncoiler

 04

Loading weight

5ton

 05

Forming speed

8-15m/min

 06

Forming Steps

26~35 stations

 07

Shafts materials

45# high quality steel

 08

Shafts diameter

76mm

 09

Roller materials

45# high quality steel,   hard chrome coated 0.05mm

 10

Transmission

Chains-sprockets

 11

Main motor power

2x11kw

 12

Cutting blade

Cr12 with quenched   treatment 60-62

 13

Hydraulic power

4kw

 14

This machine will   automatically measure and cut the length and quantity as per clients set on   the PLC touch screen

 15

Length cut Accuracy

±1mm

 16

PLC control system

Omron Japan

 17

Frequency converter

TAIAN

 18

Screen

TouchWin

 19

Voltage

380V/50HZ/3Phase

 20

Total weight

Approx 15t

 21

Overall dimensions

15600x1500x1300mm

4. Guarantee:

1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

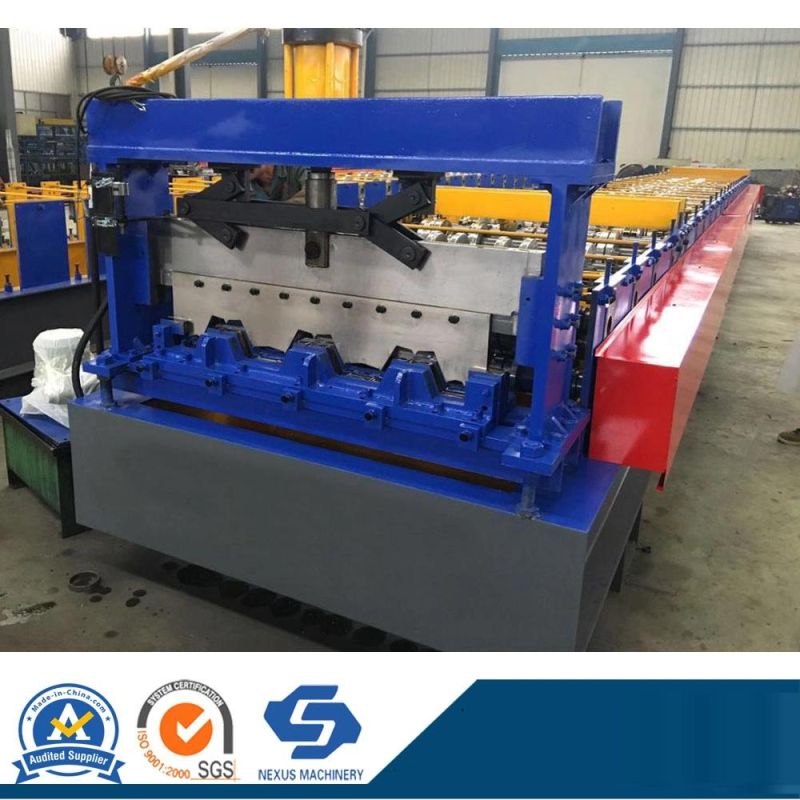

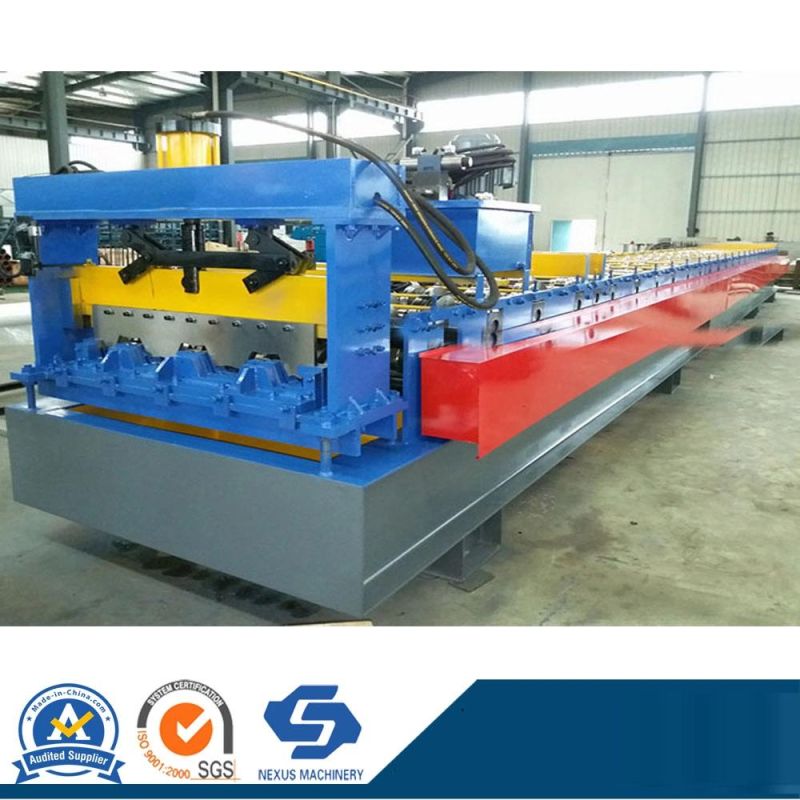

5. Photos of Floor Steel Metal Deck Roll Forming Machine line for Sales for Reference:

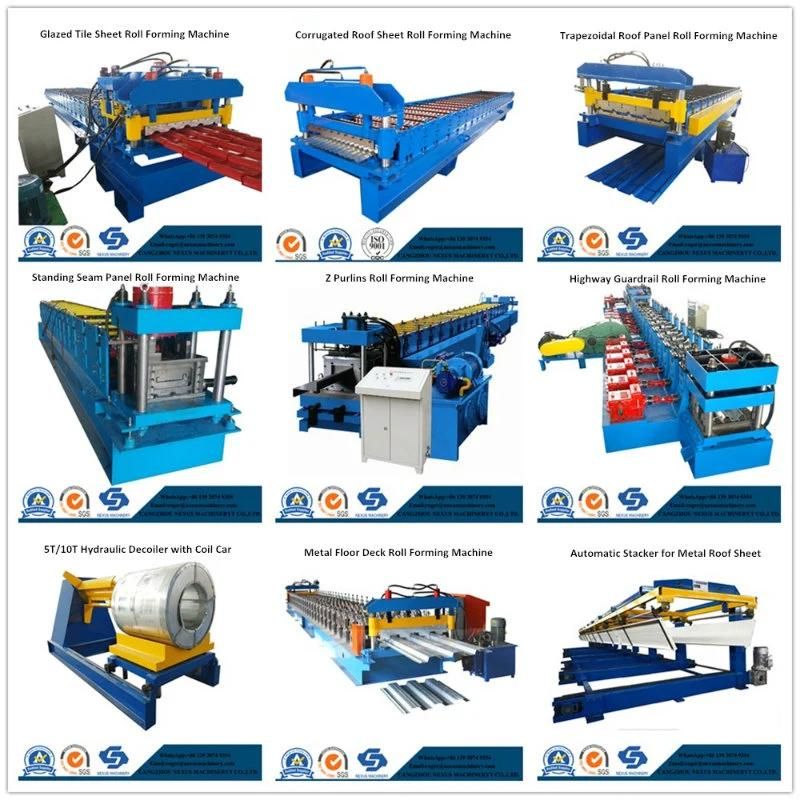

More Products for your Choose:

Machine Loading Photos


7. Why Choose US?
1. More than 10 years experiences in manufacturing roll forming machines.
2. We use Automatic control software to manage productive information makes the whole automatic control system has an improvement in automaticity.
3. High performance in operation, maintenance, and debugging. Easy to load and unload.
4. Good machine quality, Competitive price and Fast delivery time and superior service.
