• Model NO.：CSHP4-CNC-3000A
• Welding Width：130mm
• Feeding Pressure：0.4-0.6MPa
• Input Power：7kw
• Dimension：5000*2000*2860mm
• Weight：3000kg
• Input Voltage：380V,50Hz
• Welding Range：400*400~1800*3000(mm)
• Welding Height：25~160mm
• Transport Package：Standard
• Specification：Plastic Window Welding Machine
• Trademark：Truetec
• Origin：China
• Production Capacity：20sets,Month

Basic Info.

Model NO. CSHP4-CNC-3000A Welding Width 130mm Feeding Pressure 0.4-0.6MPa Input Power 7kw Dimension 5000*2000*2860mm Weight 3000kg Input Voltage 380V/50Hz Welding Range 400*400~1800*3000(mm) Welding Height 25~160mm Transport Package Standard Specification Plastic Window Welding Machine Trademark Truetec Origin China Production Capacity 20sets/Month

Product Description

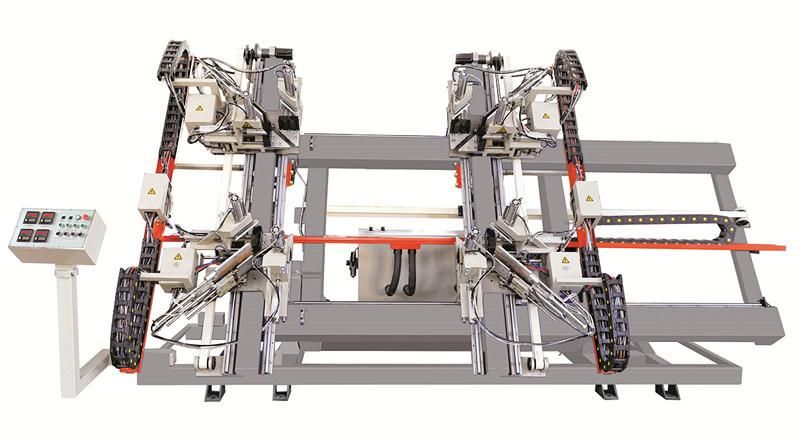

CNC Four Corner  Vertical Welding Machine

Detailed Information


Main Feature:

1.Use for corner punching combination of aluminum window&door,four corners connecting at one time is available.
2.Clamping device can auto move forward/backward,making the operation convenient.
3.The frame is specially jointed by steel with high quality and special process.
4.The CNC system imported from MTSUBISHI JANPAN,with high quality ensures the speed and accuracy.
5.The moment control function of the service system can auto-press the four corners ensuring the processing effect.

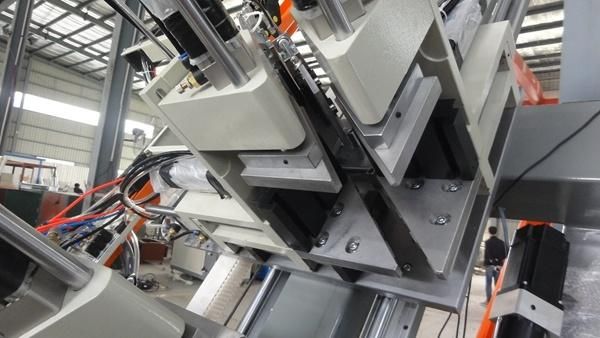

6.The corner-crimping blade can be adjusted according to the requirement of different profile.
7.One time corner crimping can control the seam and plane,make the quality foresight.
8.The control system and servo system make the connect no seam and improve the control accuracy.

Main Technical Parameter:

Brand name	TRUEPRO	Model	Clm4-100*1800*3000
Voltage	380V/220V	Rating power	7.5kw
Rating oil pressure	15MPa	Air consumption pressure	0.5-0.8MPa
Air consumption	0.45L once	Capability of oil box	60L
Corner crimping casing movement distance	0-50mm	Max frame dimension	1800*3000mm
Min frame dimension	480mm*480mm	Profile width	93mm
Tolerance of diagonal	≤1mm	Tolerance of connection seam	≤0.15mm
Overall dimension	4700*2200*2500mm	Weight	2500kg

Company Information

FAQ

1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment,
and operation training. All of our engineers have passport.

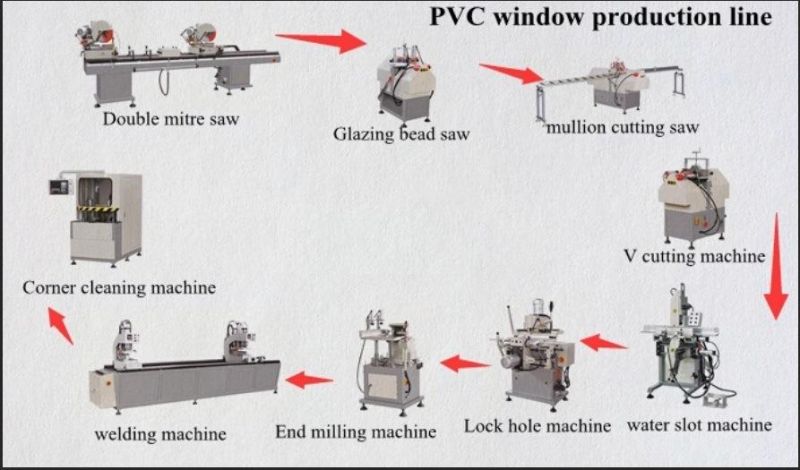

PVC window production line:
