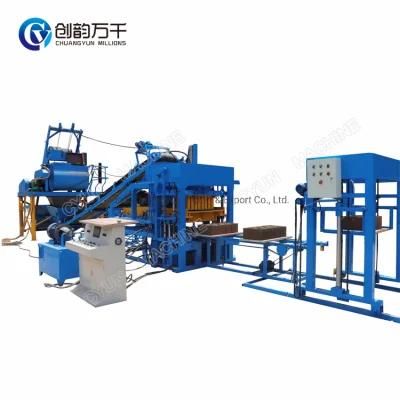

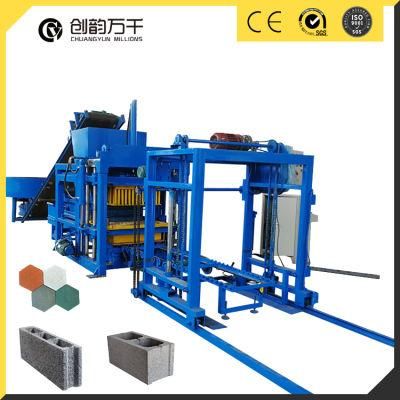

4-14 Automatic Soil Fly Ash Brick Making Machine Lego Interlocking Earth Brick Machine
Linyi Chuangyun Import & Export Co., Ltd.- Certification：CE, ISO
- Customized：Customized
- Automatic Grade：Automatic
- Type：Hydroforming
- Products：Different Sizes of Soil Interlocking Bricks
- Forming Method：Hydraulic Pressure
Base Info
- Model NO.：4-14
- Pressure：16-25MPa
- Machine Capacity：Around 10000 Bricks Per Day
- Voltage：220V,380V,440V Three Phase
- Transport Package：Nude Package in 20gp
- Specification：235 steel for machine frame
- Trademark：Chuangyun
- Origin：China
- HS Code：8474802000
- Production Capacity：20sets , Month
Description
SYN4-5 automatic brick making line total power; 28.85KW.
Electricity must be 3 phase, 50/60HZ, 380V/440V/220V
E: Material Ratio for Bricks: 5%-10% cement and 90-95% Soil
F: Raw Material Consumption in one day
We take 300*150*100 bricks as example and recommend 8% cement
G: Install Service:
We will supply customers install video and operation manual, engineers are available to service at customer site.
Electricity must be 3 phase, 50/60HZ, 380V/440V/220V
E: Material Ratio for Bricks: 5%-10% cement and 90-95% Soil
F: Raw Material Consumption in one day
We take 300*150*100 bricks as example and recommend 8% cement
| Size of Brick | 300*150*100mm |
| Photo of Brick | |
| Material Ratio | 8% cement and 92% soil |
| Strength of Brick | 6-7Mpa |
| Capacity of Brick | 11520 bricks in one day |
| Consumption of Cement | 5530 KG in one day |
| Consumption of Soil | 63600 KG in one day |
G: Install Service:
We will supply customers install video and operation manual, engineers are available to service at customer site.
