• Model NO.：800
• Color：as You Like
• Trade or Factory：Factory
• Guarantee：1 Year
• Life Time：10 Years
• Service：Provide Engineer to Install The Machines
• Brand Name of PLC：as Customer Request
• Drawing：Designed as Customer Request
• Power：38V, 50Hz, 3 Phrase or as Your Like
• Decoiler Type：Manul, Electric, Hydraulic
• Control System：PLC
• Transport Package：Main Machine Nude Packing with Plastic Film
• Specification：8800*1800*1500
• Trademark：KXD
• Origin：China
• HS Code：8455221000
• Production Capacity：30 Sets Per Month

Main parameter of corrugated roofing sheet roll forming machine1Suitable to processColor steel plate2Width of the plate1000 mm  3Thickness of the plate0.3-0.8mm4De-coiler Manual one, can load 5 tons raw material5Rollers for forming 9 rows6Diameter of the roller70mm7Rolling materialCarbon Steel 45#8Main motor power4kw9Productivity8-12m/min10Cutting methodHydraulic mould cutting 11Material of the cutting bladeCr1212Hydraulic cutting power 3kw13Processing precisionWithin 2.00mm14Control systemDelta PLC control15Side panel of machine14mm16Main structure of the machine300 H steel17Weight About 3.2 T18Dimensions6.5*1.45*1.1m19Voltage380V 50Hz 3phases

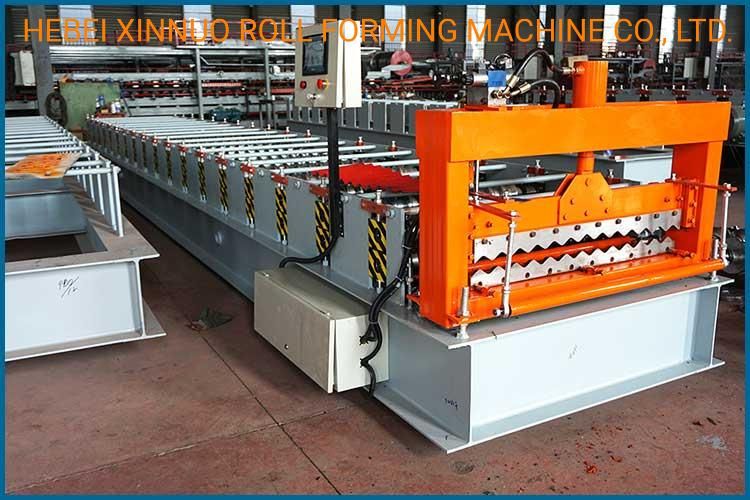

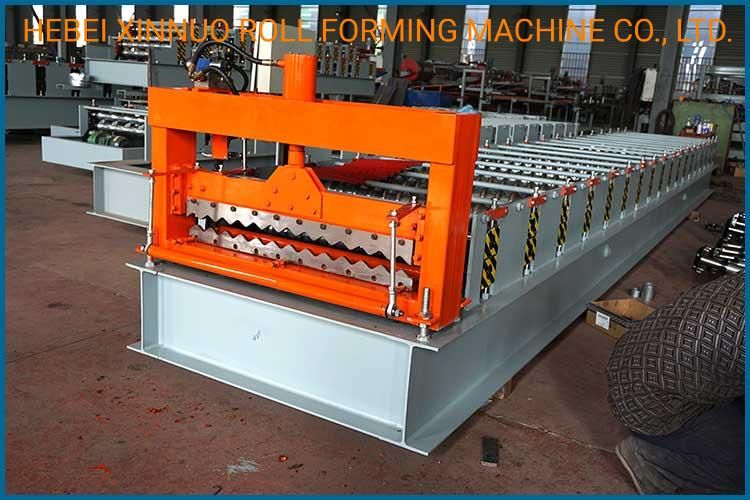

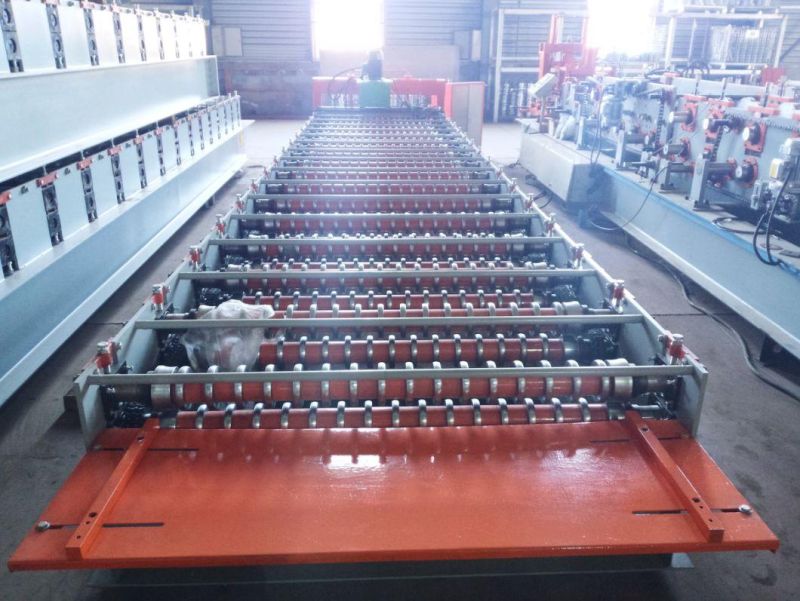

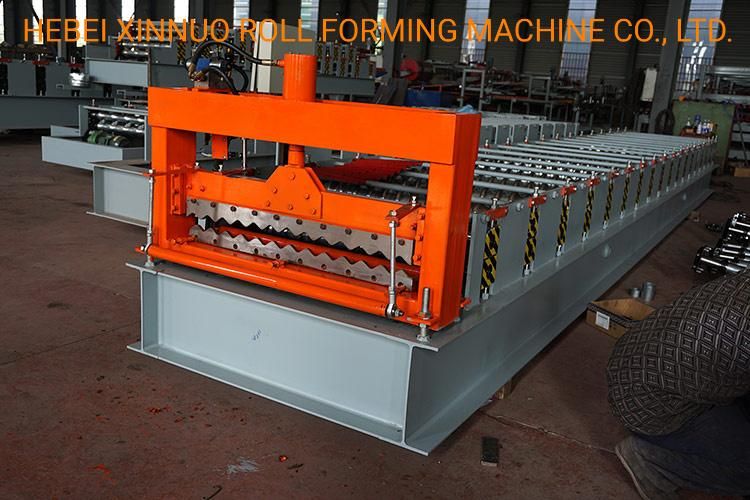

3.the picture of the  corrugated roofing sheet roll forming machine













4.Packaging & Shipping
Main machine is nude, the computer control box is packed with wooden fram

5.FAQ
1:How to play order: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
2:How to visit our company:
Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.

3:When we exported the machines:
We have beening making and exporting the machines since from the year of 1998.
4:If you want to get more pictures or videos of the machines,I can send them to you by Email or SKype.
