Drum Barrel Corrugator Machine for Thin Zinc Roof Sheet with 50-60PCS/Min

Cangzhou Nexus Machinery Co., Ltd.
  • Tile Type：Colored Steel
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized
  • Usage：Roof, Wall
  • Transmission Method：Electric

Base Info

  • Model NO.：NM389
  • Raw Material：Gi Sheet
  • Thickness Range：0.12-0.3mm
  • Machine Power：11kw
  • Machine Weight：About 3 Tons
  • Warrenty：12 Months
  • Transport Package：Plastic Film & Steel Wire Fixed
  • Specification：6000mm*1500mm*1500mm(L*W*H)
  • Trademark：NEXUS MACHINERY
  • Origin：China
  • HS Code：8455221000
  • Production Capacity：30 Sets , Months

Description

Drum Barrel Corrugated Roof Machine with Good QualityMain motor power11kwDrivesingle chainTypeBarrel corrugating Pitch76.2mm(+/-2.0mm)Depth18mm(+/-1.5mm)Main shaft diameter140mmHeight of corrugationMaximum 20mm (it can adjustable)Roll station2 groupsRaw material of sheets0.2-0.8mm thick galvanized steelGuide feeding typeWelded steel structure with stopper for setting width.Feeding length of sheetMaximum 4200mmFeeding width of sheet762mm,914mm,1000mm( can customize)Working speed15m--20m/minWeight of machineabout 2 tonSize of machineAbout 2000×4500×800mm L x W x HColor of machineYellow and blueVoltage480V 60HZ,3phase Other electrical elementTop brand

4. Equipment list :

No.Product Name       QTY
1Drum Barrel Corrugator Machine for Thin Zinc Roof Sheet with 50-60PCS/min           1

5. Character of main structure:
  1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screw which make the machine flexible and stronger.
  2. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
  3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
  4. It is very easy to install the equipment and suitable for producing in the factory.
  5. Low noise with high efficiency.

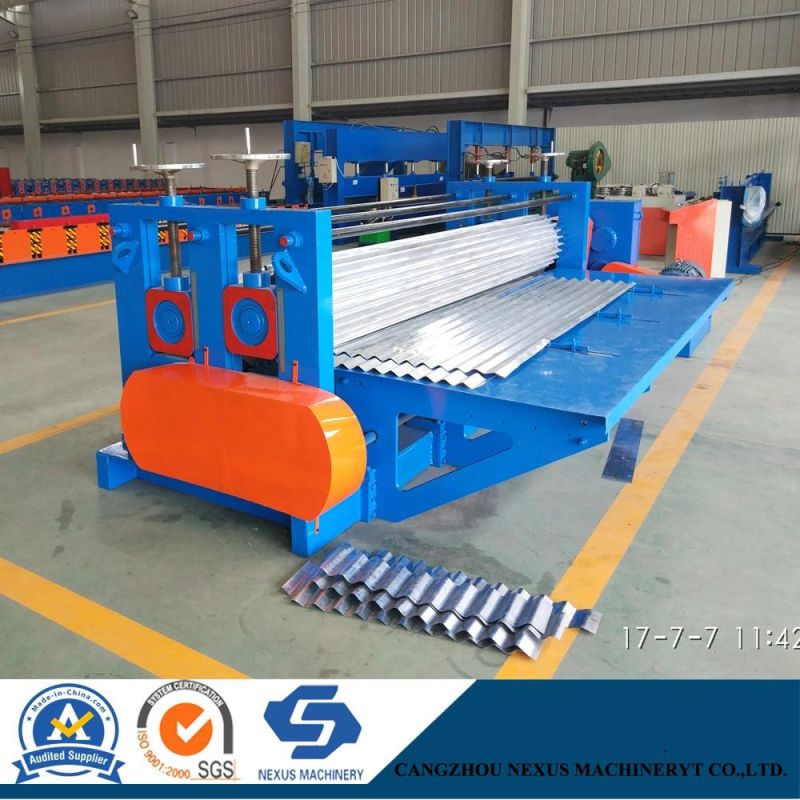

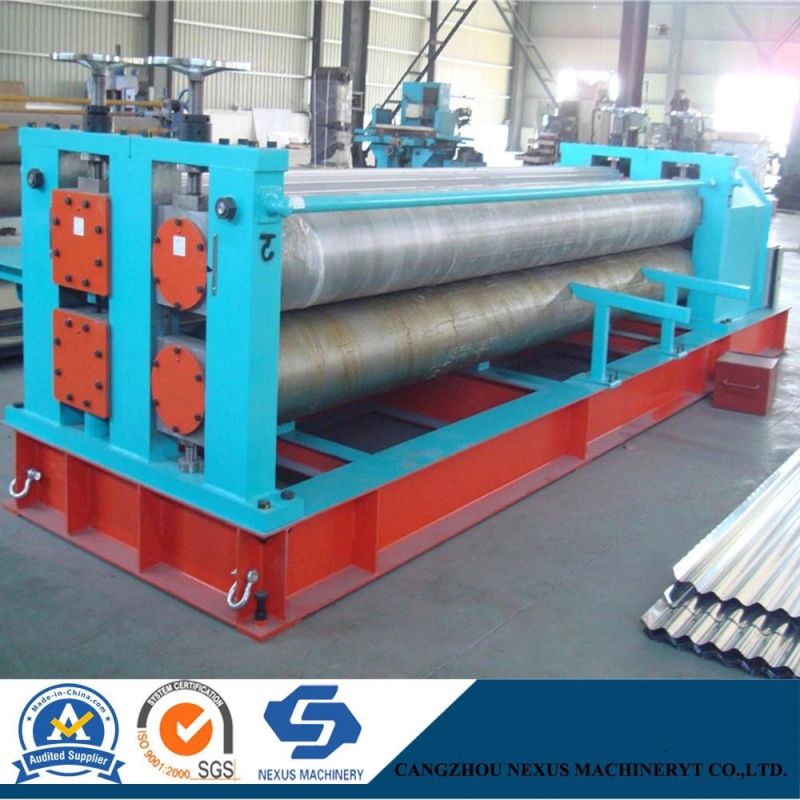

6. Photos of 4m Long Drum Barrel Corrugated Machine for Reference:
Drum Barrel Corrugator Machine for Thin Zinc Roof Sheet with 50-60PCS/Min
Drum Barrel Corrugator Machine for Thin Zinc Roof Sheet with 50-60PCS/Min
Drum Barrel Corrugator Machine for Thin Zinc Roof Sheet with 50-60PCS/Min

7. Why Choose US?
1. More than 10 years experiences in manufacturing roll forming machines.
2. We use Automatic control software to manage productive information makes the whole automatic control system has an improvement in automaticity.
3. High performance in operation, maintenance, and debugging. Easy to load and unload.
4. Good machine quality, Competitive price and Fast delivery time and superior service.
