High Cost-Performance Steel Structure Gutter Machine Floor Deck Roll Making Machinery

Cangzhou Nexus Machinery Co., Ltd.
  • Tile Type:Galvanized Steel
  • Certification:CE, ISO
  • Condition:New
  • Customized:Customized
  • Usage:Floor
  • Transmission Method:Electric

Base Info

  • Product Name:Steel Plate Floor Tile Decking Sheet Machine
  • Raw Material:Gi Steel, PPGI Steel
  • Thickness Range:0.8-1.5mm
  • Machine Power:22kw+5.5kw
  • Work Speed:10-15m,Min
  • Machine Weight:12 Tons
  • Warranty:1 Year
  • After-Sales Service:Engineer Is Availble to Overseas
  • Transport Package:Plastic Film & Steel Wire Fixed
  • Specification:12500mm*1500mm*1500mm(L*W*H)
  • Trademark:NEXUS MACHINERY
  • Origin:Cangzhou, China
  • HS Code:8455221000
  • Production Capacity:30 Sets , Month

Description

Basic Info.

Product Name Steel Plate Floor Tile Decking Sheet Machine Raw Material Gi Steel, PPGI Steel Thickness Range 0.8-1.5mm Machine Power 22kw+5.5kw Work Speed 10-15m/Min Machine Weight 12 Tons Warranty 1 Year After-Sales Service Engineer Is Availble to Overseas Transport Package Plastic Film & Steel Wire Fixed Specification 12500mm*1500mm*1500mm(L*W*H) Trademark NEXUS MACHINERY Origin Cangzhou, China HS Code 8455221000 Production Capacity 30 Sets / Month

Product Description

High Cost-performance Steel Structure Gutter Machine Floor Deck Roll Making Machinery

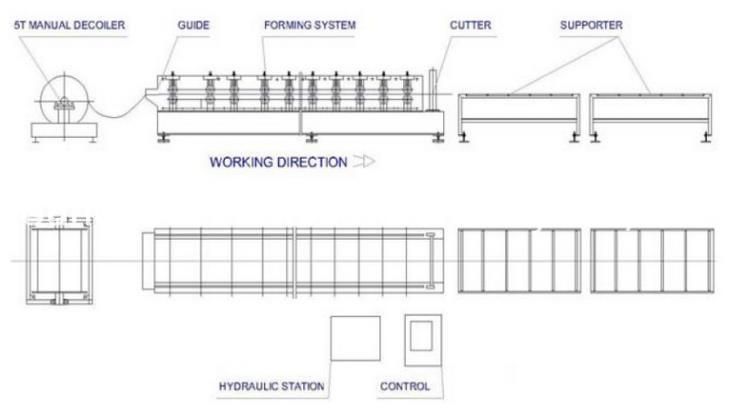

1. Processing flow diagram of machine:

Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Output table
High Cost-Performance Steel Structure Gutter Machine Floor Deck Roll Making Machinery

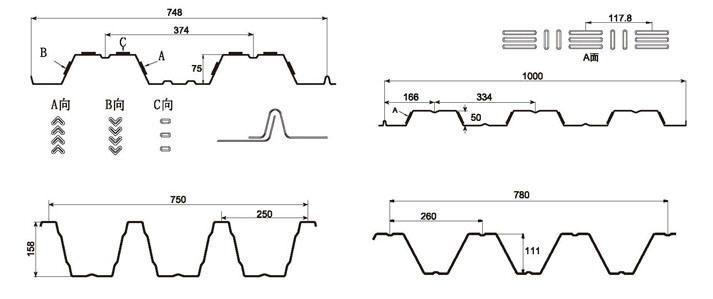

2. Profile Drawings for Reference:
High Cost-Performance Steel Structure Gutter Machine Floor Deck Roll Making Machinery




3. Technical parameters:



Main motor power11kw*2
Drive1'' single chain
Type:Wall board
Main shaft dia¢80mm
material45# forge steel and quenched
Roller material45# high grade forge steel ,chrome coated 0.05mm
Roll station26 groups
Raw material0.8-1.5mm
Coil width1219mm
Working speed10m--15m/min(Exclude cutting time)
Length Tolerance±1.5mm
Weight of machineAbout 12 tons
Size of machineAbout 12500×1800×1500mm L x W x H
Color of machineYellow and Blue
CoderOmron, made in Japan
ControlPLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client)
Computer operating paneltouching screen
Other electrical elementSchneider
CuttingHydraulic cutting. Auto cutting when reach the set length
Hydraulic power5.5KW
Blade materialCr12mov,quenched 58°-62°
Working pressure16mpa
Cutting tolerance+/- 1.0mm

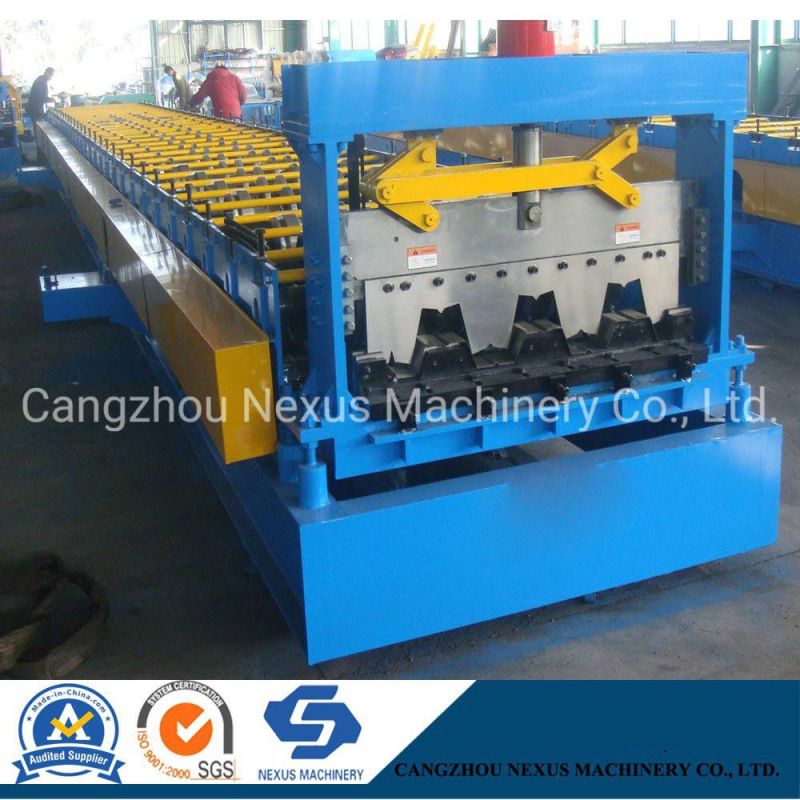

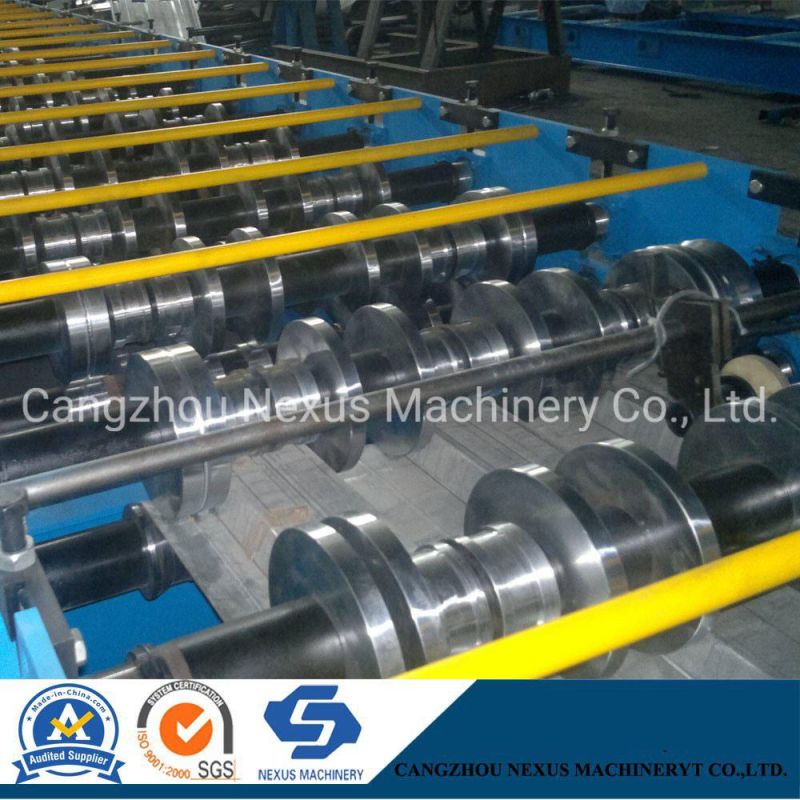

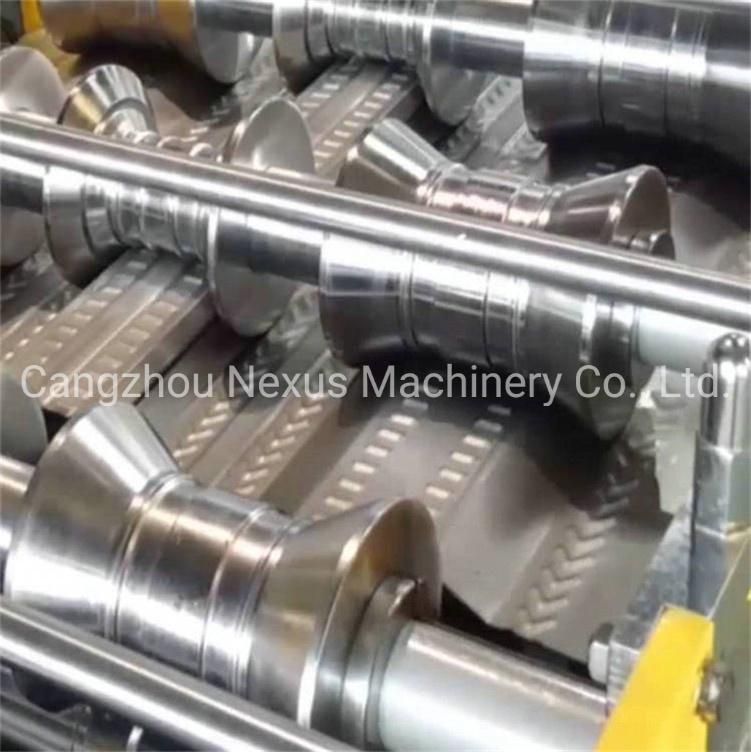

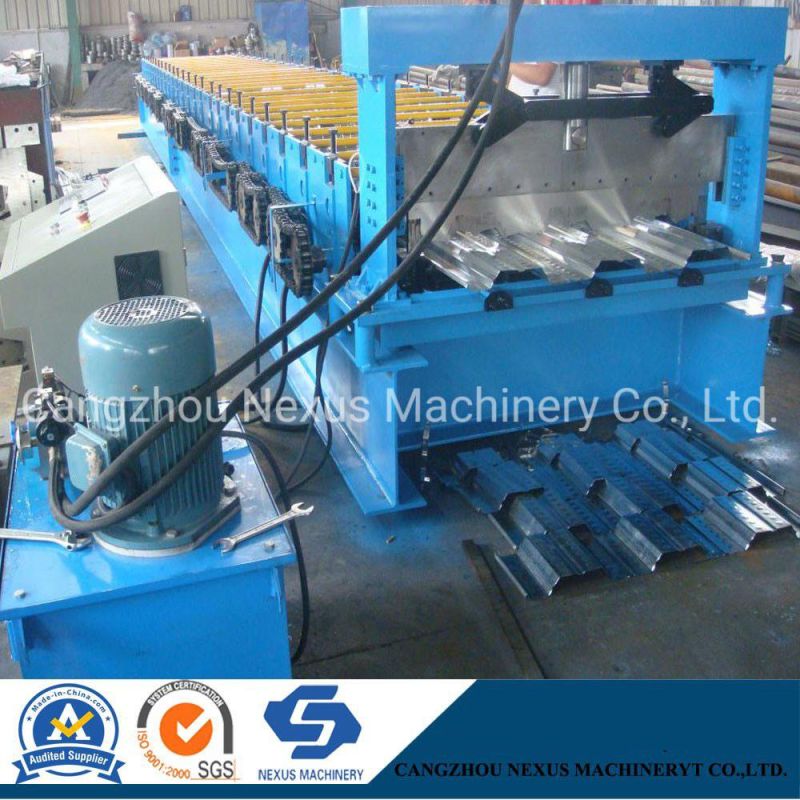

4. Photos of High Cost-performance Steel Structure Gutter Machine Floor Deck Roll Making Machinery for Reference:

High Cost-Performance Steel Structure Gutter Machine Floor Deck Roll Making Machinery
High Cost-Performance Steel Structure Gutter Machine Floor Deck Roll Making Machinery
High Cost-Performance Steel Structure Gutter Machine Floor Deck Roll Making Machinery
High Cost-Performance Steel Structure Gutter Machine Floor Deck Roll Making Machinery





7. Why Choose US?
1. More than 10 years experiences in manufacturing roll forming machines.
2. We use Automatic control software to manage productive information makes the whole automatic control system has an improvement in automaticity.
3. High performance in operation, maintenance, and debugging. Easy to load and unload.
4. Good machine quality, Competitive price and Fast delivery time and superior service.
