50-75mm Rib Height Full Automatic Steel Floor Metal Deck Roll Forming Machine

Cangzhou Nexus Machinery Co., Ltd.
  • Tile Type:Galvanized Steel
  • Certification:CE, ISO
  • Condition:New
  • Customized:Customized
  • Usage:Floor
  • Transmission Method:Electric

Base Info

  • Product Name:Steel Plate Floor Tile Decking Sheet Machine
  • Raw Material:Gi Steel, PPGI Steel
  • Thickness Range:0.8-1.5mm
  • Machine Power:22kw+5.5kw
  • Work Speed:10-15m,Min
  • Machine Weight:12 Tons
  • Warranty:1 Year
  • After-Sales Service:Engineer Is Availble to Overseas
  • Transport Package:Plastic Film & Steel Wire Fixed
  • Specification:12500mm*1500mm*1500mm(L*W*H)
  • Trademark:NEXUS MACHINERY
  • Origin:Cangzhou, China
  • HS Code:8455221000
  • Production Capacity:30 Sets , Month

Description

50-75mm Rib Height Full Automatic Steel Floor Metal Deck Roll Forming Machine Main motor power11kw*2Drive1'' single chainType:Wall boardMain shaft dia¢80mmmaterial45# forge steel and quenchedRoller material45# high grade forge steel ,chrome coated 0.05mmRoll station26 groupsRaw material0.8-1.5mmCoil width1219mmWorking speed10m--15m/min(Exclude cutting time)Length Tolerance±1.5mmWeight of machineAbout 12 tonsSize of machineAbout 12500×1800×1500mm L x W x HColor of machineYellow and BlueCoderOmron, made in JapanControlPLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client)Computer operating paneltouching screenOther electrical elementSchneiderCuttingHydraulic cutting. Auto cutting when reach the set lengthHydraulic power5.5KWBlade materialCr12mov,quenched 58°-62°Working pressure16mpaCutting tolerance+/- 1.0mm

4. Guarantee:

1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

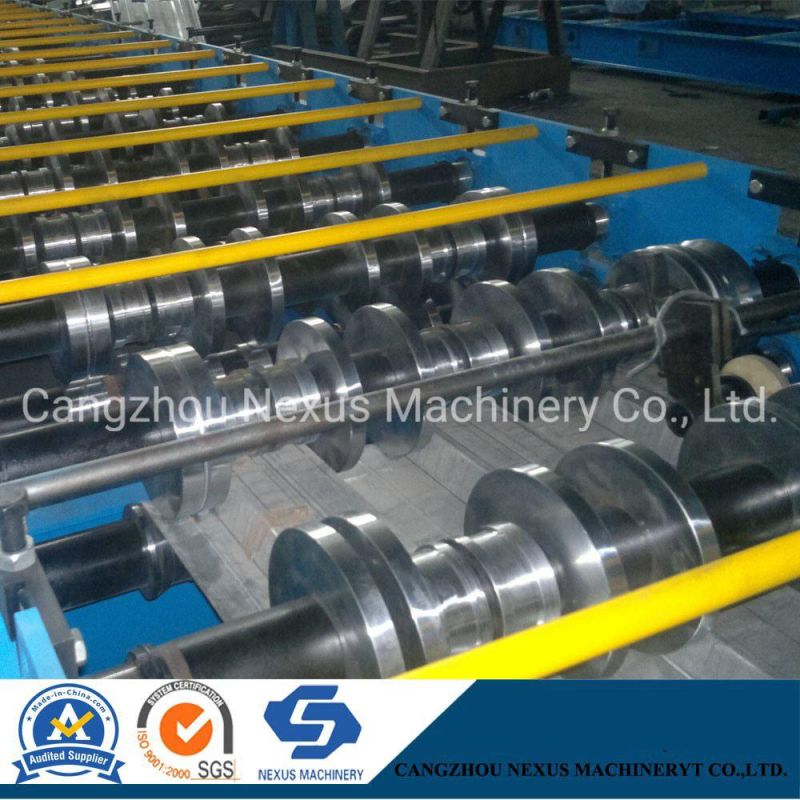

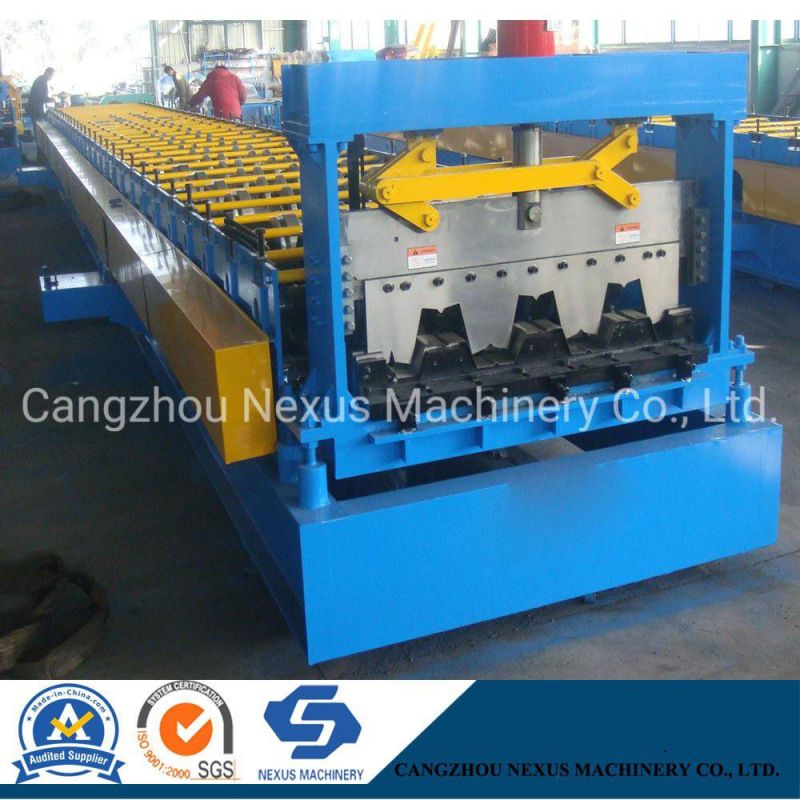

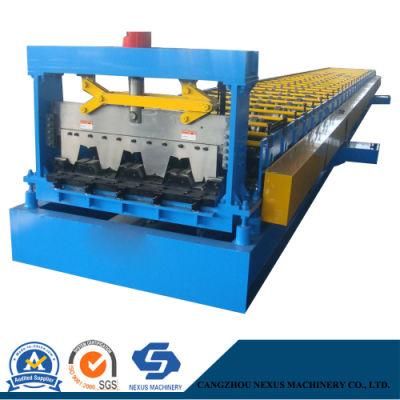

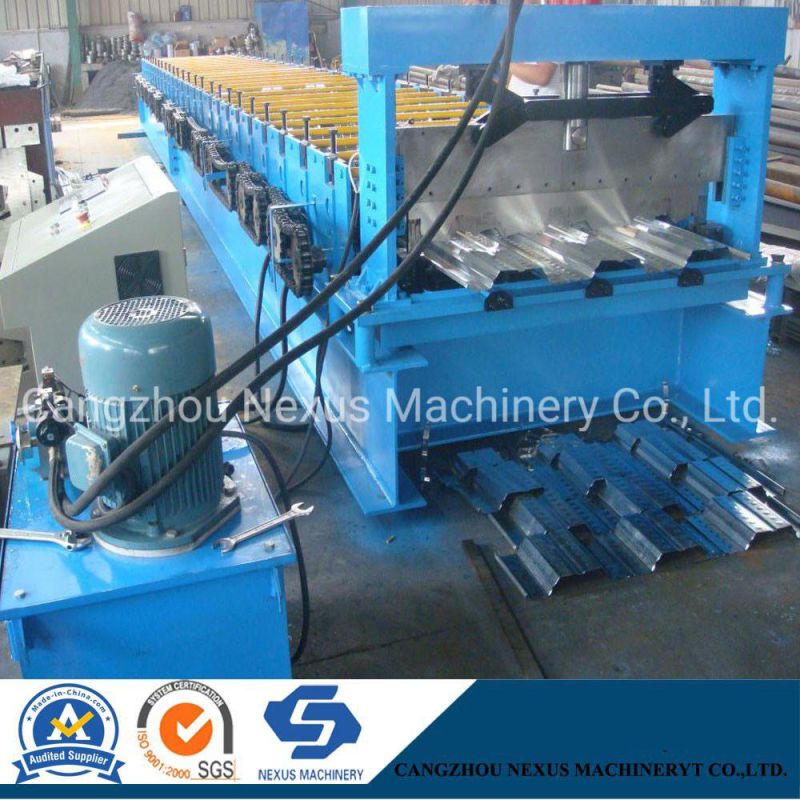

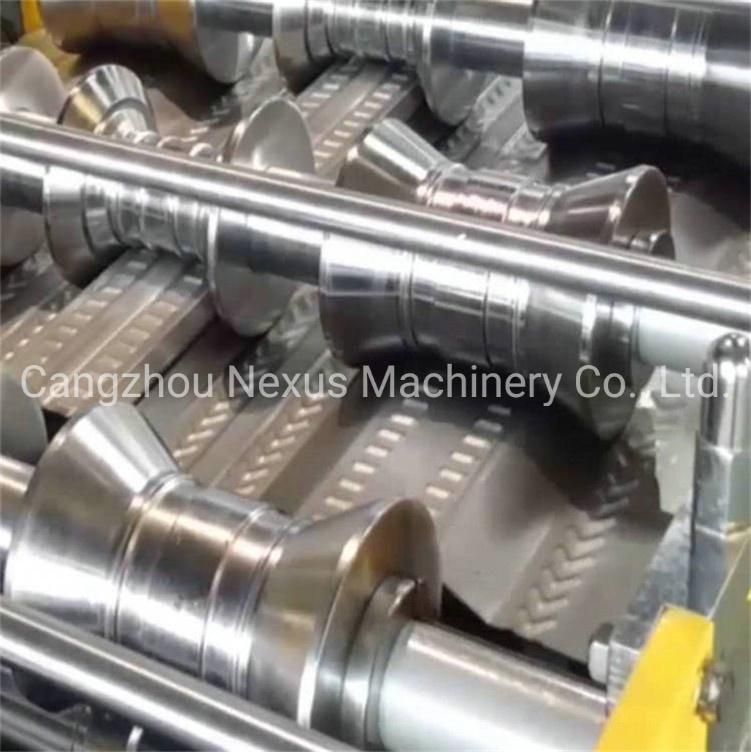

5. Photos of 50-75mm Rib Height Full Automatic Steel Floor Metal Deck Roll Forming Machine   for Reference:

50-75mm Rib Height Full Automatic Steel Floor Metal Deck Roll Forming Machine
50-75mm Rib Height Full Automatic Steel Floor Metal Deck Roll Forming Machine
50-75mm Rib Height Full Automatic Steel Floor Metal Deck Roll Forming Machine
50-75mm Rib Height Full Automatic Steel Floor Metal Deck Roll Forming Machine





7. Why Choose US?
1. More than 10 years experiences in manufacturing roll forming machines.
2. We use Automatic control software to manage productive information makes the whole automatic control system has an improvement in automaticity.
3. High performance in operation, maintenance, and debugging. Easy to load and unload.
4. Good machine quality, Competitive price and Fast delivery time and superior service.
