• Model NO.：Customized
• Transport Package：Nude
• Specification：CE SGS ISO
• Trademark：DIXIN
• Origin：Botou, Hebei, China
• HS Code：84552210
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. Customized Transport Package Nude Specification CE SGS ISO Trademark DIXIN Origin Botou, Hebei, China HS Code 84552210 Production Capacity 500 Sets/Month

Product Description

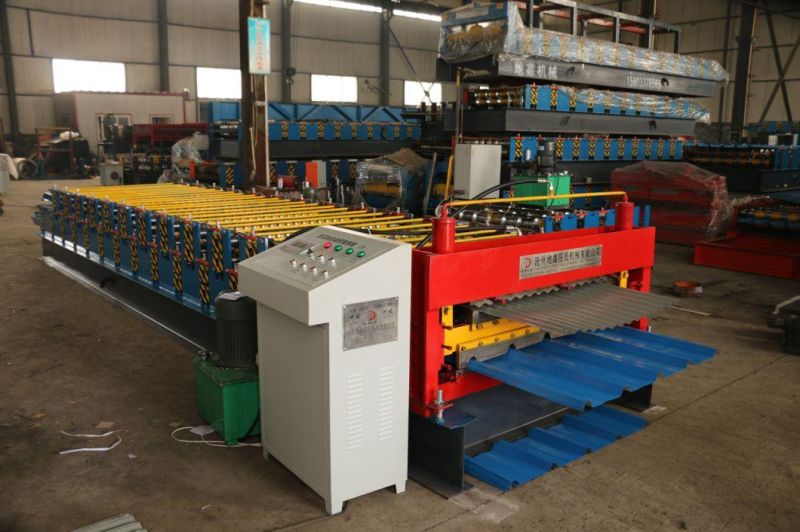

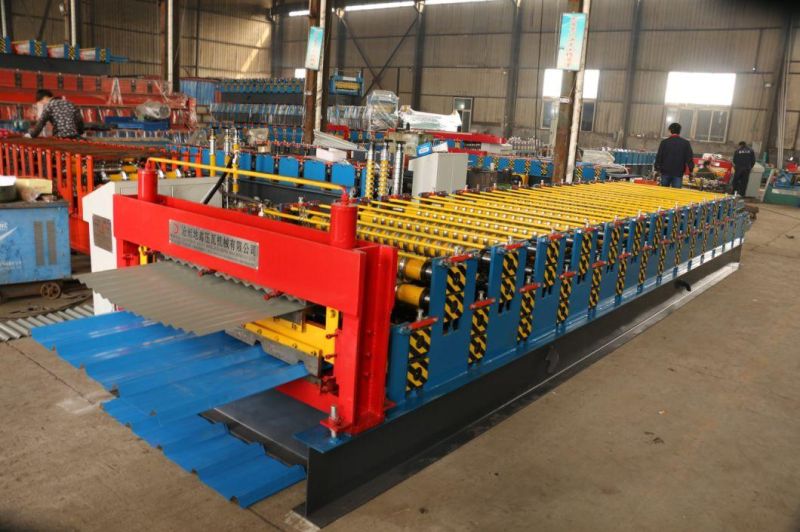

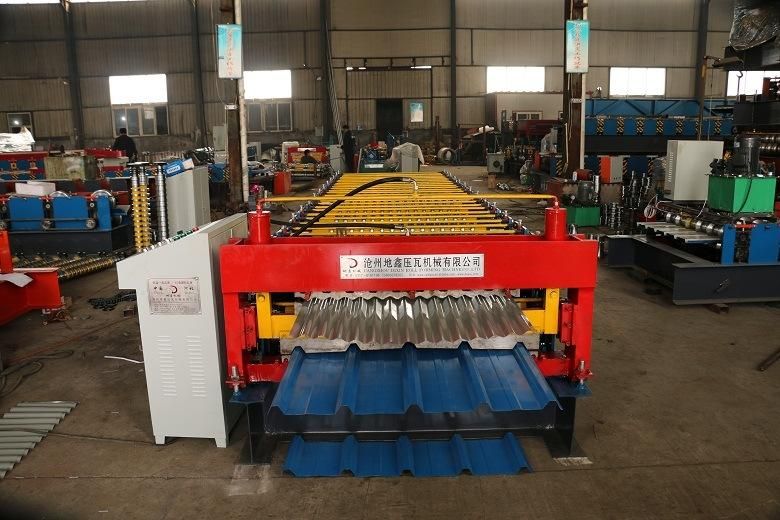

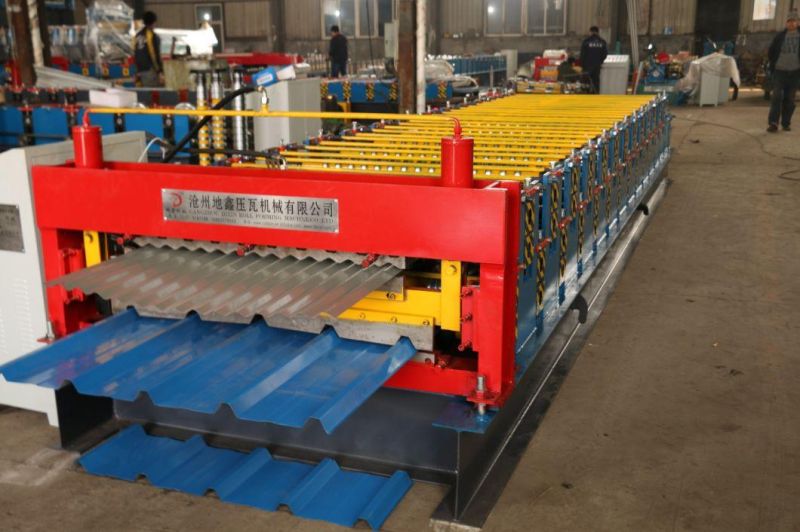

Double corrugated automatic Roof panel tile price roll forming machine



Technical parameter

Finished Product	1.Raw Material: PPGL PPGI    2.Thickness: 0.3-0.7mm
Decoiler	1. Inner diameter:450-550mm   2. Outer diameter:1300-1500mm   3. Coil width:1250mm   4. Capacity: 5T
Corrugated  Forming Machine	1. Shaft material: 45# steel     2. Outer diameter: 70/70mm   3. Roller material: 45# steel   4. Chains transport:1.5 inch   5. Forming station: 10/11 stations   6. Forming speed:5m/min   7. Motor power: 4kw   8. L*W*H: 7.2m*1.35m*1.4m   9.Weight: 4.2T
Cutting System	1. Hydraulic motor power: 3kw   2. Cutting system material: GCR12   3. Cutting length customized
Control System	1. PLC Brand: Delta   2. Screen: Delta touch screen   3. Automatic length and quantity measurement   4. Control forming speed   5. Error is easy to adjusted   6. Scram stop button
Run Out Table	Length of run out table will according client's requirement

Panel roll forming machine Working Flow



Company Information

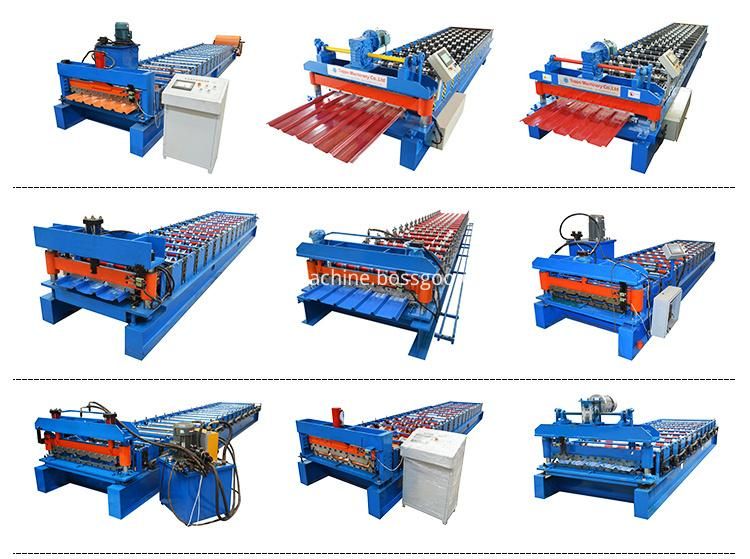

All kinds of color steel forming machine, Double layer roll forming machine, C&Z purlin roll

forming machinery, Floor deck roll forming machine, Steel frame roll forming machine, Roll

shutter door roll forming machine, Sandwich panel roll forming machine, Highway guardrail

forming machine and other cold roll forming machines.



Our Services



Payment Terms	1).Payment Terms: 30% deposit after signed the contract       and balanced before delivery 2).Quotation will be valid within 30 days 3).Delivery time : 45 working days after receiving deposit
After-You Order	1).Would provide manufacturing progress information per      week 2).Help you check competitive shipping company and freight 3).Would help you purchase raw material for testing machine       if needed
After-Sale Service	1). Our engineer are available service oversea in warranty one      year, VISA charge, accommodation, flight tickets, and $100/      day/person pay by customer 2). Out of warranty period we also keep providing technical       support online

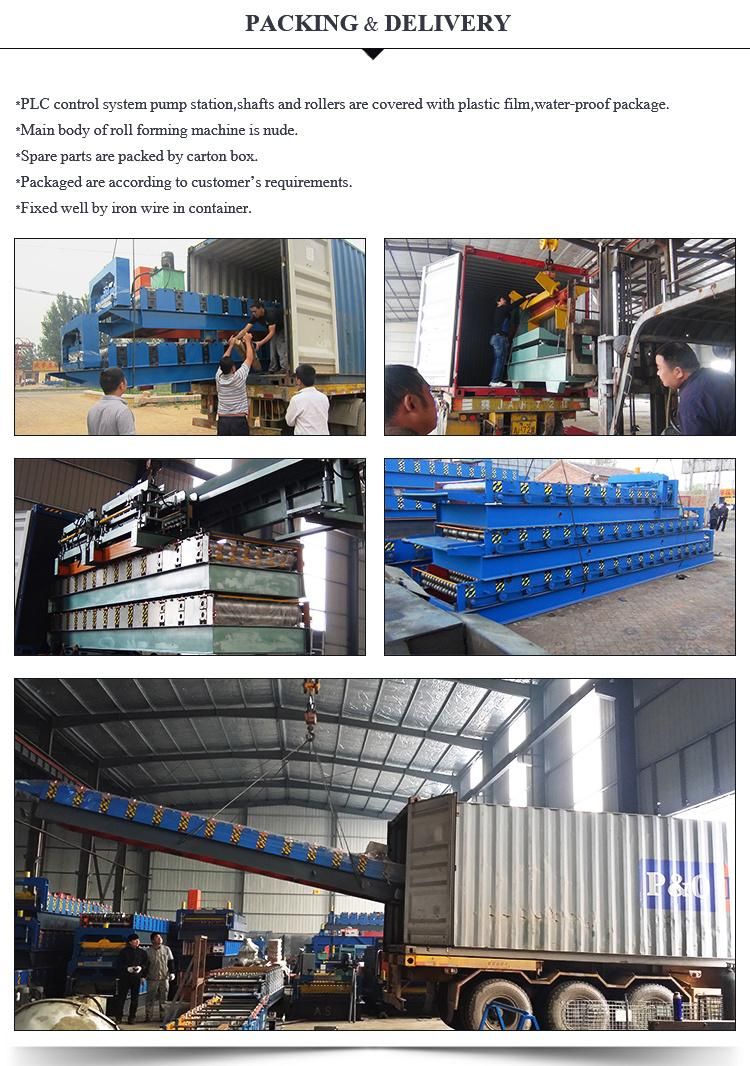

Packaging & Shipping





FAQ

Q1. What are the main key points for selecting right machines?

A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.

Good quality is for long-term business cooperation.



Q2. Can you provide OEM service for roll forming machine?

A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.



Q3. What's your standard trade terms ?

A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.



Q4. How about the quality control?

A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.



Q5. How about the after-sale service?

A5: We provide 12 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.



Q6. If I am in Beijing,or Shanghai ,how to visit your company?

A6: 1)Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

2)Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.
