Iron Sheet Roll Forming Machine Line Metal Roof Tile Making Machine

Cangzhou Dixin Roll Forming Machine Co., Ltd.
  • Warranty：1 Years
  • Tile Type：Colored Steel

Base Info

  • Model NO.：DX 840-210-25
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized
  • Usage：Roof, Wall
  • Transmission Method：Machinery
  • Type：Rolling Machine
  • Forging Forming Method：Free Forging
  • Power Source：Electric
  • Feature：Precision
  • Advantage：Use Widely
  • Mode：840 Steel Roof Machine
  • Auto：Fully Automatic
  • Quality Authentication：CE Book
  • Feeding Width：1000mm
  • Transport Package：Waterproof Package
  • Specification：CE SGS ISO
  • Trademark：DIXIN
  • Origin：China, Hebei
  • HS Code：84552210
  • Production Capacity：23 Sets Per Month

Description

Basic Info.

Model NO. DX 840-210-25 Certification CE, ISO Condition New Customized Customized Usage Roof, Wall Transmission Method Machinery Type Rolling Machine Forging Forming Method Free Forging Power Source Electric Feature Precision Advantage Use Widely Mode 840 Steel Roof Machine Auto Fully Automatic Quality Authentication CE Book Feeding Width 1000mm Transport Package Waterproof Package Specification CE SGS ISO Trademark DIXIN Origin China, Hebei HS Code 84552210 Production Capacity 23 Sets Per Month

Product Description

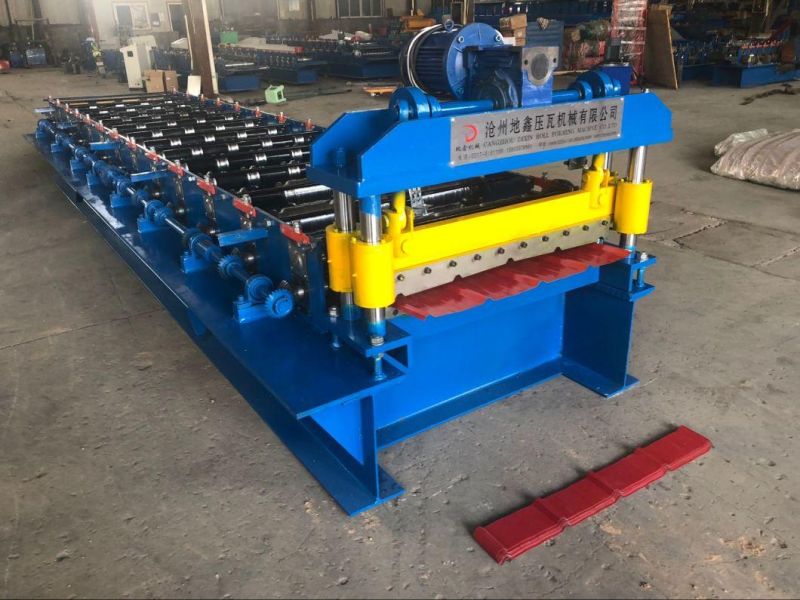

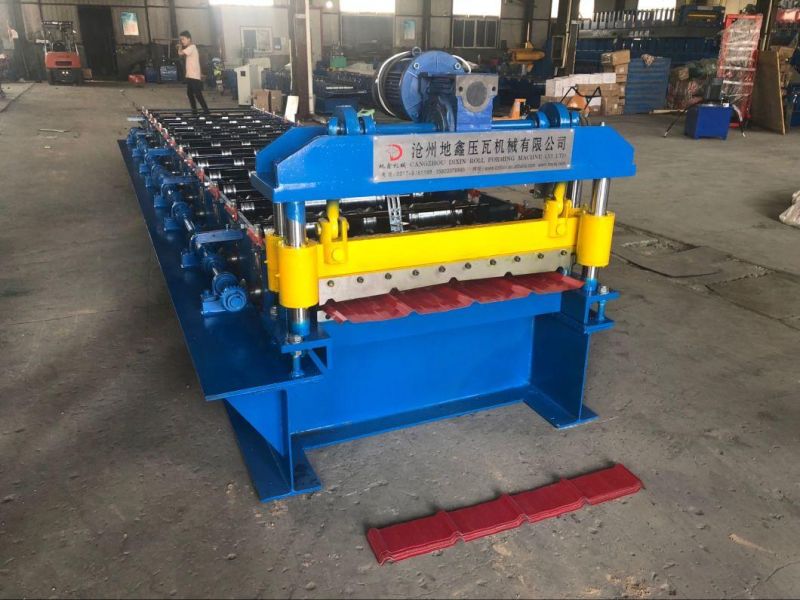

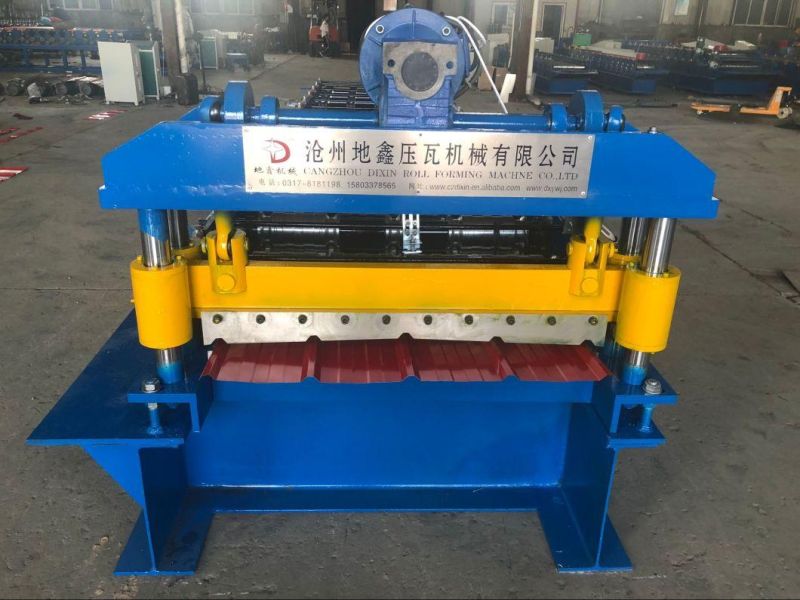

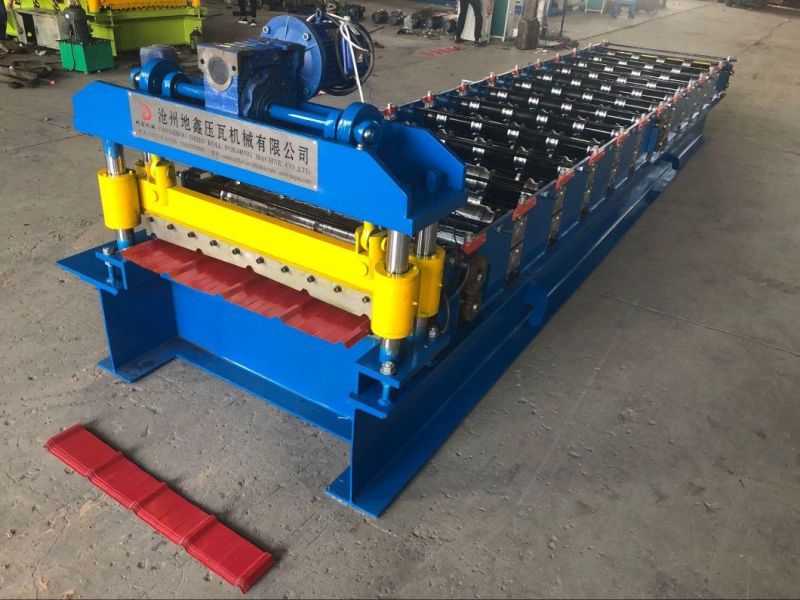

 Iron Sheet Roll Forming Machine Line Metal Roof Tile Making Machine

Features of our machine
 1)Professional designing for manufactures roofing & walling
 2)Automatically continually manufactures high quality product with PLC.
 3)Easy operation : Directly input the data on the touchable screen.
 4)Customers decide the profile of products.
 5)Saving time and cost owing to high speed running with hydraulic system.
1. Quick detailes:
1 direct factory in china
2 plc control system roll forming machine
3 ce certificated
4 forming speed: 8-12 m/min
5 hot sale

Iron Sheet Roll Forming Machine Line Metal Roof Tile Making Machine
Iron Sheet Roll Forming Machine Line Metal Roof Tile Making Machine
Iron Sheet Roll Forming Machine Line Metal Roof Tile Making Machine
Iron Sheet Roll Forming Machine Line Metal Roof Tile Making Machine
Iron Sheet Roll Forming Machine Line Metal Roof Tile Making Machine
Good price of feeding material at 1000mm width and common 0.3mm thikness.

2. Technique parameters

(1) processing material: Aluzinc/galvanized steel/colored steel coil
(2) material thickness: 0.3-0.8mm
(3) effective width: 840mm
(4) feeding width: 1000mm
(5) main motor power: 4 kw
(6) pump power: 4 kw
(7) shaft diameter: 75 mm
(8) forming steps: 13 rollers
(9) roller material: 45# forged steel, with hard chrome plating
(10) main frame: 300h steel
(11) medium plate thickness: 16mm
(12) control systerm: Plc computer control with inverter
(13) power supply: 380v, 3 phase, 60hz or as your requirement
(14) 0veral sized: 6450mm*1450mm*1500mm
Packing size: 5.7m*1.6m*1.5m(l*w*h), 3.2 tons

Details of 840-210-25 Steel roof profile forming machine
1.Common machine produced for more than 20 years
2.Good cost and performance Steel profile machine
3.Totally PLC control,Save your human cost
4.Short delivery and machine in Stock
5 Direct factory.Visit,check and learn available


3. One manual uncoiler for free and other accessary

4. Loading in a 20 foot container.

5. Service.
Engineer overseas service available
If you are interested in this Steel Roof Forming Machine or other related product,
pls do not hesitate to click the button to let me know.
Some advice and machine maintance will show you.
