Aluminum Profile Cutter Double Head Mitre Angle Saw for Cutting PVC

Shandong Truetec Machinery Co., Ltd.
  • Condition:New
  • Certification:CE
  • Automatic Grade:Automatic
  • CNC or Not:not CNC
  • Voltage:380V
  • Input Power:2*1.5kw

Base Info

  • Rotary Speed:2800r,Min
  • Air Consumption:60L,Min
  • Cutting Length:400-3700mm
  • Cutting Width:120mm
  • Cutting Height:200mm
  • Cutting Angle:45 ,90 and 135 Degree
  • Machine Dimension:4500*1170*1400mm
  • Weight:1500kg
  • Keyword:Double Head Cutting Saw
  • Function:Used for Cutting Aluminum Profile
  • Cutting Speed:0-3m,Min
  • Cutting Profile Surface Planess:Ra12.5
  • Blade Specification:Degree 450*30*4.4 Z=120
  • Transport Package:Wooden
  • Specification:Saw blade diameter 450mm
  • Trademark:Truepro
  • Origin:China
  • HS Code:846150
  • Production Capacity:500sets,Year

Description

Basic Info.

Rotary Speed 2800r/Min Air Consumption 60L/Min Cutting Length 400-3700mm Cutting Width 120mm Cutting Height 200mm Cutting Angle 45 ,90 and 135 Degree Machine Dimension 4500*1170*1400mm Weight 1500kg Keyword Double Head Cutting Saw Function Used for Cutting Aluminum Profile Cutting Speed 0-3m/Min Cutting Profile Surface Planess Ra12.5 Blade Specification Degree 450*30*4.4 Z=120 Transport Package Wooden Specification Saw blade diameter 450mm Trademark Truepro Origin China HS Code 846150 Production Capacity 500sets/Year

Product Description

Aluminum Profile Cutter Double Head Mitre Angle Saw for Cutting PvcAluminum Profile Cutter Double Head Mitre Angle Saw for Cutting PVC



Ma
chine feature:

1.The machine is used for cutting of aluminum &PVC profile.
2.Imported carbides blade is of accurate processing and high accuracy.
3.Saw blade rotates smoothly due to high accuracy main spindle.
4.Uniform speed feeding and smooth motion are due to airdraulic damping cylinder.
5.It has feature of easy operation,reliable performance,advanced technique and convenient maintenance,etc.
6.Two saw head can be manually switching angle,realize the -45 degree,90degree,45degree angle cutting profile.

Parameter:
ModelCLJZ2-450*3700
Power Supply380V 50HZ
Input Power2*1.5KW 1*0.55KW
Air Pressure0.5~0.8MPa
Motor Rotary Speed2800r/min
Saw Blade SpecificationΦ450*Φ30*4.4 Z=120
Cutting Angle45 ° 90° 135°
Cutting angle allowance±5'
Cutting speed0-3m/min
Cutting profile surface planeness≤0.1mm
Cutting profile surface roughnessRa12.5μm
Cutting Lengthmax. 3700mm min.400mm
Cutting Width*Height120*200mm
Overall Dimension4500*1170*1400mm
WeightAbout 1500Kg

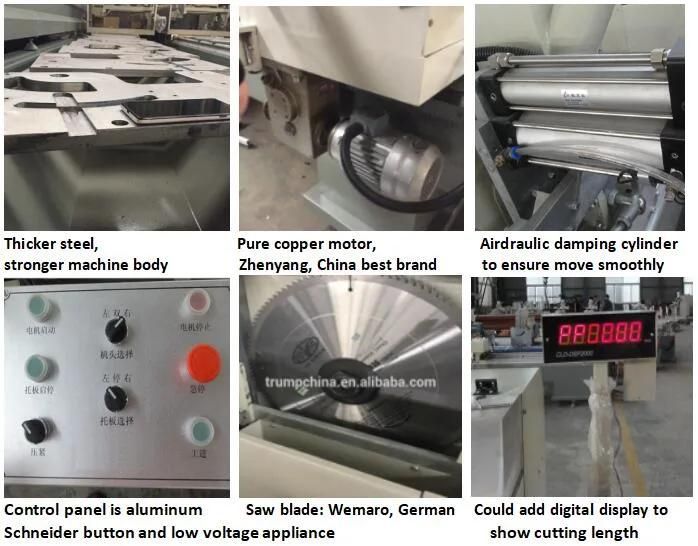

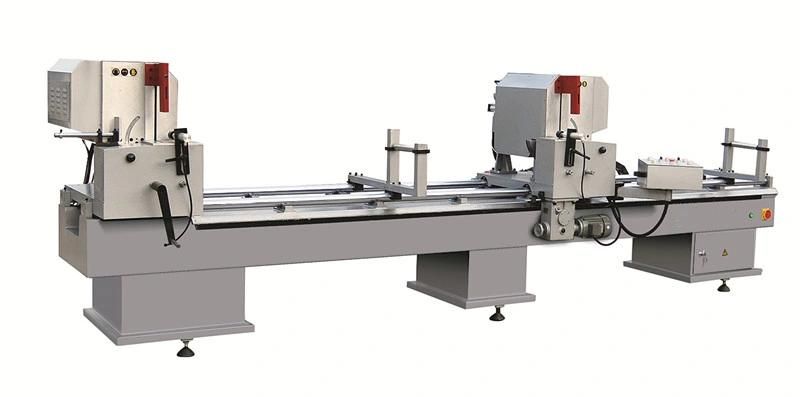

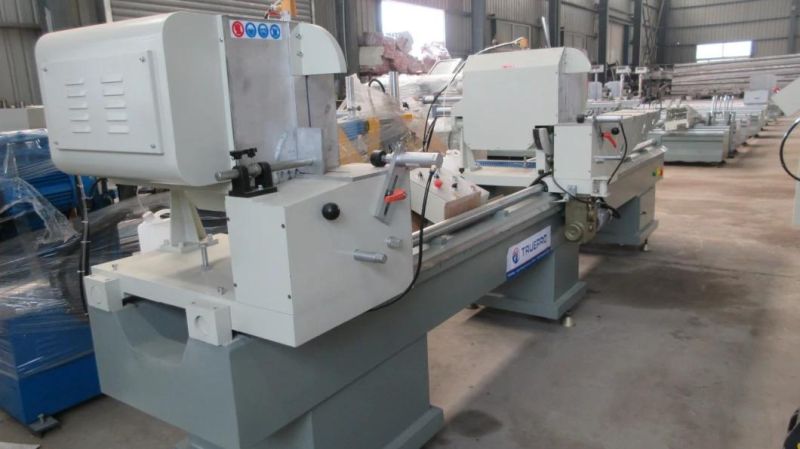

Machine details:
Aluminum Profile Cutter Double Head Mitre Angle Saw for Cutting PVC
Aluminum Profile Cutter Double Head Mitre Angle Saw for Cutting PVC

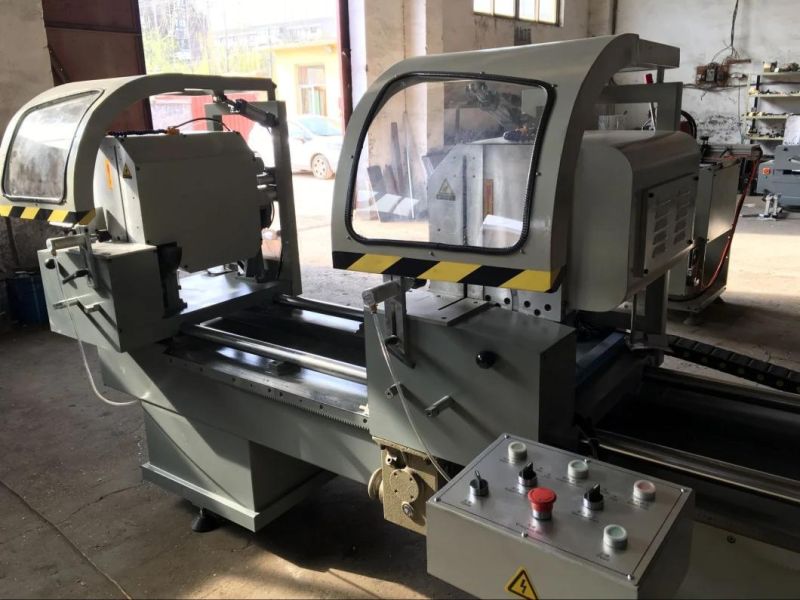

With saw cover:
Aluminum Profile Cutter Double Head Mitre Angle Saw for Cutting PVC
Aluminum Profile Cutter Double Head Mitre Angle Saw for Cutting PVCAluminum Profile Cutter Double Head Mitre Angle Saw for Cutting PVC
Aluminum Profile Cutter Double Head Mitre Angle Saw for Cutting PVC

Aluminum Profile Cutter Double Head Mitre Angle Saw for Cutting PVC

1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.


4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
