Building Material Making Machinery

Hot Sale Automatic Floor Decking Metal Sheet Tile Making Rollig Machine

HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.
  • Tile Type:Colored Steel
  • Certification:CE, ISO
  • Condition:New
  • Customized:Customized
  • Usage:Floor
  • Transmission Method:Electric

Base Info

  • Model NO.:720
  • Transport Package:Container
  • Specification:8800*1500*1600mm
  • Trademark:kexinda
  • Origin:Hebei
  • HS Code:8455221000
  • Production Capacity:30sets,Month

Description

Basic Info.

Model NO. 720 Transport Package Container Specification 8800*1500*1600mm Trademark kexinda Origin Hebei HS Code 8455221000 Production Capacity 30sets/Month

Product Description

hot sale automatic floor decking metal sheet tile making rollig machine


A. Our Advantage



1.PLC Automatic Computer Control
2.Operation Easy
3.Running Is Safe Steady And Reliable

4.Lifetime Repair Guarantee

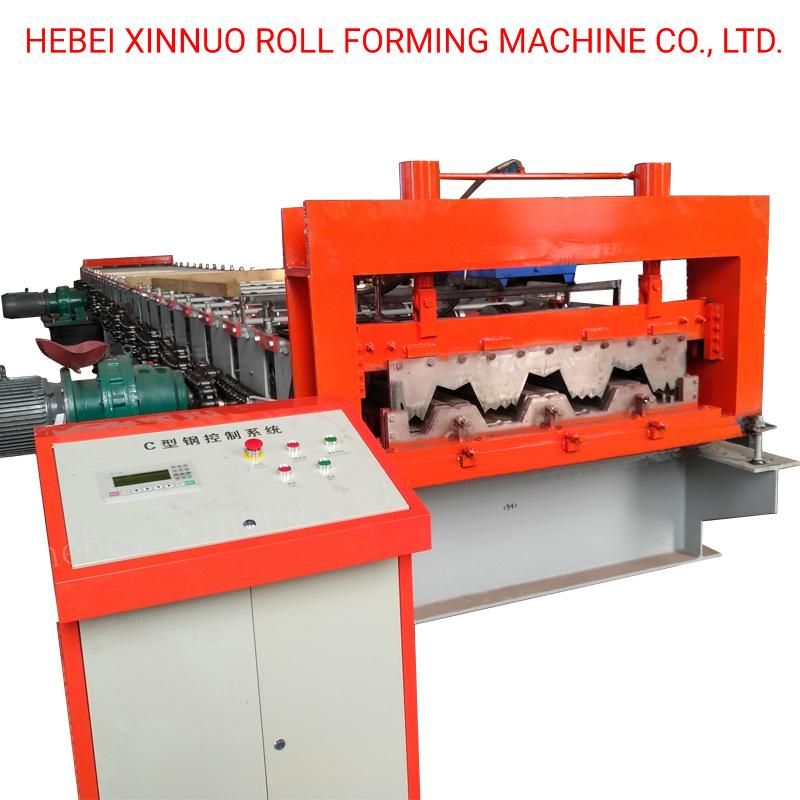

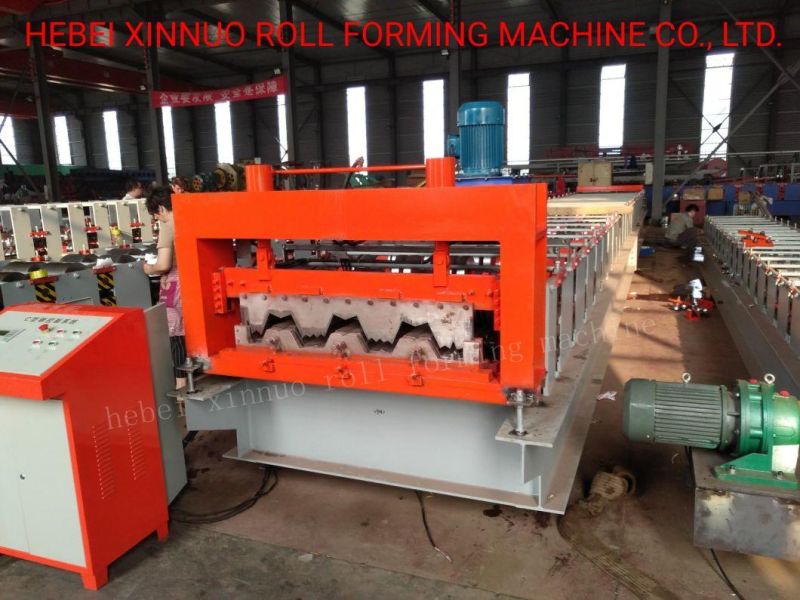

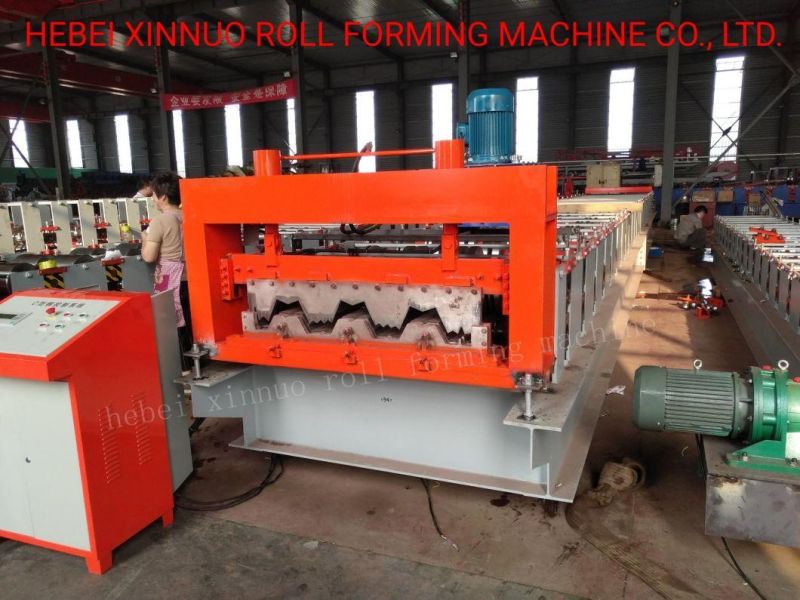

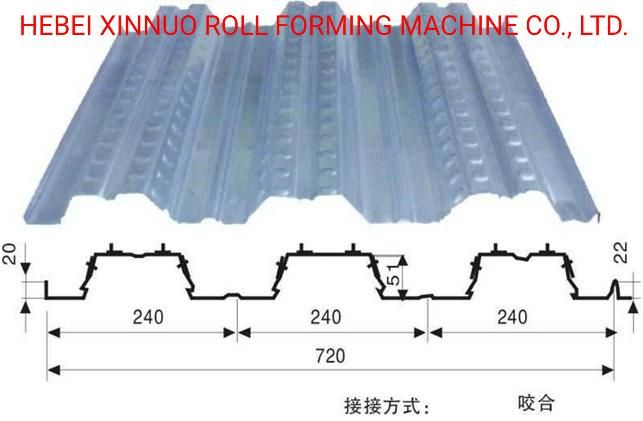

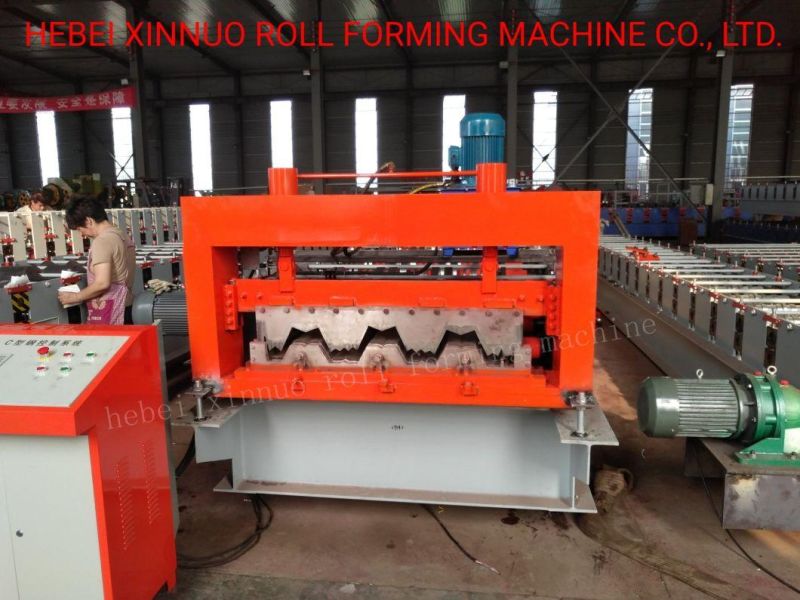

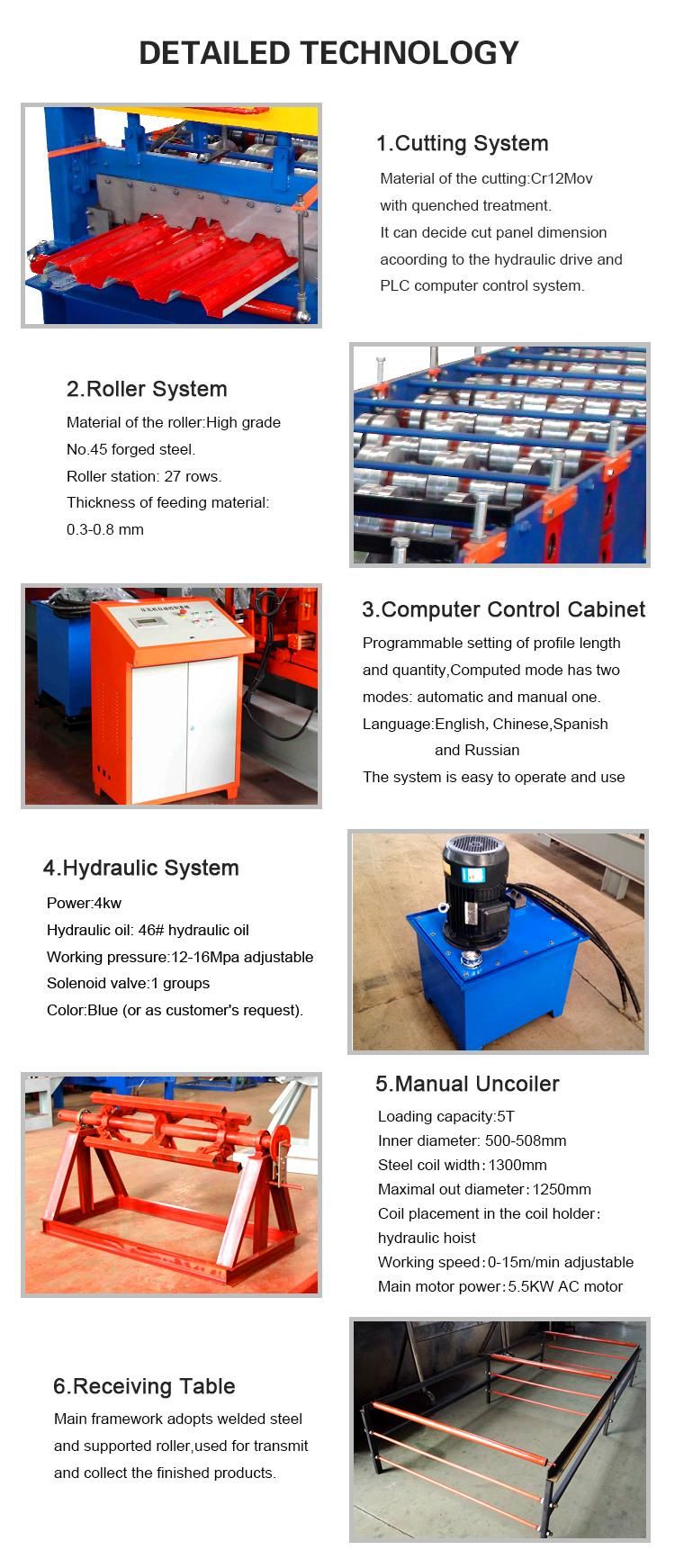

    B. Machines Pics And Sample

Hot Sale Automatic Floor Decking Metal Sheet Tile Making Rollig MachineHot Sale Automatic Floor Decking Metal Sheet Tile Making Rollig MachineHot Sale Automatic Floor Decking Metal Sheet Tile Making Rollig MachineHot Sale Automatic Floor Decking Metal Sheet Tile Making Rollig MachineHot Sale Automatic Floor Decking Metal Sheet Tile Making Rollig MachineHot Sale Automatic Floor Decking Metal Sheet Tile Making Rollig MachineHot Sale Automatic Floor Decking Metal Sheet Tile Making Rollig Machine



C.Technical Parameters


688mm Metal Floor Decking Roof Roll Forming Machine




Configurations

Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table.

Control System

PLC Panasonic Inverter

Main Frame

400mm H-Beam

Main Power

18.5 kw

Pump Power

7.5 kw

Power Supply

380V, 3-Phase,50Hz

Forming Speed

8-10m/min

Roll Station

24 stands

Roller Diameter

95mm

Hydraulic Pressure

18-20MPa

Forming Size

688mm

Feeding Thickness

0.3-0.8mm

Feeding Width

1000mm

Backboard Thickness

22mm

Chain Size

66mm

Cutter Standard

Cr12

Roller Standard

Cr12

Cr-Plating Size

0.05mm

Overall Size

15000×1200×1100mm

Total Weight

19T

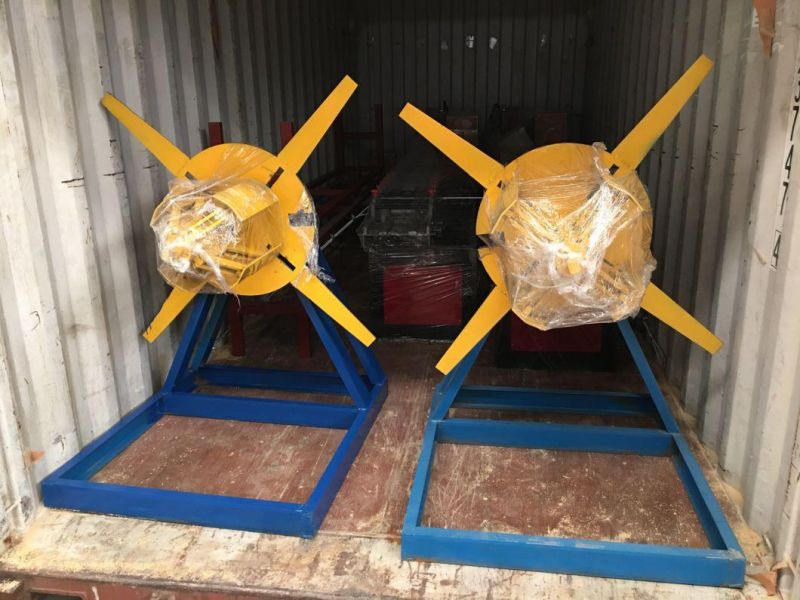

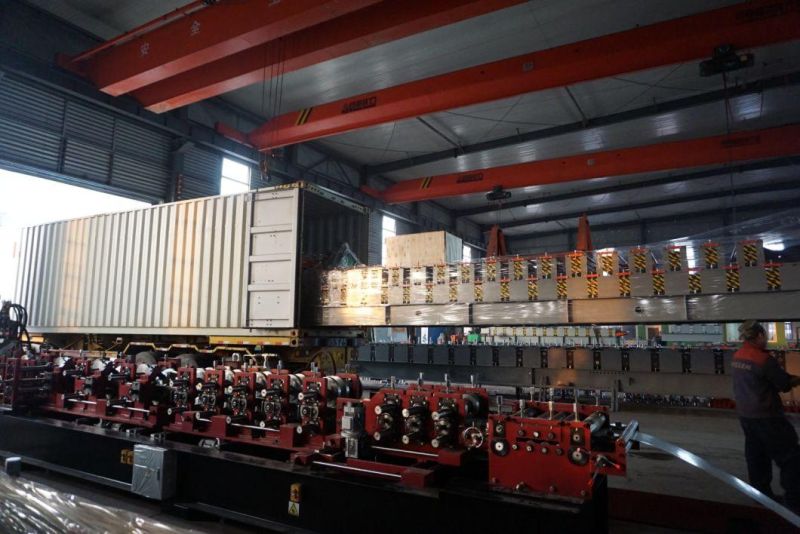

D.Shipping & Packing


Hot Sale Automatic Floor Decking Metal Sheet Tile Making Rollig Machine
Hot Sale Automatic Floor Decking Metal Sheet Tile Making Rollig Machine

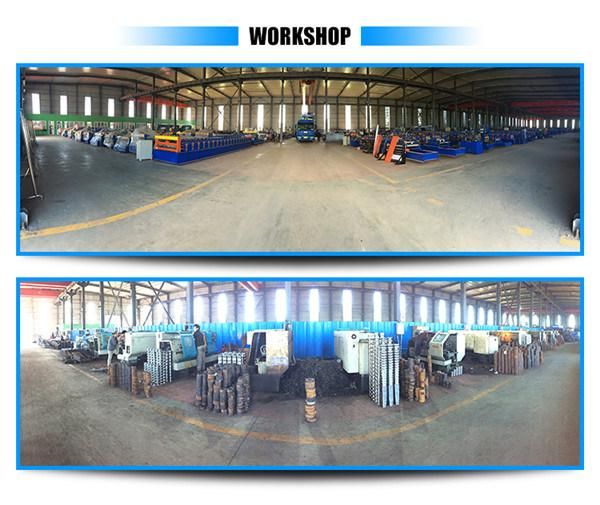

E. Company Information

Hot Sale Automatic Floor Decking Metal Sheet Tile Making Rollig Machine

F. Customer Visit

Hot Sale Automatic Floor Decking Metal Sheet Tile Making Rollig Machine



G. FAQ

1:How to play order:



Inquiry---confirm the profile drawings and price---confirm the PI---arrange the deposit or L/C---then OK



2:How to visit our company:



Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour),then we can pick up you.



Fly to Shanghai Airport:By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5hours),then we can pick up you.



3:When we exported the machines:


We have beening making and exporting the machines since from the year of 1998.



4:If you want to get more pictures or videos of the machines, feel free contact us.


THANK FOR YOUT TIME !
