• Model NO.：metal roofing corrugated machine from china
• Certification：CE, ISO
• Condition：New
• Customized：Customized
• Usage：Roof, Wall
• Transmission Method：Hydraulic Pressure
• Machine Name：Metal Roofing Corrugated Machine From China
• Color：Customized
• Speed：8-12 Meters,Min
• Mode：Chain Drive
• Main Frame：300 H Steel
• Shaft：75mm
• Roller Material：45# Steel
• Cutting：Cr12
• Control System：PLC
• Transport Package：Main Body Nude in Container
• Specification：6500*1500*1300mm
• Trademark：Dixin
• Origin：Botou, Hebei, China
• HS Code：84552210
• Production Capacity：20sets,Per Month

 1suitable materialColored Steel plate, galvanized board, Aluminum plate2Input width1220mm2Effective width of sheetas drawing 3Rows of rollers13rows 4material of rollerhigh grade 45# steel(plated chrome on surface)5Total power
Main motor power: 4kw
Hydraulic station power: 4kw4kw+4kw6Thickness of raw material0.3-0.8mm7Productivity10-12m/min8diameter of shaft75mm9Voltage380V 50Hz 3phases or according to customer's request10Main frame300 H steel11Medium plate thickness16 mm Details machine pictures for your reference.
Introduction of ComponentsManual Uncoiler
 Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:5T Inner diameter: 450-508mmEntry Beach
 Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.Main Roll Forming Machine

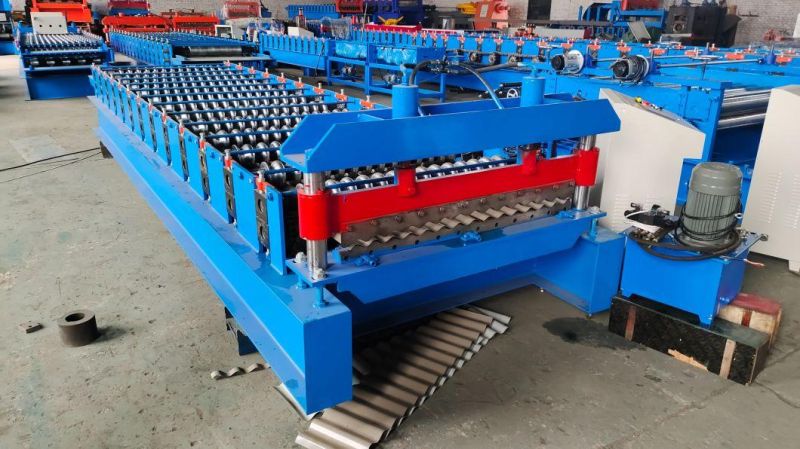

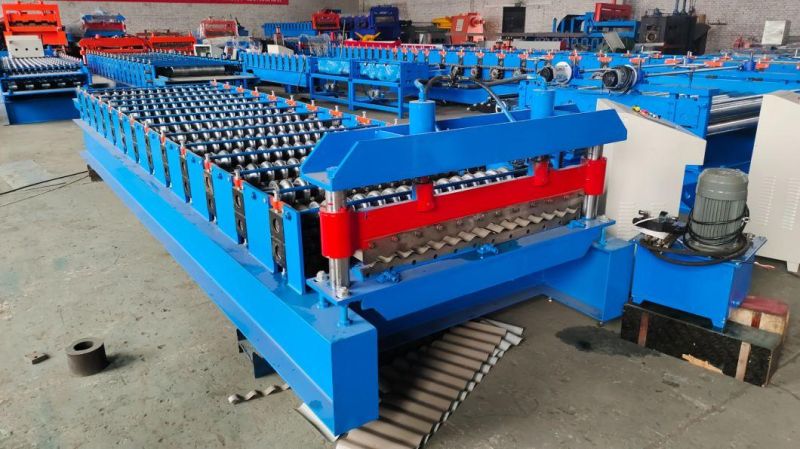

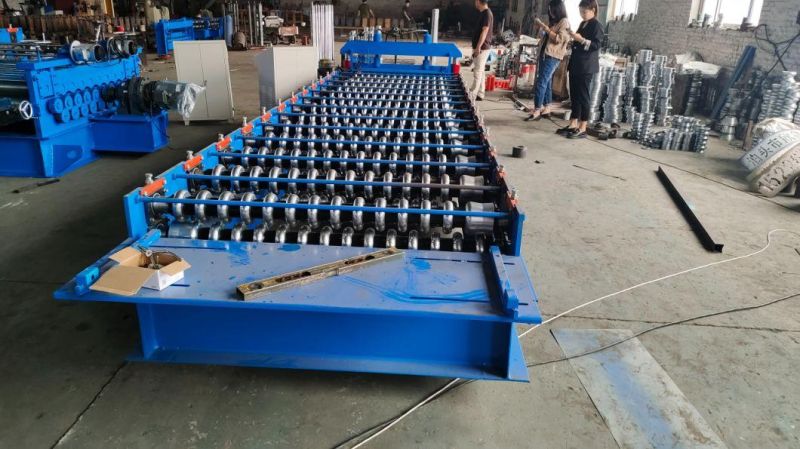

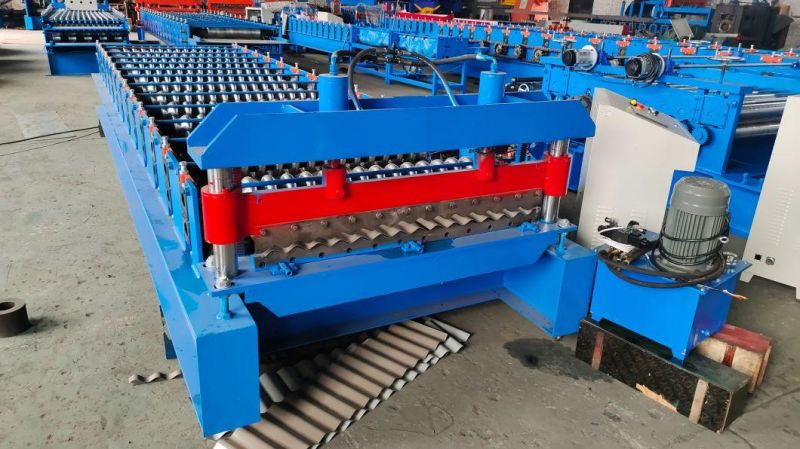

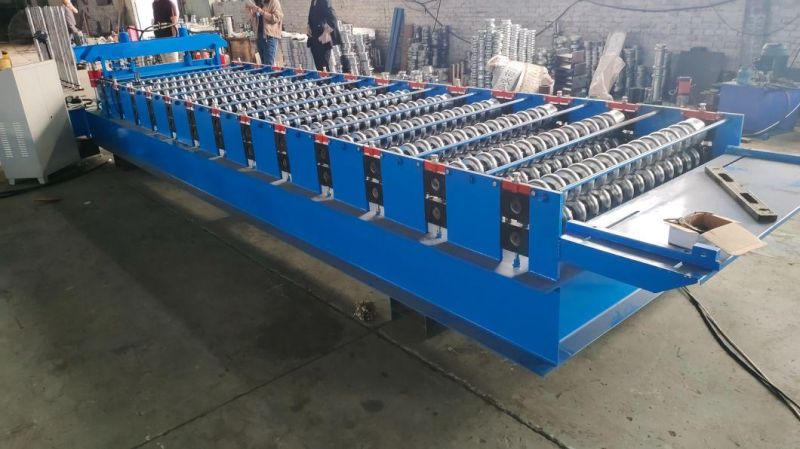

 In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller surfaces polishing, hard plating , heat treatment and galvanizational treatment . The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped. Material of rollers:45# steel, surface hard chromium plating. Main power: 4kw(cycloidal planetary gear speed reducer)Shearing Mechanism

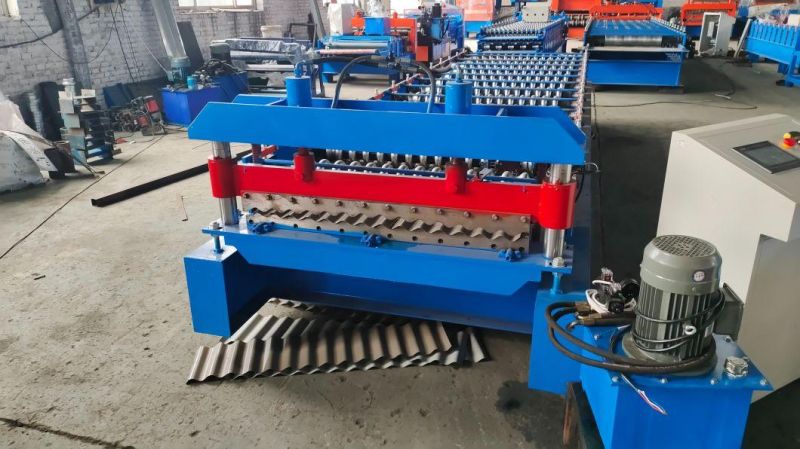

 It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12,quenching treatment Components:It contains one set of cutting tools, one hydraulic tank and one cutter machine.
 Hydraulic Station
 It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job. Power:4kw ;  Hydraulic oil: 40# Components: The system includes a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes.and two sets of electromagnetism valves.Computer Control Cabinet
 It adopts  Panasonic or Delta PLC to control. The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.
 Output Table
 It is used to load the finished sheet. This kind is convenient for shipment.
.
5.Payment term
 TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video
6.Warranty
12 months, and lifelong technical support service
7 Installation
If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay 80 USD/day for salary.
8. Package
Standard export package, water-proof package, covered with plastic film.
