• Model NO.：LMB-A-120
• Input Voltage：380V 50Hz
• Input Power：1.5kw
• Air Pressure：0.4~0.6MPa
• Air Consumption：0.2 L,Time
• Oil Capacity：20L
• Profile Width：<120mm
• Combining Cylinder Movement：98mm
• Locator Adjustment Range：75mm
• Overall Dimension：1200*1100*1300mm
• Transport Package：Plastic Film or Depends on Customers
• Specification：1400*1200*1300mm
• Trademark：Yuefeng
• Origin：Jinan Shandong, China
• HS Code：8477800000
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. LMB-A-120 Input Voltage 380V 50Hz Input Power 1.5kw Air Pressure 0.4~0.6MPa Air Consumption 0.2 L/Time Oil Capacity 20L Profile Width <120mm Combining Cylinder Movement 98mm Locator Adjustment Range 75mm Overall Dimension 1200*1100*1300mm Transport Package Plastic Film or Depends on Customers Specification 1400*1200*1300mm Trademark Yuefeng Origin Jinan Shandong, China HS Code 8477800000 Production Capacity 30 Sets/Month

Product Description

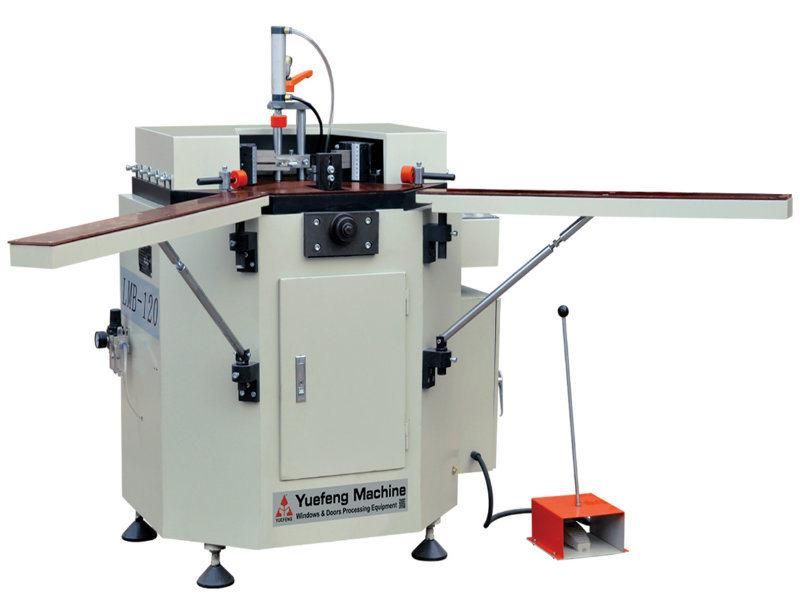

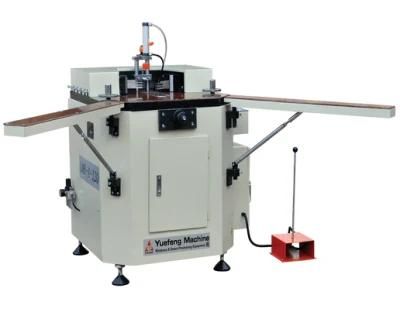

aluminum window solution corner crimping machine

> Used for 90° corner combining.

> Screw thread regulates the distance between up and down crimping device.

> Hydraulic system supplied large punching and riveting force.

>  Left and right punching heads adopt hard synchronous feeding device, thus makes the connection more firmly.

>It has features of easy operation, reliable performance and convenient maintenance.

Technical Parameter:

Model	LMB-120
Input voltage	380V 50Hz
Input power	1.5kw
Air pressure	0.4~0.6MPa
Air consumption	20L/min
Oil capacity	20L
Profile width	≤120mm
Combining cylinder movement	98mm
Locator adjustment range	70mm
Overall dimension	1200×1100×1300mm
