Corner Crimping Connecting Machine for Aluminum Window and Door
JINAN YUEFENG MACHINERY CO., LTD.- Certification:ISO, CE
- Automatic Grade:Automatic
- CNC or Not:CNC
- Voltage:According to Your Requirement
- Input Power:6.0kw
- Air Pressure:0.5~0.8MPa
Base Info
- Model NO.:LMB-A-140
- Air Consumption:200L,Min
- Spindle Speed:3200r,Min
- Cutting Length:400~4200mm(400~5000mm)
- Cutting Width:10~130mm
- Cutting Height:10~300mm
- Cutting Angle:90° 45° 67.5°
- Saw Feeding Speed:0~3m,Min
- Saw Blade Standard:φ500×4.4×φ30×z120
- Overall Dimension:5500(6300)×1700×1600mm
- Transport Package:Plastic Cover or Plywood Cases
- Trademark:YUEFENG
- Origin:Shandong
- HS Code:847780
- Production Capacity:100sets,Month
Description
Basic Info.
Model NO. LMB-A-140 Air Consumption 200L/Min Spindle Speed 3200r/Min Cutting Length 400~4200mm(400~5000mm) Cutting Width 10~130mm Cutting Height 10~300mm Cutting Angle 90° 45° 67.5° Saw Feeding Speed 0~3m/Min Saw Blade Standard φ500×4.4×φ30×z120 Overall Dimension 5500(6300)×1700×1600mm Transport Package Plastic Cover or Plywood Cases Trademark YUEFENG Origin Shandong HS Code 847780 Production Capacity 100sets/MonthProduct Description

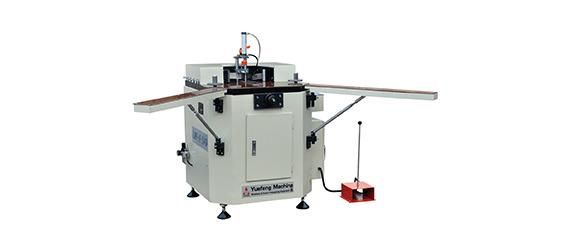

Corner crimping connecting machine for aluminum window and door
Used for 90° corner combining.
Adjustable corner combining tool that achieve multi-position corner combining.
Inner locator can sit below the worktable, easy operation.
Hydraulic system supplied large punching and riveting force.
Left and right punching heads adopt hard synchronous feeding device, thus makes the connection more firmly.
It has features of easy operation, reliable performance and convenient maintenance.
Model | LMB-A-140 |
Input voltage | 380V 50Hz |
Input power | 2.2kw |
Air pressure | 0.4~0.6MPa |
Air consumption | 0.2L/TIME |
Oil capacity | 25L |
Profile width | ≤140mm |
Combining cylinder movement | 98mm |
Locator adjustment range | 115mm |
Overall dimension | 1300×1200×1300mm |
