• Rotary Speed：2800r,Min
• Air Consumption：60L,Min
• Cutting Length：400-3700mm
• Cutting Width：120mm
• Cutting Height：200mm
• Cutting Angle：45 ,90 and 135 Degree
• Machine Dimension：4500*1170*1400mm
• Weight：1500kg
• Transport Package：Wooden
• Specification：Saw blade diameter 450mm
• Trademark：Truepro
• Origin：China
• HS Code：846150
• Production Capacity：500sets,Year

Basic Info.

Rotary Speed 2800r/Min Air Consumption 60L/Min Cutting Length 400-3700mm Cutting Width 120mm Cutting Height 200mm Cutting Angle 45 ,90 and 135 Degree Machine Dimension 4500*1170*1400mm Weight 1500kg Transport Package Wooden Specification Saw blade diameter 450mm Trademark Truepro Origin China HS Code 846150 Production Capacity 500sets/Year

Product Description

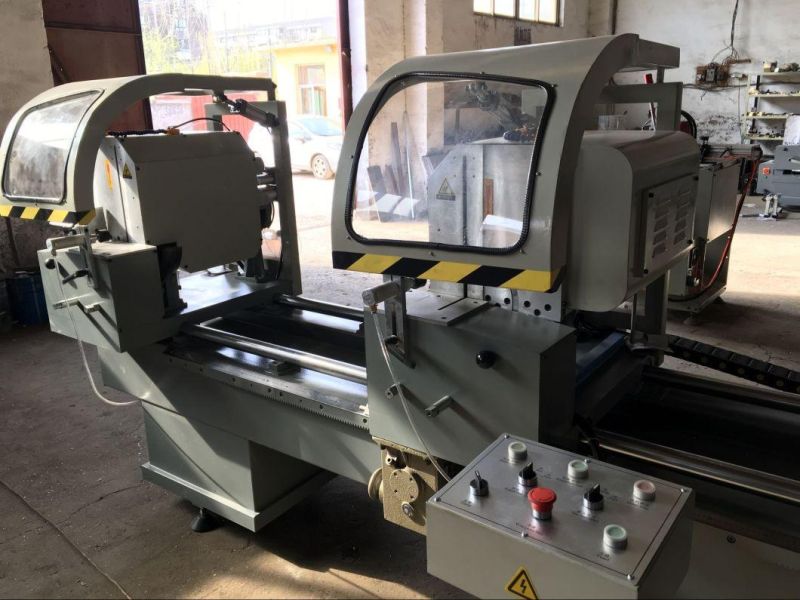

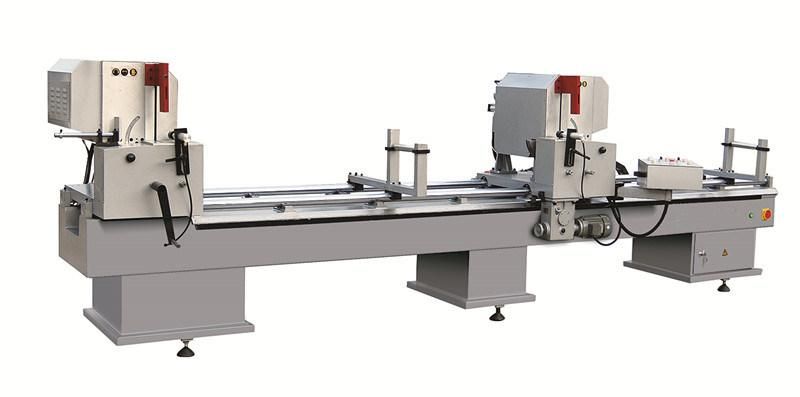

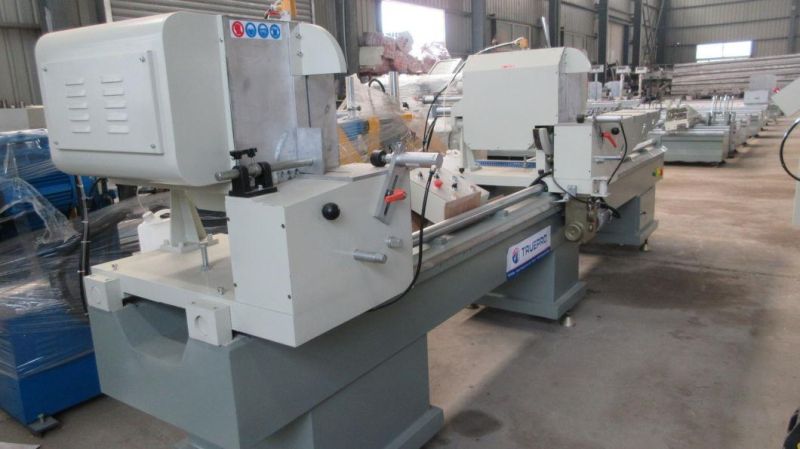

Aluminum Window And Door Making Machine Digital Display UPVC Double Mitre Saw Cutting Machine with CE



Machine feature:
1.The machine is used for cutting of aluminum &PVC profile.
2.Imported carbides blade is of accurate processing and high accuracy.
3.Saw blade rotates smoothly due to high accuracy main spindle.
4.Uniform speed feeding and smooth motion are due to airdraulic damping cylinder.
5.It has feature of easy operation,reliable performance,advanced technique and convenient maintenance,etc.
6.Two saw head can be manually switching angle,realize the -45 degree,90degree,45degree angle cutting profile.
Parameter:

Model	CLJZ2-450*3700
Power Supply	380V 50HZ
Input Power	2*1.5KW 1*0.55KW
Air Pressure	0.5~0.8MPa
Motor Rotary Speed	2800r/min
Saw Blade Specification	Φ450*Φ30*4.4 Z=120
Cutting Angle	45 ° 90° 135°
Cutting angle allowance	±5'
Cutting speed	0-3m/min
Cutting profile surface planeness	≤0.1mm
Cutting profile surface roughness	Ra12.5μm
Cutting Length	max. 3700mm min.400mm
Cutting Width*Height	120*200mm
Overall Dimension	4500*1170*1400mm
Weight	About 1500Kg

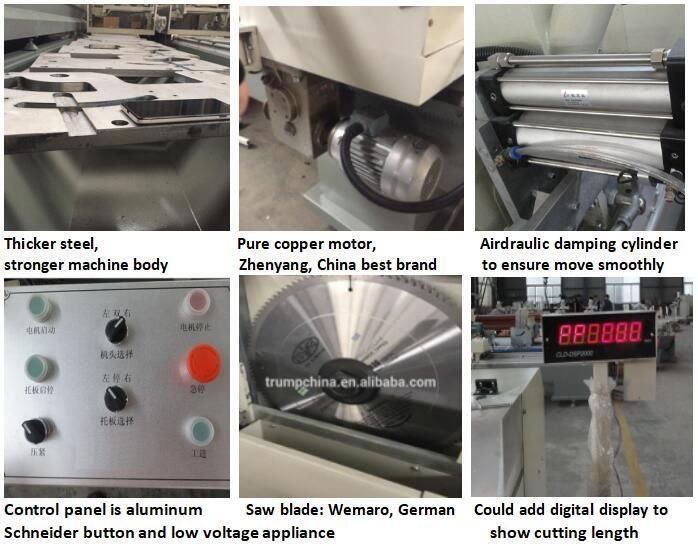

Machine details:


With saw cover:






1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
