• Model NO.：1100
• Product Name：Glazed Tile Making Machine
• Shaft Material：45# Steel Forging Treatment
• Thickness of Coil Sheet：0.3-0.8mm
• Main Motor Power：4 Kw
• Forming Speed：2-3m,Min
• Hydraulic Station Power：3kw
• Quantity of Stand：16 Stands
• Control System：PLC(Imported Brand)
• Index Error of Lengt：10m+2mm
• Color：Customers Requirement
• Transport Package：Main Machine Is Nude
• Specification：7.0*1.55*1.5m
• Trademark：xinnuo
• Origin：China-Mainland
• HS Code：8455221000
• Production Capacity：1set,Month

Basic Info.

Model NO. 1100 Product Name Glazed Tile Making Machine Shaft Material 45# Steel Forging Treatment Thickness of Coil Sheet 0.3-0.8mm Main Motor Power 4 Kw Forming Speed 2-3m/Min Hydraulic Station Power 3kw Quantity of Stand 16 Stands Control System PLC(Imported Brand) Index Error of Lengt 10m+2mm Color Customers Requirement Transport Package Main Machine Is Nude Specification 7.0*1.55*1.5m Trademark xinnuo Origin China-Mainland HS Code 8455221000 Production Capacity 1set/Month

Product Description

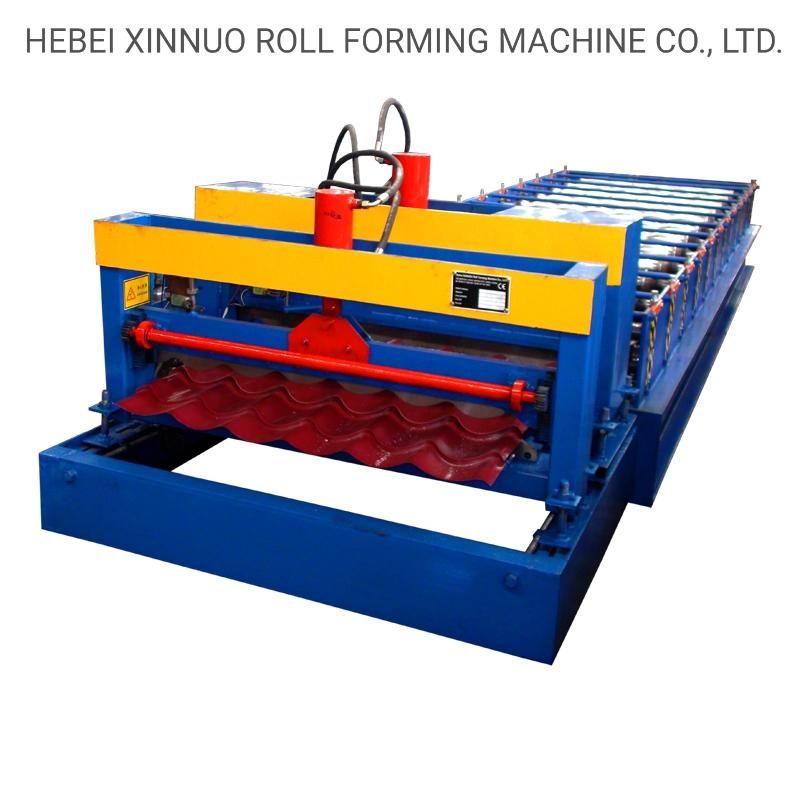

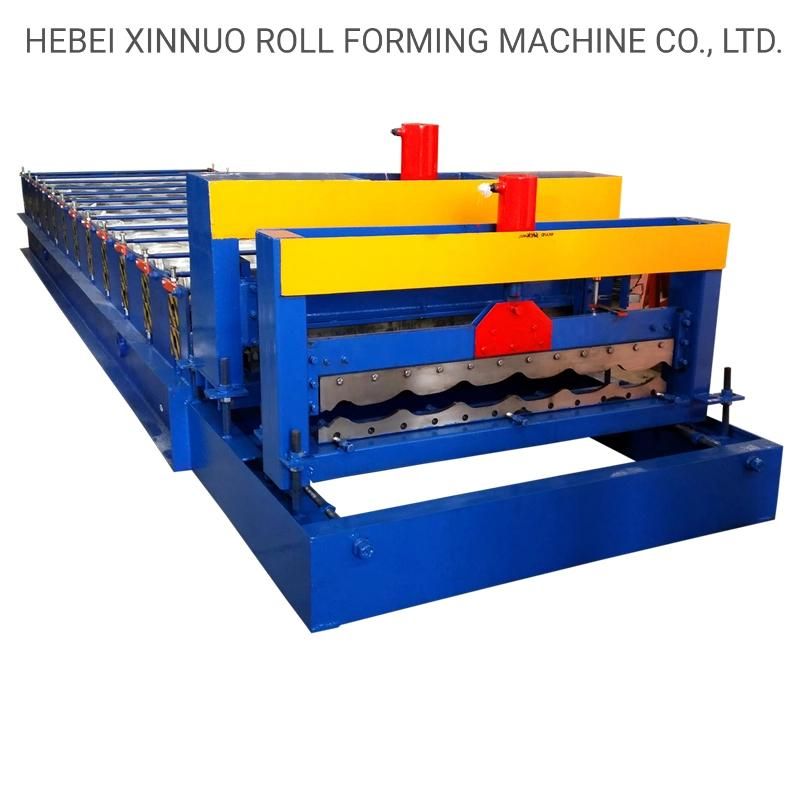

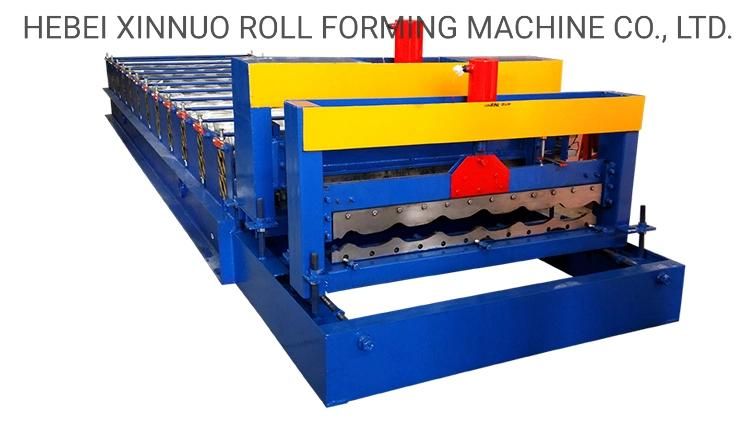

Hebei Provice Botou city tile press machine glazed roll forming machine

Product Description





Machine consist of uncoiler and its base, coil sheet guiding equipment, roll forming system, post cutting equipment, pressing equipment, post-cutting system,hydraulic station, controlling system, supporter table.

Flow chart:

Decoilling the sheet--sheet guilding --roll forming--measure length--cutting the panel--panel to the supporter



Machine Feature:

1.Precise forming

2. High-solid forming stand guarantees the goods and uniform high quality of final productd

3. The operation automatically minimizes the tolerance of cutting length

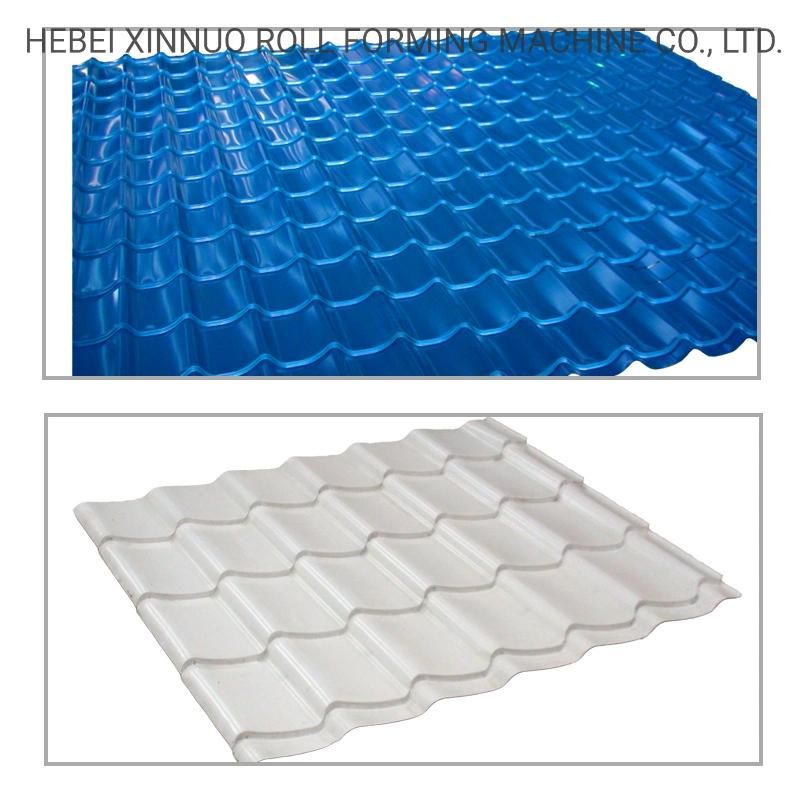

Products Feature:

1. A stylish and attractive design, giving the apperance of a traditional roof tile.

2. Resistant to frost, heat,hail and gales; 100% waterproof, due to the lateral run-off channel on each sheet for several models.

3.The raw material can be in different color, with elegant and noble looking. It is widely used as the garden like factory, hotel, exhibition, villa,civil construction etc.



Technical Parameters:

Material Spec: colored steel sheet; galvanized steel sheet

Thickness of coil sheet: 0.3-0.8mm

Main Motor Power: 3 kw

Forming Speed: 2.0-3.0m/min

Hydraulic station power: 3kw

Quantity of stand:about 8 or 9 stands

Hydraulic pressure:10-12mpa

controlling system: PLC

Index error of length:10m+2mm

Total weight: about 3 tons

Voltage: 380V 3phase 60 HZ or at buyer's requirement



Material of main equipment

 Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm

 Active shaft material: high grade NO.45 carbon wrought steel at Φ 70mm

Cutting blade: Cr12 mould steel with quenched treatment.

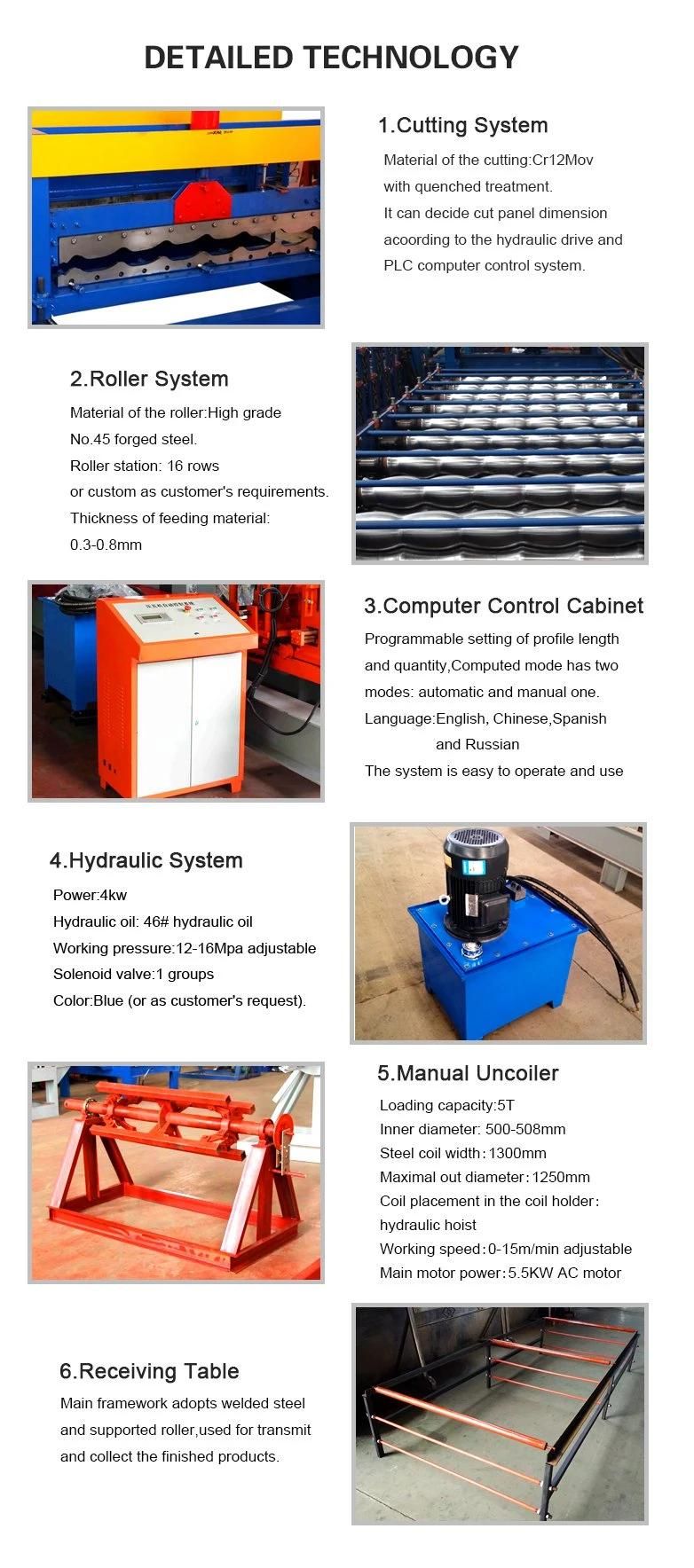

Detaild Images

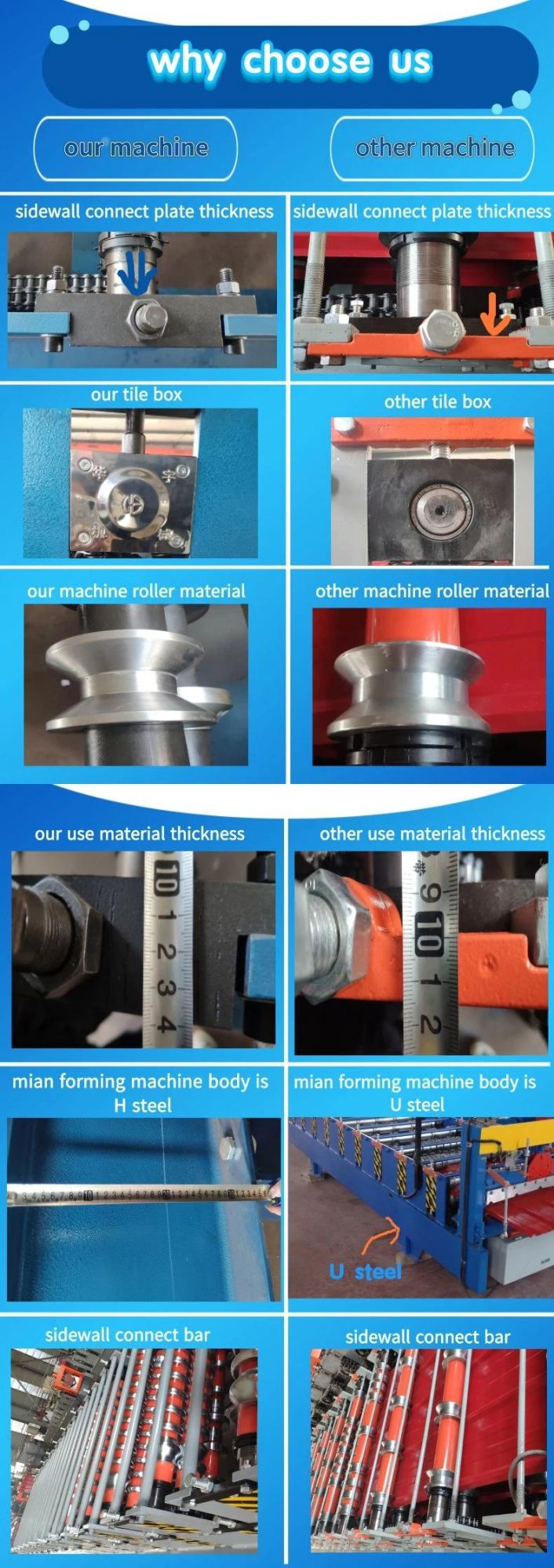

Our Advantage

	Our machine	Influence of the machine
Main forming  machine body	High strength H300 or H350 steel.  machine t hrough milling machine after  welding	Sturdy and durable, ensure the plate standard
Material of the  roller	GCr15	Ensure the forming effect of  the panel and the use age will  be longer,the surface of the panel
Material of the  cutting	Cr12 steel with quenched treatment	Cutting is out of shape not easily  and use age will be longer,the panel  size precision
Material of the  active shaft	High grade No.45 forged steel,  Shaft diameter is 80 or 75mm.	Improve the integrated mechanic  feature of the shaft and keep product  standard
Control system	PLC control system,some elements are  imported from Jap an and Germany	Machine become more accurate and  more stable

Our Services

Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller's factory while before delivery.

Delivery: 30 days after receipt of advance payment

Service: we send technician to your country to fix the machine.The buyer should bear all the cost including: visa, Round trip tickets and suitable accommodation, also buyer should pay salary 80USD/day.

Warranty: 12 months limited warranty

During warranty: parts are free but buyer pay for the shipping fee.




FAQ


1:How to play order:

Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK



2:How to visit our company:

Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.



3:When we exported the machines:

We have beening making and exporting the machines since from the year of 1998.



4.What's the after- sale service:

we sent technician to your country to fix the machine.The buyer should bear all the cost including:

visa, round trip ticket and suitable accommodation, also buyer should pay the salary 80USD/day.



5.How about the warranty: 12 months limits warranty
