Hot Sale CNC UPVC Window Corner Cleaning Machine
Shandong Truetec Machinery Co., Ltd.- Condition：New
- Certification：CE
- Automatic Grade：Automatic
- CNC or Not：CNC
- Voltage：380V
- Input Power：1.7kw
Base Info
- Model NO.：CSQJ-CNC-120
- Rotary Speed：2800r,Min
- Air Consumption：60L,Min
- Profile Height：30-120mm
- Profile Width：20-120mm
- Air Pressure：0.5-0.8MPa
- Machine Dimension：2000*1820*1500mm
- Weight：700kg
- Usage：UPVC Window Corner Cleaning
- Transport Package：Wooden
- Specification：CSQJ-CNC-120
- Trademark：Truetec
- Origin：China
- HS Code：846599
- Production Capacity：500sets,Year
Description
Basic Info.
Model NO. CSQJ-CNC-120 Rotary Speed 2800r/Min Air Consumption 60L/Min Profile Height 30-120mm Profile Width 20-120mm Air Pressure 0.5-0.8MPa Machine Dimension 2000*1820*1500mm Weight 700kg Usage UPVC Window Corner Cleaning Transport Package Wooden Specification CSQJ-CNC-120 Trademark Truetec Origin China HS Code 846599 Production Capacity 500sets/YearProduct Description

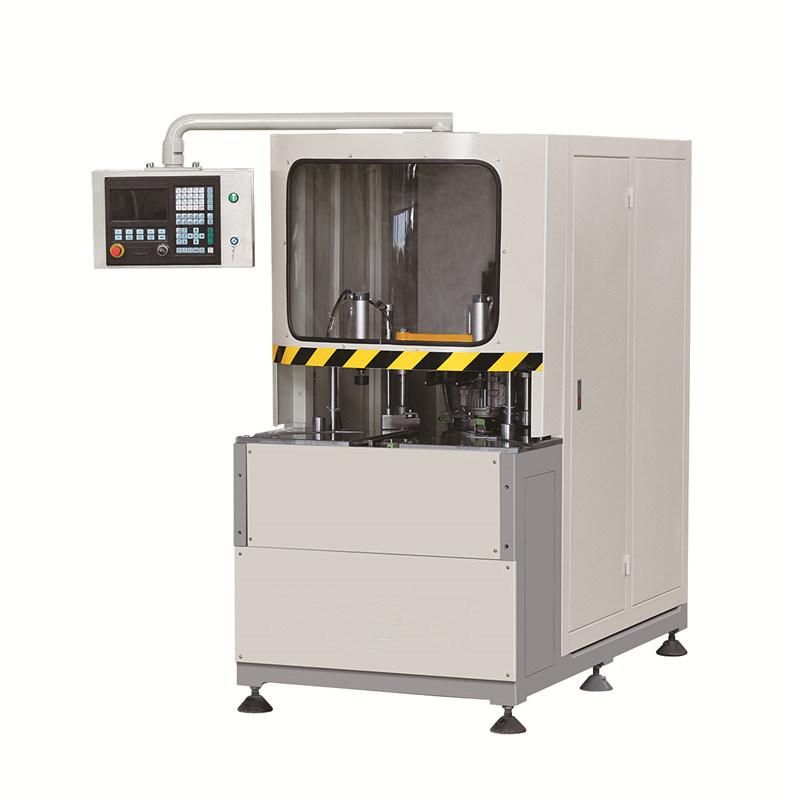

Hot sale CNC UPVC window corner cleaning machine
Machine feature:

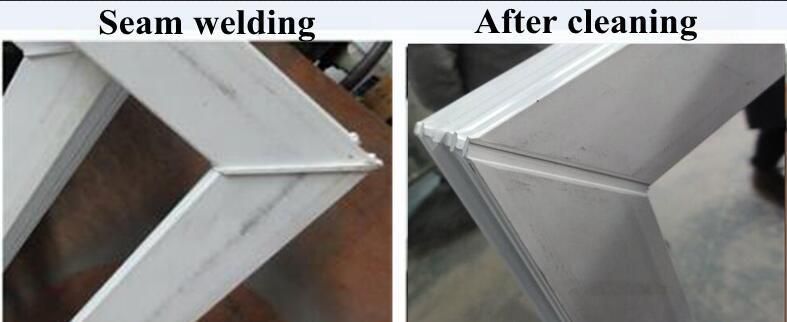

For cleaning PVC profile welding seam.
Double-axis control system
Cleaning the up/bottom surface and the external corner.
High processing precision due to size error compensation Function
Can store many programs for various profile processing
Can clean outside vertical surface, up/ bottom welding seam, internal bevel section, seam in the track of the sliding profile,
rubber seam groove part and so on.
Parameter:
| Power Supply | 380V 50Hz |
| Total Power | 1.7Kw |
| Operation Air | 0.5~0.8Mpa |
| Air Consumption | 60L/min |
| Principal Axis Rotate Speed | 2800r/min |
| Diameter of Milling Cutter | 200mm |
| Processing Profile Height | 30-120mm |
| Processing Profile Width | 20-120mm |
| Contour Dimension | 2000*1820*1500mm |
| Weight | 700kgs |
Company information:
1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

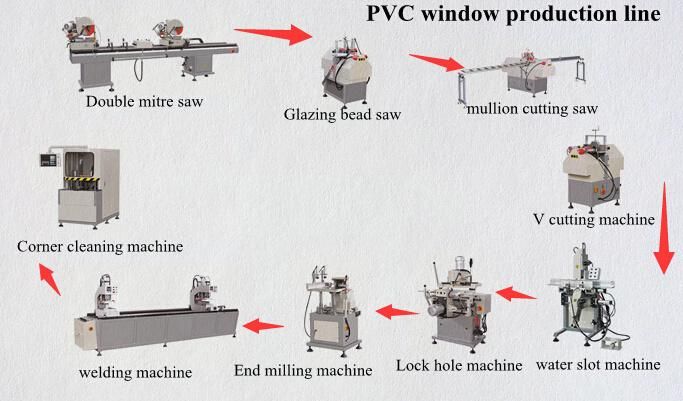

4. If I make PVC window and door, how many basic machines do i need?
