• Model NO.：LYH-CNC-200
• Voltage：380V
• Input Voltage：380 50Hz
• Input Power：3.0kw
• Air Pressure：0.4~0.6MPa
• Air Consumption：120L,Min
• Min. Bending Radius：230mm
• Roller Diameter：60mm
• Roller Rotation Speed：1-8r,Min
• Max. Width：200mm
• Hydraulic Pressure：20t(200MPa)
• Overall Dimension：1900×1100×1300mm
• Transport Package：Plastic Cover or Plywood Cases
• Trademark：YUEFENG
• Origin：Jinan, Shandong, China
• HS Code：3925200000
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. LYH-CNC-200 Voltage 380V Input Voltage 380 50Hz Input Power 3.0kw Air Pressure 0.4~0.6MPa Air Consumption 120L/Min Min. Bending Radius 230mm Roller Diameter 60mm Roller Rotation Speed 1-8r/Min Max. Width 200mm Hydraulic Pressure 20t(200MPa) Overall Dimension 1900×1100×1300mm Transport Package Plastic Cover or Plywood Cases Trademark YUEFENG Origin Jinan, Shandong, China HS Code 3925200000 Production Capacity 100 Sets Per Month

Product Description

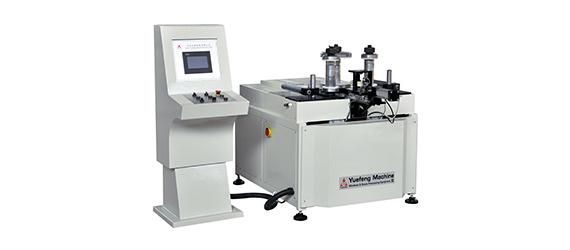

CNC rolling machine for ARC window and door making1,The machine applies to bending several kinds of metal profiles to appears arc shape, such as iron, copper and aluminium.
2,Adopts special arc-processing software, can detect the data of rebound, and then eliminate the rebound.
3,It can make shapes of ellipse, circle and "C", "U" shapes etc.
4,Adopts computer control system, the location precision is less than 0.01mm.

Technical Parameter:


Input voltage	380 50Hz
Input power	3.0Kw
Air pressure	0.4~0.6MPa
Air consumption	120L/min
Min. bending radius	230mm
Roller diameter	60mm
Roller rotation speed	1-8r/min
Max. width	200mm
Hydraulic pressure	20T(200MPa)
Overall dimension	1900×1100×1300mm



RFQ:

1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
