• Model NO.：BYSJ
• Customized：Customized
• Type：Sheet Extruder
• Plastic Processed：PVC
• Feeding Mode：One Feed
• Assembly Structure：Separate Type Extruder
• Screw：Twin-Screw
• Engagement System：Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Transport Package：PVC Film
• Specification：CE SGS
• Trademark：BOYU
• Origin：Wuxi
• HS Code：8477209000
• Production Capacity：30 Machine Lines ,Month

Basic Info.

Model NO. BYSJ Customized Customized Type Sheet Extruder Plastic Processed PVC Feeding Mode One Feed Assembly Structure Separate Type Extruder Screw Twin-Screw Engagement System Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Transport Package PVC Film Specification CE SGS Trademark BOYU Origin Wuxi HS Code 8477209000 Production Capacity 30 Machine Lines /Month

Product Description

Wood Plastic Composite (WPC)

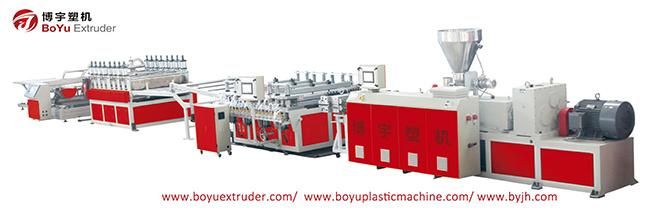

Foam Board Flooring Substrate Conical Twin Screw Extrusion MachineLine






I.Main Designing Parameter of production line

No.	Items	Data
01	Operation Conditions	380V/3 phases/50Hz, DC24V.
02	Raw Material	PVC powder, calcium carbonate, wood flour, auxiliary chemicals
04	Main material proportion	PVC: CACO3= 1:3
05	Product specifications	Width:1050mm/1350/1850/ 2500 for optional Thickness: 2- 40mm
06	Extrusion line mode	SJSZ 80/156 conical twin screw extrusion line
07	Quality standard	Twin screw standard JB6492-2001 Electricity standard: GB5226.1-2008/IEC  60204-1:2005
08	Machine Fabrication Certificate	CE /UL
09	Electric components certificate	CE /UL /CSA

II.Equipment composition list of production line

No.	Equipment Name	Quantity	Remark
01	Φ80/156 Conical twin-screw extruder	1 Set
02	Extrusion die	1 Set
03	Forming platform	1 Set
04	16-rollers tractor	1 Unit
05	Lengthwise cutting tool holder	1 Set
06	Auto plate lifter	1 Unit
07	Longitudinal edge cutting mechanism	1 Unit
08	Plate bracket	1 Set
09	Length meter	1 Set
10	Plate shearing machine	1 Set
11	Automatic stacker	1 Unit
12	Electric control cabinet	1 Unit

III.Advantages of BOYU WPC Production Machine Line :
1.PLC Computer automatic control system
2. Adopted International famous brand for all electric components
3.Synchronization control system to ensure main extrusion speed can synchronous  with haul-off speed to avoid board break occurring
4.Screw fracture prevention control system ( A software system to control and adjust the screw running speed)
5.Auto board stacking system (save labors)
6.Anti blocking mold system
7.Vacuum loading and dust collector system

IV.Pre-sale service:
1.To provide information and market research,to provide consultation,to provide many kinds of conveniences and market service,etc. Products: WPC Foam Board Machine...
2.The main purpose of pre-sales service is to help customers make the project planning and system requirements analysis. Make our products maximum to meet clients' requirements. Also play the greatest overall economic benefits of customers' investment.

V.After-sale service:
1. Making pre-shipment trial inspection for customers.
2.To provide the formulas and technologies of relevant products and the information of chemical materials manufactories.
3.To direct technology aspect of relevant use according to customers' requirements
4.To provide technical training for clients' employees.
5.To be responsible for maintenance service, door-to-door service under the necessary circumstance.

VI. BoYu's Advantages

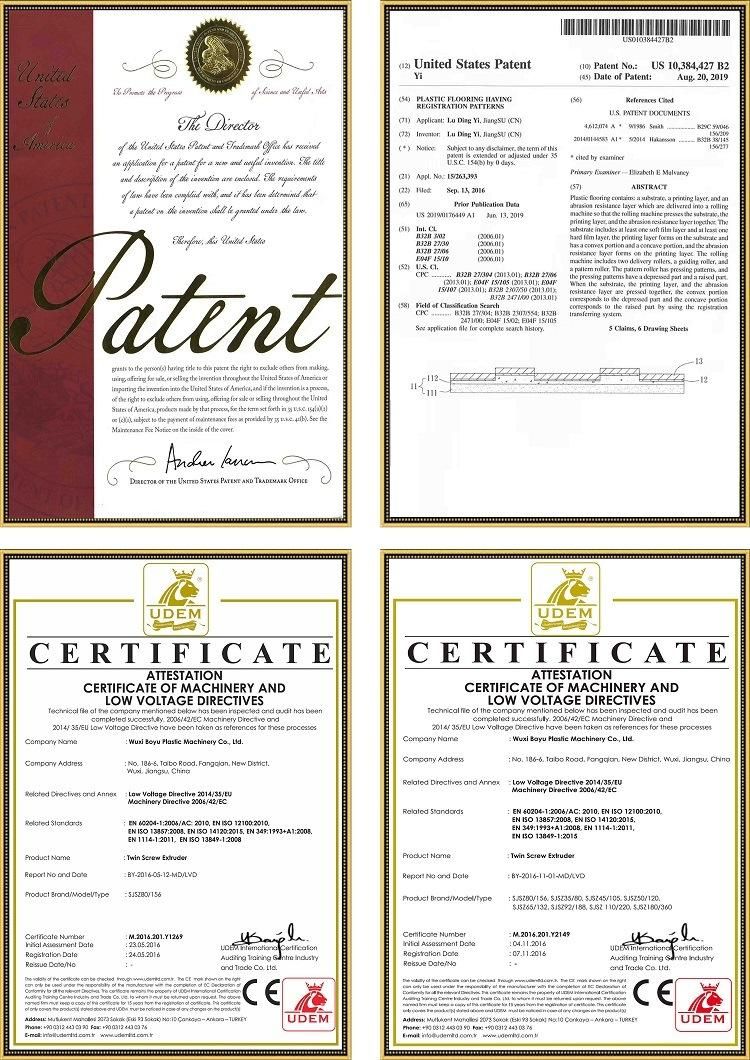

VII. BoYu's Certificate and Patents

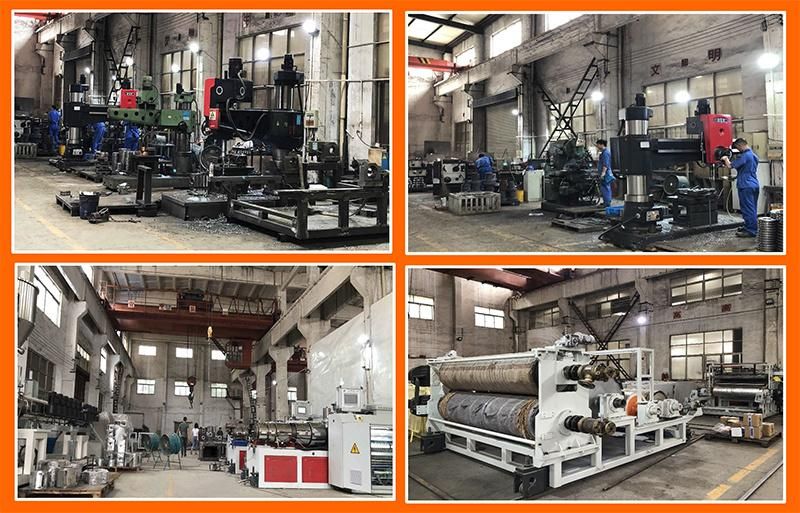

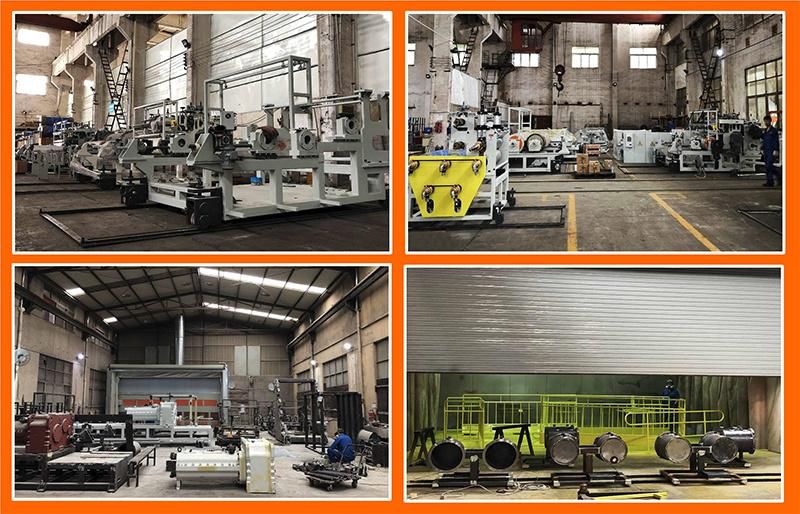

VII. BoYu's production workshops
