• Model NO.：BYSJ
• Customized：Customized
• Type：Sheet Extruder
• Plastic Processed：PVC
• Feeding Mode：One Feed
• Assembly Structure：Separate Type Extruder
• Screw：Twin-Screw
• Engagement System：Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Transport Package：PE Wrapping Film, Fumigating Wooden Cases.
• Specification：CE, SGS
• Trademark：BOYU
• Origin：China
• HS Code：8477209000
• Production Capacity：20 Lines,Month

Basic Info.

Model NO. BYSJ Customized Customized Type Sheet Extruder Plastic Processed PVC Feeding Mode One Feed Assembly Structure Separate Type Extruder Screw Twin-Screw Engagement System Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Transport Package PE Wrapping Film, Fumigating Wooden Cases. Specification CE, SGS Trademark BOYU Origin China HS Code 8477209000 Production Capacity 20 Lines/Month

Product Description

PVC Imitation Marble Profile Extrusion Production Line

I. Design parameters

No.	Items	Data
01	Operation Conditions	380V/3 phases/50Hz, DC24V.
02	Raw Material	PVC powder, calcium carbonate, stabilizer, lubricant
04	Main material proportion	PVC: CACO3= 1:3
05	Product specifications	Width:1220mm,Thickness:1-8mm
06	Extrusion line mode	SJSZ 80/156 conical twin screw extrusion line
07	Quality standard	Twin screw standard JB6492-2001 Electricity standard: GB5226.1-2008/IEC  60204-1:2005
08	Machine Fabrication Certificate	CE /UL
09	Electric components certificate	CE /UL /CSA

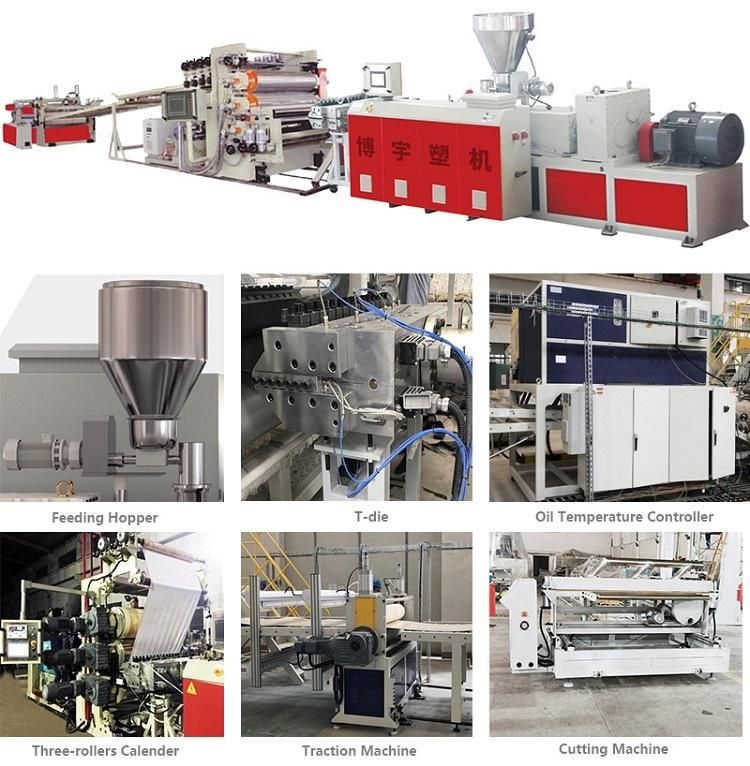

II.Equipment List & Quantity

No.	Equipment Name	Quantity	Remark
01	Φ80/156 Conical twin-screw extruder	1 Set
02	Extrusion die	1 Set
03	Three-rollers calender	1 Set
04	Film unwinding mechanism & magnetic powder controller	1 Unit	For two working position
05	Oil rollers heating system	1 Set	4 units
06	Cooling bracket	1 Unit
07	Longitudinal edge cutting mechanism	1 Unit
08	Traction machine	1 Set
09	Length meter	1 Set
10	Plate shearing machine	1 Set
11	Automatic stacker	1 Unit
12	Electric control cabinet	1 Unit

III. Production process:
The screw feeder takes the material from the 5m³ silo(~ 3 tons) → The Extruder Feeding Hopper → The extruder → Material plasticizing → T-die → The Three-rollers Calender →Edges Trimming → Roller Cooling Bracket →Air Cooling Cabinet(Optional) → Traction Machine→ Cutting Machine →Automatic Flipping & Stacking Machine


IV. Main technology parameter of extruder

• Conical Twin-screw Extruder



Extruder Model	Capacity/24h	Capacity/h	4mm Linear Speed
SZJZ-80	6-8T	250-350KG	0.4-0.6m/min
SZJZ-92	8-12T	500-700KG	0.8-1.3 m/min

V. Finished Products

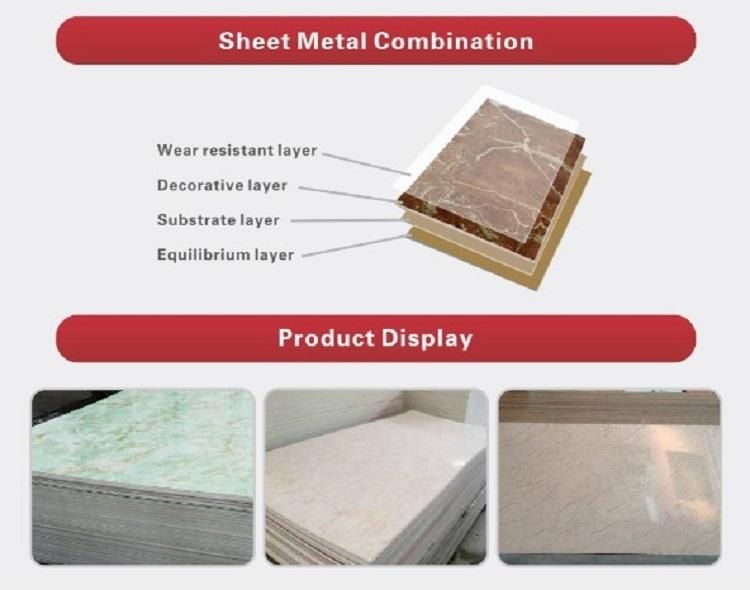

PVC imitation marble profile characteristics:

A, the surface is smooth, mirror effect;
B, the surface film color is rich, you will have more choices;
C, the material have no formaldehyde, surface color treatment without solvent and benzene;
D, because the color is hot stamping processing, surface is light oil processing, no color difference , have a good weatherability;
E, surface is UV processing, product is wear resistance and impact;
F, UV treatment surface is corrosion preventive.
VI. Boyu Company Profile


VII. Our Services:

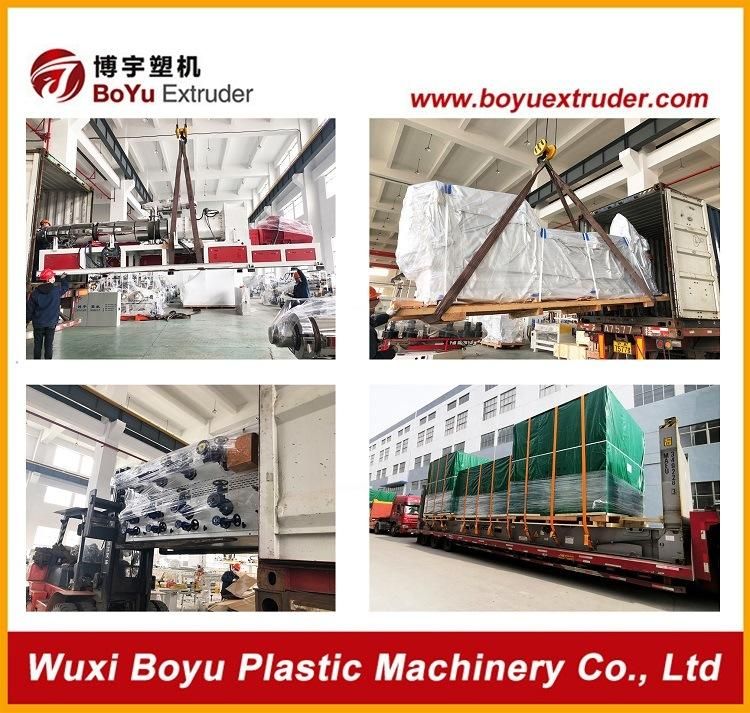

VIII. Shipping

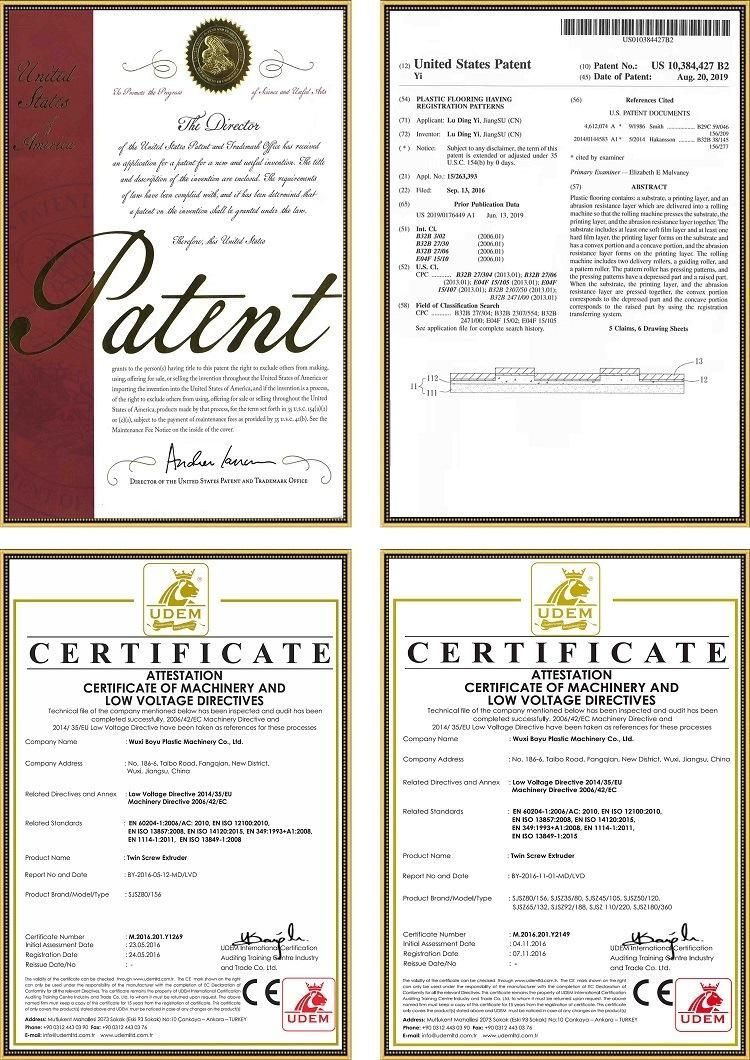

IX. Patents
