• Model NO.：CNM-LD
• Color：Blue, Green, Red or According to Requirement
• Type：Steel Wire Button Heading Amchine
• Matched Electric Oil Pump Model：Ybz2X-50 Electric Oil Pumo
• Rated Maximum Oil Pressure：48MPa
• Strand Pusher Application：Bridge, Buildings, Tunnel, Highway and Railway
• Button Heading Force：88.2kn, 165kn, 498.5kn
• Applied Stee Wire Diameter：5mm, 7mm, 9mm
• Stroke：20mm
• Weight：10kg, 15kg, 29.5kg
• Goods Delivery Lead Time：Have Stock
• Transport Package：Ply Wooden Case or Carton, or Container
• Specification：SGS, ISO9001-2008, BV
• Trademark：CNM
• Origin：Hennan Province
• HS Code：8455212000
• Production Capacity：500 Sets Per Month

Basic Info.

Model NO. CNM-LD Color Blue, Green, Red or According to Requirement Type Steel Wire Button Heading Amchine Matched Electric Oil Pump Model Ybz2X-50 Electric Oil Pumo Rated Maximum Oil Pressure 48MPa Strand Pusher Application Bridge, Buildings, Tunnel, Highway and Railway Button Heading Force 88.2kn, 165kn, 498.5kn Applied Stee Wire Diameter 5mm, 7mm, 9mm Stroke 20mm Weight 10kg, 15kg, 29.5kg Goods Delivery Lead Time Have Stock Transport Package Ply Wooden Case or Carton, or Container Specification SGS, ISO9001-2008, BV Trademark CNM Origin Hennan Province HS Code 8455212000 Production Capacity 500 Sets Per Month

Product Description

CNM-LD Series Prestressed 9mm Steel Wire Heading Machine(Call us: Mobile Phone: +8613673713569)




PRODUCTION DETAIL INTRODUCTION(Call us: Mobile Phone: +8613673713569)

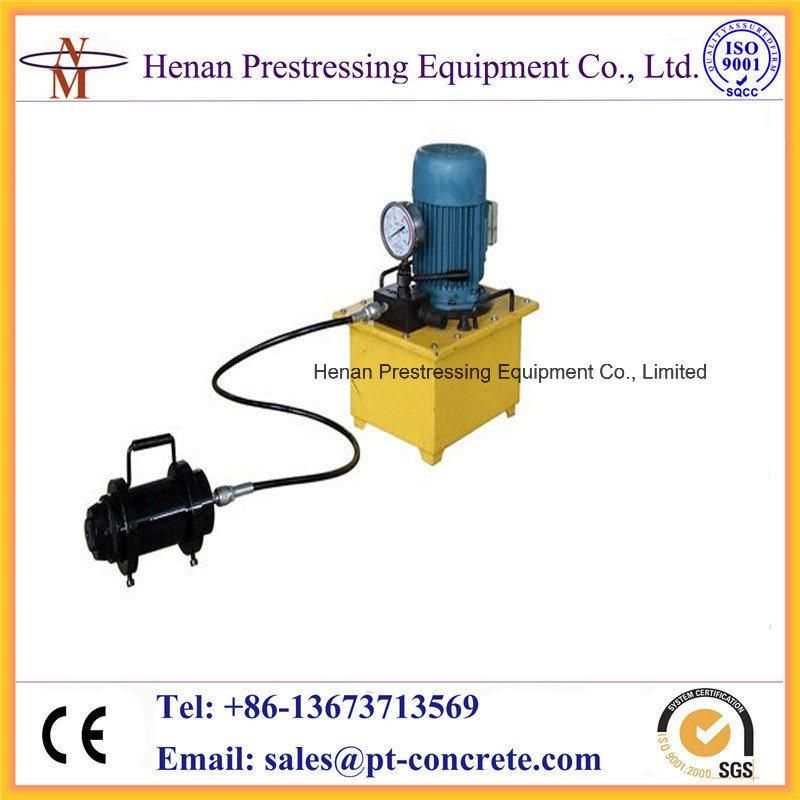

LD series of button heading machine is special equipment to make button head on steel wire, it can be applied for 5mm, 7mm, 9mm steel wire.

2. Model: CNM-LD.

3. Matched Oil Pump: YBZ2x2-50A(50Mpa), or YBZ2x1.5-63(63 Mpa) Electric Oil Pump.

4. Maximum Button Heading Force: 305kn.

5. Usage: Making button head for 5mm, 7mm, 9mm steel wire, for fixing use.

6. Applications: Used widely in precast factory, bridge, high buildings, coal mine, highway, railway, etc.




FEATURES(Call us: Mobile Phone: +8613673713569)

1). CNM-LD series button-head device is the special equipment for prestressing project.

2). It can manufacture high-strength steel wire bundle of button-head in the post-stressing pre-stress construction.

3). Button heading machine can be customized according to size of your Steel Wire or Strand Cable.

TECHNCIAL DATA (Call us: Mobile Phone: +8613673713569)


Model	LD10	LD20	LD30
Rated Oil Pressure(Mpa)	40	43	48
Steel Wire Diameter(mm)	5m	7	9
Maximum Button Heading Force(kn)	88.2	165	305
Maximum Shearing Force(kn)	172.8	323	498.5
Dimension(mm)	98x306	120x370	140x400
Weight(kg)	10	15	29.5

FAQ (Call us: Mobile Phone: +8613673713569)
1). Q: What information should provide before placing order?
We are appreciated you provide us detail information about your requirement:
1. What diameter of Steel Wire or Strand you use?
2. What is your required Maximum Pushing Force And Stroke?
3. What is your required Destination Port?

2) Q: How is the delivery lead time:
A: Goods in stock: within 3 days, Goods out of stock(7 days), Goods need to be customized(10-15 days).

3) What is your Minimum Order?
A: MOQ: 100 pieces.

4) Q: Payment Terms?
A TT, LC, Western Union, Paypal, etc.

5) Q: How to transport the goods:
A: by shipping, airflight, express.




ABOUT OUR COMPANY (Call us: Mobile Phone: +8613673713569)

Henan Prestressing Equipment Co.,Limited manufacture full complete post tension components, materials and post tension equipment for buildings and bridge construction. Kindly please call us: Mobile Phone. +8613673713569.

OUR ADVANTAGES (Call us: Mobile Phone: +8613673713569)

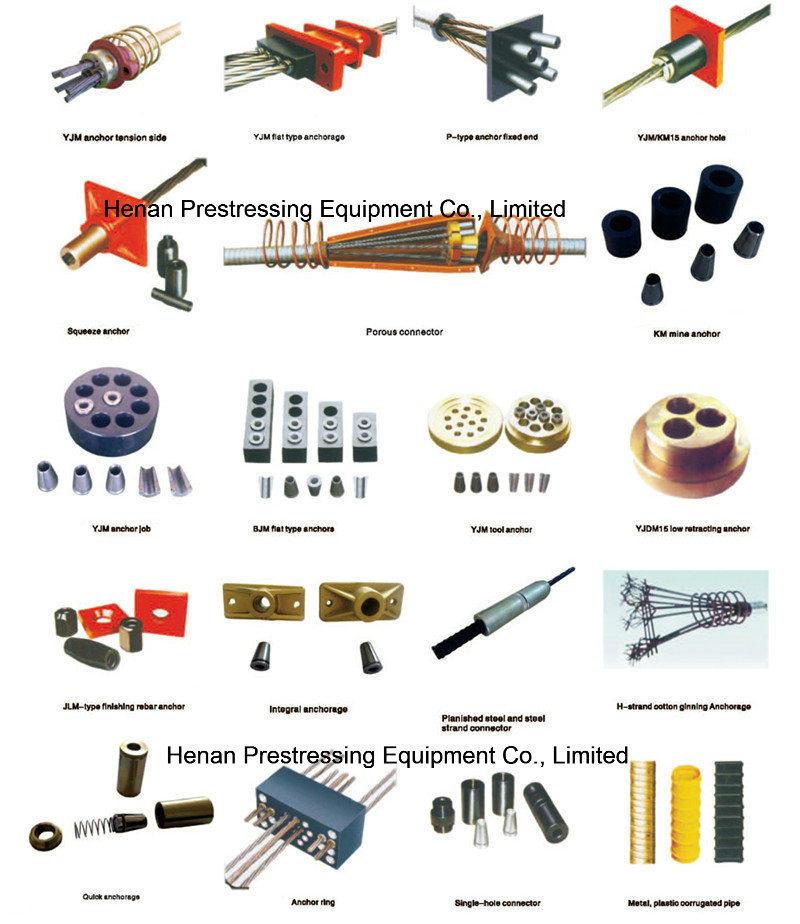

1. Anchor System: unbonded monostrand anchor system, multistrands anchor system, flat anchor system, arch type flat anchor, anchor barrel and wedges, ground anchor, rock and soil anchor, anchor wedges, anchor bearing plate, spiral reinforcing rings.

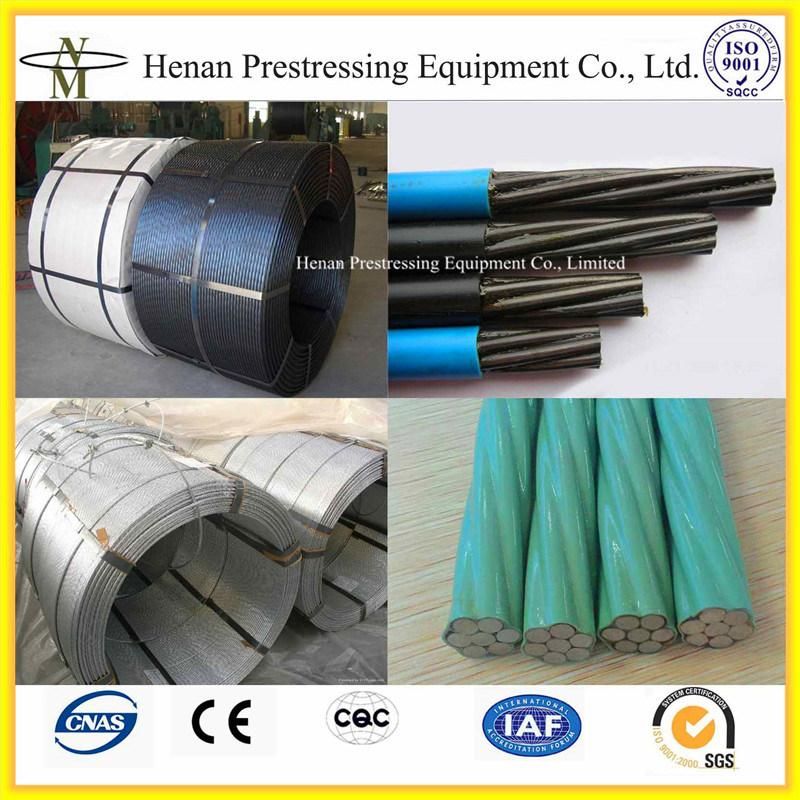

2. PC Strand System: unbonded pc strand, bonded pc strand, 12.7mm prestressed cable, 15.24mm prestressed strand, epoxy coated pc strand,galvanized pc strand, 6mm, 7mm, 9mm pc steel wire.

3. Duct System: galvanized metal duct, HDPE plastic duct, curved type galvanized metal duct, flat duct, corrugated pipe.

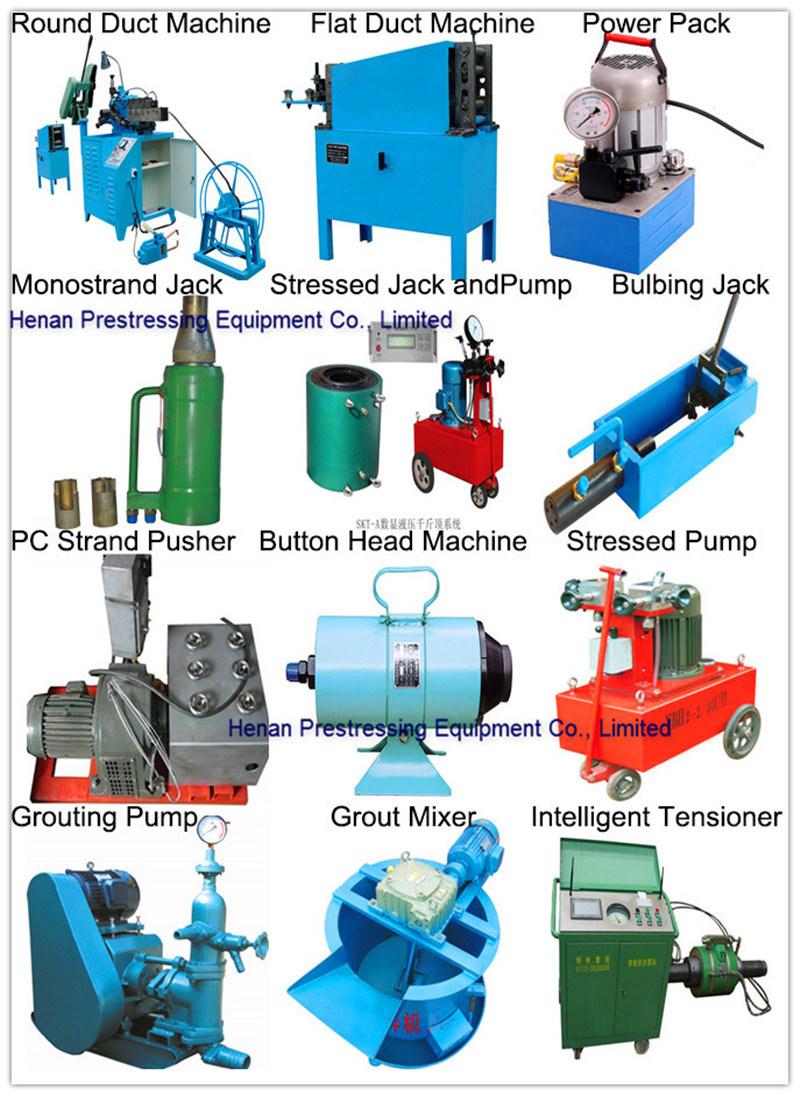

4. Heavy equipment: bridge girder launching machine, drilling rig, bridge girder transporter.

Contact with us:  call us: Mobile No: +8613673713569.
