• Model NO.：CNM-YH30
• Material：Alloy Steel, Casting Iron, Steel
• Color：Green, Blue, Electroplating Sliver, etc.
• Type：Yh30 Onion Jack(Embossing Machine)
• Certificate：SGS, BV and Is09001-2008
• Usage：Make Flower Type PC Strand
• Performance：Good
• Applied Diameter of PC Strand and Steel：15.7mm, 15.24mm, 12.7mm, 12.9mm, 9.52mm
• Applications：Bridges, High Buildings, Railway and Highway, Coal
• Mating Oil Pump：Ybz2X2-50A, Ybz1.5X2-63 Electric Oil Pump
• Delivery Time：Have Stock
• Transport Package：Ply Wooden Case or Carton, or Container
• Specification：SGS, ISO9001-2008, BV
• Trademark：CNM
• Origin：Hennan Province
• HS Code：731220000
• Production Capacity：650 Sets Per Month

Basic Info.

Model NO. CNM-YH30 Material Alloy Steel, Casting Iron, Steel Color Green, Blue, Electroplating Sliver, etc. Type Yh30 Onion Jack(Embossing Machine) Certificate SGS, BV and Is09001-2008 Usage Make Flower Type PC Strand Performance Good Applied Diameter of PC Strand and Steel 15.7mm, 15.24mm, 12.7mm, 12.9mm, 9.52mm Applications Bridges, High Buildings, Railway and Highway, Coal Mating Oil Pump Ybz2X2-50A, Ybz1.5X2-63 Electric Oil Pump Delivery Time Have Stock Transport Package Ply Wooden Case or Carton, or Container Specification SGS, ISO9001-2008, BV Trademark CNM Origin Hennan Province HS Code 731220000 Production Capacity 650 Sets Per Month

Product Description

Building Construction of Cnm Yh30 Post Tensioning Onion Jack

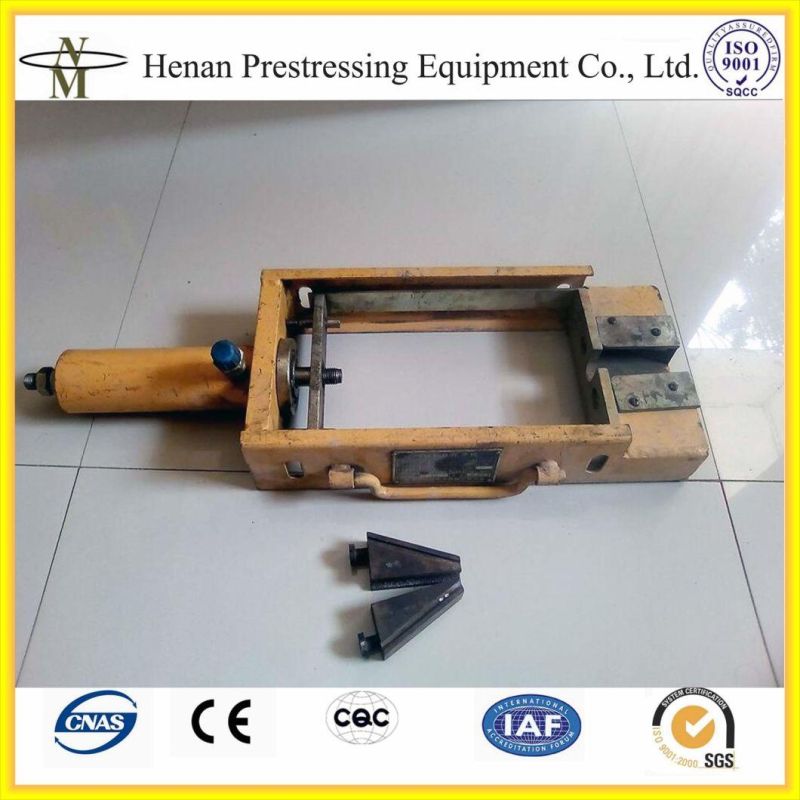

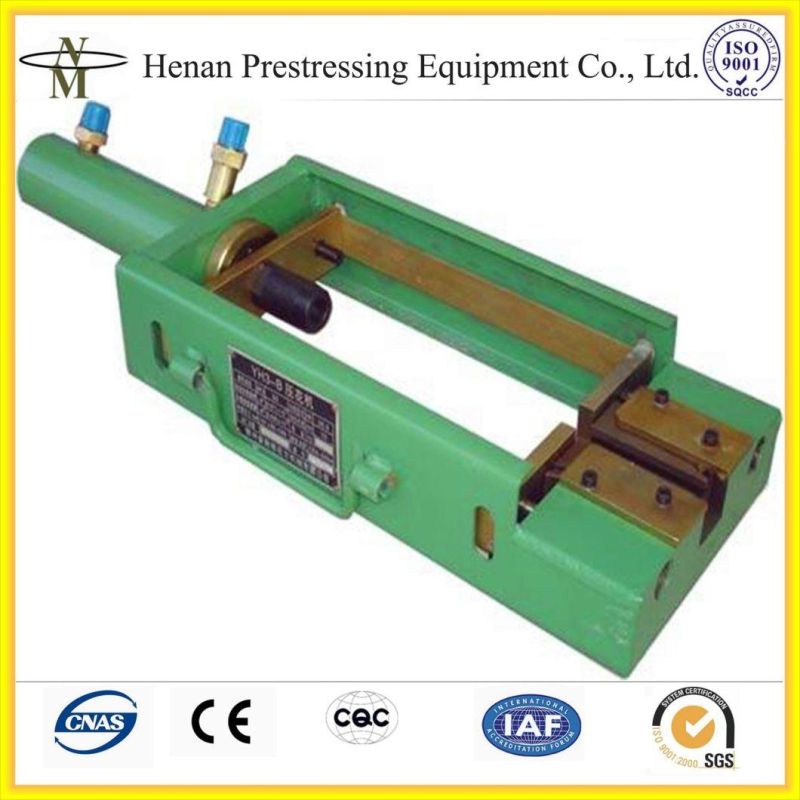

YH30 post tension onion jack(bulb jack) for strand

1. Model:  YH30

2. Usage: To bend pc strands make it become flower type(dead end anhcor) for fixing.

3. Matched oil pump: it is work with our YBZ2X2-50A(50Mpa) or YBZ1.5x2-63(53Mpa) electric oil pump.

4. Suitable PC Strands Diameter: 15.24mm, 12.7mm.

YH30 Embossing Machine Technical Data:


Model	YH30
Nominal Force(KN)	30
Stroke(mm)	100
Rated Oil Pressure(Mpa)	50
Cylinder Tension Area(mm²)	615
Weight(kg)	15
Dimensions(mm)	560x155x215

 Features

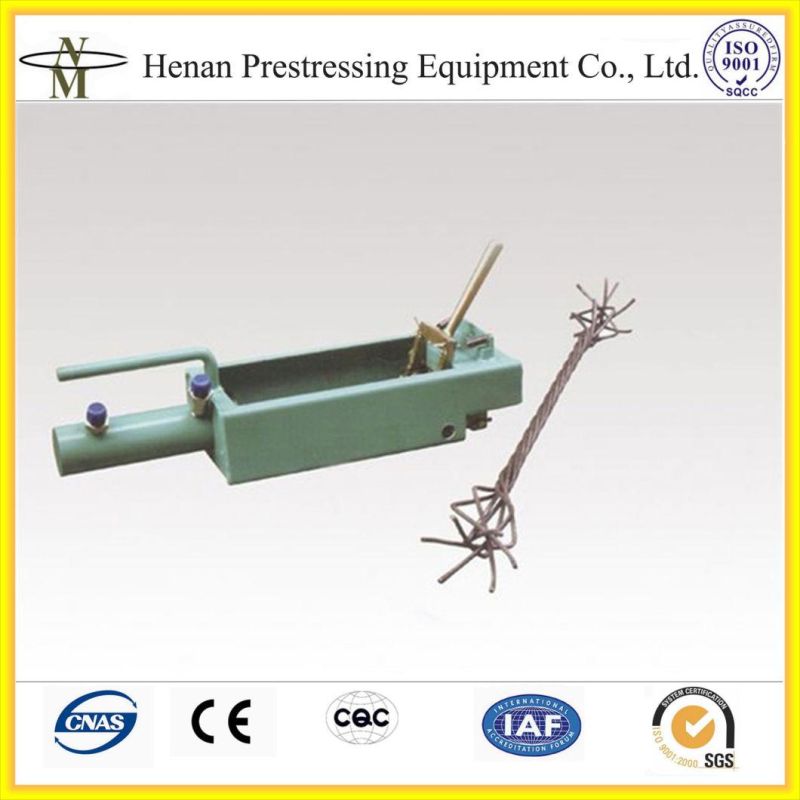

1). YH30 embossing machine is the special extruding equipment of making the fixed-end anchorage, mainly used for extruding  the fixed-end of Prestressing strands into pear-shaped scattering shape.

2). After replaced the wedge, it can be used for the other specification of steel strands.

3). YH30 type embossing machine is small in size, light, and easy to operate.


6. Applications:  It has been widely adopted by modern construction, especially used in pre-tension or post-tension for concrete constructions as building materials, such as bridge construction, railway and highway construction,  underground structures,buildings and channel construction, ect.


Our Advantages

We are PT Manufacturer from China, our full products range for post tensioning and pre-strssing construction:

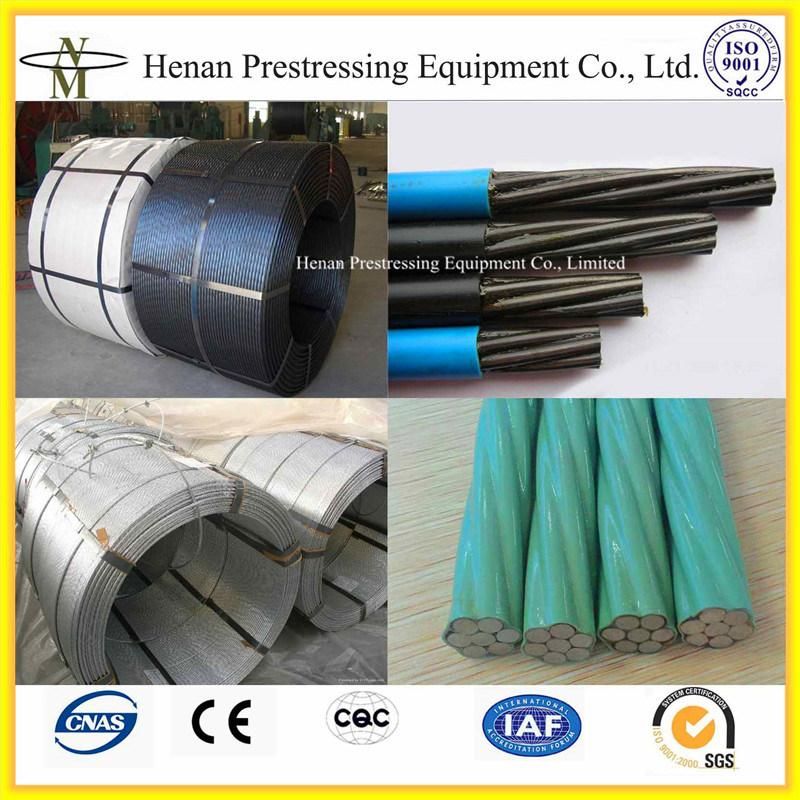

1). Materials: pc strand, YJM anchor system(monostrand anchor, multistrands anchor), ducts(metal ducts, HDPE plastic ducts).

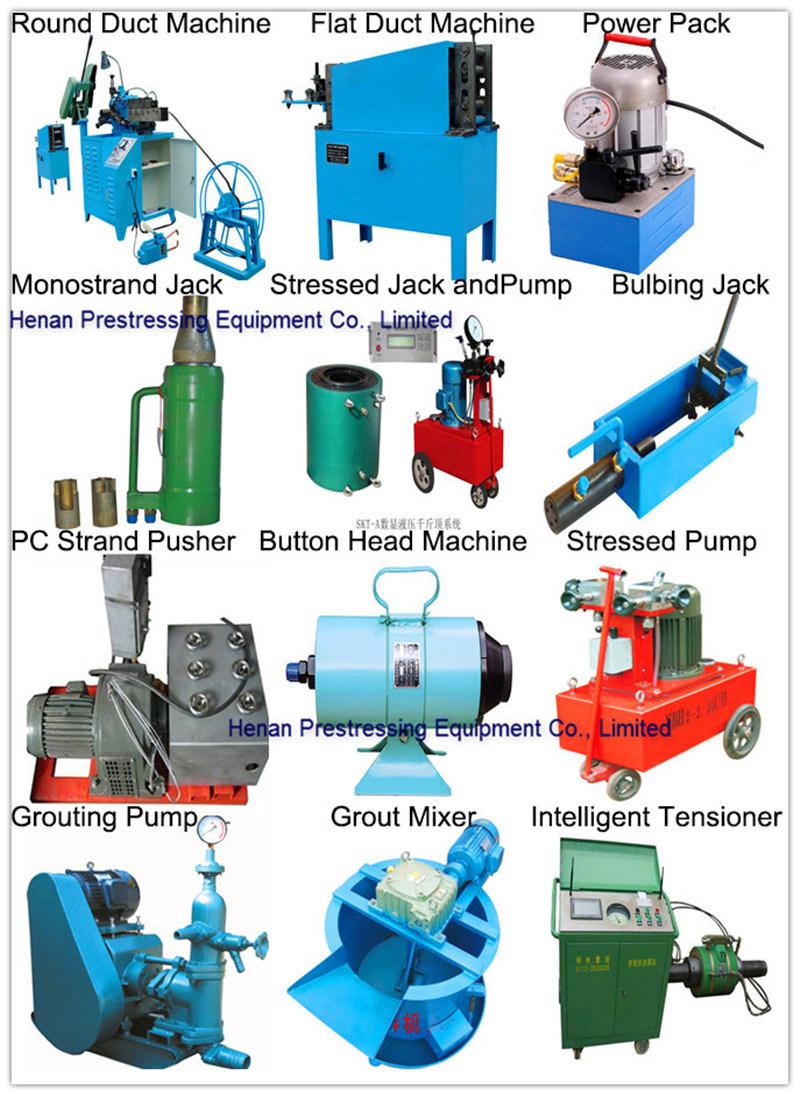

2). Equipment: Hydraulic Jack(QYC mono jack, YDC multi-strand tensioning jack), electric oil pump, YH30 embossing machie(onion jack), GYJ500 extrusion machine, ZG130 ducts making machine, grouting pump and mixer for post tensioning).

3). Bridge Equipment: Bridge Crane, Bridge Girder Launching Machine, Bridge Girder Transporting Vehicle, etc.

FAQ

1). Q: What information should provide before placing order?

We are appreciated you provide us detail information about your requirement:

1. What diameter of Strand you use? Do you also need Electric Oil Pump(power pack) to work with it?

2. How many quantity for order?

3. What is your required Destination Port?

2) Q: How is the delivery lead time:
A: Goods in stock: within 3 days, Goods out of stock(7 days), Goods need to be customized(10-15 days).

3) What is your Minimum Order?
A: MOQ: 100 pieces.

4) Q: Payment Terms?
A TT, LC, Western Union, Paypal, etc.

5) Q: How to transport the goods:
A: by shipping, airflight, express.

About Our Company:

     Henan Prestressing Equipment Co., Ltd. which is located in beautiful city- Zhengzhou City, Henan Province, China. We are a professional PT Manufacturer which is engaged in the production of prestressed anchorages, wedges, anchorage coupler, pc strand, ducts and stressing equipment for post tenson and prestressing.

     We have more than 500 worker, 35 engineers, and 15 production workshops which equiped many advanced production equipment and machine. Our main products include:  PC Strand, Ducts, Steel Strip, YJM Multi-strand Anchor System:  YJM Mono-strand Anchor System, BM Flat Anchor System, YDC Hydraulic Jack(Multi-strands Tensioning), YB Electric Oil Pump, YH30 Embossing Machine, GYJ500A Extrusion Machine, ZG Metal Ducts Making Machine, Grout Pump And Mixer, etc.

     Our factory is established since from 1993 year(more than 23 years), we have helped the goverment and contractors ompleted many famous projects at home and abroad. Now we have exoprted our materials and equiupment to more than 35 countries. Hope we can cooperate with you. We will provide you best service, good quality and best price.
