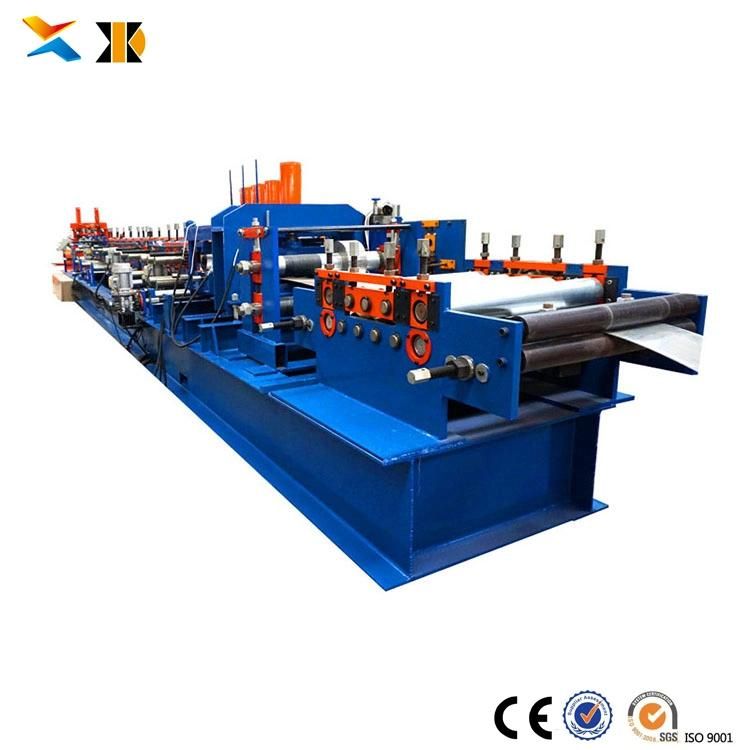

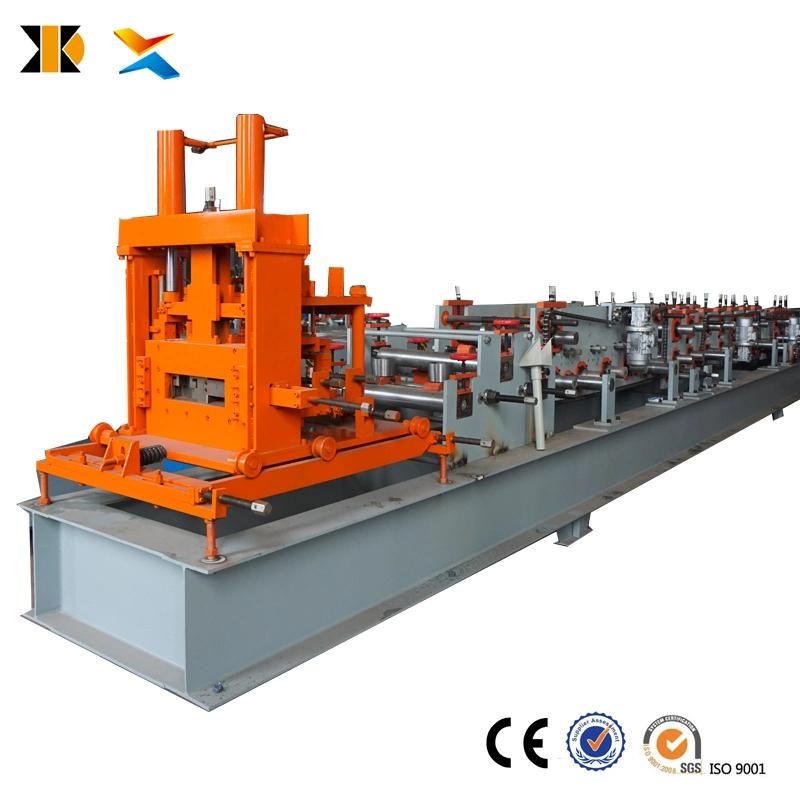

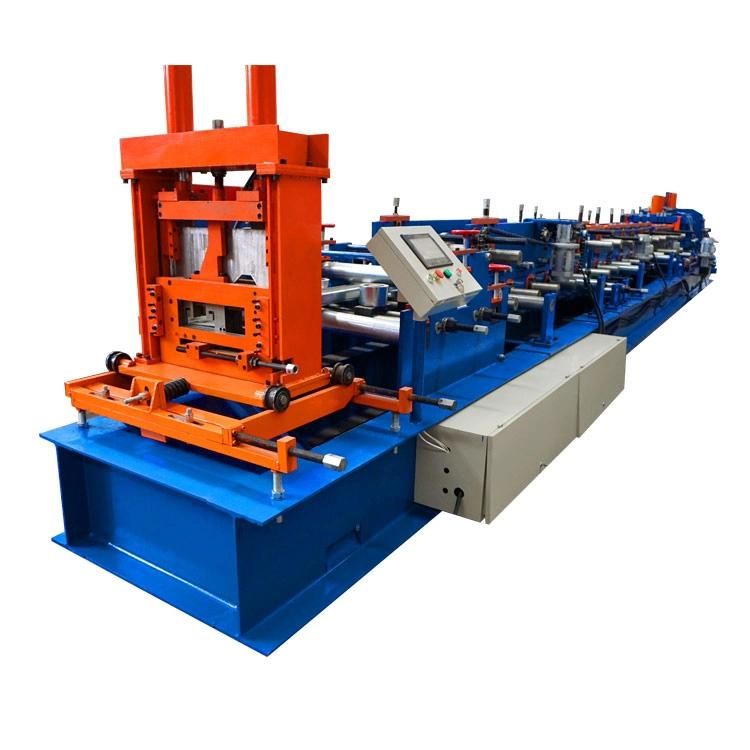

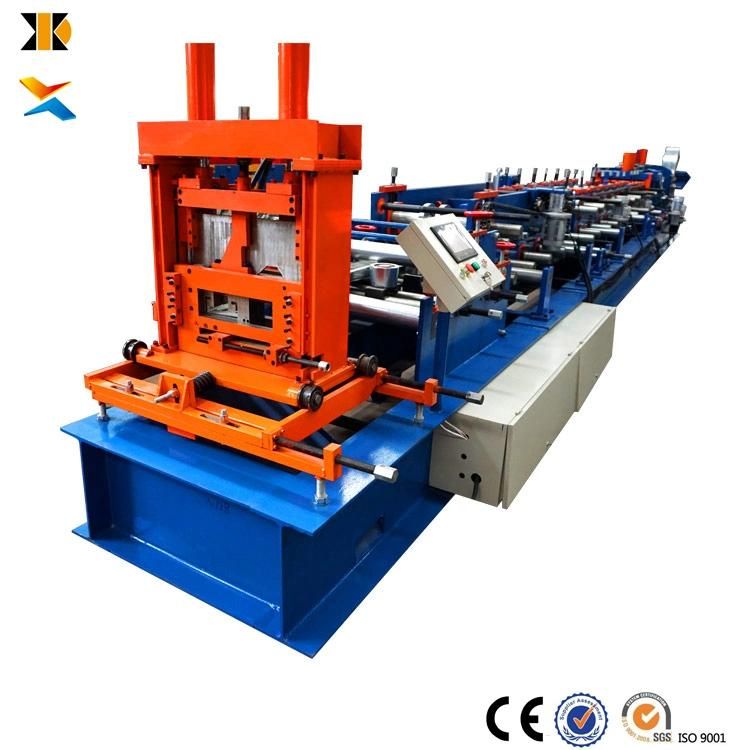

Steel Purlin Small Lipped Channel Shaped Purlin Machine
HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.- Warranty：1 Year
- Certification：CE, ISO9001
- Customized：Customized
- Condition：New
- Control Type：PLC Computer Control
- Automatic Grade：Automatic
Base Info
- Model NO.：c purlin machine
- Capicity of Decoiler：5000kgs
- Main Motor Type：Three-Phase Asynchronous
- Motor Power：22kw
- Thickness of Raw Material：1.0-3.0mm
- Processing Precision ：Withint1.0mm
- Diameter of Main Shaft：85mm
- Roller Stations：15
- Transport Package：Main Machine with Film by Container Shipping.
- Specification：size: about 10.8*1.65*1.45m
- Trademark：KXD
- Origin：China
- HS Code：8455221000
- Production Capacity：3000 Sets,Year
Description
Main parameters of Building material steel metal full automatic C and Z purlin roll forming machine1 Suitable to process steel 2 Width of the feeding material Max. 500mm 3 Roller station 15 rows 4 Thickness of feeding material 1.5-3.0mm 5 Productivity 15-25m/min 6 Rollers' material 45# steel 7 Diameter of shaft 85mm 8 Weight About 10.5T 9 Size 10500*1500*1400mm 10 Voltage 380V 50HZ 3phases 11 Wall thickness of main machine 20mm steel plate 12 Main forming machine body 300 mm H steel 13 Main motor power 22 kw
