• Model NO.：50--350
• Condition：New
• Control Type：Electric
• Automatic Grade：Automatic
• Product Name：C Z Purlin Steel Frame Roll Forming Machine
• Coil Material Thickness：1--3mm
• Processing Material：Galvanized Steel
• Roller Material：Cr12MOV
• Forming Station：18 Stations
• Forming Speed：7-10m,Min
• Cutting Type：Hydraulic Post Cutting
• Total Power：22kw
• Power Supply：380V 50Hz 3 Phases
• Total Weight：10t
• Transport Package：Plastic Film
• Specification：80--300
• Trademark：Nexus Machinery
• Origin：Cangzhou
• Production Capacity：10

Basic Info.

Model NO. 50--350 Condition New Control Type Electric Automatic Grade Automatic Product Name C Z Purlin Steel Frame Roll Forming Machine Coil Material Thickness 1--3mm Processing Material Galvanized Steel Roller Material Cr12MOV Forming Station 18 Stations Forming Speed 7-10m/Min Cutting Type Hydraulic Post Cutting Total Power 22kw Power Supply 380V 50Hz 3 Phases Total Weight 10t Transport Package Plastic Film Specification 80--300 Trademark Nexus Machinery Origin Cangzhou Production Capacity 10

Product Description

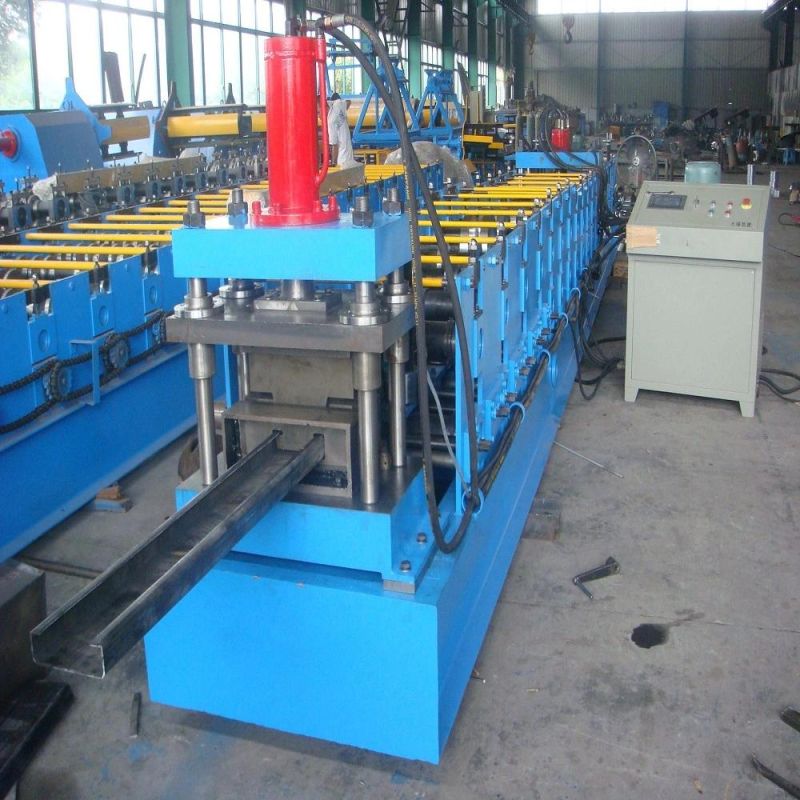

C Z Purlin Steel Frame Roll Forming Machine

Equipment components of C Z Purlin Steel Frame Roll Forming Machine:
Man-made uncoiler, Roll forming machine, computer control system, hydraulic control system, cutting

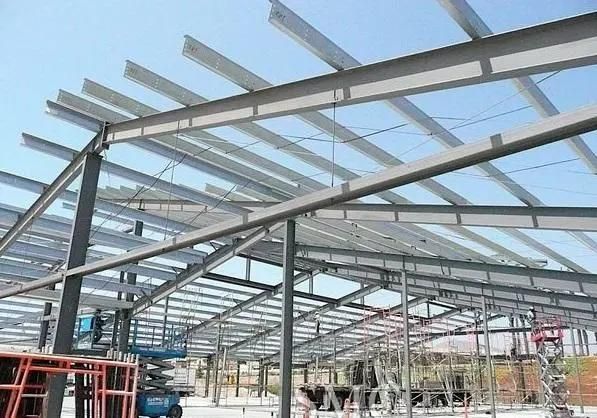

Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.



Echnical parameters:

Configurations	Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device,Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table.
Control System	PLC Inverter Encoder Touch Screen
Main Frame	400mm H-Beam
Total Power	22 kw
Power Supply	380V, 3-Phase,50Hz
Forming Speed	12-24m/min

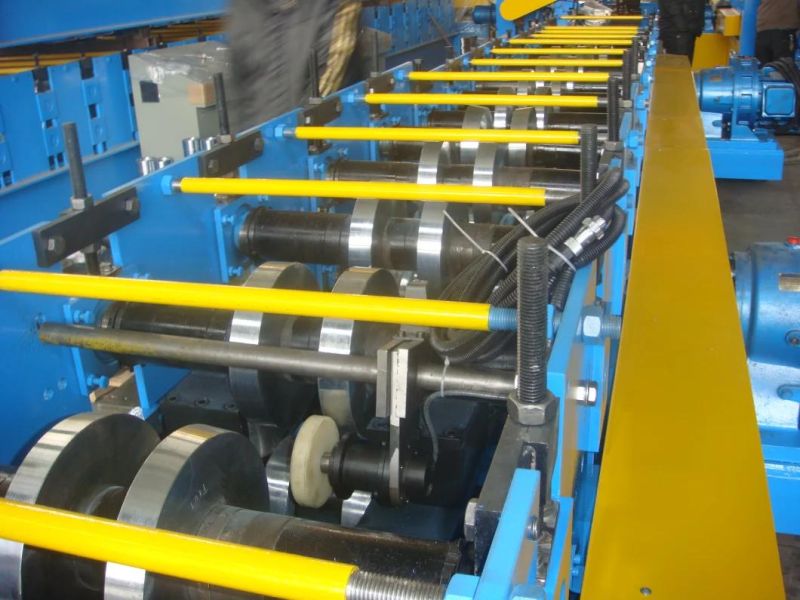

Roll Station	18 stands
Decoiler capacity	3.5 tons
Roller Diameter	80mm

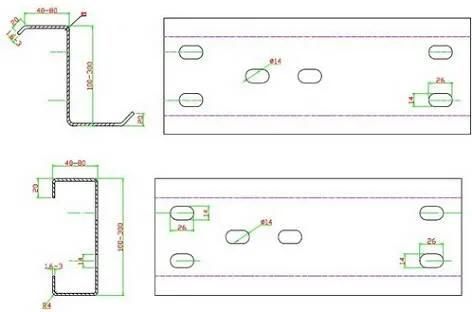

Effective Width	80-300mm
Feeding Thickness	1.5-3.0mm
Backboard Thickness	20mm
Cutter Standard	GCr12
Roller Standard	Gcr15#
Overall Size	About 8500×1000×1400mm
Total Weight	About 10T
Custom	According to customer's requirements

ABOUT US:

Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.

FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made without 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
Exhibitions Photo:
