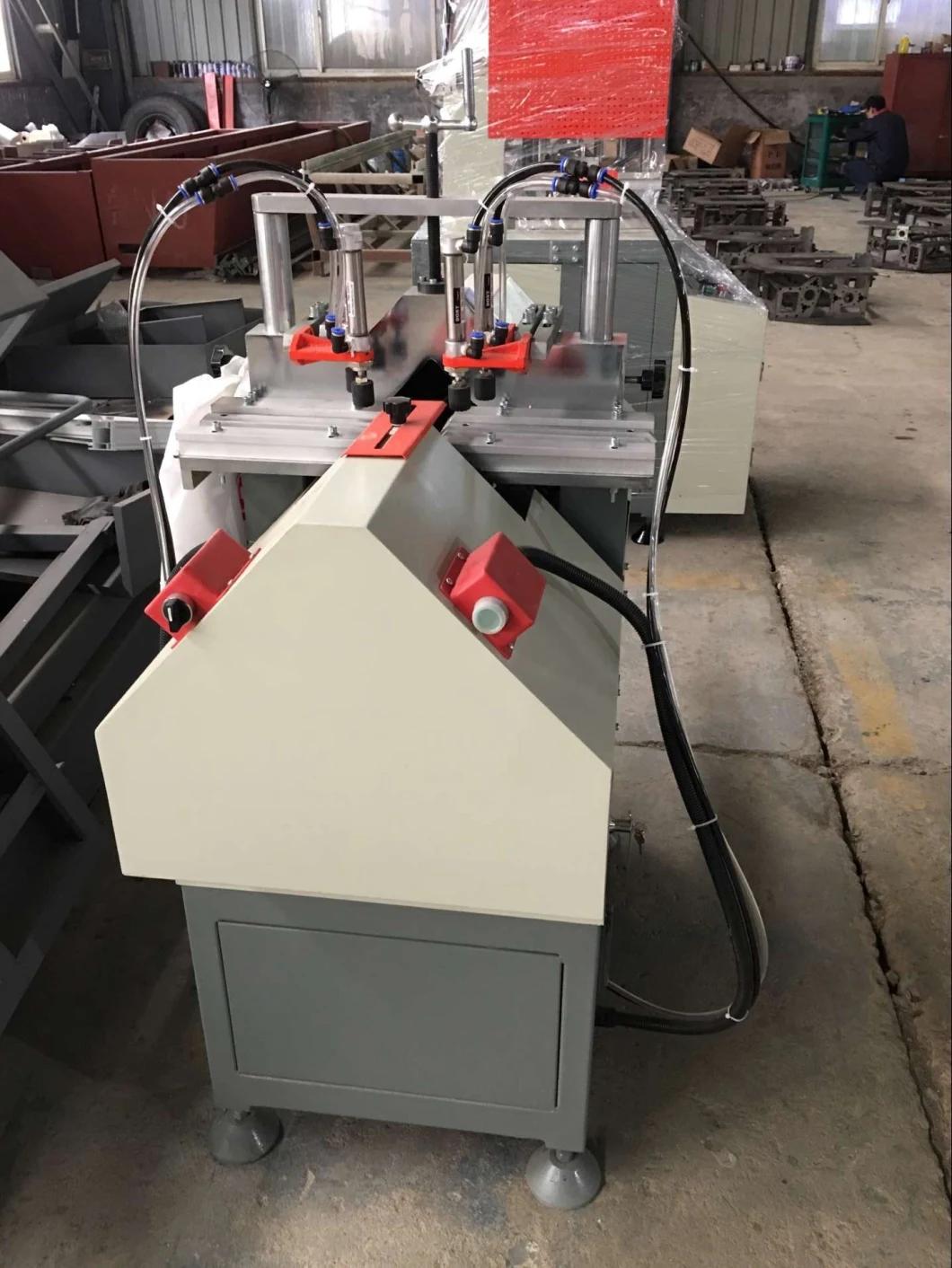

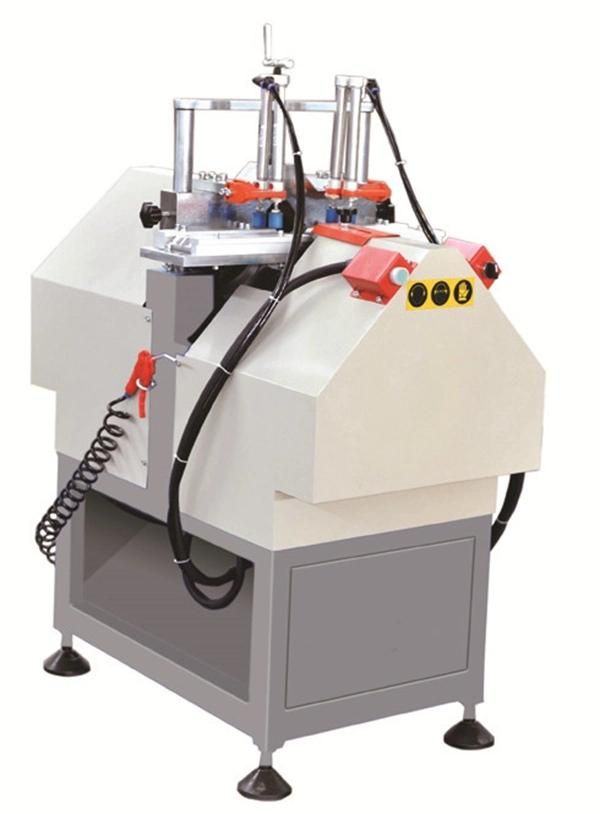

UPVC Plastic Window Door Machine Glazing Bead Cutting Saw
Shandong Truetec Machinery Co., Ltd.- Condition：New
- Certification：CE
- Automatic Grade：Semi-Automatic
- CNC or Not：not CNC
- Voltage：380V
- Input Power：1.5kw
Base Info
- Model NO.：CSJBW-1800
- Rotary Speed：2800r,Min
- Air Consumption：20L,Min
- Cutting Length：300-1800mm
- Cutting Width：100mm
- Cutting Height：33mm
- Machine Dimension：1350*500*1350mm
- Weight：250kg
- Usage：UPVC Window Glazing Bead Cutting
- Transport Package：Wooden
- Specification：CLJBW-1800
- Trademark：Truetec
- Origin：China
- HS Code：846150
- Production Capacity：500sets,Year
Description
Basic Info.
Model NO. CSJBW-1800 Rotary Speed 2800r/Min Air Consumption 20L/Min Cutting Length 300-1800mm Cutting Width 100mm Cutting Height 33mm Machine Dimension 1350*500*1350mm Weight 250kg Usage UPVC Window Glazing Bead Cutting Transport Package Wooden Specification CLJBW-1800 Trademark Truetec Origin China HS Code 846150 Production Capacity 500sets/YearProduct Description
UPVC Plastic Window Door Machine Glazing Bead Cutting Saw
Machine feature:

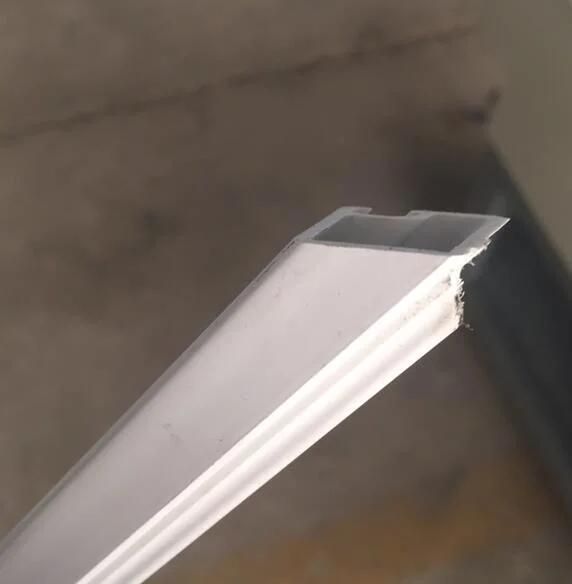

- Automatic 45 degree cutting u-PVC glazing bead profile.
-Two glazing beads cutting in one time.
-4 pieces saw blade ensure precise cutting, double cutting one each end to mill the hook foot.
-Vertical clamping device and special designed cutting jig ensure stable positioning.
-Two hand safety operation
Parameter:
| Model Number | CSJBW-1800 |
| Air Pressure | 0.5~0.8(MPa) |
| Air Consumption | 20(L/min) |
| Input Voltage | 380V 50HZ or as customer specification |
| Input Power | 1.5KW |
| Cutting Height | 33mm |
| Cutting Width | 100mm |
| Cutting Length | 350-1800mm |
| Overall Dimension | 1350*500*1350mm |
| Weight | 250mm |
1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

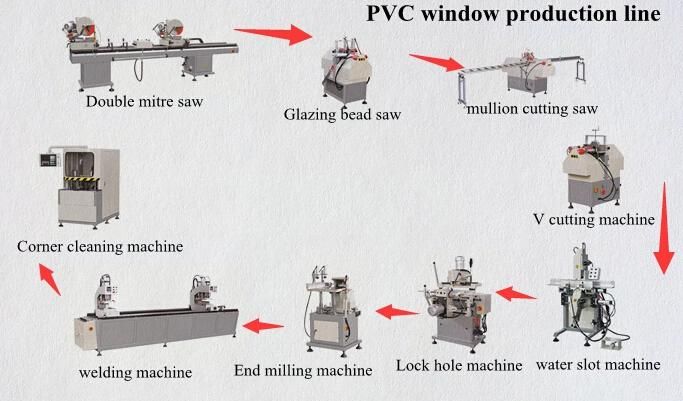

4. If I make PVC window and door, how many basic machines do i need?
